/Products/Electric Motors/3 Phase/WEG/W22 General Purpose, TEFC/Foot Mount, C-Face/15018ET3G445TC-W22 WEG 150HP Severe Duty Electric Motor, 1800RPM

Product ID: 15018ET3G445TC-W22

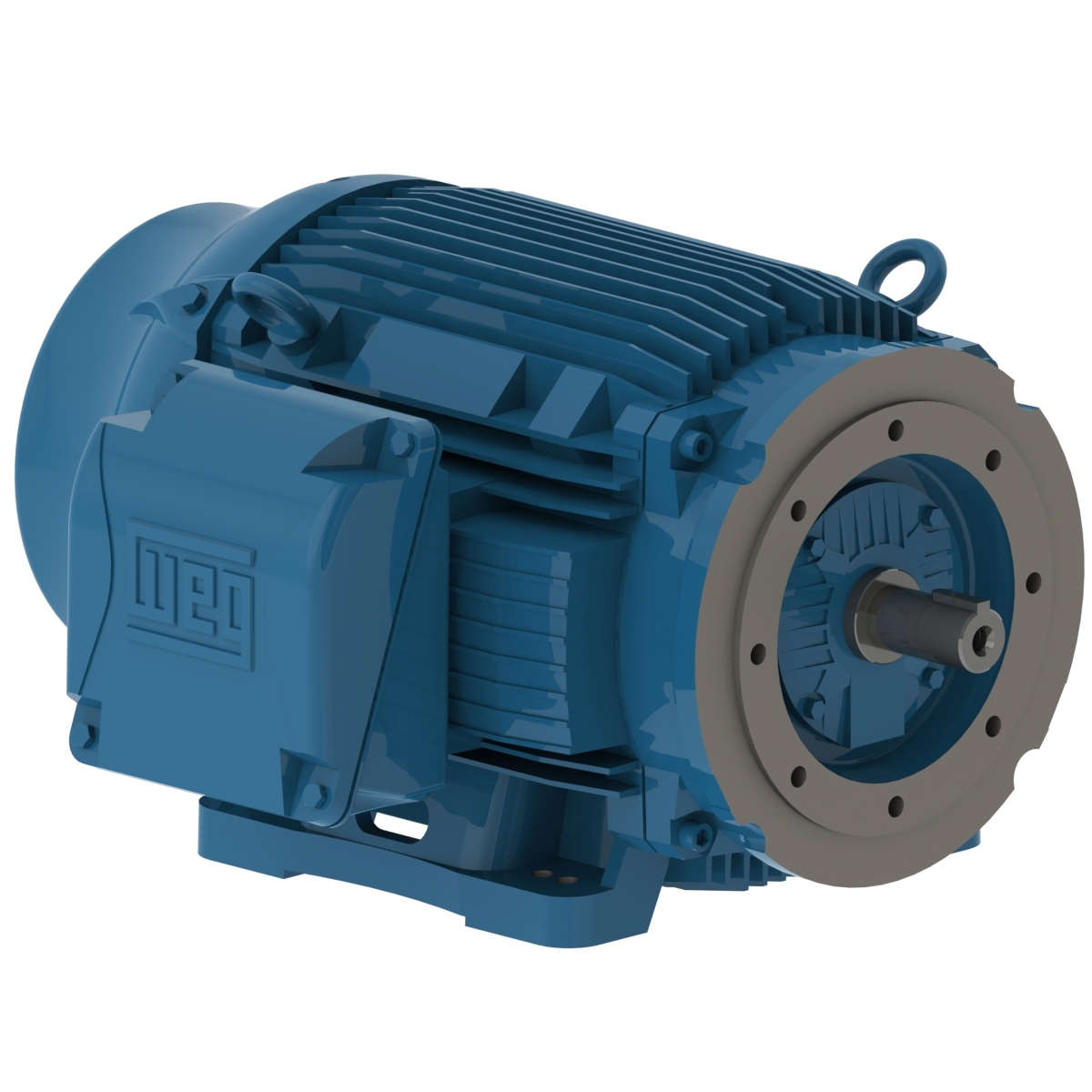

15018ET3G445TC-W22 WEG 150HP Severe Duty Electric Motor, 1800RPM

MFG: WEG Electric Corporation
MFG Part Number: 15018ET3G445TC-W22

Selected accessories will also be added to cart

$13,518.75 / Each

Quantity:

IC411 - TEFC, IP55, 444TC/445TC Frame, 460VAC 60Hz 3 Phase, 12275868, NEMA Premium Efficiency, Foot Mounted, C-Face, Cast Iron Frame, 3-3/8" Keyed Shaft

Details
Purchase Components

Electric Motors

Frame	444/5TC
Output	150 HP (110 kW)
Number of Poles	4
Frequency	60 Hz
Rated speed	1780 rpm
Slip	1.11 %
Rated voltage	460 V
Rated current	170 A
L. R. Amperes	1122 A
LRC	6.6x(Code G)
No load current	58.0 A
Rated torque	443 ft.lb
Locked rotor torque	200 %
Breakdown torque	250 %
Locked rotor time	48s (cold) 27s (hot)

Moment of inertia (J)	66.7 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.15
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	73.0 dB(A)
Approx. weight³	1890 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
95.4	95.8	95.8

Power factor

50%	75%	100%
0.74	0.82	0.85

Frame	444/5TC
Output	125 HP
Number of Poles	4
Frequency	50 Hz
Rated speed	1480 rpm
Slip	1.33 %
Rated voltage	380 V
Rated current	170 A
L. R. Amperes	1190 A
LRC	7.0x(Code G)
No load current	58.0 A
Rated torque	444 ft.lb
Locked rotor torque	190 %
Breakdown torque	240 %
Locked rotor time	32s (cold) 18s (hot)

Moment of inertia (J)	66.7 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	69.0 dB(A)
Approx. weight³	1890 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
95.1	95.5	95.3

Power factor

50%	75%	100%
0.73	0.83	0.86

Frame	444/5TC
Output	125 HP
Number of Poles	4
Frequency	50 Hz
Rated speed	1480 rpm
Slip	1.33 %
Rated voltage	400 V
Rated current	163 A
L. R. Amperes	1127 A
LRC	6.9x(Code G)
No load current	61.2 A
Rated torque	444 ft.lb
Locked rotor torque	220 %
Breakdown torque	260 %
Locked rotor time	32s (cold) 18s (hot)

Moment of inertia (J)	66.7 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	69.0 dB(A)
Approx. weight³	1890 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
95.1	95.5	95.3

Power factor

50%	75%	100%
0.70	0.81	0.85

Frame	444/5TC
Output	125 HP
Number of Poles	4
Frequency	50 Hz
Rated speed	1480 rpm
Slip	1.33 %
Rated voltage	415 V
Rated current	159 A
L. R. Amperes	1192 A
LRC	7.5x(Code H)
No load current	64.0 A
Rated torque	444 ft.lb
Locked rotor torque	229 %
Breakdown torque	290 %
Locked rotor time	32s (cold) 18s (hot)

Moment of inertia (J)	66.7 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	69.0 dB(A)
Approx. weight³	1890 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
94.8	95.5	95.5

Power factor

50%	75%	100%
0.68	0.79	0.84

Frame	444/5TC
Output	150 HP (110 kW)
Number of Poles	4
Frequency	50 Hz
Rated speed	1475 rpm
Slip	1.67 %
Rated voltage	380 V
Rated current	205 A
L. R. Amperes	1189 A
LRC	5.8x(Code F)
No load current	58.0 A
Rated torque	534 ft.lb
Locked rotor torque	160 %
Breakdown torque	200 %
Locked rotor time	32s (cold) 18s (hot)

Moment of inertia (J)	66.7 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	105 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	69.0 dB(A)
Approx. weight³	1890 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
95.4	95.4	95.0

Power factor

50%	75%	100%
0.79	0.85	0.86

Frame	444/5TC
Output	150 HP (110 kW)
Number of Poles	4
Frequency	50 Hz
Rated speed	1475 rpm
Slip	1.67 %
Rated voltage	400 V
Rated current	194 A
L. R. Amperes	1125 A
LRC	5.8x(Code F)
No load current	61.2 A
Rated torque	534 ft.lb
Locked rotor torque	180 %
Breakdown torque	220 %
Locked rotor time	32s (cold) 18s (hot)

Moment of inertia (J)	66.7 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	105 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	69.0 dB(A)
Approx. weight³	1890 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
95.4	95.4	95.0

Power factor

50%	75%	100%
0.76	0.83	0.86

Frame	444/5TC
Output	150 HP (110 kW)
Number of Poles	4
Frequency	50 Hz
Rated speed	1480 rpm
Slip	1.33 %
Rated voltage	415 V
Rated current	189 A
L. R. Amperes	1191 A
LRC	6.3x(Code G)
No load current	64.0 A
Rated torque	532 ft.lb
Locked rotor torque	190 %
Breakdown torque	240 %
Locked rotor time	32s (cold) 18s (hot)

Moment of inertia (J)	66.7 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	105 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	69.0 dB(A)
Approx. weight³	1890 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
95.4	95.4	95.4

Power factor

50%	75%	100%
0.74	0.82	0.85

Features

Frame Material	Cast Iron
Impregnation Method	Constant Resin Flow
Regreasing System	At Drive end and Non-drive end
Main terminal box hole	2xNPT 3"
Terminal Block	Without
Shaft Locking Device	Without
Drain	Rubber, automatic
Shaft Material	SAE 4140 Carbon Steel
Painting	RAL 5009 203A (ISO 12944 - C2)
Grounding Lugs	Double
Fan Cover material	Cast Iron
Tropicalized Painting	Without
Fan material	Plastic
Bearing cap	Yes- Bearing Cap
Balancing Method	1/2 Key
Drip Cover	Without
Overload protector (phenolic)	Without overload protector
Connection Cables Quantity	12
