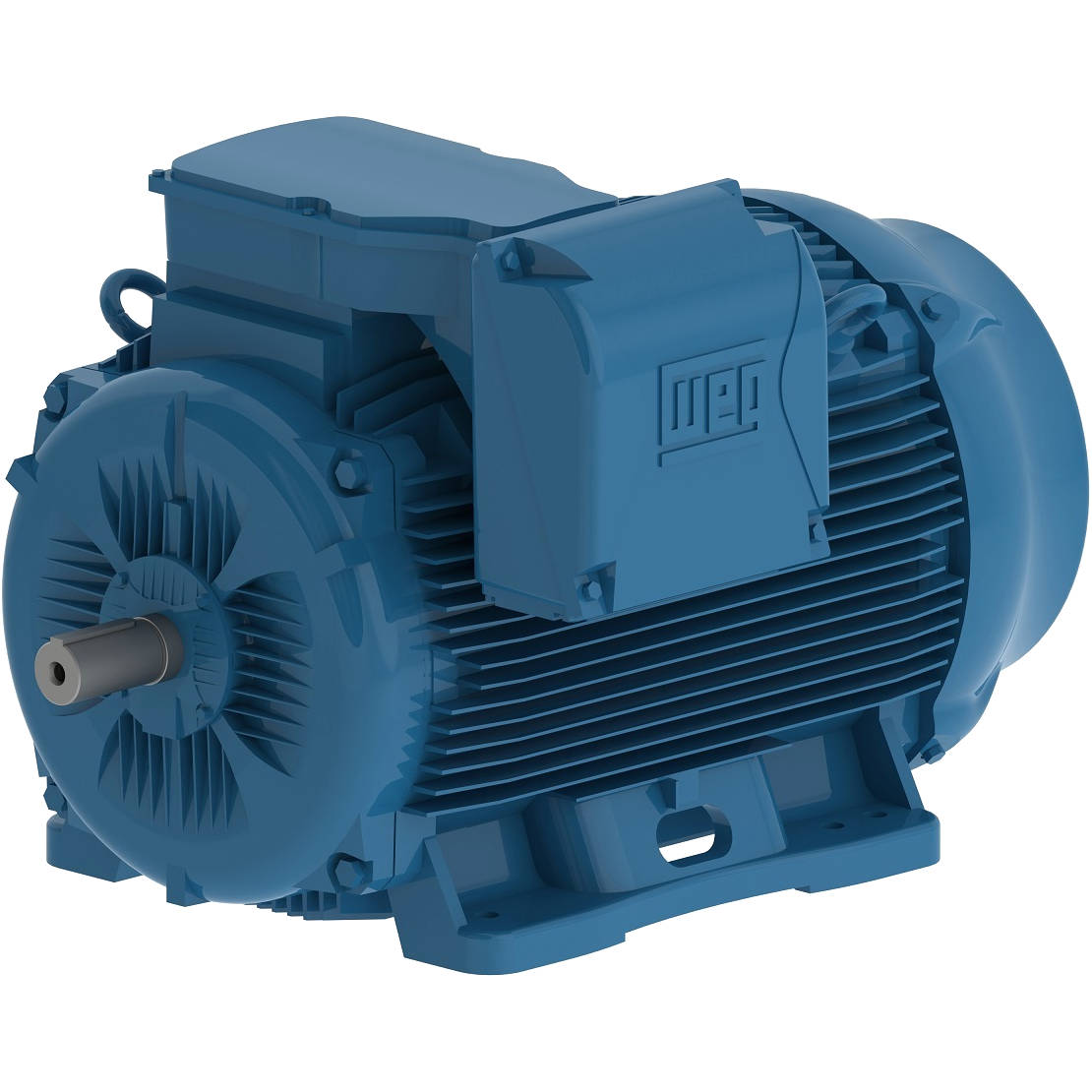

Motor/Control Division

Frame	315S/M
Output	200 HP (150 kW)
Number of Poles	4
Frequency	60 Hz
Rated speed	1790 rpm
Slip	0.56 %
Rated voltage	460 V
Rated current	228 A
L. R. Amperes	1778 A
LRC	7.8
No load current	70.0 A
Rated torque	587 ft.lb
Locked rotor torque	280 %
Breakdown torque	280 %
Locked rotor time	77s (cold) 43s (hot)

Moment of inertia (J)	105 sq.ft.lb
Design	N
Insulation Class	F
Service factor	1.25
Temperature rise	80 K
Duty Cycle	S1
Starting Method	Direct On Line
Ambient temperature	-20Â°C to +40Â°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	B3L(E)
RotationÂ¹	Both (CW and CCW)
Noise levelÂ²	75.0 dB(A)
Approx. weightÂ³	2714 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
94.5	95.8	96.2

Power factor

50%	75%	100%
0.72	0.82	0.86

Frame	315S/M
Output	200 HP (150 kW)
Number of Poles	4
Frequency	50 Hz
Rated speed	1485 rpm
Slip	1.00 %
Rated voltage	380 V
Rated current	273 A
L. R. Amperes	1911 A
LRC	7.0
No load current	70.0 A
Rated torque	707 ft.lb
Locked rotor torque	220 %
Breakdown torque	220 %
Locked rotor time	66s (cold) 37s (hot)

Moment of inertia (J)	105 sq.ft.lb
Design	N
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	S1
Starting Method	Direct On Line
Ambient temperature	-20Â°C to +40Â°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	B3L(E)
RotationÂ¹	Both (CW and CCW)
Noise levelÂ²	71.0 dB(A)
Approx. weightÂ³	2714 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
95.8	96.1	96.1

Power factor

50%	75%	100%
0.77	0.85	0.87

Frame	315S/M
Output	200 HP (150 kW)
Number of Poles	4
Frequency	50 Hz
Rated speed	1490 rpm
Slip	0.67 %
Rated voltage	400 V
Rated current	261 A
L. R. Amperes	1827 A
LRC	7.0
No load current	74.0 A
Rated torque	705 ft.lb
Locked rotor torque	240 %
Breakdown torque	250 %
Locked rotor time	73s (cold) 41s (hot)

Moment of inertia (J)	105 sq.ft.lb
Design	N
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	S1
Starting Method	Direct On Line
Ambient temperature	-20Â°C to +40Â°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	B3L(E)
RotationÂ¹	Both (CW and CCW)
Noise levelÂ²	71.0 dB(A)
Approx. weightÂ³	2714 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
95.6	96.2	96.3

Power factor

50%	75%	100%
0.74	0.83	0.86

Frame	315S/M
Output	200 HP (150 kW)
Number of Poles	4
Frequency	50 Hz
Rated speed	1490 rpm
Slip	0.67 %
Rated voltage	415 V
Rated current	255 A
L. R. Amperes	1785 A
LRC	7.0
No load current	78.0 A
Rated torque	705 ft.lb
Locked rotor torque	260 %
Breakdown torque	280 %
Locked rotor time	79s (cold) 44s (hot)

Moment of inertia (J)	105 sq.ft.lb
Design	N
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	S1
Starting Method	Direct On Line
Ambient temperature	-20Â°C to +40Â°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	B3L(E)
RotationÂ¹	Both (CW and CCW)
Noise levelÂ²	71.0 dB(A)
Approx. weightÂ³	2714 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
95.5	96.2	96.3

Power factor

50%	75%	100%
0.72	0.81	0.85

Features

Frame Material	Cast Iron
Impregnation Method	Constant Resin Flow
Regreasing System	At Drive end and Non-drive end
Main terminal box hole	2xM63x1,5
Terminal Block	BMC - 6 pins
Shaft Locking Device	Without
Drain	Rubber, automatic
Shaft Material	SAE 1040/45 Carbon Steel
Painting	RAL 5009 203A (ISO 12944 - C2)
Grounding Lugs	Double
Fan Cover material	Cast Iron
Tropicalized Painting	Without
Fan material	Plastic
Bearing cap	Yes- Bearing Cap
Balancing Method	1/2 Key
Drip Cover	Without
Overload protector (phenolic)	Without overload protector
