/Products/Electric Motors/3 Phase Stainless Steel/Leeson 3-Phase Stainless Steel Electric Motors/TENV/TEFC C-Face/191205.00 Leeson 1/2HP Stainless Steel Electric Motor, 1740 RPM
Click Image to Expand

Product ID: 191205.00

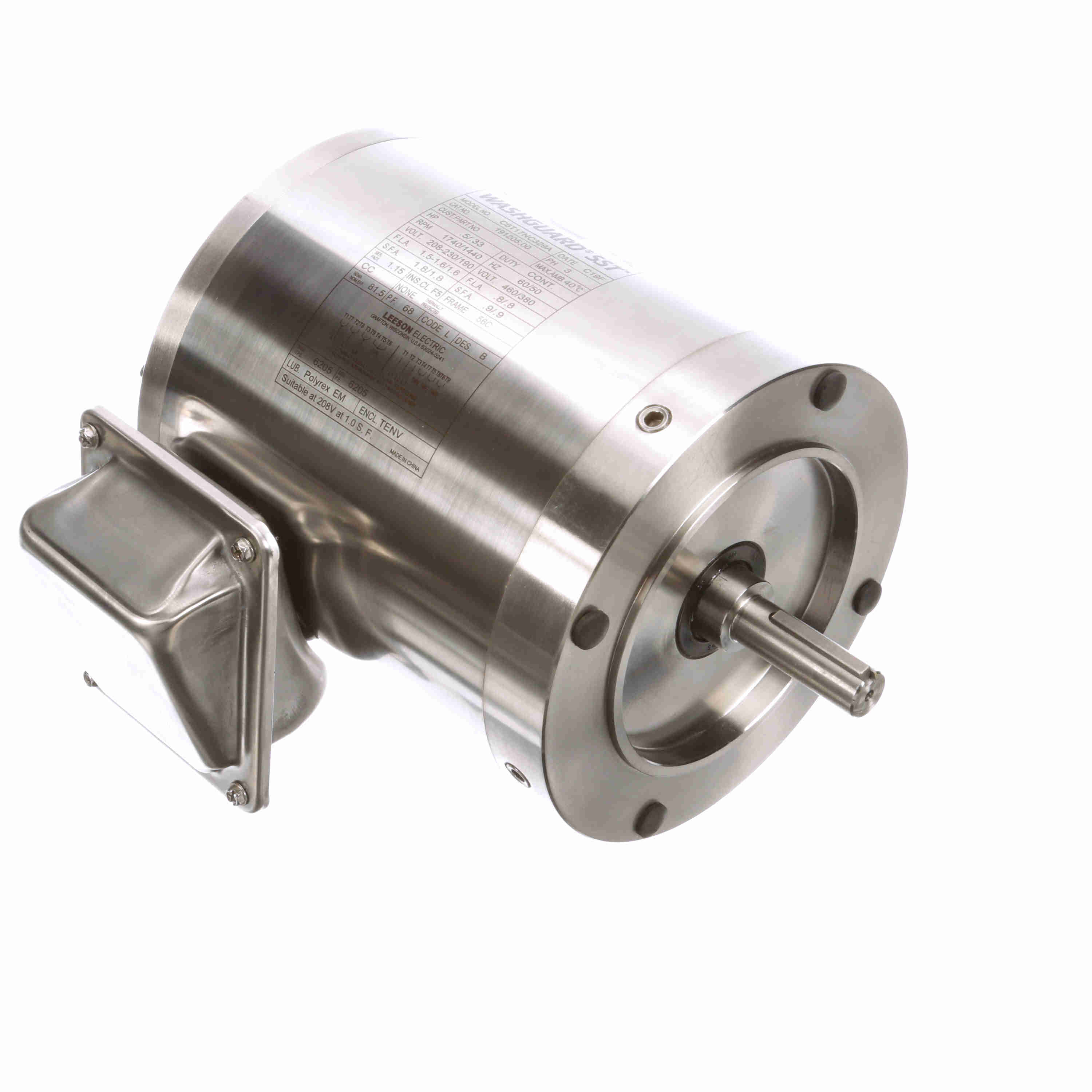

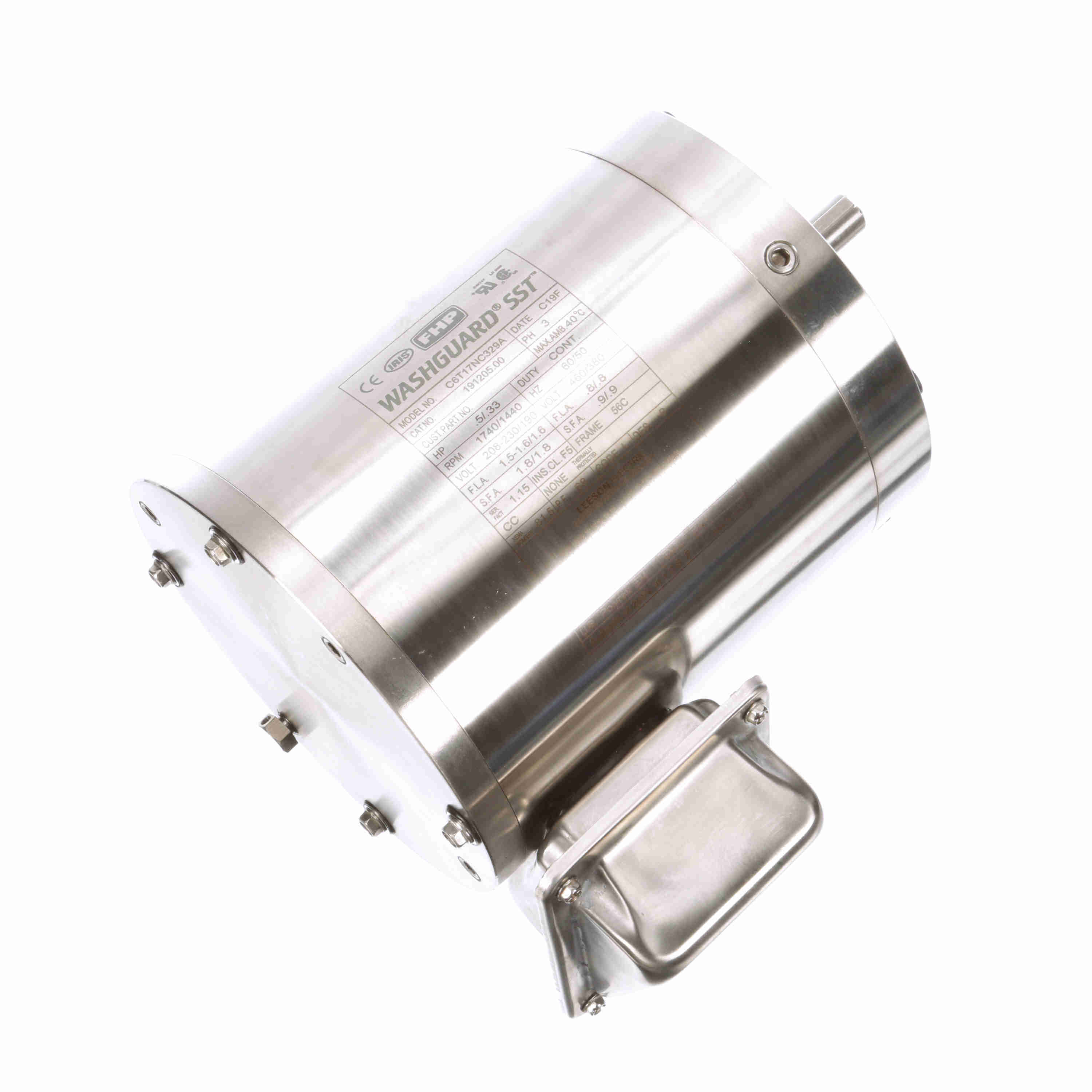

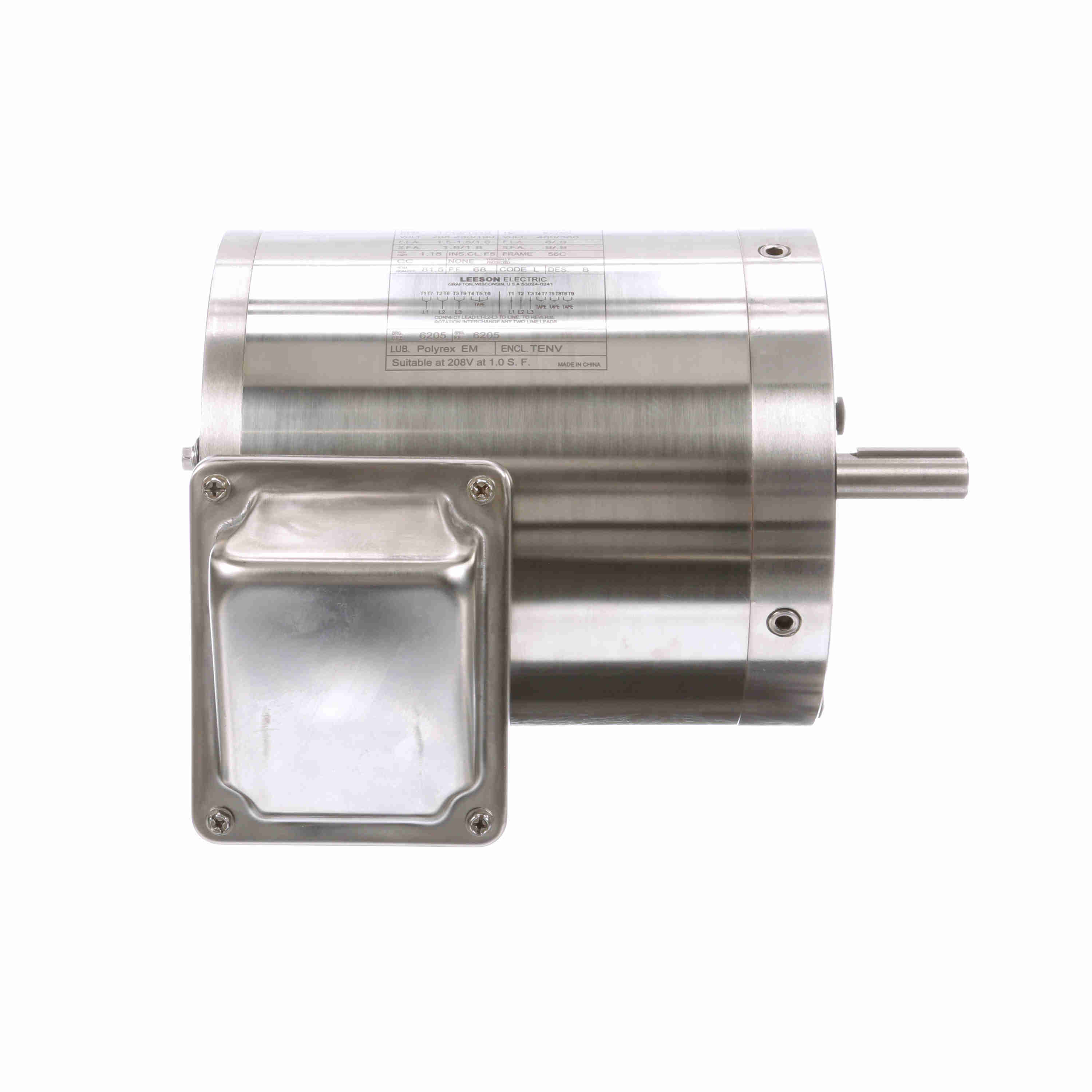

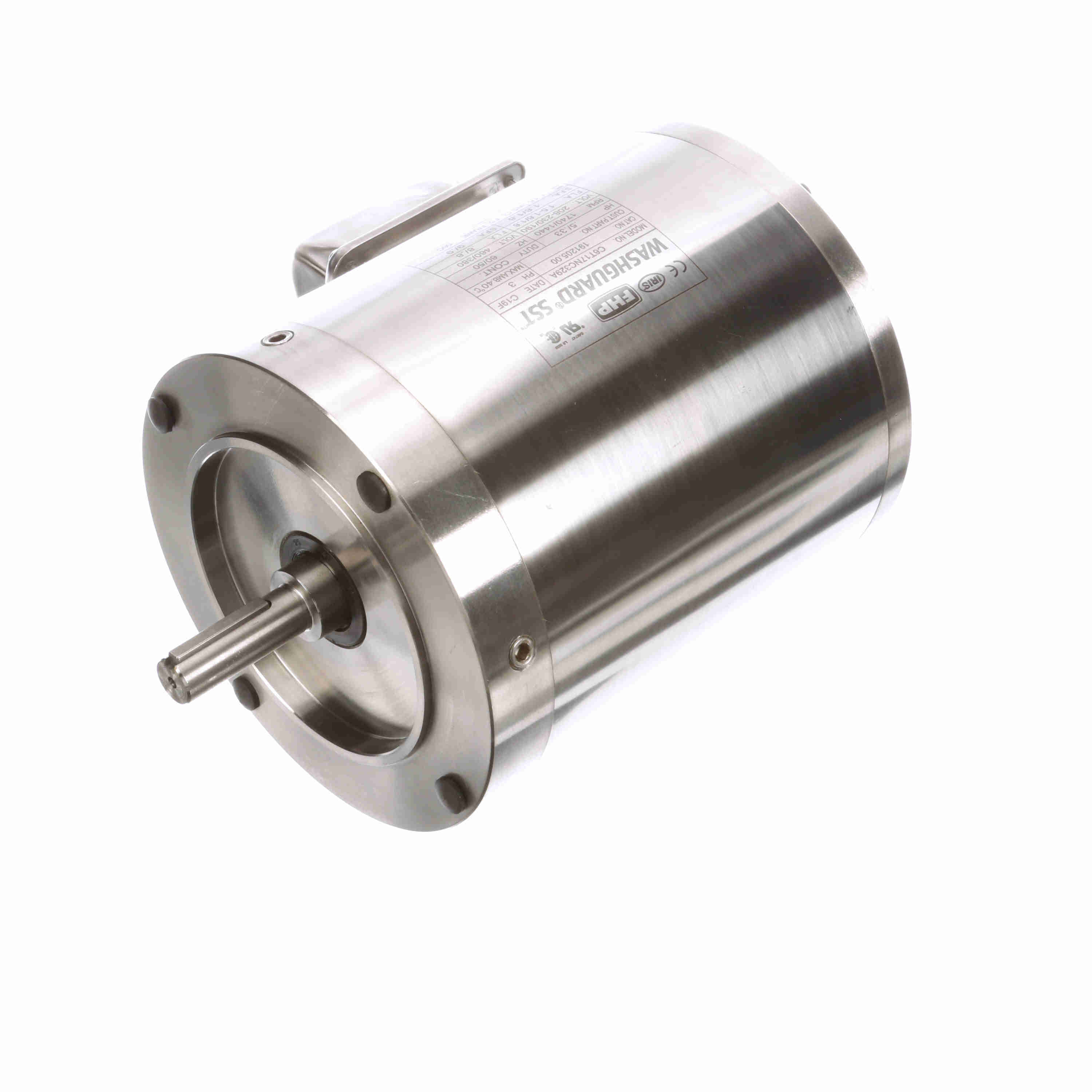

191205.00 Leeson 1/2HP Stainless Steel Electric Motor, 1740 RPM

MFG: Leeson Electric (Regal Rexnord)
MFG Part Number: 191205.00

Selected accessories will also be added to cart
$921.00 / Each
Quantity:
TENV, 56C Frame, 208-230/460V 3-Phase 60Hz

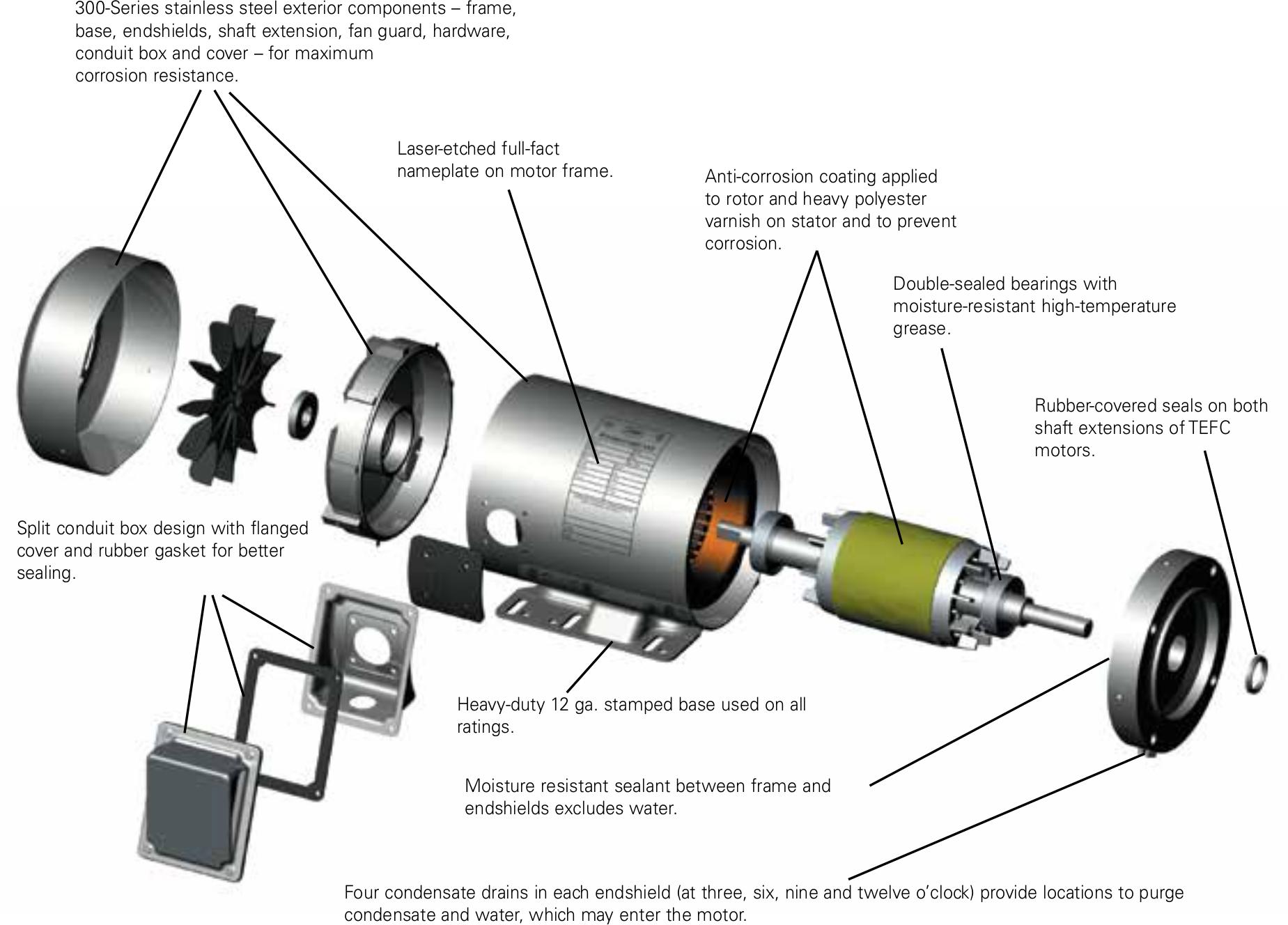

Features

Features
  • Paint free exterior
  • BISSC certified for the Baking Industry
  • Stainless Steel Output shafts
  • Repositional drain plugs for all angle mounting
  • Double Sealed bearings
  • Output shaft seal
  • Inverter Duty IRISâ„¢ insulation system

General Specifications

General Specifications
Model :C6T17NC329A Catalog No :191205.00
Part Description :1/2HP..1740RPM.56.TENV.208-230/460V.3PH.60HZ.CONT.40C.1.15SF.C FACE.C6T17NC329A.....WASHGUARD-ALL STAINLESS.NOT....... Category :Paint Free
Stock :No

Nameplate Specifications

Nameplate Specifications
Output HP :0.50 Hp Output KW :0.37 kW
Frequency :60 Hz Voltage :208-230/460 V
Current :1.5-1.6/0.80 A Speed :1740 rpm
Service Factor :1.15 Phase :3
Efficiency :81.5 % Duty :Continuous
Insulation Class :F Design Code :B
KVA Code :L Frame :56C
Enclosure :Totally Enclosed Non Ventilated Overload Protector :No
Ambient Temperature :40 °C Drive End Bearing Size :6205
Opp Drive End Bearing Size :6205 UL :Recognized
CSA :Y CE :Y
IP Code :55

Technical Specifications

Technical Specifications
Electrical Type :Squirrel Cage Induction Run Starting Method :Across The Line
Poles :4 Rotation :Reversible
Mounting :Round Motor Orientation :HORIZONTAL
Drive End Bearing :BALL Opp Drive End Bearing :BALL
Frame Material :Stainless Steel Shaft Type :NEMA 56
Overall Length :9.78 in Frame Length :9.72 in
Shaft Diameter :0.625 in Shaft Extension :1.88 in
Assembly/Box Mounting :F1 ONLY UPC :691720308189
Weight :33.00 LB
Type
Electric Motor
Frame
56C
Enclosure
TENV
Input Phase
3-Phase
Horsepower
1/2HP
Input Voltage
208VAC
Input Voltage
230VAC
Input Voltage
460VAC
Speed
1740RPM
