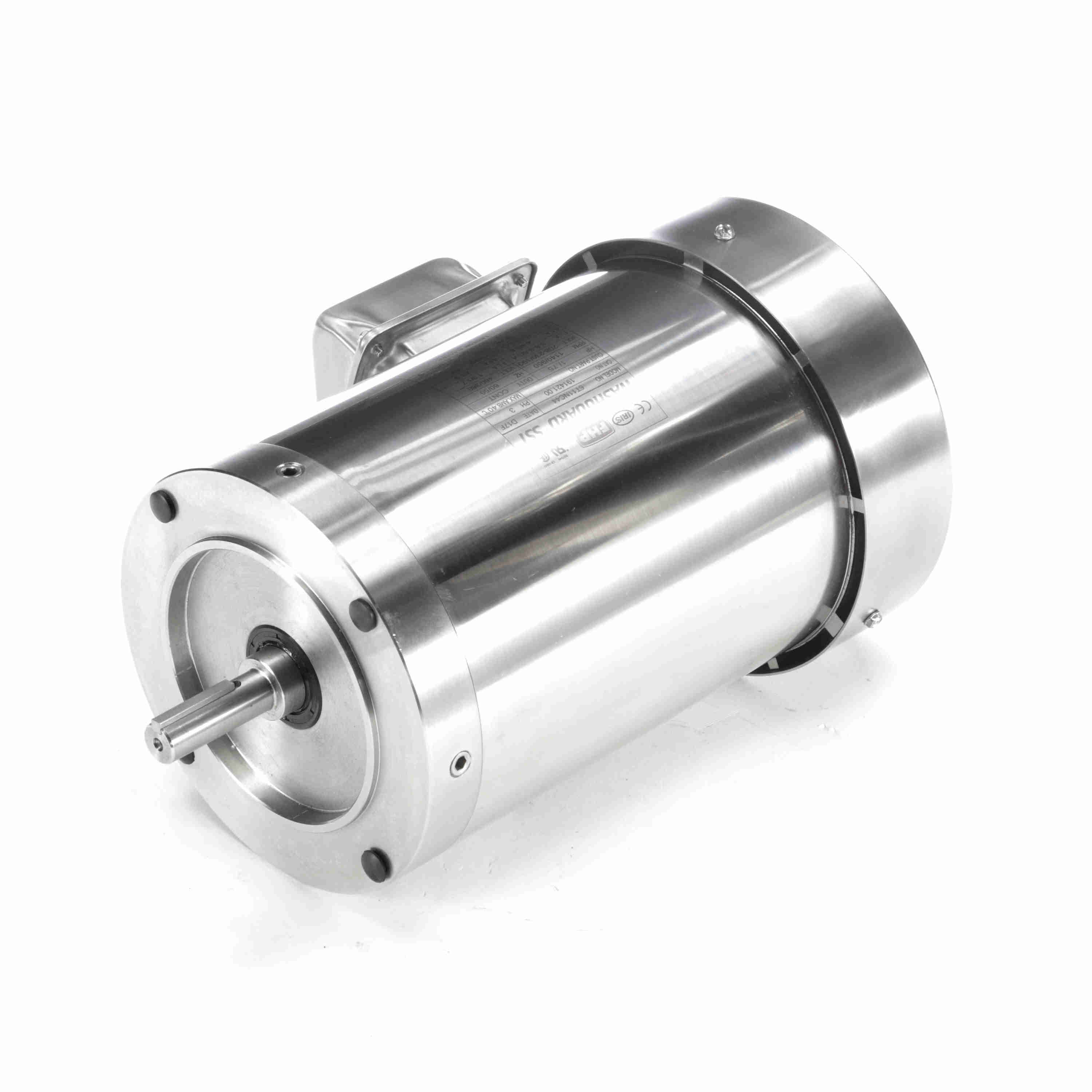

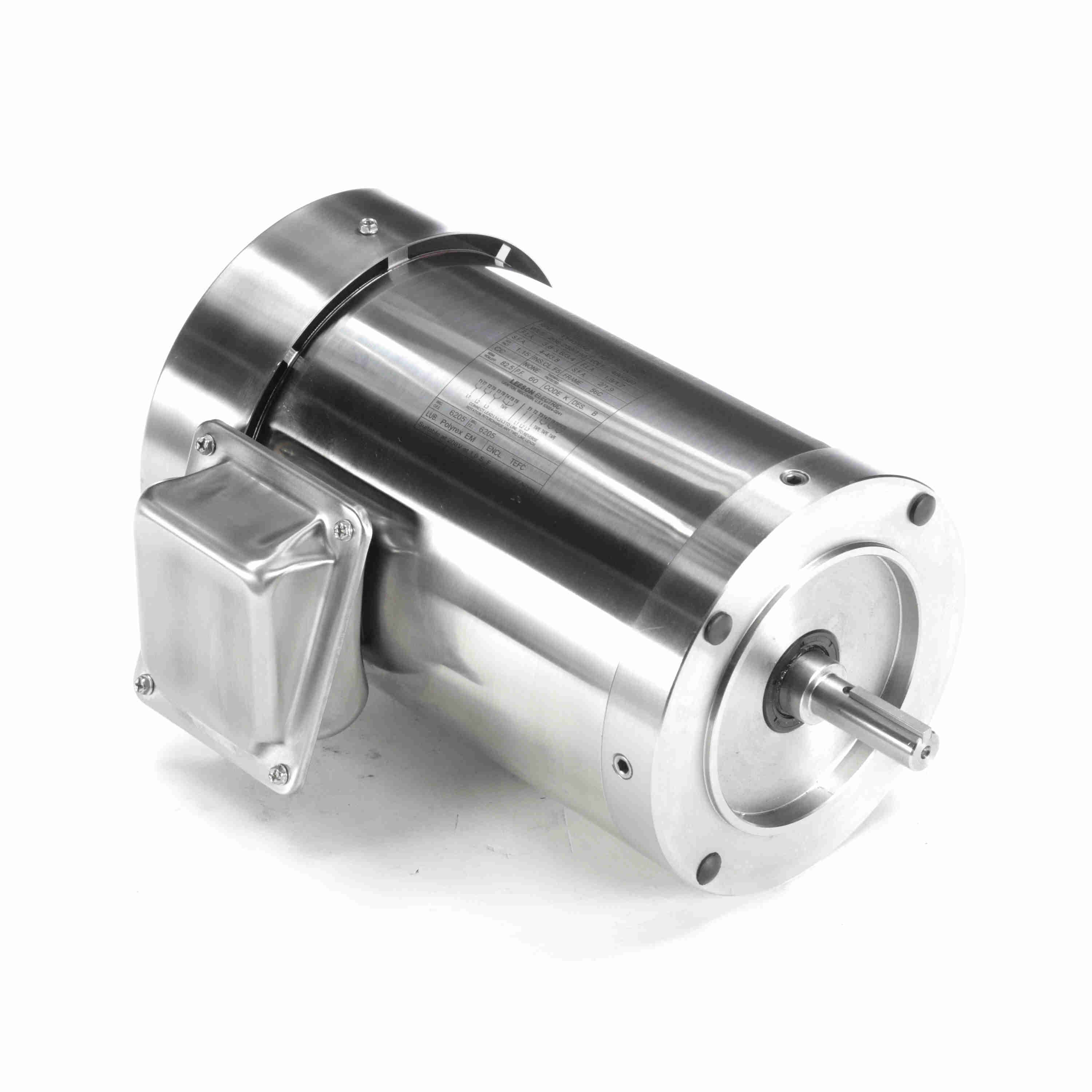

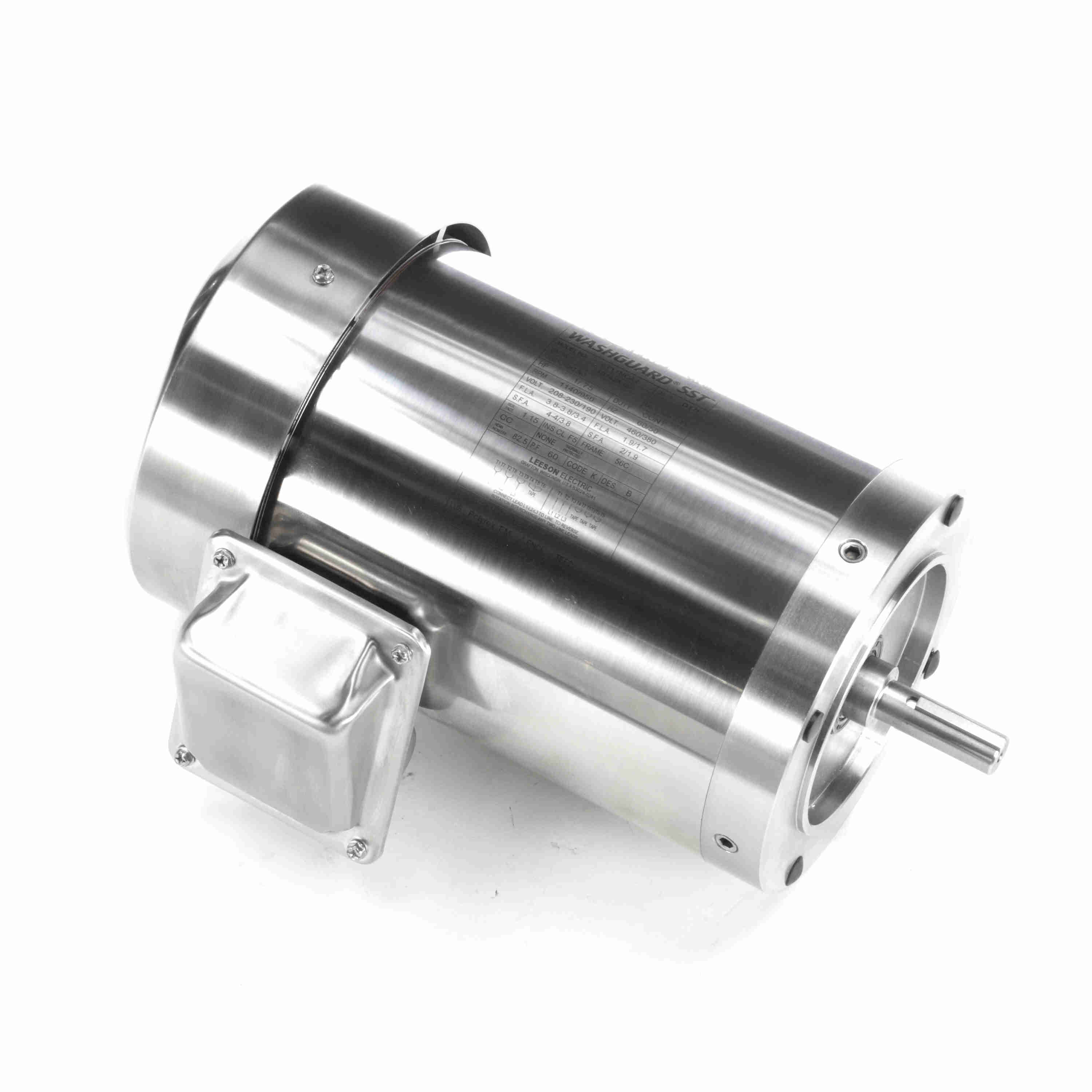

191421.00 Leeson 1HP Electric Stainless Steel Moto
Click Image to Expand
Previous
Next
Product ID: 191421.00
191421.00 Leeson 1HP Electric Stainless Steel Moto
MFG: Leeson Electric (Regal Rexnord)
MFG Part Number: C6T11NC44
Selected accessories will also be added to cart
$815.97 / Each
Quantity:
1200 RPM, 56C Frame, TEFC, 3 Phase, 230/460V
Details
Features

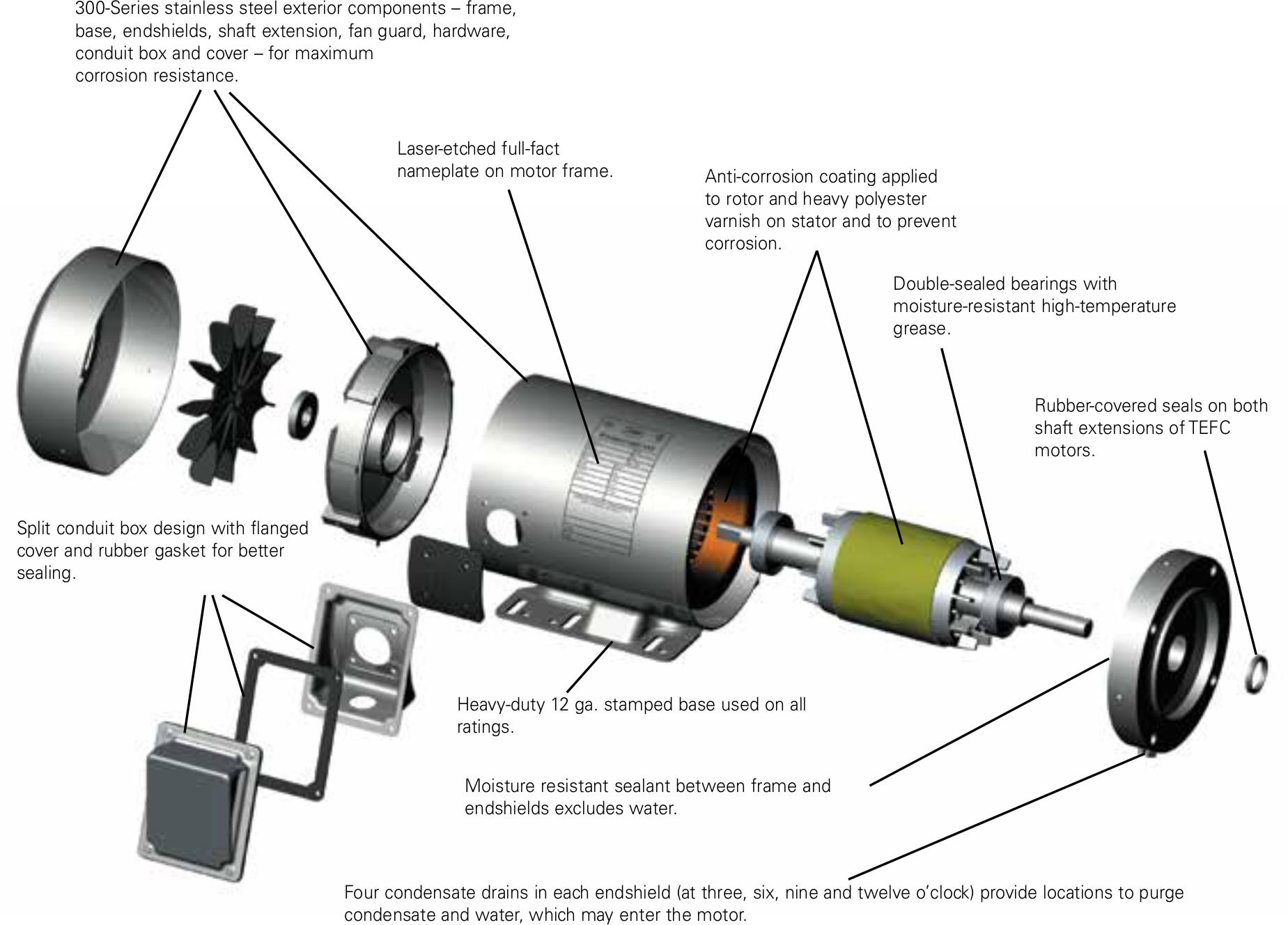

Features
Paint free exterior
BISSC certified for the Baking Industry
Stainless Steel Output shafts
Repositional drain plugs for all angle mounting
Double Sealed bearings
Output shaft seal
Inverter Duty IRIS™ insulation system
Laser etched full-fact nameplate on frame
All Stainless exterior
Anti-corrosion coating applied to interior components
General Specifications
General Specifications
Model :
C6T11NC44A
Catalog No :
191421.00
Part Description :
..1HP..1140/950RPM.56.TEFC.230/460V.3PH.60/50HZ.CONT.40C.1.15SF.C FACE.C6T11NC44A.....General Purpose.NOT.......
Category :
Paint Free
Stock :
No
Nameplate Specifications
Nameplate Specifications
Output HP :
1 HP
Output KW :
0.75 kW
Frequency :
60 Hz
Voltage :
208-230/460 V
Current :
3.8-3.8/1.9 A
Speed :
1150 RPM
Service Factor :
1.15
Phase :
3
Efficiency :
82.5 %
Duty :
Continuous
Insulation Class :
F
Design Code :
B
KVA Code :
K
Frame :
56C
Enclosure :
Totally Enclosed Fan Cooled
Overload Protector :
No
Ambient Temperature :
40 °C
Drive End Bearing Size :
6205
Opp Drive End Bearing Size :
6205
UL :
Recognized
CSA :
Y
CE :
Y
IP Code :
43
Technical Specifications
Technical Specifications
Electrical Type :
Squirrel Cage Induction Run
Starting Method :
Across The Line
Poles :
6
Rotation :
Reversible
Mounting :
Round
Motor Orientation :
HORIZONTAL
Drive End Bearing :
BALL
Opp Drive End Bearing :
BALL
Frame Material :
Rolled Steel
Shaft Type :
NEMA 56
Overall Length :
13.10 in
Frame Length :
7.54 in
Shaft Diameter :
0.625 in
Shaft Extension :
1.88 in
Assembly/Box Mounting :
F1 ONLY
UPC :
691720354810
Weight :
47.00 LB
Speed & Load Characteristics
Speed Characteristics
Curvepoint
Current (Amps)
Current (%)
Torque (ft-lbs)
Torque (%)
Speed (RPM)
Rated Output (KW)
Power Factor (%)
Rated Output (Hp)
Pull-Up
0.00
0.0
12.50
277.0
180
0.00
0.0
1.00
Locked-Rotor
11.40
633.0
12.55
278.0
0
0.00
0.0
1.00
Break-Down
0.00
0.0
17.40
388.0
843
0.00
0.0
1.00
Full Load
1.80
100.0
4.50
100.0
1,158
0.00
0.0
1.00
Load Characteristics
% of Rated Load
Current (Amps)
Rated Output (KW)
Efficiency (%)
Power Factor (%)
Speed (RPM)
Temp. Rise @ FL
Torque (ft-lb)
0 %
1.30
0.070
0.0
6.8
1,198
0.0
0.00
25 %
1.40
0.264
71.6
23.7
1,189
0.0
1.12
50 %
1.50
0.463
81.5
38.7
1,180
0.0
2.25
75 %
1.60
0.670
86.7
52.6
1,169
0.0
3.50
100 %
1.80
0.888
83.4
61.9
1,158
44.0
4.50
125 %
2.10
1.120
82.0
66.9
1,144
0.0
5.65
150 %
2.40
1.360
79.8
71.1
1,132
0.0
6.75
