$696.39 / Each

Quantity:

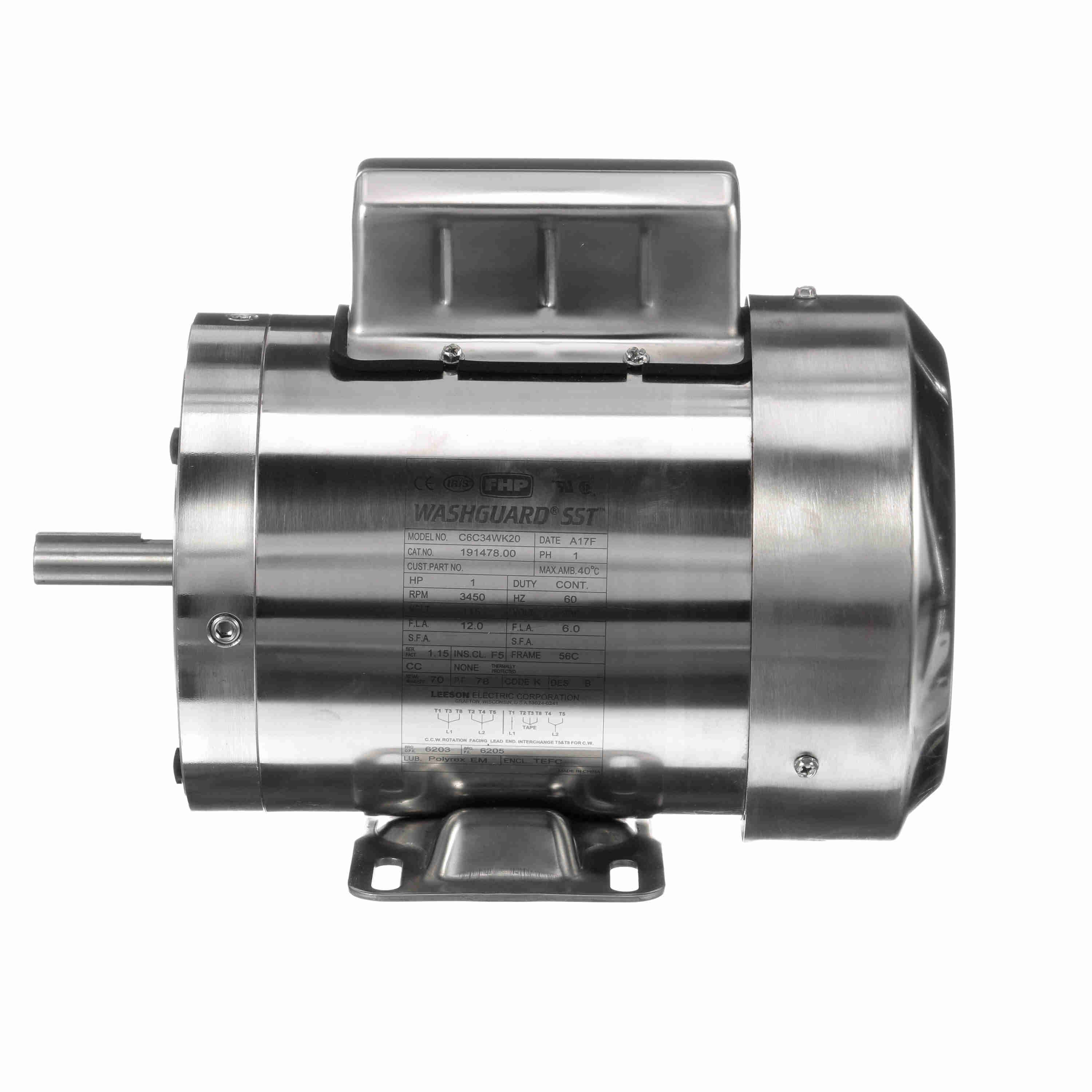

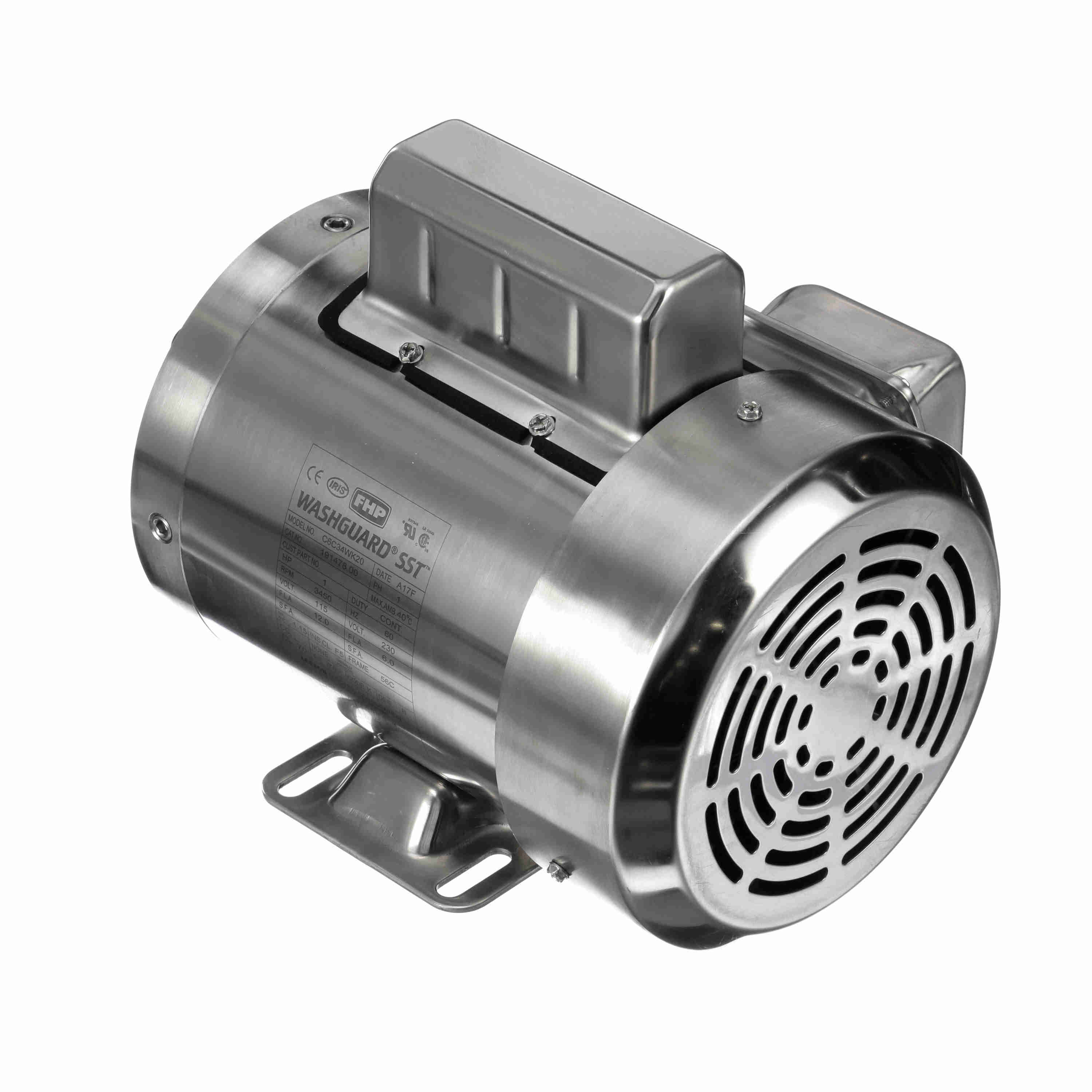

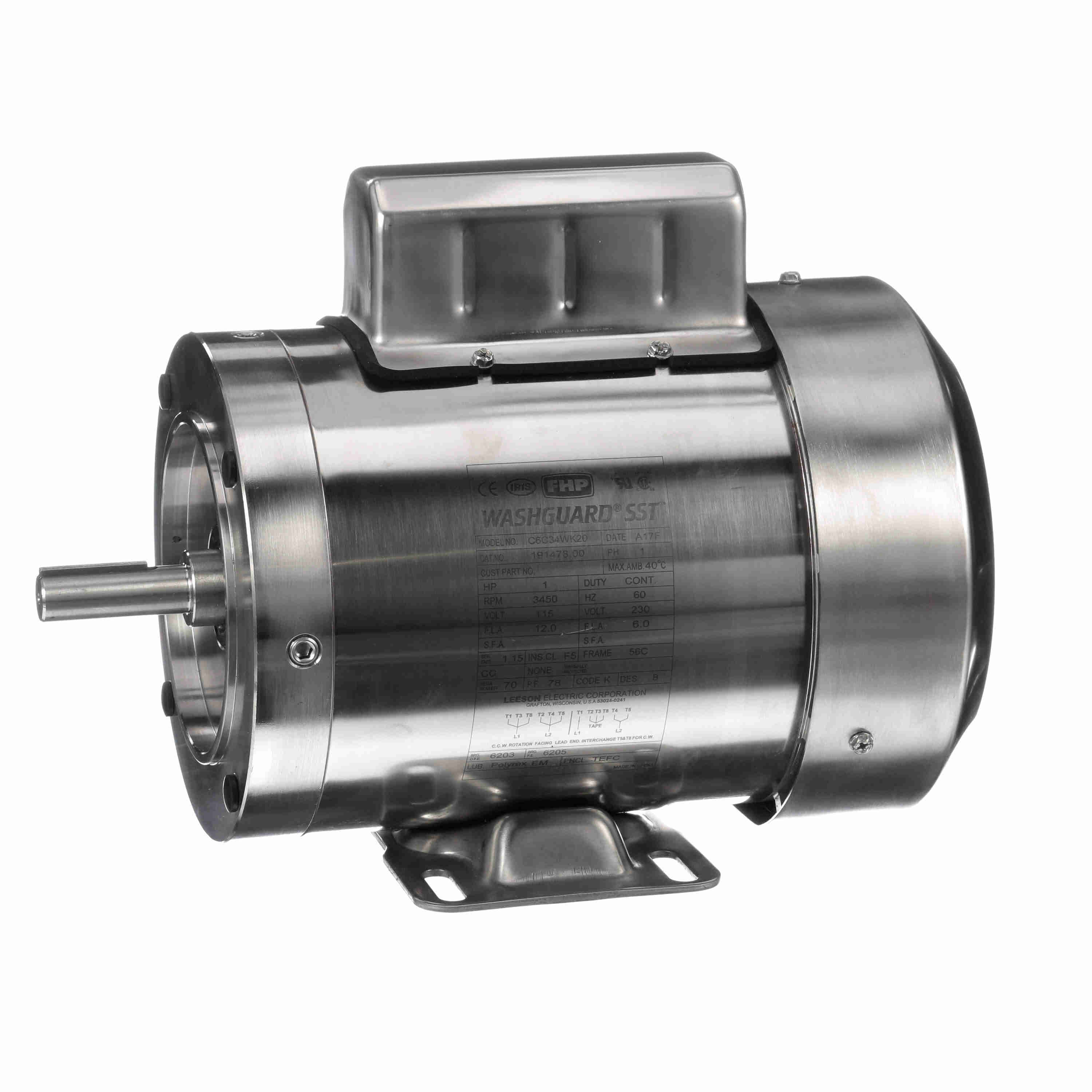

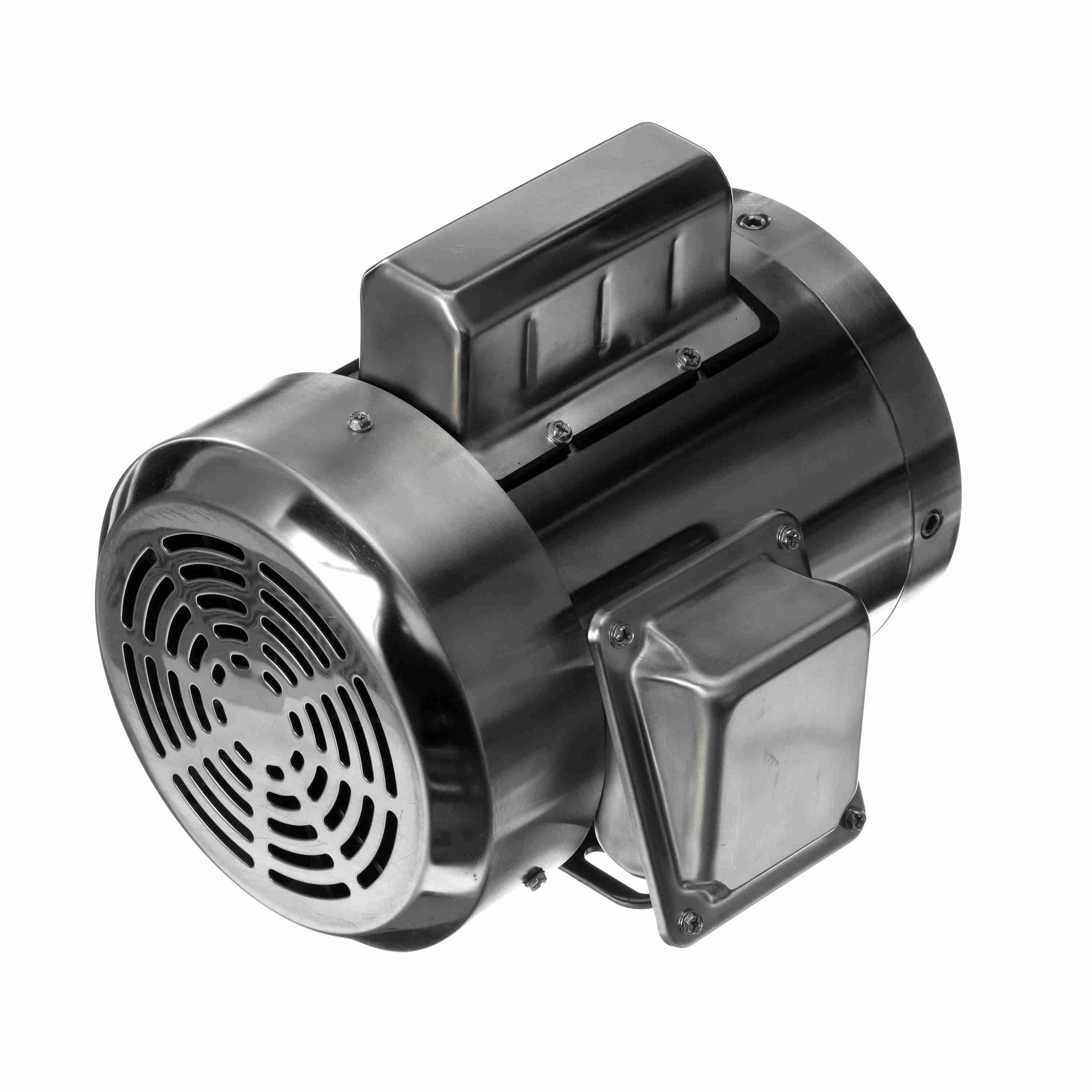

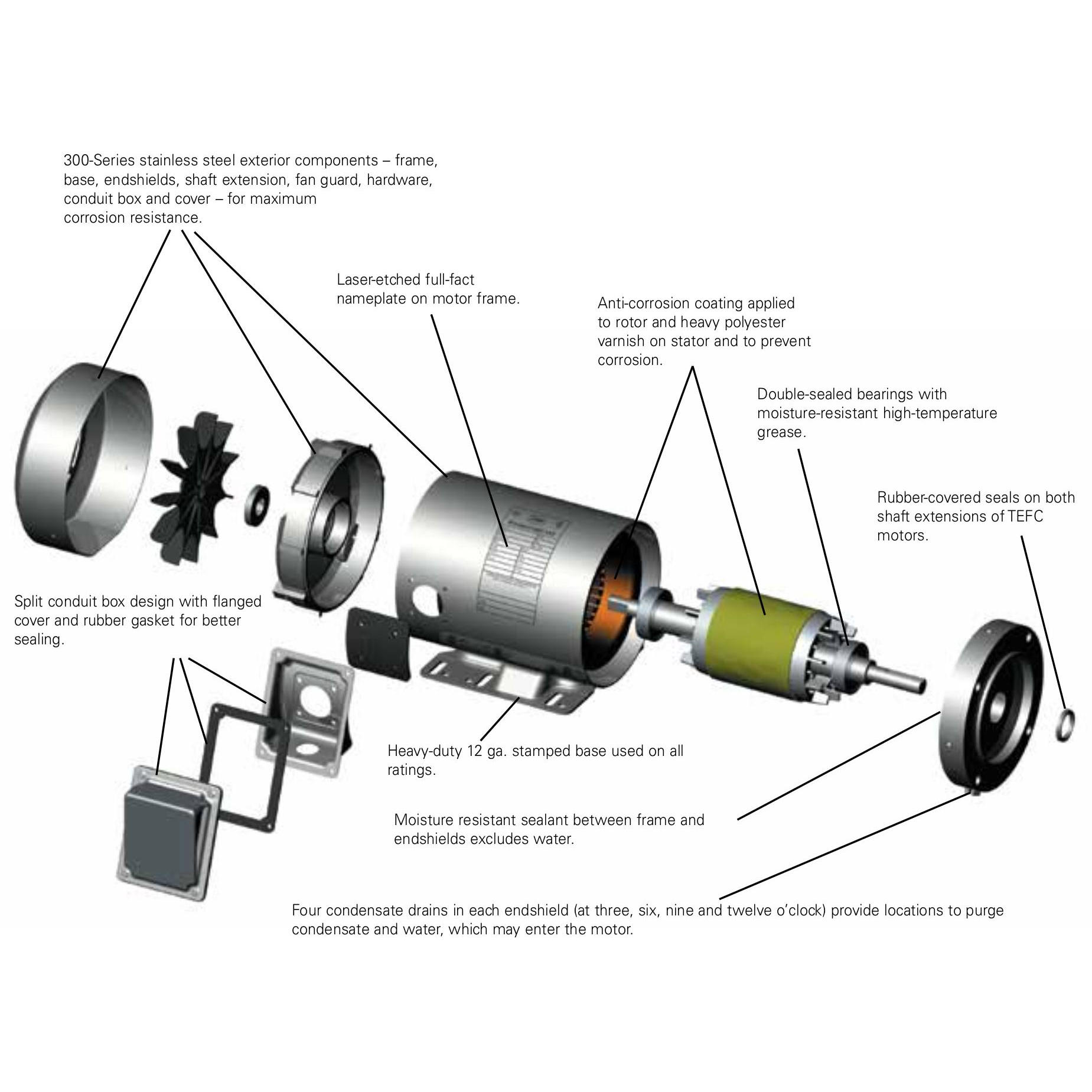

3600 RPM, 56C Frame, TEFC, Single Phase, 115/208-230V

Catalog No	191478.00	Model	C6C34WK20A
Product type	AC MOTOR	Stock	Stock
Description	1HP..3600RPM.56.TEFC./V.1PH.60HZ..NOT.40C..RIGID C..A

Information shown is for current motor's design
Engineering Data
Volts	115	Volts	230	Volts
F.L. Amps	12.4	F.L. Amps	6.2	F.L. Amps
S. F Amps	TBD	S. F Amps		S. F Amps

RPM	3600	Hertz	60
HP	1	Duty	CONTINUOUS	TYPE	CF
KW	0.75
Frame	56C	Serv. Factor	1.15	Phase	1
Max Amb	40	Design	N	Code	K
Insul Class	F	Protection	NOT	Therm.Prot.
Eff 100%	70	Eff 75%		PF	76
UL	Y-(LEESON UL REC)	CSA	Yes	Bearing OPE
CC Number	EXEMPT	CE	Yes	Bearing PE
Load Type		Inverter Type		Speed Range	NONE

Motor Wt.	35.8 LB	Enclosure	TEFC	Lubrication	VERIFY
Nameplate	NONE	Mounting	RIGID	Rotation	SELECTIVE CCW
Assembly	L	Shaft Dia.	5/8 IN	Ext. Diag.	005005.01
Cust Part No		Outline	16999700	Ext. Diag2
Packaging				Winding	QC6329
Carton Label	INDIVIDUAL			GROUP:	3
Iris		Paint	NO PAINT	Test Card	01

Form Factor		RMS Amps		Const Torque Speed Range
Torque		Peak
AB Code		Peak@DegC
Resistance
Connection

Rework Status		Rework TYPE

Hazardous Loc	NONE			Brake Motors
Explosion Proof		Temp Op Code		FORCE
Class		GROUP:		VDC
Class		GROUP:		ADC
				Brake Coil OHMs @25 C

Load Curve Data @60 Hz, 230 Volts, 1 Horsepower

Load

Amps

RPM

Torque

EFF

Rise By Resis

Frame Rise

Load Curve Data Not Available
