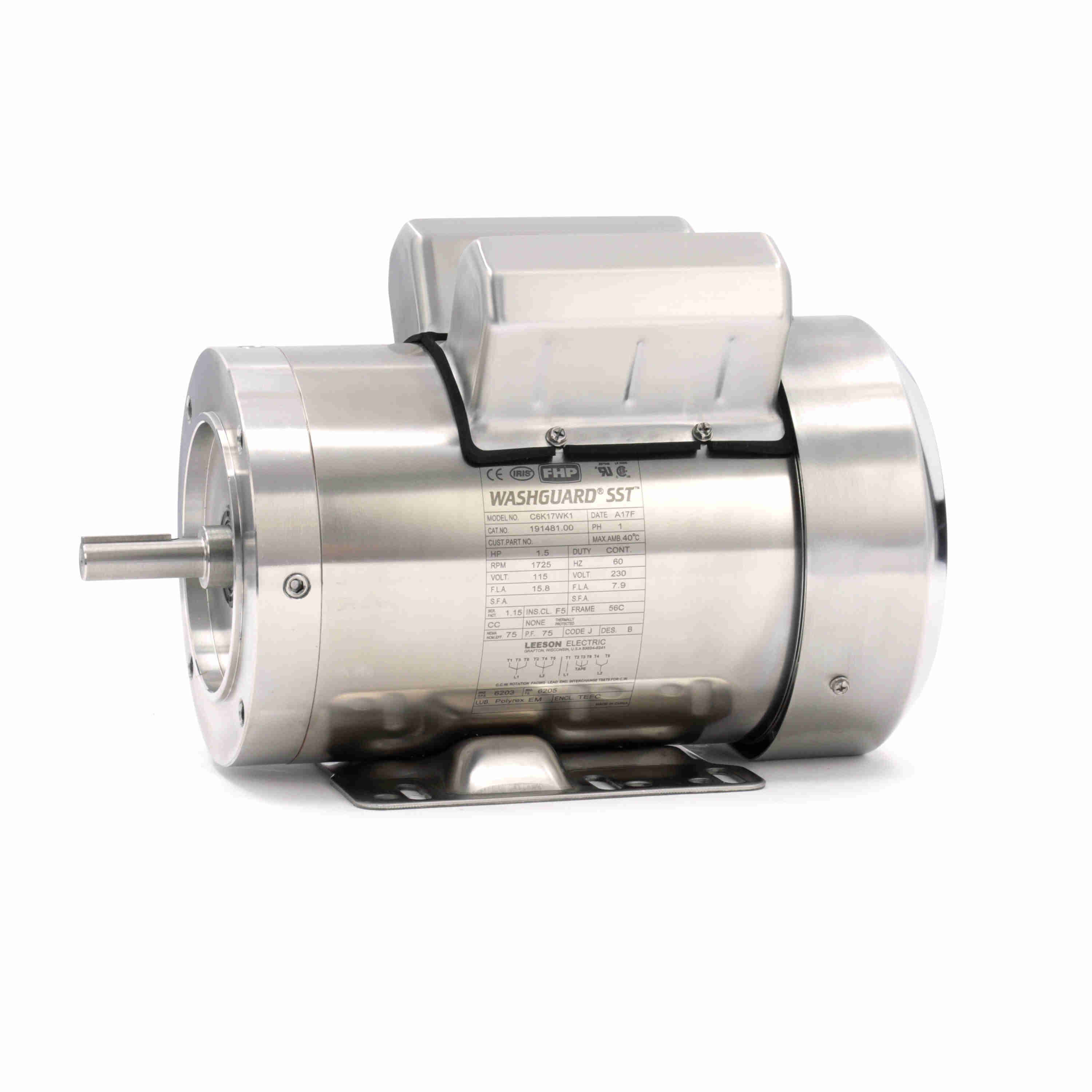

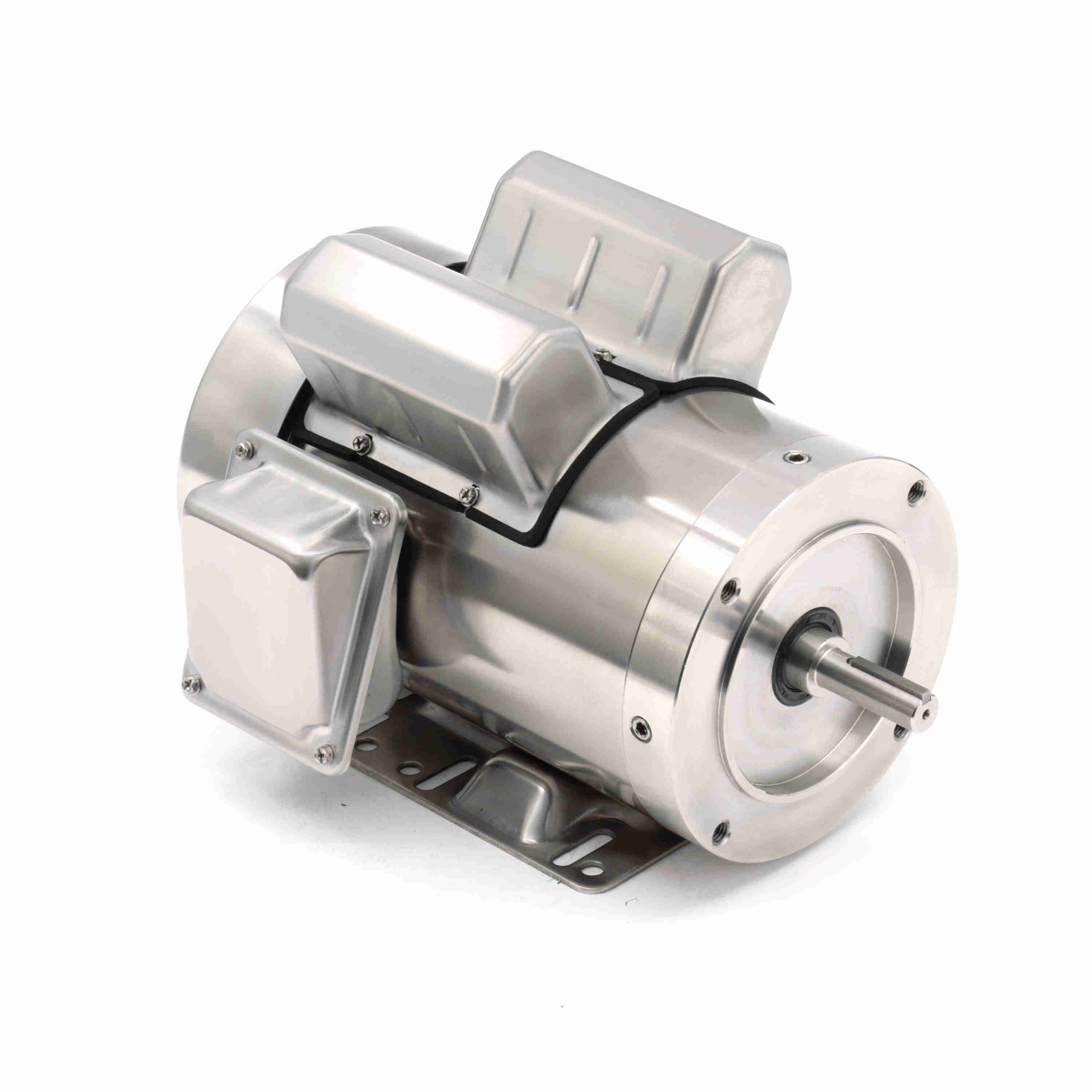

191481.00 1.5HP Leeson Electric SS Motor, Washdown
Click Image to Expand
Previous
Next
Product ID: 191481.00
191481.00 1.5HP Leeson Electric SS Motor, Washdown
MFG: Leeson Electric (Regal Rexnord)
MFG Part Number: C6K17WK1
Selected accessories will also be added to cart
$803.27 / Each
Quantity:
1800 RPM, 56C Frame, TEFC, Single Phase, 115/208-230V
Details
Product Features
Catalog No
191481.00
Model
C6K17WK1A
Product type
AC MOTOR
Stock
Stock
Description
1.5HP..1800RPM.56.TEFC./V.1PH.60HZ..NOT.40C..RIGID C..A
Information shown is for current motor's design
Engineering Data
Volts
115
Volts
230
Volts
F.L. Amps
15.8
F.L. Amps
7.9
F.L. Amps
S. F Amps
17.5
S. F Amps
8.8
S. F Amps
RPM
1800
Hertz
60
HP
1 1/2
Duty
CONTINUOUS
TYPE
KF
KW
1.12
Frame
56C
Serv. Factor
1.15
Phase
1
Max Amb
40
Design
N
Code
K
Insul Class
F
Protection
NOT
Therm.Prot.
Eff 100%
75
Eff 75%
PF
75
UL
Y-(LEESON UL REC)
CSA
Yes
Bearing OPE
CC Number
EXEMPT
CE
Yes
Bearing PE
Load Type
Inverter Type
Speed Range
NONE
Motor Wt.
52.5 LB
Enclosure
TEFC
Lubrication
VERIFY
Nameplate
Mounting
RIGID
Rotation
SELECTIVE CCW
Assembly
L
Shaft Dia.
5/8 IN
Ext. Diag.
005054.01
Cust Part No
Outline
16999800
Ext. Diag2
Packaging
Winding
QK6348
Carton Label
GROUP:
3
Iris
Paint
NO PAINT
Test Card
01
Form Factor
RMS Amps
Const Torque Speed Range
Torque
Peak
AB Code
Peak@DegC
Resistance
Connection
Rework Status
Rework TYPE
Hazardous Loc
NONE
Brake Motors
Explosion Proof
Temp Op Code
FORCE
Class
GROUP:
VDC
Class
GROUP:
ADC
Brake Coil OHMs @25 C
Performance
Torque UOM
LB-FT
Inertia (WK²)
-1 LB-FT^2
Torque
4.5(Full Load)
0(No Load)
11.67(Pull Up)
15(Locked Rotor)
CURRENT (amps)
7.96(Full Load)
5.1(No Load)
0(Pull Up)
58.4(Locked Rotor)
Efficiency (%)
0(Full Load)
78.9(75% Load)
71.6(50% Load)
58.6(25% Load)
PowerFactor
0(Full Load)
68.7(75% Load)
58.1(50% Load)
40.3(25% Load)
Load Curve Data @60 Hz, 230 Volts, 1 1/2 Horsepower
Load
Amps
KW
RPM
Torque
EFF
PF
Rise By Resis
Frame Rise
0.0
5.1
0.209
1796
0.0
0.0
17.8
0.0
-
0.25
5.29
0.49
1788
1.13
58.6
40.3
0.0
-
0.5
5.93
0.793
1777
2.25
71.6
58.1
0.0
-
1.0
7.96
1.405
1742
4.5
79.2
76.7
97.0
65.0
1.25
9.29
1.735
1747
5.63
80.5
81.2
0.0
-
1.5
10.75
2.085
1734
6.75
79.7
84.3
0.0
-
SOURCE:
CALCULATED
GROUP:
3
