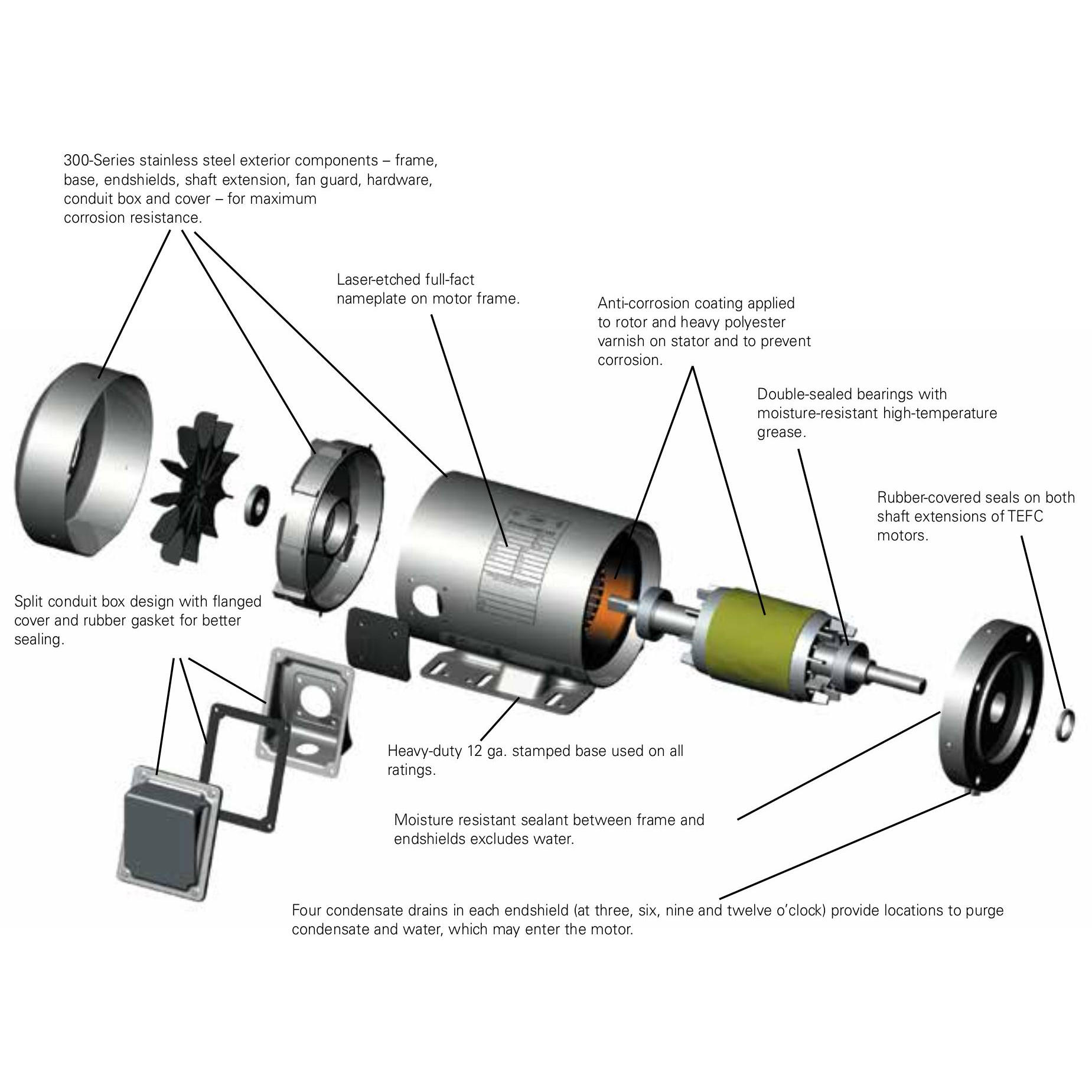

Product Features

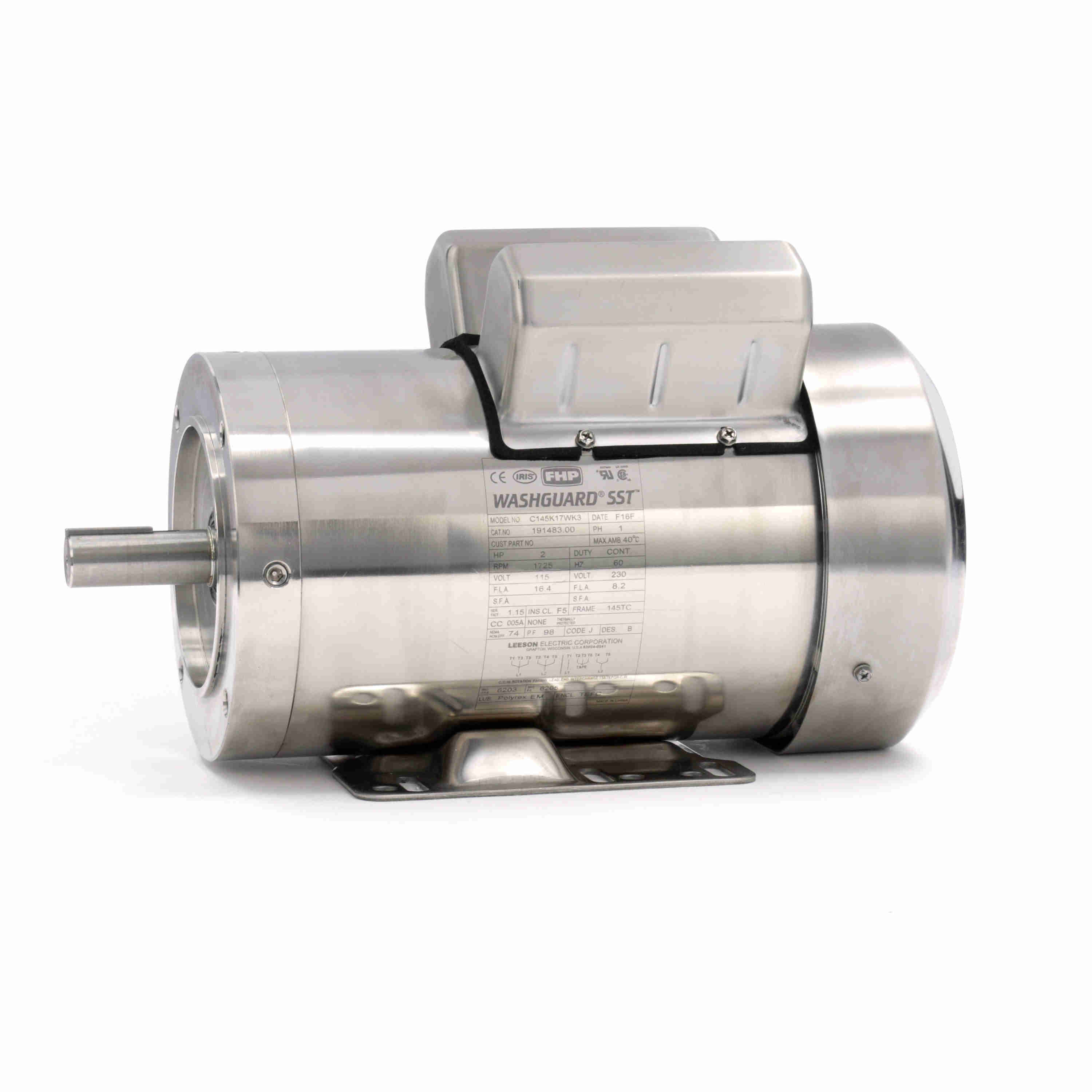

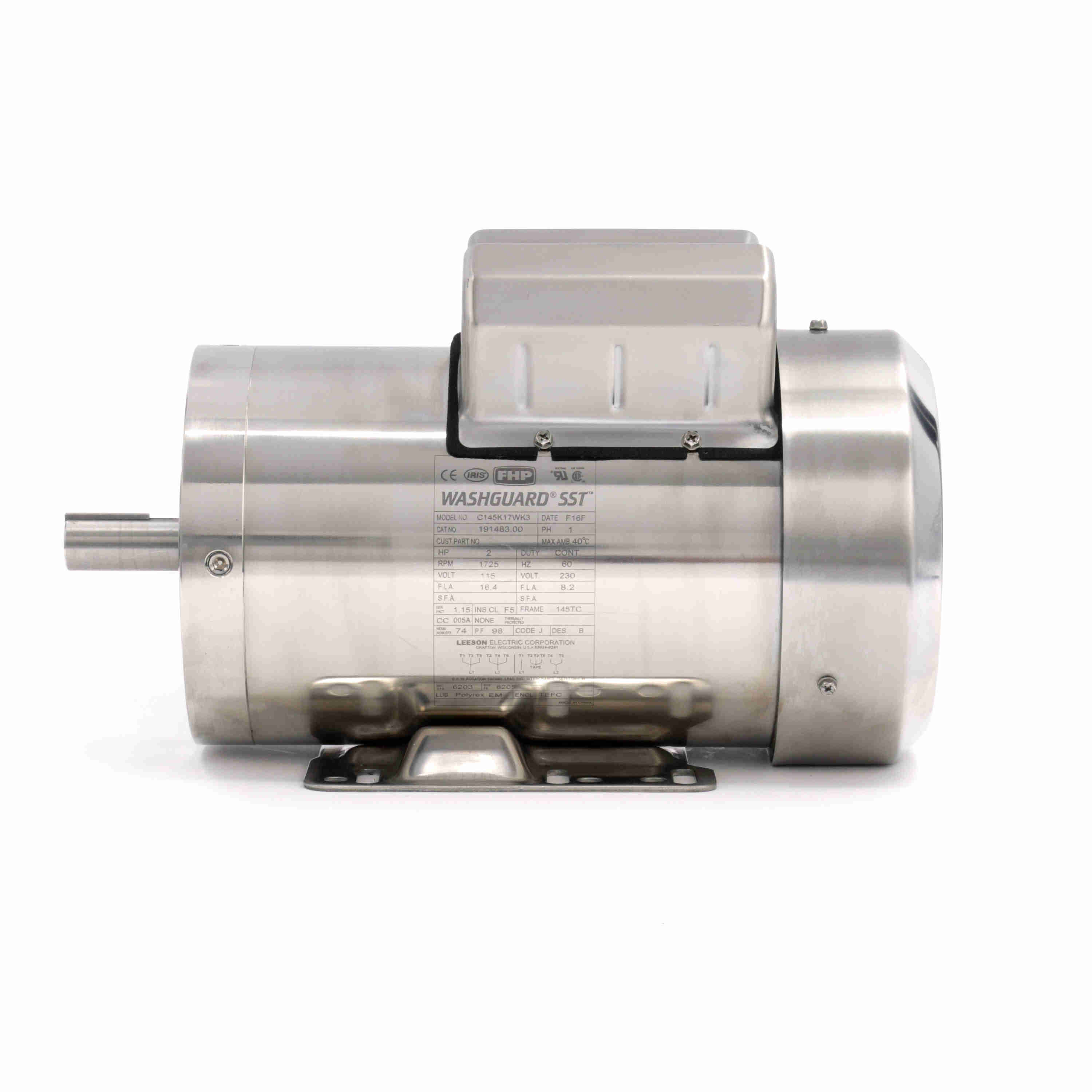

Catalog No 191483.00 Model C145K17WK3A   Product type AC MOTOR Stock Stock Description ..2HP..1800RPM.145TC.TEFC./V.1PH.60HZ..40C..RIGID-C.CA......NOT.......

Information shown is for current motor's design
Engineering Data
Volts	115	Volts	230	Volts
F.L. Amps	16.4	F.L. Amps	8.2	F.L. Amps
S. F Amps	20.9	S. F Amps	10.5	S. F Amps
RPM	1800	Hertz	60
HP	2	Duty	CONTINUOUS	TYPE	KF
KW	1.49
Frame	145TC	Serv. Factor	1.15	Phase	1
Max Amb	40	Design	N	Code	J
Insul Class	F	Protection	NOT	Therm.Prot.
Eff 100%	74	Eff 75%		PF	98
UL	Y-(LEESON UL REC)	CSA	Yes	Bearing OPE
CC Number	EXEMPT	CE	Yes	Bearing PE
Load Type		Inverter Type		Speed Range	NONE
Motor Wt.	52 LB	Enclosure	TEFC	Lubrication	VERIFY
Nameplate		Mounting	RIGID	Rotation	SELECTIVE CCW
Assembly	L	Shaft Dia.	7/8 IN	Ext. Diag.	005054.01
Cust Part No		Outline	16999900	Ext. Diag2
Packaging				Winding	QK6349
Carton Label				GROUP:	3
Iris		Paint	NO PAINT	Test Card	01
Form Factor		RMS Amps		Const Torque Speed Range
Torque		Peak
AB Code		Peak@DegC
Resistance
Connection
Rework Status		Rework TYPE
Hazardous Loc	NONE			Brake Motors
Explosion Proof		Temp Op Code		FORCE
Class		GROUP:		VDC
Class		GROUP:		ADC
				Brake Coil OHMs @25 C

Performance
Torque UOM	LB-FT	Inertia (WK²)	-1 LB-FT^2
Torque	6(Full Load)	0(No Load)	13(Pull Up)	14(Locked Rotor)
CURRENT (amps)	8.53(Full Load)	4.32(No Load)	0(Pull Up)	57.5(Locked Rotor)
Efficiency (%)	0(Full Load)	82.6(75% Load)	79.3(50% Load)	69.7(25% Load)
PowerFactor	0(Full Load)	79.9(75% Load)	70.2(50% Load)	50.3(25% Load)

Speed Torque Curve @ 60 Hz, 230 Volts
Curve Point	Amps	Amps(%)	Torque	Torque(%)	RPM	KW	PF	HP
NL	4.32	51.0	0.0	0.0	1797	0.189	-	2.0
FL	8.53	100.0	6.0	100.0	1741	1.805	-	2.0
BD	30.1	353.0	14.1	235.0	1500	7.411	-	2.0
LR	57.5	674.0	14.0	233.0	0.0	10.188	-	2.0
PU	-	-	13.0	217.0	156	-	-	2.0
SOURCE: CALCULATED GROUP: 3

Load Curve Data @60 Hz, 230 Volts, 2 Horsepower
Load	Amps	KW	RPM	Torque	EFF	PF	Rise By Resis	Frame Rise
0.0	4.32	0.189	1797	0.0	0.0	19.0	0.0	-
0.25	4.72	0.546	1787	1.5	69.7	50.3	0.0	-
0.5	5.91	0.954	1775	3.0	79.3	70.2	0.0	-
0.75	7.42	1.364	1763	4.5	82.6	79.9	0.0	-
1.0	8.53	1.805	1741	6.0	82.2	92.0	94.0	69.0
1.25	11.27	2.275	1732	7.5	81.1	87.8	0.0	-
1.5	13.58	2.778	1713	9.0	78.8	88.9	0.0	-
SOURCE: CALCULATED GROUP: 3
