/Products/Electric Motors/3 Phase Stainless Steel/Leeson 3-Phase Stainless Steel Electric Motors/TENV/TEFC C-Face with Base/191486.00 1HP Leeson Electric SS Motor, Washdown
Click Image to Expand

Product ID: 191486.00

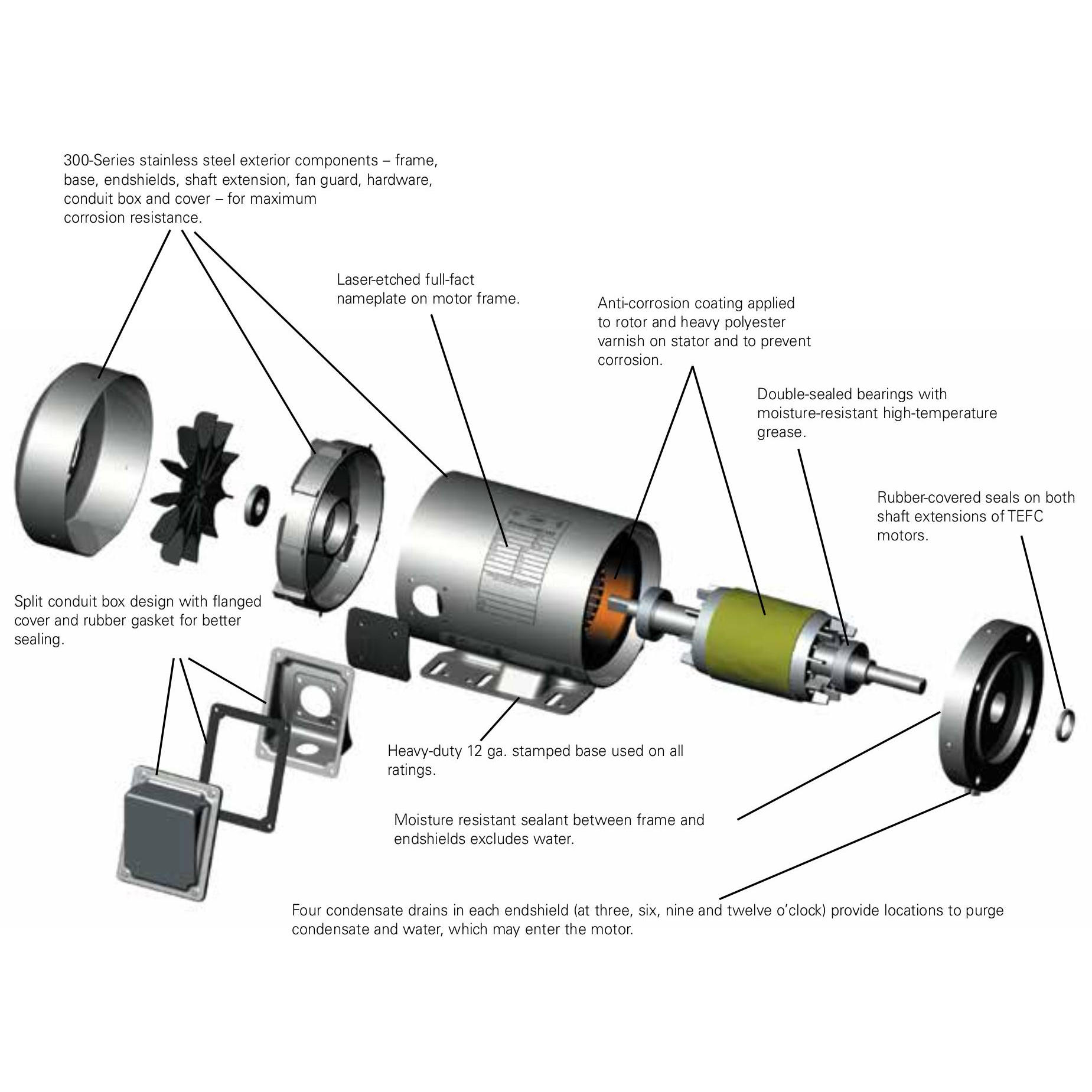

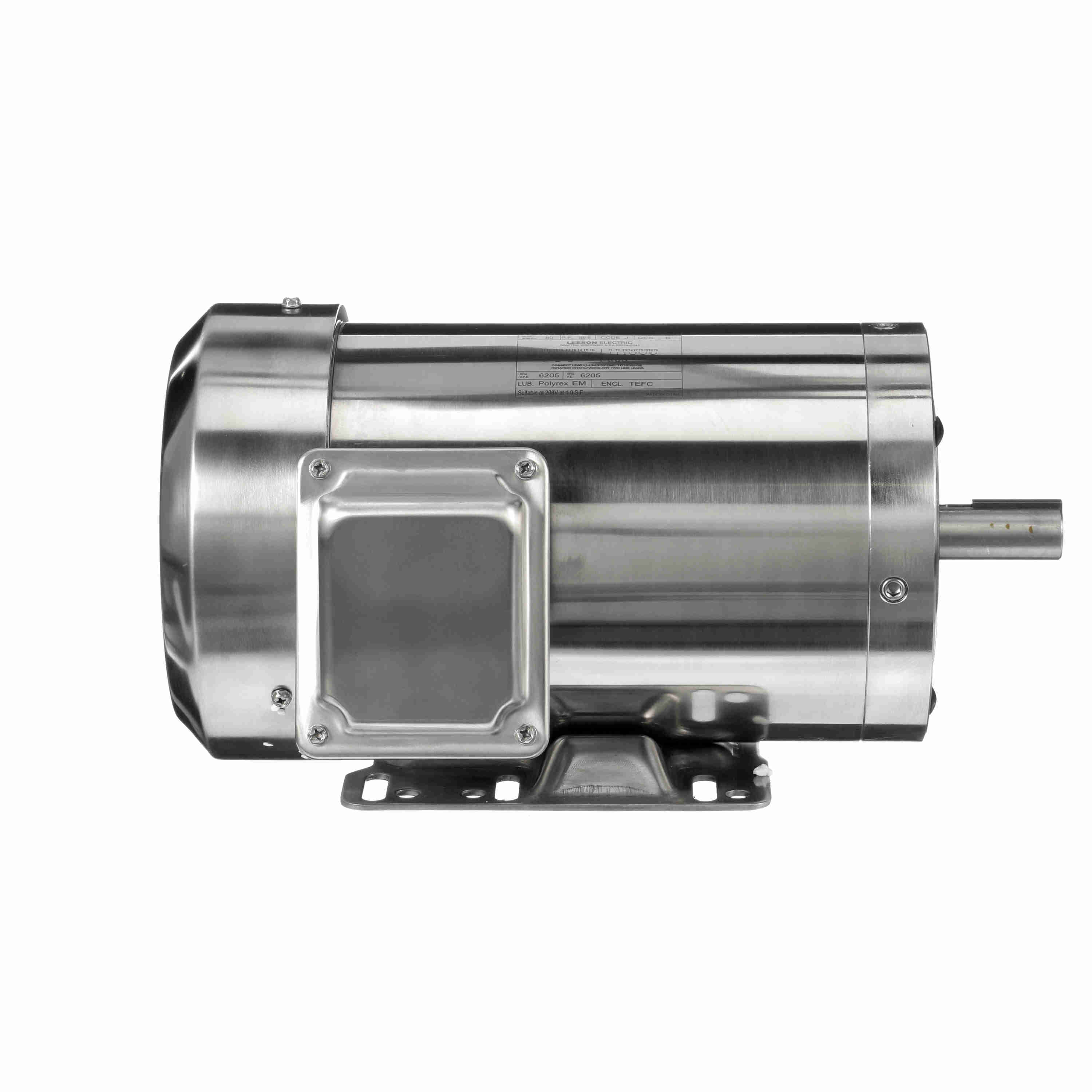

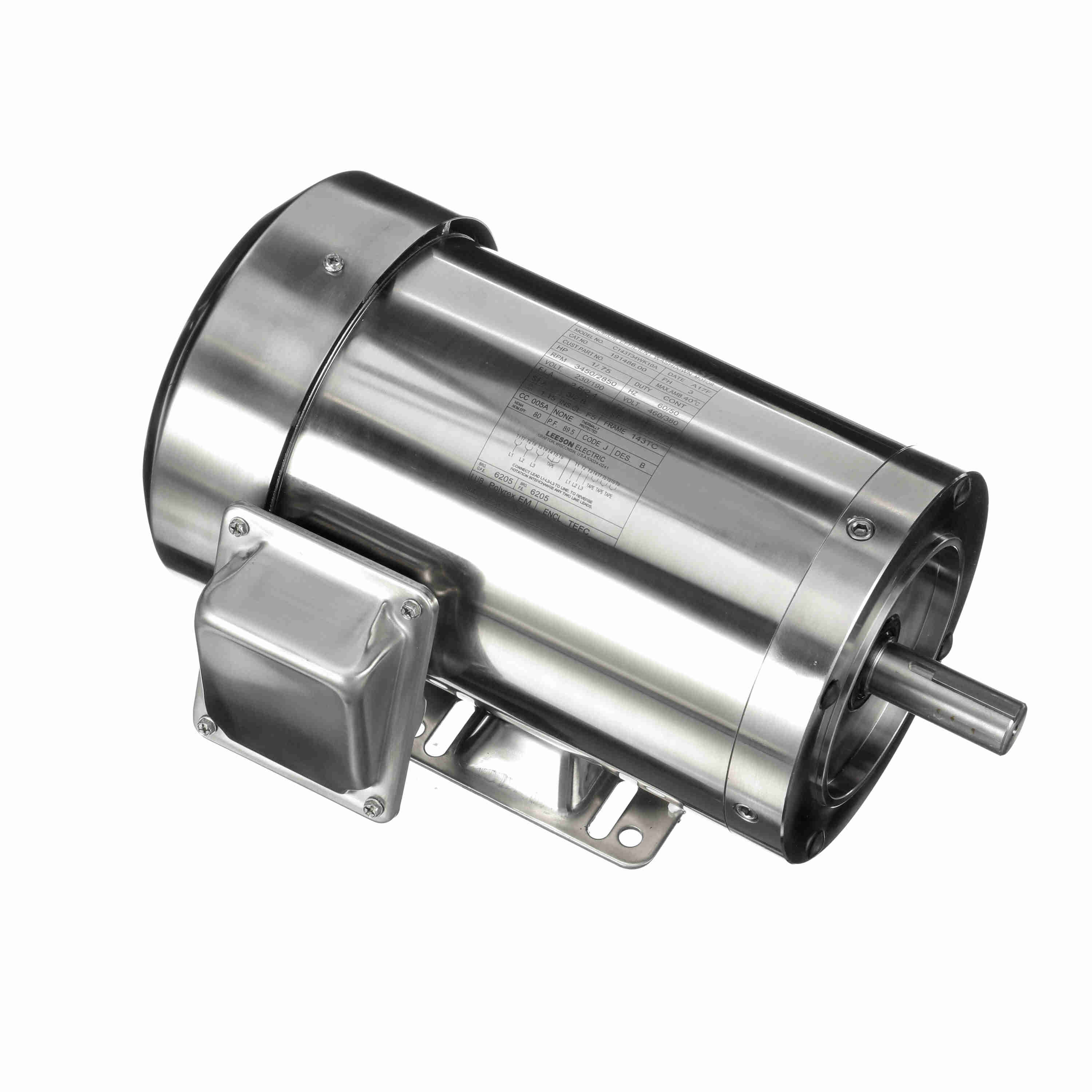

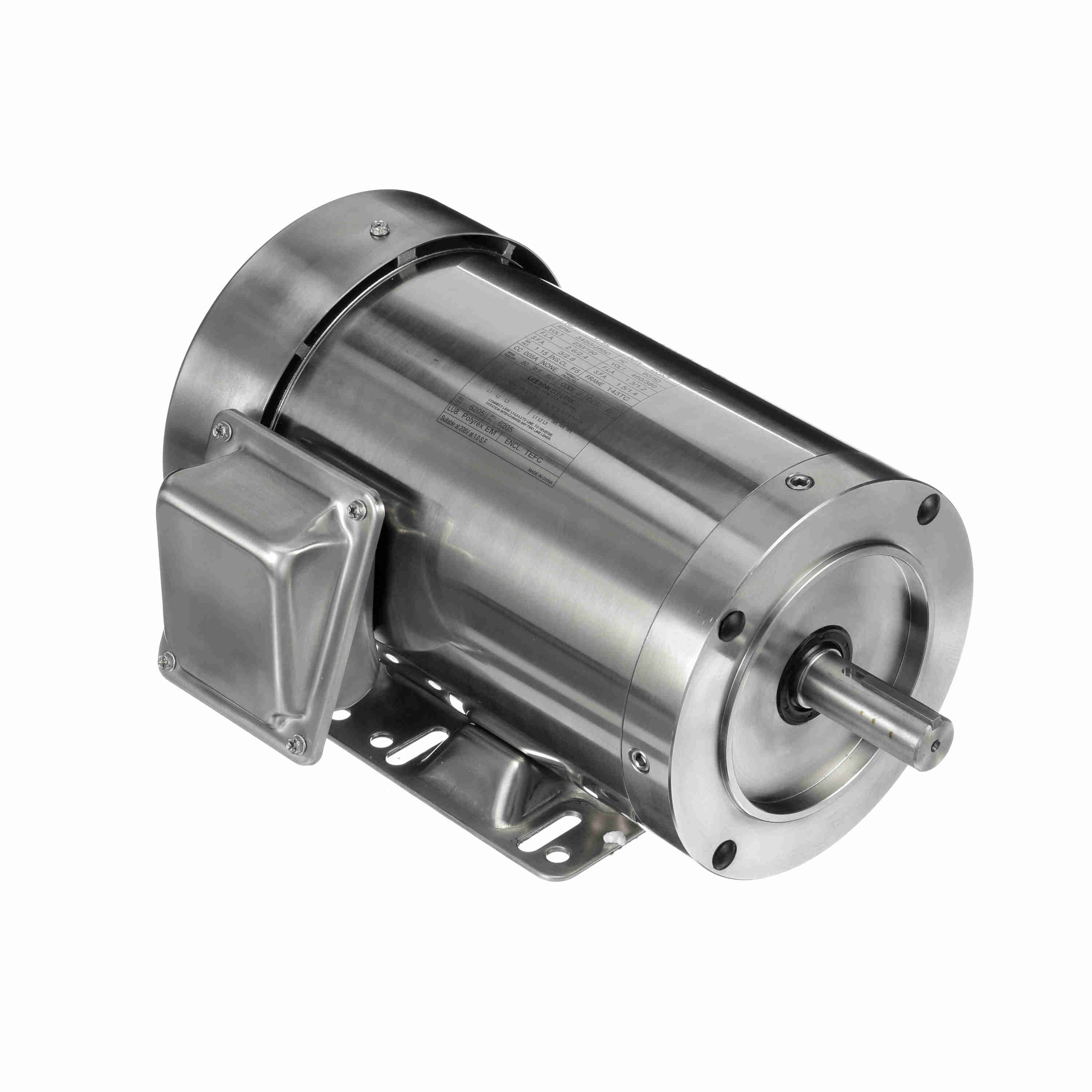

191486.00 1HP Leeson Electric SS Motor, Washdown

MFG: Leeson Electric (Regal Rexnord)
MFG Part Number: C143T34WK10

Selected accessories will also be added to cart
$1,047.11 / Each
Quantity:
3600 RPM, 143TC Frame, TEFC, 3 Phase, 230/460V

Product Features
Catalog No 191486.00 Model C143T34WK10A
Product type AC MOTOR Stock Stock
Description ..1HP..3600RPM.143TC.TEFC.230/460V.3PH.60HZ.CONT.40C.1.15SF.RIGID-C..............
Information shown is for current motor's design
 Engineering Data
Volts 208-230Volts 460Volts 190/380
F.L. Amps 2.9-2.6F.L. Amps 1.3F.L. Amps 2.4/1.2
S. F Amps 3.2S. F Amps 1.5S. F Amps 2.8/1.4
RPM 3600Hertz 60
HP 1Duty CONTINUOUSTYPE TF
KW 0.75
Frame 143TCServ. Factor 1.15Phase 3
Max Amb 40Design BCode J
Insul Class FProtection NOTTherm.Prot.
Eff 100% 80Eff 75% PF 89.5
UL YesCSA YesBearing OPE 6205
CC Number CC005ACE YesBearing PE 6205
Load Type Inverter Type Speed Range NONE
RPM 3000Hertz 50
HP 3/4Duty CONTINUOUSTYPE TF
KW 0.56
Frame 143TCServ. Factor 1.15Phase 3
Max Amb 40Design BCode J
Insul Class FProtection NOTTherm.Prot.
Eff 100% Eff 75% PF
UL YesCSA YesBearing OPE 6205
CC Number CC005ACE YesBearing PE 6205
Load Type Inverter Type Speed Range NONE
Motor Wt. 44 LBEnclosure TEFCLubrication POLYREX EM
Nameplate 081123Mounting RIGIDRotation REV
Assembly Shaft Dia. 7/8 INExt. Diag. 005010.01
Cust Part NoOutline 16993400Ext. Diag2
Packaging BWinding QT6327
Carton Label   GROUP: 3
Iris Paint VERIFYTest Card
Form Factor  RMS Amps  Const Torque Speed Range
Torque  Peak
AB Code  Peak@DegC
Resistance
Connection
Rework Status  Rework TYPE
Hazardous Loc NONE Brake Motors
Explosion Proof  Temp Op CodeFORCE
Class GROUP: VDC
Class GROUP: ADC
    Brake Coil OHMs @25 C
Performance
Torque UOM OZ-FT Inertia (WK?) .05 LB-FT^2
Torque 24.3(Full Load) 76.3(Break Down) 41(Pull Up) 62(Locked Rotor)
CURRENT (amps) 1.3(Full Load) 0(Break Down) 0(Pull Up) 9.8(Locked Rotor)
Efficiency (%) 0(Full Load) 79.4(75% Load) 68(50% Load) 63.2(25% Load)
PowerFactor 0(Full Load) 84.5(75% Load) 82.7(50% Load) 64.9(25% Load)
Speed Torque Curve @ 60 Hz, 460 Volts
Curve PointAmpsAmps(%)TorqueTorque(%)RPMKWPFHP
FL 1.3 100.0 24.3 100.0 3456 - - 1.0
BD - - 76.3 314.0 0.0 - - 1.0
PU - - 41.0 169.0 0.0 - - 1.0
LR 9.8 754.0 62.0 255.0 0.0 - - 1.0
SOURCE: CALCULATED GROUP: 3
Speed Torque Curve @ 50 Hz, 380 Volts
Curve PointAmpsAmps(%)TorqueTorque(%)RPMKWPFHP
FL1.2 100.0 21.9 100.0 2873 0.0 0.0 0.75
BD - 0.0 70.8 323.0 0.0 0.0 0.0 0.75
PU - 0.0 40.0 183.0 0.0 0.0 0.0 0.75
LR8.9 742.0 63.0 288.0 0.0 0.0 0.0 0.75
SOURCE: DATABASE GROUP: 3
Load Curve Data @60/50 Hz, 460 Volts, 1 Horsepower
LoadAmpsKW RPM Torque EFFPF Rise By ResisFrame Rise
0.0 0.5 0.072 3595 0.0 0.0 18.1 0.0 -
0.25 0.58 0.3 3561 6.0 63.2 64.9 0.0 -
0.5 0.85 0.56 3528 12.15 68.0 82.7 0.0 -
0.75 1.05 0.707 3493 18.1 79.4 84.5 0.0 -
1.0 1.3 0.913 3456 24.3 81.7 88.1 41.0 -
1.25 1.6 1.189 3411 30.8 78.4 93.3 0.0 -
1.5 2.0 1.465 3363 37.5 76.4 91.9 0.0 -
SOURCE: CALCULATED GROUP: 3
Type
Electric Motor
Input Phase
3-Phase
Enclosure
TEFC
Horsepower
1HP
Speed
3600RPM
Frame
143TC
