/Products/Electric Motors/3 Phase Stainless Steel/Leeson 3-Phase Stainless Steel Electric Motors/TENV/TEFC C-Face with Base/191489.00 1.5HP Leeson Electric SS Motor, Washdown
Click Image to Expand

Product ID: 191489.00

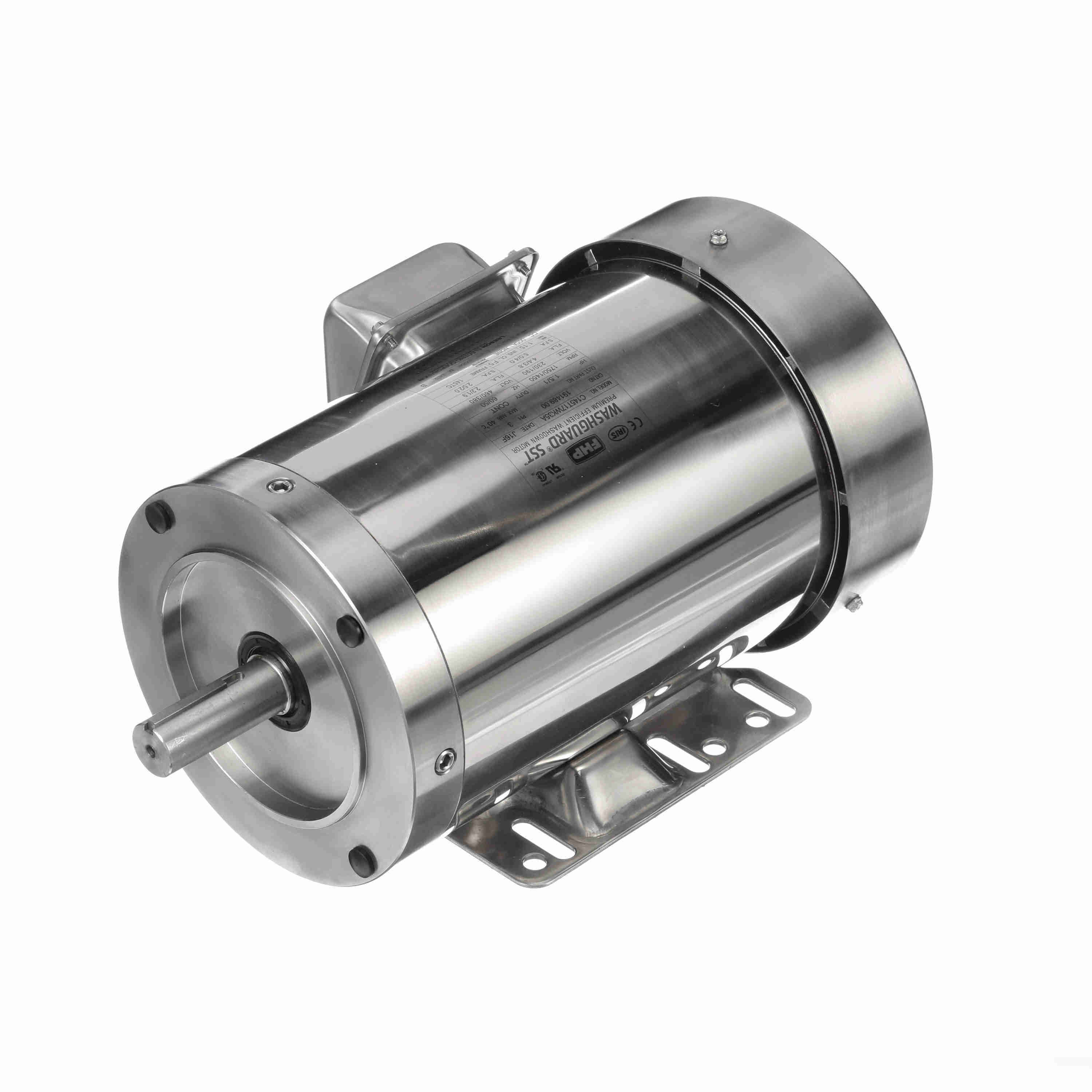

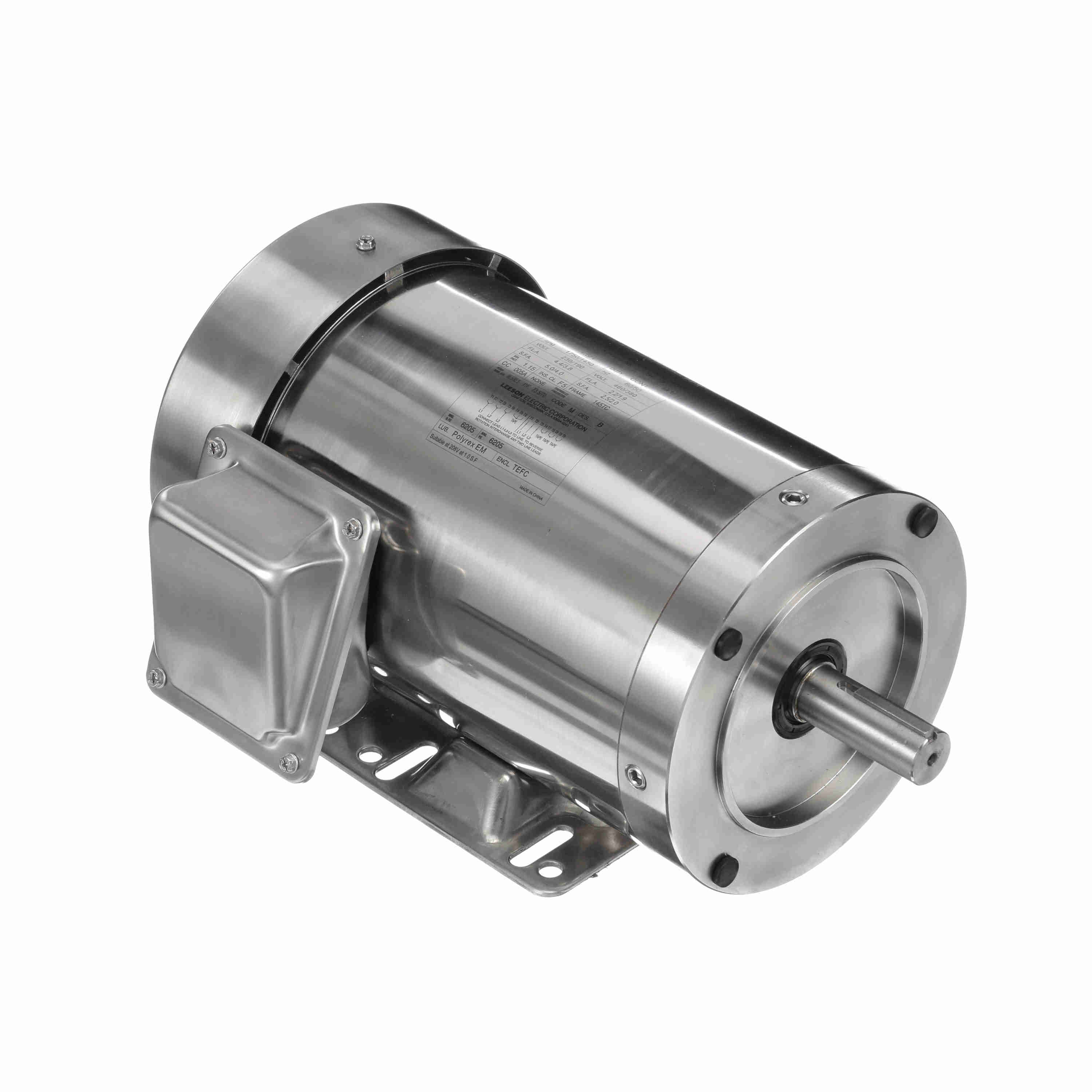

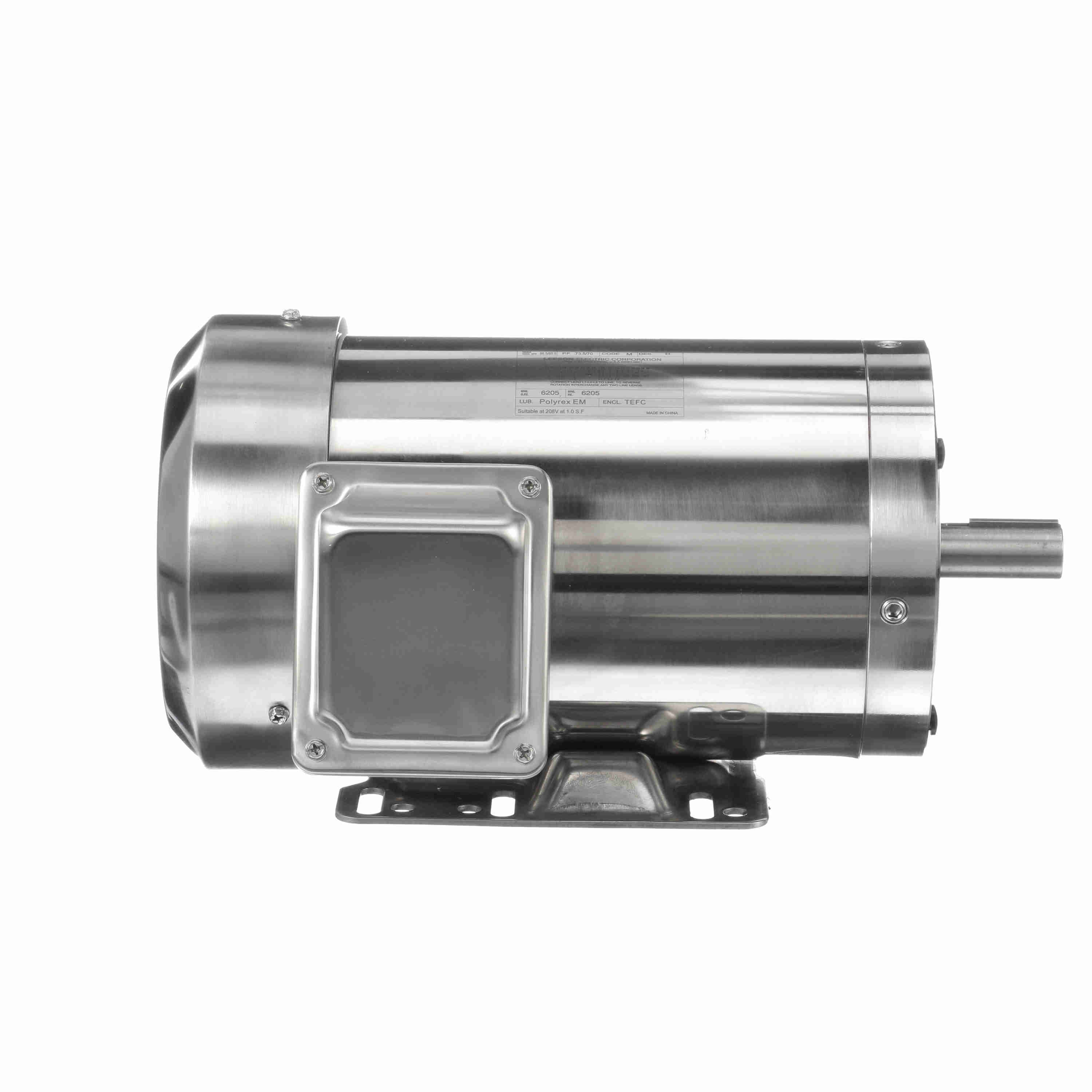

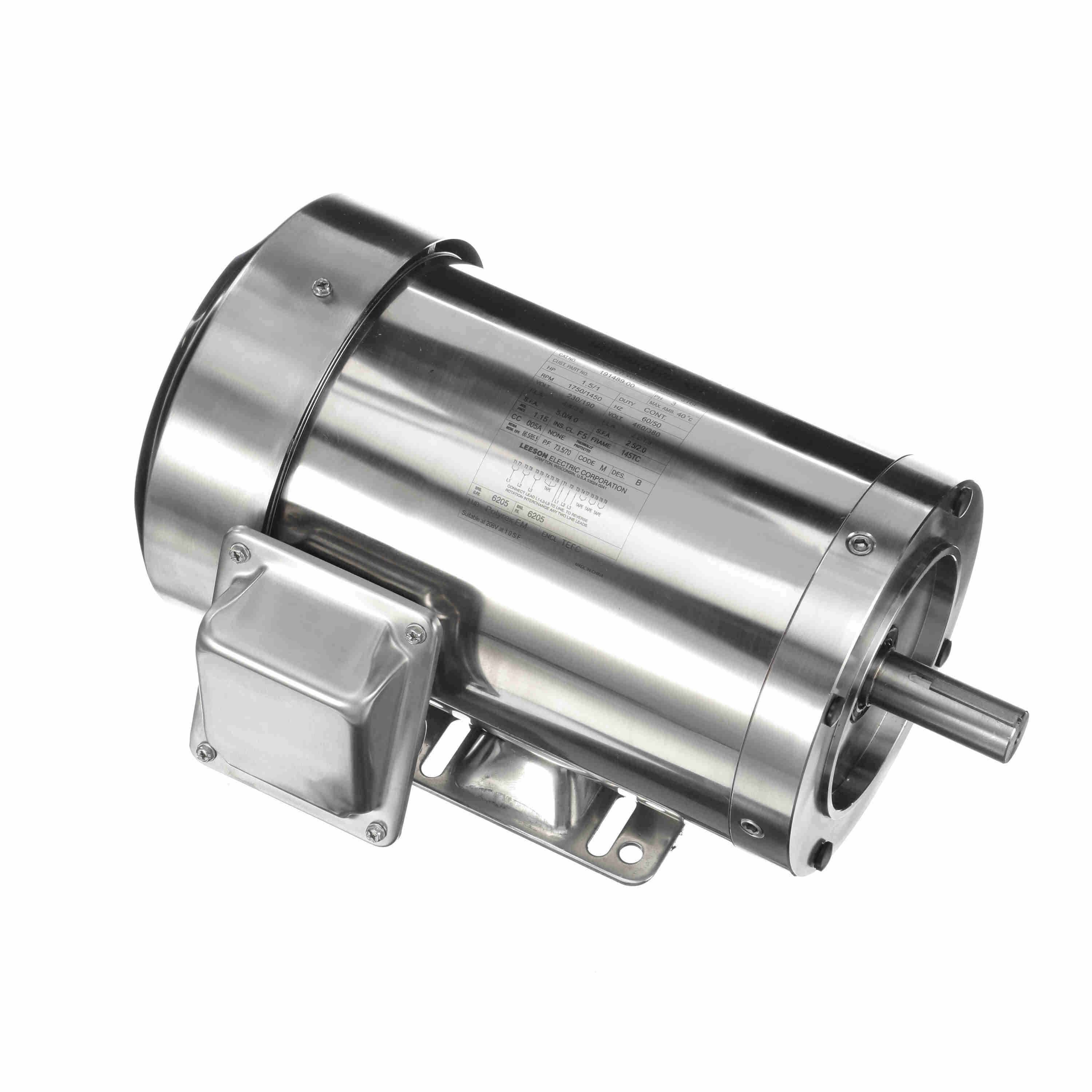

191489.00 1.5HP Leeson Electric SS Motor, Washdown

MFG: Leeson Electric (Regal Rexnord)
MFG Part Number: C145T17WK35

Selected accessories will also be added to cart
$1,240.73 / Each
Quantity:
1800 RPM, 145TC Frame, TEFC, 3 Phase, 230/460V

Product Features
Catalog No 191489.00 Model C145T17WK35 A
Product type AC MOTOR Stock Stock
Description ..1 1/2HP..1740RPM.145TC.TEFC.230/460V.3PH.60HZ.CONT.40C.1.15SF.RIGID C......WASHGUARD - ALL STAINLESS........
Information shown is for current motor's design
 Engineering Data
Volts 208-230Volts 460Volts 190/380
F.L. Amps 4.8-4.4F.L. Amps 2.2F.L. Amps 3.8/1.9
S. F Amps 5.5-5S. F Amps 2.5S. F Amps 4/2
RPM 1800Hertz 60
HP 1 1/2Duty CONTINUOUSTYPE TF
KW 1.12
Frame 145TCServ. Factor 1.15Phase 3
Max Amb 40Design BCode M
Insul Class FProtection NOTTherm.Prot.
Eff 100% 86.5Eff 75% PF 73.5
UL YesCSA YesBearing OPE 6205
CC Number EXEMPTCE YesBearing PE 6205
Load Type Inverter Type Speed Range NONE
RPM 1500Hertz 50
HP 1Duty CONTINUOUSTYPE TF
KW 0.75
Frame 145TCServ. Factor 1.15Phase 3
Max Amb 40Design BCode M
Insul Class FProtection NOTTherm.Prot.
Eff 100% 85.5Eff 75% PF 70
UL YesCSA YesBearing OPE 6205
CC Number EXEMPTCE YesBearing PE 6205
Load Type Inverter Type Speed Range NONE
Motor Wt. 48 LBEnclosure TEFCLubrication POLYREX EM
Nameplate Mounting RIGIDRotation REV
Assembly Shaft Dia. Ext. Diag. 005010.01
Cust Part NoOutline 16993400Ext. Diag2
Packaging BWinding QT63421
Carton Label   GROUP: 3
Iris Paint VERIFYTest Card 01
Form Factor  RMS Amps  Const Torque Speed Range
Torque  Peak
AB Code  Peak@DegC
Resistance
Connection
Rework Status  Rework TYPE
Hazardous Loc NONE Brake Motors
Explosion Proof  Temp Op CodeFORCE
Class GROUP: VDC
Class GROUP: ADC
    Brake Coil OHMs @25 C
Performance
Torque UOM LB-FT Inertia (WK?) -1 LB-FT^2
Torque 4.51(Full Load) 21.05(Break Down) 15.28(Pull Up) 18.1(Locked Rotor)
CURRENT (amps) 2.2(Full Load) 12.5(Break Down) 19.4(Pull Up) 19.9(Locked Rotor)
Efficiency (%) 0(Full Load) 84.1(75% Load) 79.5(50% Load) 70.5(25% Load)
PowerFactor 75.5(Full Load) 66.3(75% Load) 54.4(50% Load) 35.7(25% Load)
Speed Torque Curve @ 60 Hz, 460 Volts
Curve PointAmpsAmps(%)TorqueTorque(%)RPMKWPFHP
FL 2.2 100.0 4.51 100.0 1745 1.323 75.5 1.5
BD 12.5 568.0 21.05 467.0 1286 8.3 83.3 1.5
PU 19.4 882.0 15.28 339.0 257 9.6 61.9 1.5
LR 19.9 905.0 18.1 401.0 0.0 9.5 59.5 1.5
SOURCE: CALCULATED GROUP: 3
Speed Torque Curve @ 50 Hz, 380 Volts
Curve PointAmpsAmps(%)TorqueTorque(%)RPMKWPFHP

No Speed Torque Curve Data!
Load Curve Data @60/50 Hz, 460 Volts, 1 1/2 Horsepower
LoadAmpsKW RPM Torque EFFPF Rise By ResisFrame Rise
0.0 1.3 0.106 0 0.0 0.0 10.2 0.0 -
0.25 1.4 0.398 1785 1.106 70.5 35.7 0.0 -
0.5 1.6 0.694 1773 2.19 79.5 54.4 0.0 -
0.75 1.9 1.003 1759 3.375 84.1 66.3 0.0 -
1.0 2.2 1.323 1745 4.513 84.6 75.5 53.18 -
1.15 2.48 1.54 1735 5.238 83.8 77.9 0.0 -
1.25 2.6 1.659 1730 5.713 84.6 80.1 0.0 -
1.5 3.0 2.011 1713 6.9 83.5 84.1 0.0 -
SOURCE: CALCULATED GROUP: 3
Type
Electric Motor
Input Phase
3-Phase
Enclosure
TEFC
Horsepower
1.5HP
Speed
1800RPM
Frame
145TC
