/Products/Electric Motors/3 Phase Stainless Steel/Leeson 3-Phase Stainless Steel Electric Motors/TENV/TEFC C-Face with Base/191490.00 2HP Leeson Electric SS Motor, Washdown
Click Image to Expand

Product ID: 191490.00

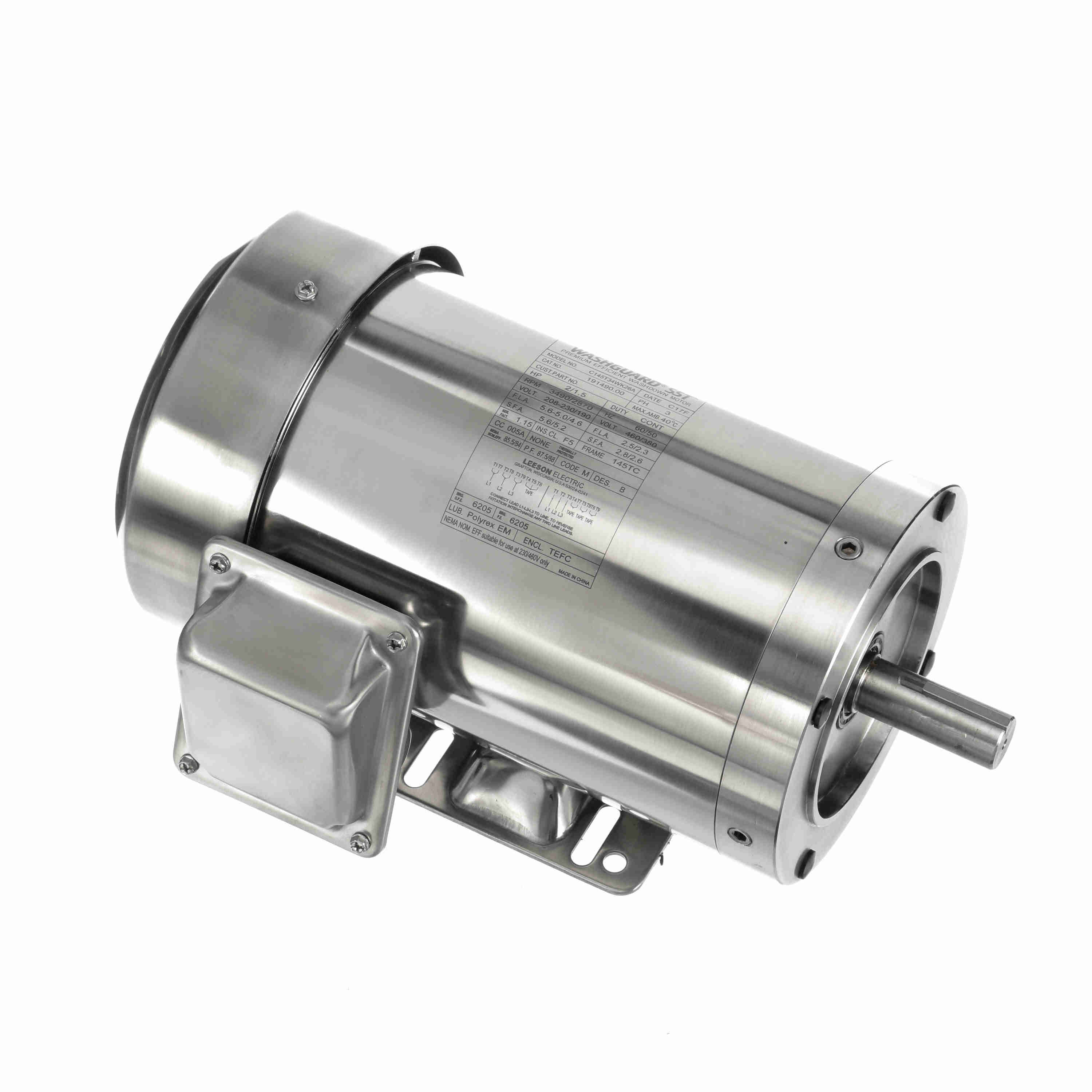

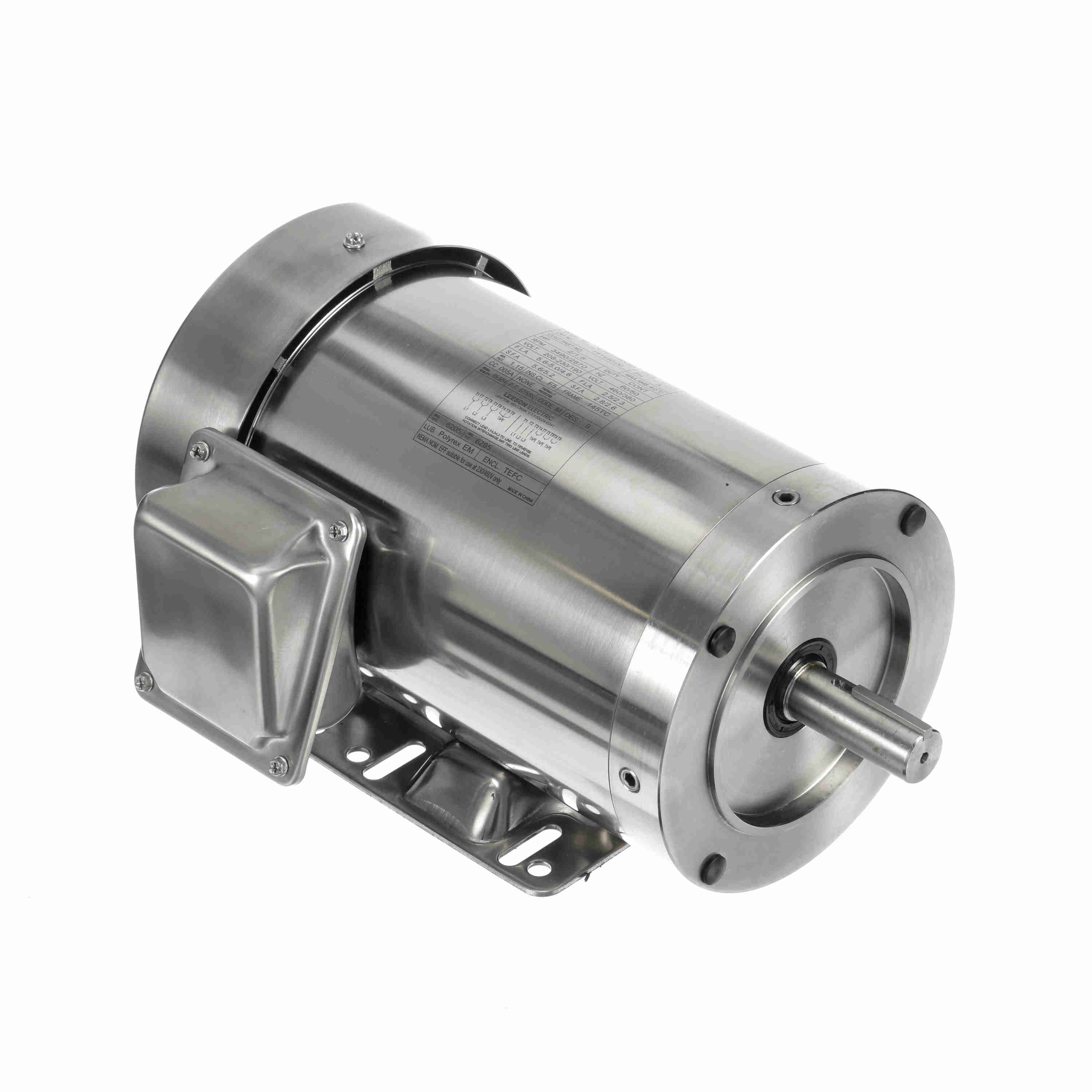

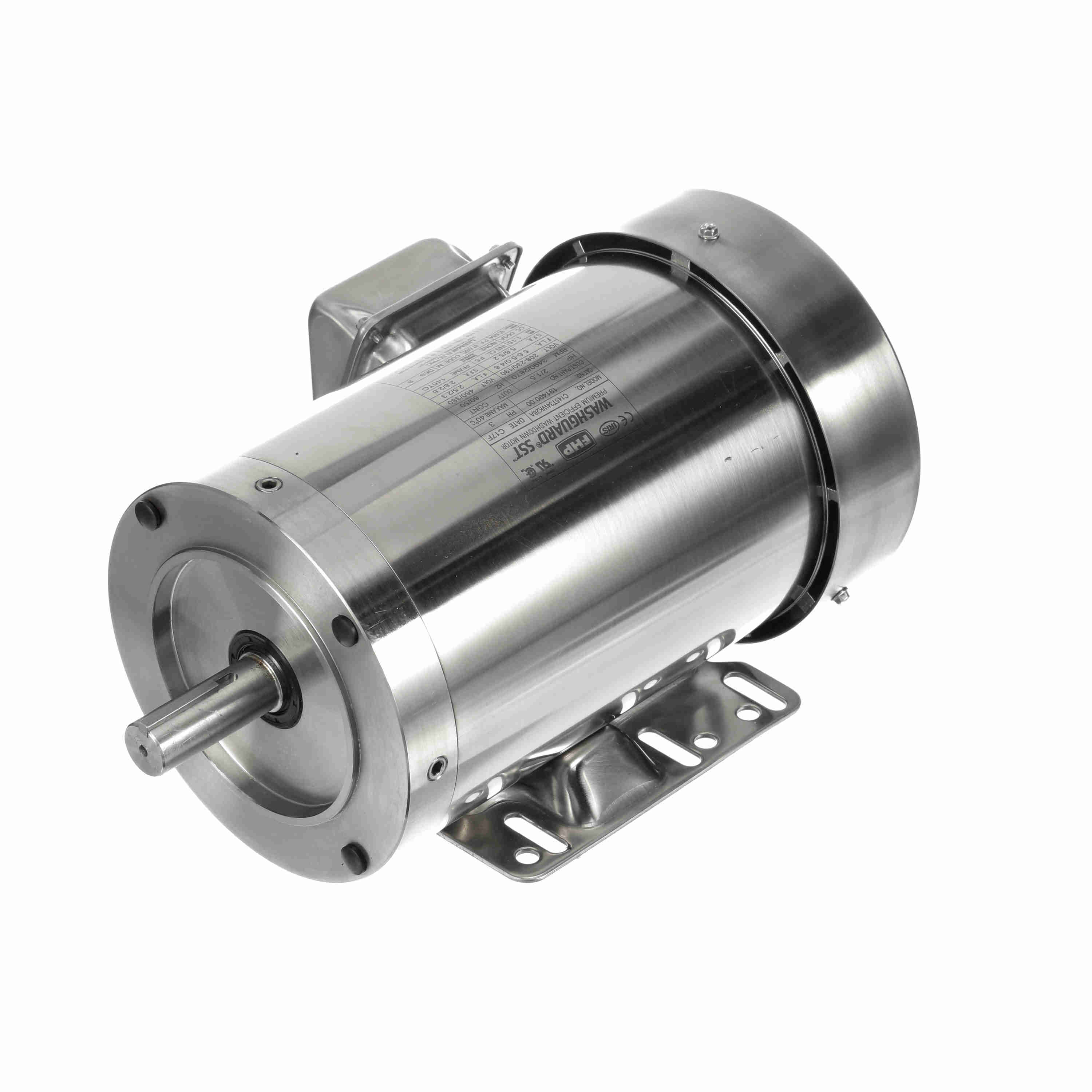

191490.00 2HP Leeson Electric SS Motor, Washdown

MFG: Leeson Electric (Regal Rexnord)
MFG Part Number: C145T34WK26

Selected accessories will also be added to cart
$1,385.30 / Each
Quantity:
3600 RPM, 145TC Frame, TEFC, 3 Phase, 230/460V

Product Features
Catalog No 191490.00 Model C145T34WK26A
Product type AC MOTOR Stock Stock
Description ..2HP..3450RPM.145TC.TEFC.230/460V.3PH.60HZ.CONT.40C.1.15SF.RIGID C......WASHGUARD - ALL STAINLESS........
Information shown is for current motor's design
 Engineering Data
Volts 208-230Volts 460Volts 190/380
F.L. Amps 5.3-5F.L. Amps 2.5F.L. Amps 4.6/2.3
S. F Amps 6.2-5.6S. F Amps 2.8S. F Amps 5.2/2.6
RPM 3600Hertz 60
HP 2Duty CONTINUOUSTYPE TF
KW 1.49
Frame 145TCServ. Factor 1.15Phase 3
Max Amb 40Design BCode M
Insul Class FProtection NOTTherm.Prot.
Eff 100% 85.5Eff 75% PF 87.5
UL YesCSA YesBearing OPE 6205
CC Number CC005ACE YesBearing PE 6205
Load Type Inverter Type Speed Range NONE
RPM 3000Hertz 50
HP 1 1/2Duty CONTINUOUSTYPE TF
KW 1.12
Frame 145TCServ. Factor 1.15Phase 3
Max Amb 40Design BCode M
Insul Class FProtection NOTTherm.Prot.
Eff 100% 84Eff 75% PF 88
UL YesCSA YesBearing OPE 6205
CC Number CC005ACE YesBearing PE 6205
Load Type Inverter Type Speed Range NONE
Motor Wt. 47 LBEnclosure TEFCLubrication POLYREX EM
Nameplate 081123Mounting RIGIDRotation REV
Assembly Shaft Dia. 7/8 INExt. Diag. 005010.01
Cust Part NoOutline 16993400Ext. Diag2
Packaging BWinding QT63219
Carton Label   GROUP: 3
Iris Paint VERIFYTest Card 01
Form Factor  RMS Amps  Const Torque Speed Range
Torque  Peak
AB Code  Peak@DegC
Resistance
Connection
Rework Status  Rework TYPE
Hazardous Loc NONE Brake Motors
Explosion Proof  Temp Op CodeFORCE
Class GROUP: VDC
Class GROUP: ADC
    Brake Coil OHMs @25 C
Performance
Torque UOM LB-FT Inertia (WK?) 0
Torque 3(Full Load) 11.84(Break Down) 7.61(Pull Up) 10.7(Locked Rotor)
CURRENT (amps) 2.4(Full Load) 14.9(Break Down) 23.9(Pull Up) 25.4(Locked Rotor)
Efficiency (%) 0(Full Load) 87.2(75% Load) 86.7(50% Load) 80.2(25% Load)
PowerFactor 90(Full Load) 84.6(75% Load) 77.3(50% Load) 58.1(25% Load)
Speed Torque Curve @ 60 Hz, 460 Volts
Curve PointAmpsAmps(%)TorqueTorque(%)RPMKWPFHP
FL 2.4 100.0 3.0 100.0 3497 1.721 90.0 2.0
BD 14.9 621.0 11.84 395.0 2657 10.1 85.2 2.0
PU 23.9 996.0 7.61 254.0 657 12.1 63.4 2.0
LR 25.4 1058.0 10.7 357.0 0.0 12.2 60.2 2.0
SOURCE: CALCULATED GROUP: 3
Speed Torque Curve @ 50 Hz, 380 Volts
Curve PointAmpsAmps(%)TorqueTorque(%)RPMKWPFHP

No Speed Torque Curve Data!
Load Curve Data @60/50 Hz, 460 Volts, 2 Horsepower
LoadAmpsKW RPM Torque EFFPF Rise By ResisFrame Rise
0.0 0.9 0.079 0 0.0 0.0 11.0 0.0 -
0.25 1.0 0.463 3576 0.731 80.2 58.1 0.0 -
0.5 1.4 0.862 3552 1.481 86.7 77.3 0.0 -
0.75 1.9 1.281 3525 2.231 87.2 84.6 0.0 -
1.0 2.4 1.721 3497 3.001 86.6 90.0 63.29 -
1.15 2.82 2.022 3482 3.469 84.9 90.0 0.0 -
1.25 3.0 2.187 3464 3.788 85.2 91.5 0.0 -
1.5 3.7 2.681 3427 4.588 83.3 90.9 0.0 -
SOURCE: CALCULATED GROUP: 3
Type
Electric Motor
Input Phase
3-Phase
Enclosure
TEFC
Horsepower
2HP
Speed
3600RPM
Frame
145TC
