/Products/Electric Motors/3 Phase Stainless Steel/Leeson 3-Phase Stainless Steel Electric Motors/TENV/TEFC C-Face with Base/191492.00 3HP Leeson Electric SS Motor, Washdown

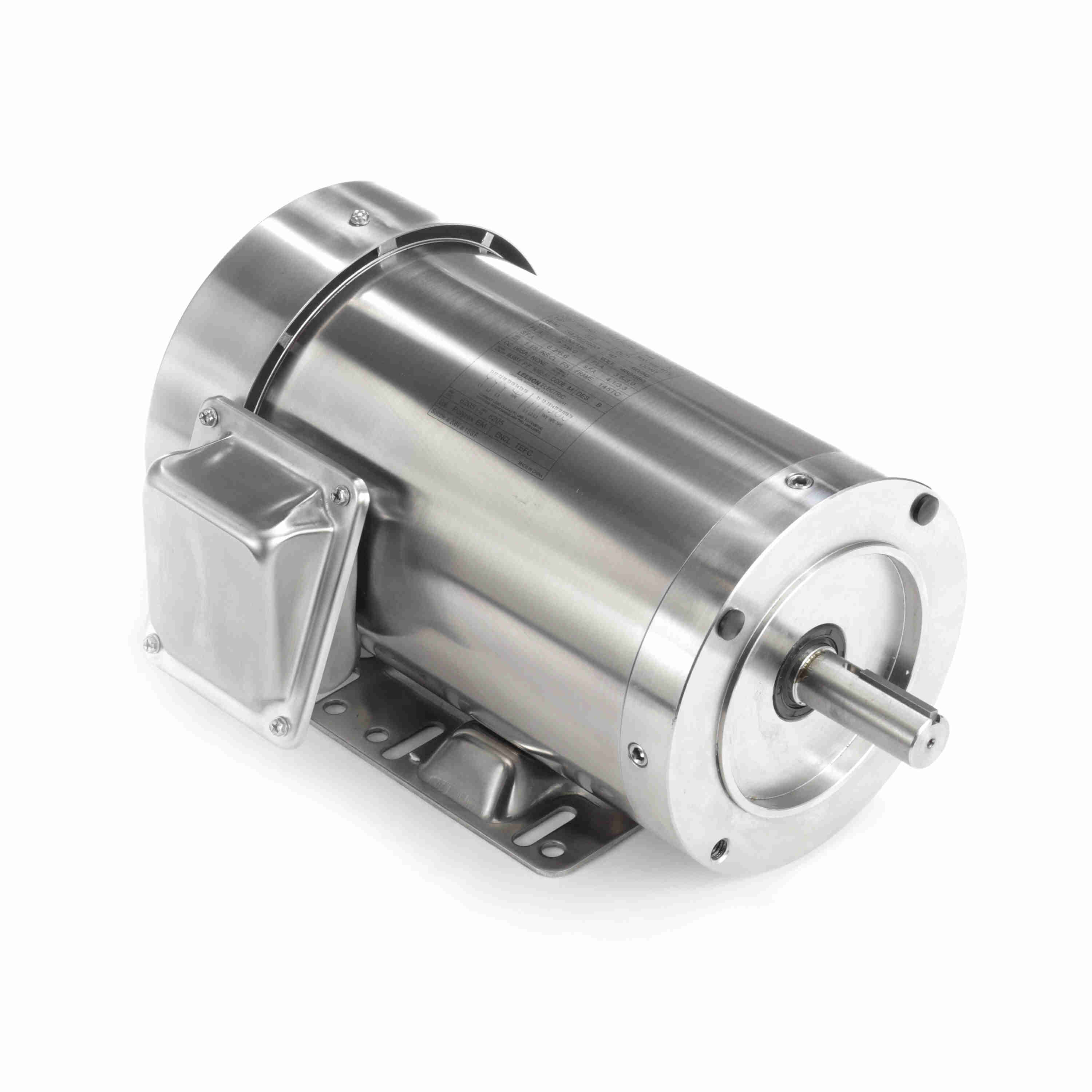

Click Image to Expand

Product ID: 191492.00

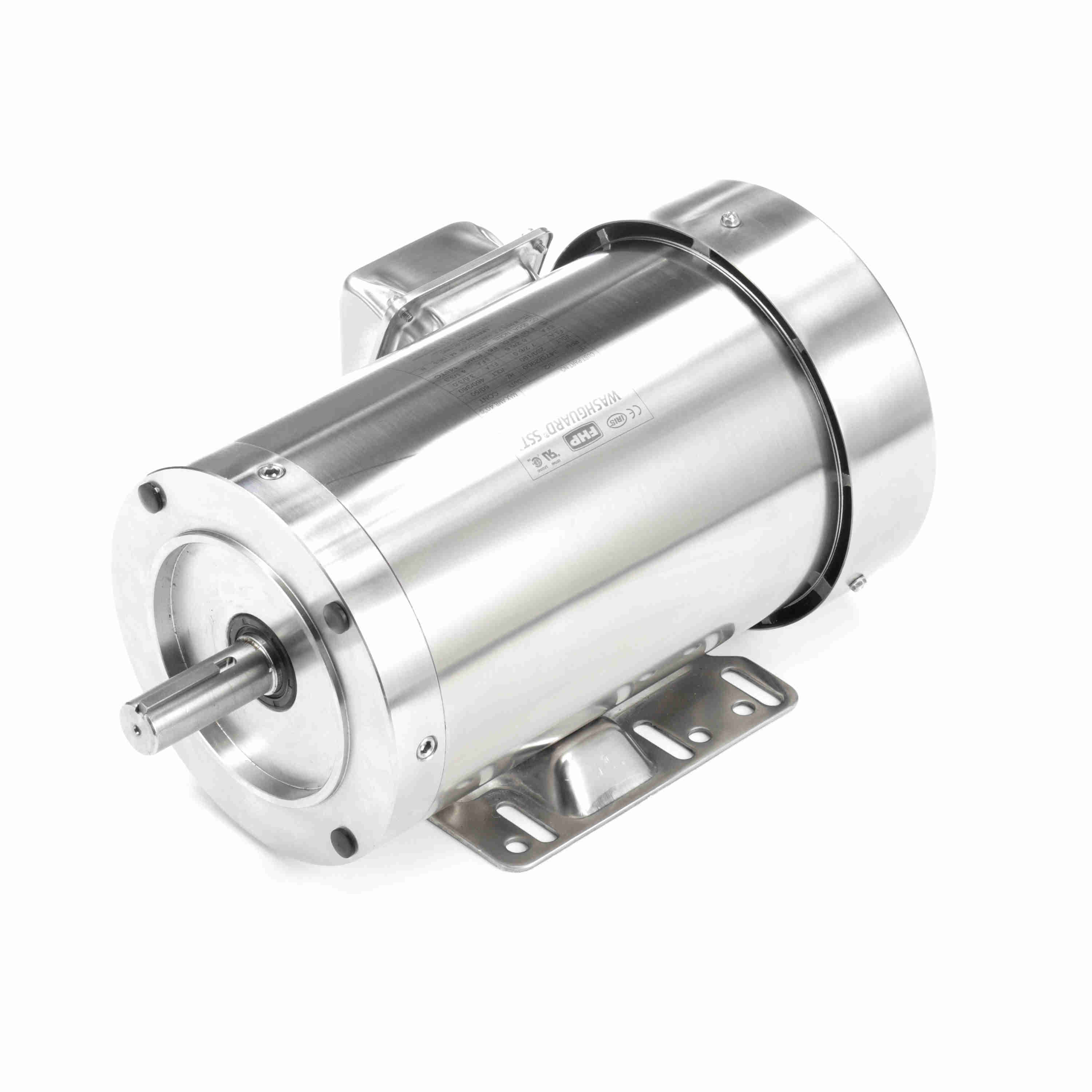

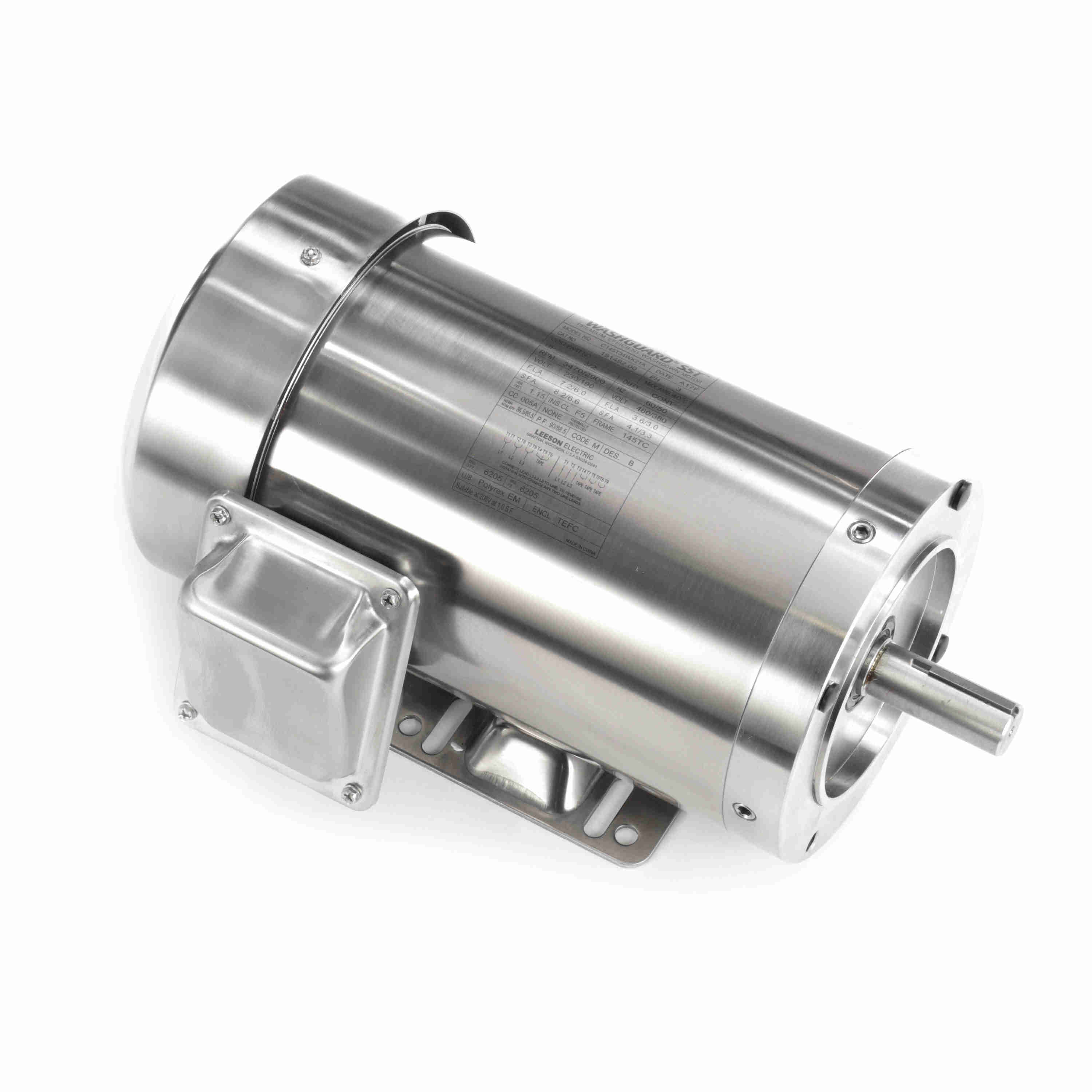

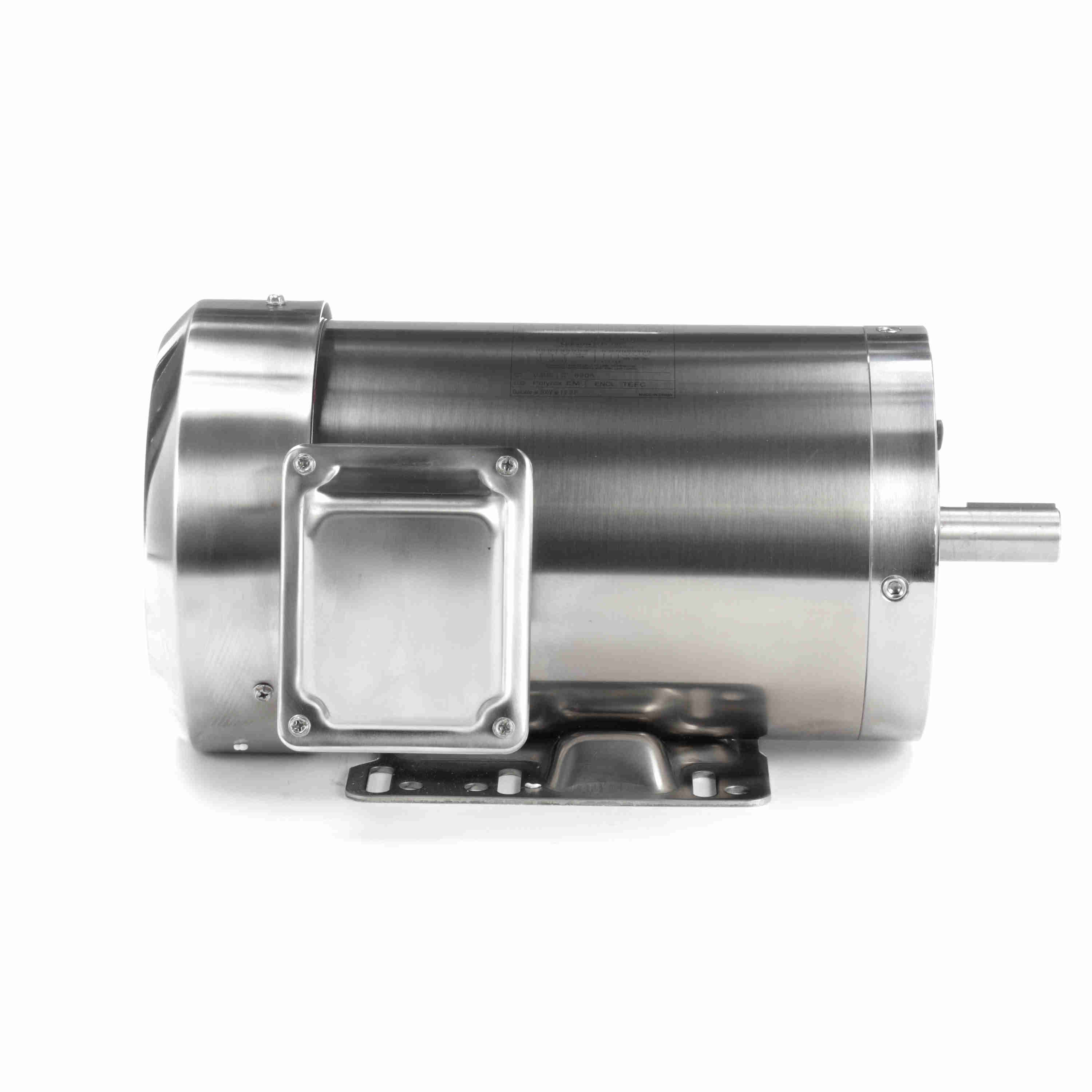

191492.00 3HP Leeson Electric SS Motor, Washdown

MFG: Leeson Electric (Regal Rexnord)
MFG Part Number: C145T34WK21

Selected accessories will also be added to cart
$1,483.54 / Each
Quantity:
3600 RPM, 145TC Frame, TEFC, 3 Phase, 230/460V

Product Features
Catalog No 191492.00 Model C145T34WK21A
Product type AC MOTOR Stock Stock
Description ..3HP..3450RPM.145TC.TEFC.230/460V.3PH.60HZ.CONT.40C.1.15SF.RIGID C......WASHGUARD - ALL STAINLESS........
Information shown is for current motor's design
 Engineering Data
Volts 208-230Volts 460Volts 190/380
F.L. Amps 8-7.2F.L. Amps 3.6F.L. Amps 6/3
S. F Amps 9.2-8.2S. F Amps 4.1S. F Amps 6.6/3.3
RPM 3600Hertz 60
HP 3Duty CONTINUOUSTYPE TF
KW 2.24
Frame 145TCServ. Factor 1.15Phase 3
Max Amb 40Design BCode M
Insul Class FProtection NOTTherm.Prot.
Eff 100% 86.5Eff 75% PF 90
UL YesCSA YesBearing OPE 6205
CC Number CC005ACE YesBearing PE 6205
Load Type Inverter Type Speed Range NONE
RPM 3000Hertz 50
HP 2Duty CONTINUOUSTYPE TF
KW 1.49
Frame 145TCServ. Factor 1.15Phase 3
Max Amb 40Design BCode M
Insul Class FProtection NOTTherm.Prot.
Eff 100% 85.5Eff 75% PF 88.5
UL YesCSA YesBearing OPE 6205
CC Number CC005ACE YesBearing PE 6205
Load Type Inverter Type Speed Range NONE
Motor Wt. 55 LBEnclosure TEFCLubrication POLYREX EM
Nameplate Mounting RIGIDRotation REV
Assembly Shaft Dia. Ext. Diag. 005010.01
Cust Part NoOutline OL191492Ext. Diag2
Packaging BWinding QT63220
Carton Label   GROUP: 3
Iris Paint VERIFYTest Card 01
Form Factor  RMS Amps  Const Torque Speed Range
Torque  Peak
AB Code  Peak@DegC
Resistance
Connection
Rework Status  Rework TYPE
Hazardous Loc NONE Brake Motors
Explosion Proof  Temp Op CodeFORCE
Class GROUP: VDC
Class GROUP: ADC
    Brake Coil OHMs @25 C
Performance
Torque UOM LB-FT Inertia (WK?) 0
Torque 4.53(Full Load) 21.96(Break Down) 19.98(Pull Up) 22.69(Locked Rotor)
CURRENT (amps) 3.6(Full Load) 27.3(Break Down) 38.1(Pull Up) 41.6(Locked Rotor)
Efficiency (%) 0(Full Load) 88.5(75% Load) 87.8(50% Load) 83.4(25% Load)
PowerFactor 88.9(Full Load) 85(75% Load) 76(50% Load) 56.3(25% Load)
Speed Torque Curve @ 60 Hz, 460 Volts
Curve PointAmpsAmps(%)TorqueTorque(%)RPMKWPFHP
FL 3.6 100.0 4.53 100.0 3479 2.55 88.9 3.0
BD 27.3 758.0 21.96 485.0 2386 18.0 82.5 3.0
PU 38.1 1058.0 19.98 441.0 643 20.6 67.9 3.0
LR 41.6 1156.0 22.69 501.0 0.0 20.6 62.4 3.0
SOURCE: CALCULATED GROUP: 3
=
Speed Torque Curve @ 50 Hz, 380 Volts
Curve PointAmpsAmps(%)TorqueTorque(%)RPMKWPFHP
FL2.98 100.0 57.94 100.0 2902 1.74 0.0 2.0
BD - 0.0 165.8 286.0 0.0 0.0 0.0 2.0
PU - 0.0 107.98 186.0 0.0 0.0 0.0 2.0
LR14.32 481.0 135.71 234.0 0.0 8.13 0.0 2.0
SOURCE: DATABASE GROUP: 3
Load Curve Data @60/50 Hz, 460 Volts, 3 Horsepower
LoadAmpsKW RPM Torque EFFPF Rise By ResisFrame Rise
0.0 1.2 0.099 0 0.0 0.0 10.4 0.0 -
0.25 1.5 0.673 3571 1.106 83.4 56.3 0.0 -
0.5 2.1 1.271 3542 2.219 87.8 76.0 0.0 -
0.75 2.8 1.896 3511 3.363 88.5 85.0 0.0 -
1.0 3.6 2.55 3479 4.525 87.7 88.9 81.6 -
1.15 4.08 2.95 3463 5.231 87.2 90.8 0.0 -
1.25 4.4 3.24 3442 5.713 86.2 92.4 0.0 -
1.5 5.4 3.97 3399 6.856 83.4 92.3 0.0 -
SOURCE: CALCULATED GROUP: 3
Type
Electric Motor
Input Phase
3-Phase
Enclosure
TEFC
Horsepower
3HP
Speed
3600RPM
Frame
145TC
