/Products/Electric Motors/3 Phase Stainless Steel/Leeson 3-Phase Stainless Steel Electric Motors/TENV/TEFC C-Face with Base/191528.00 1HP Leeson Electric SS Motor, Washdown
Click Image to Expand

Product ID: 191528.00

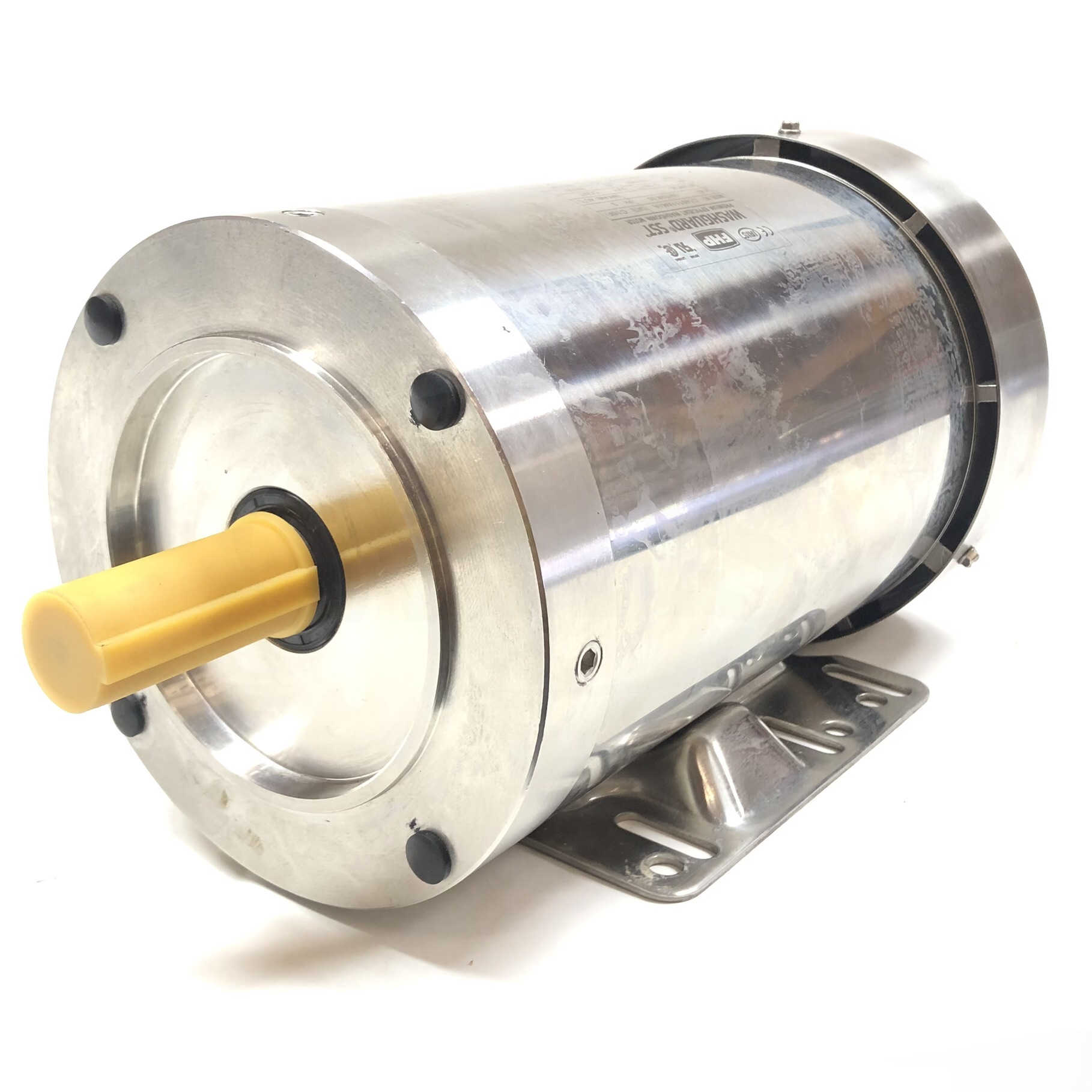

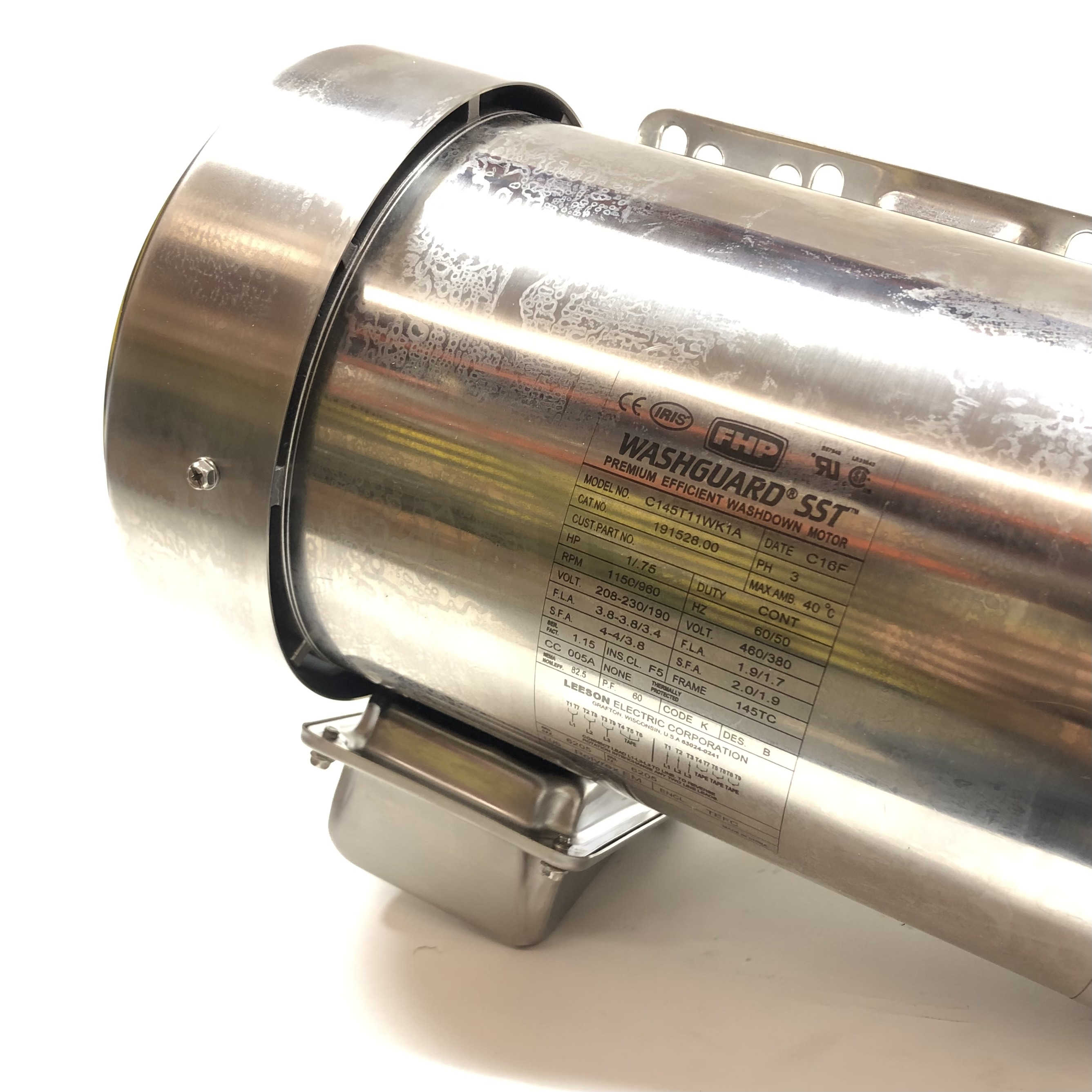

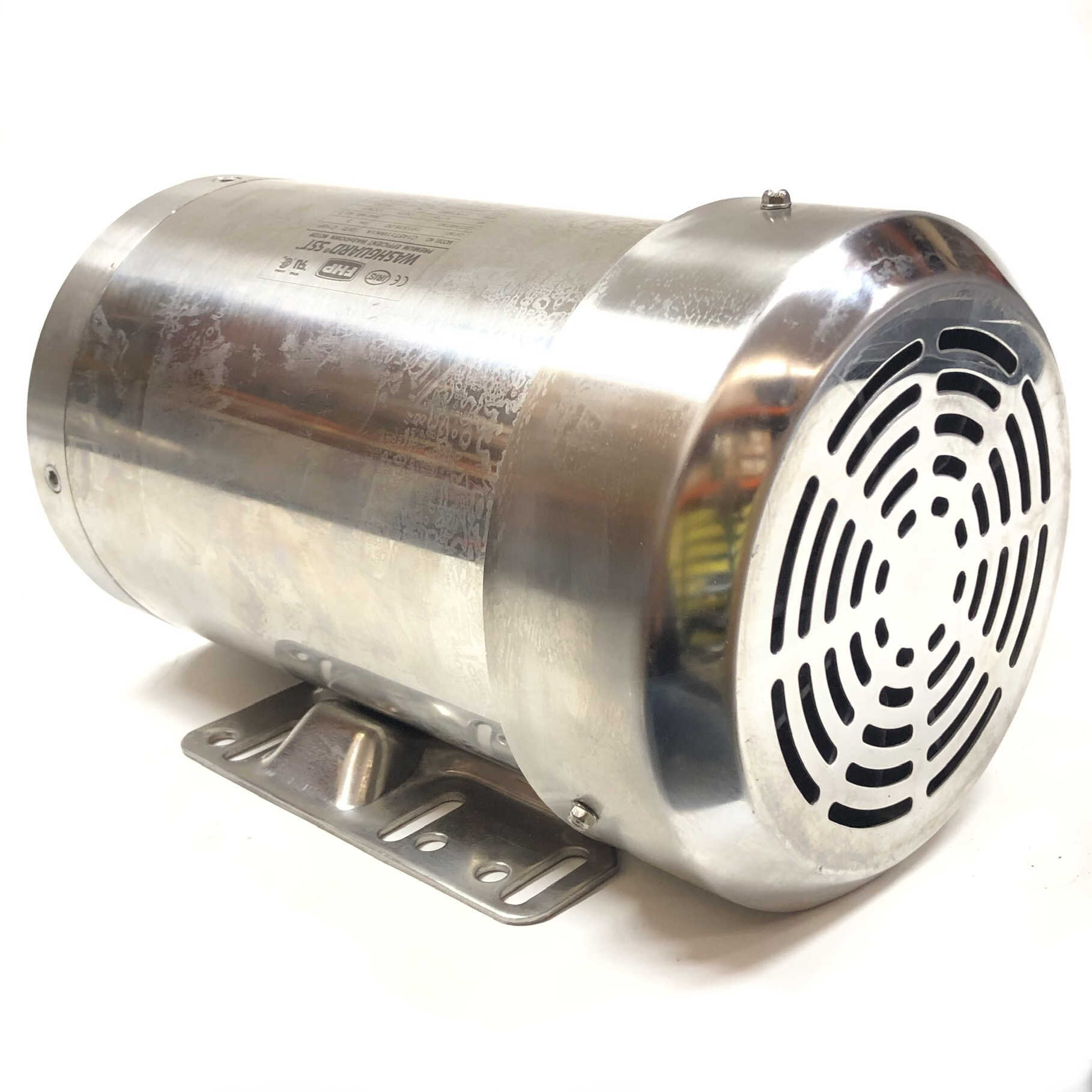

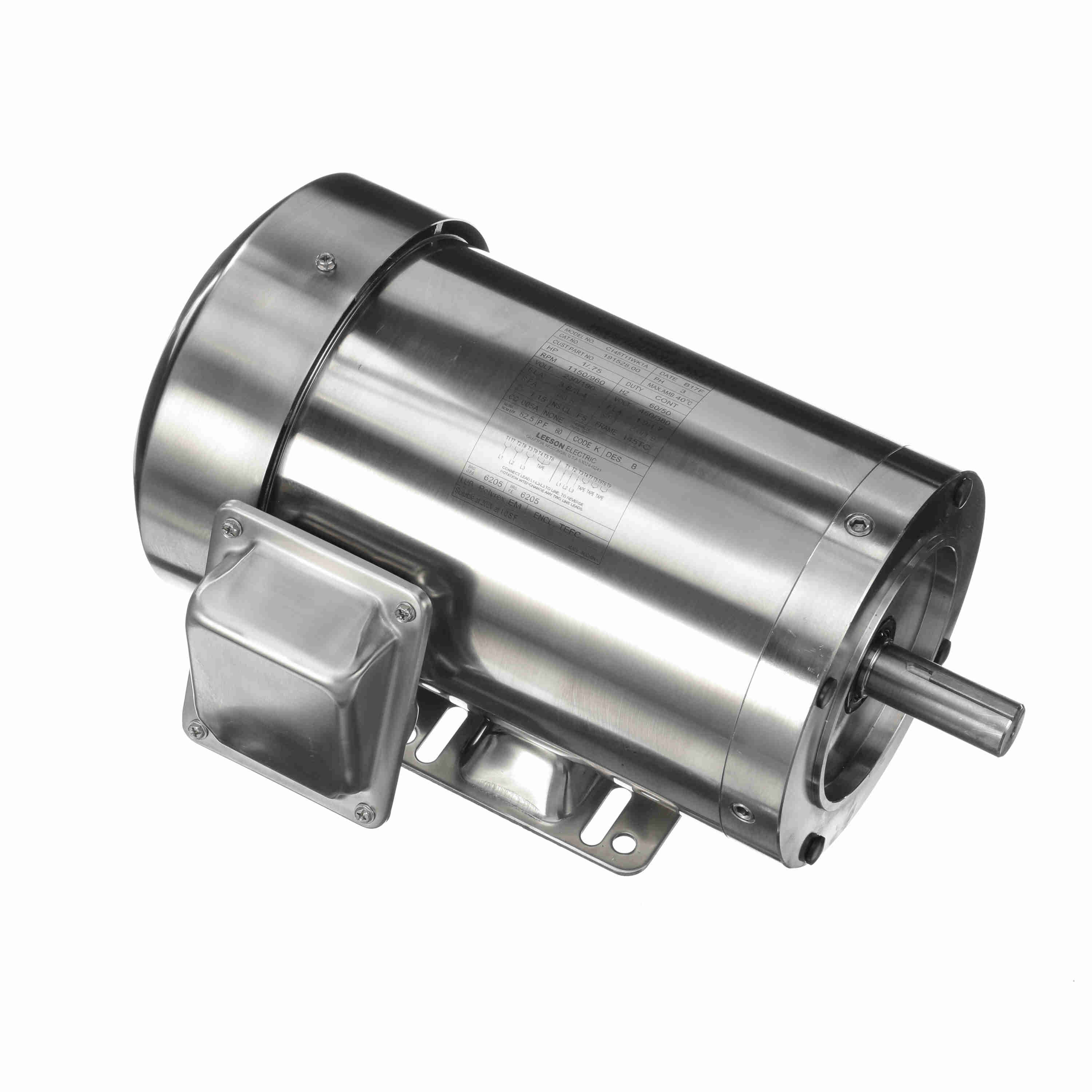

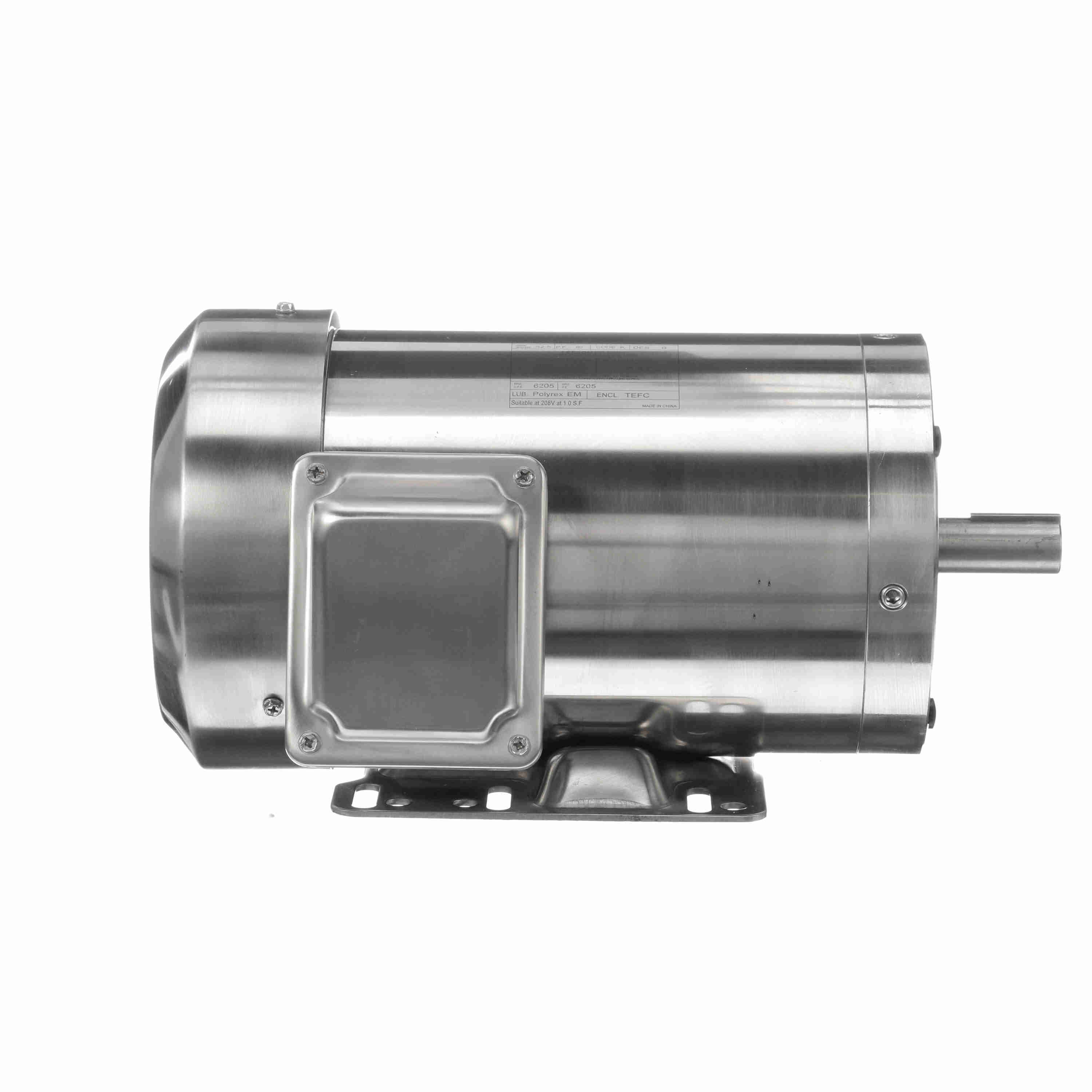

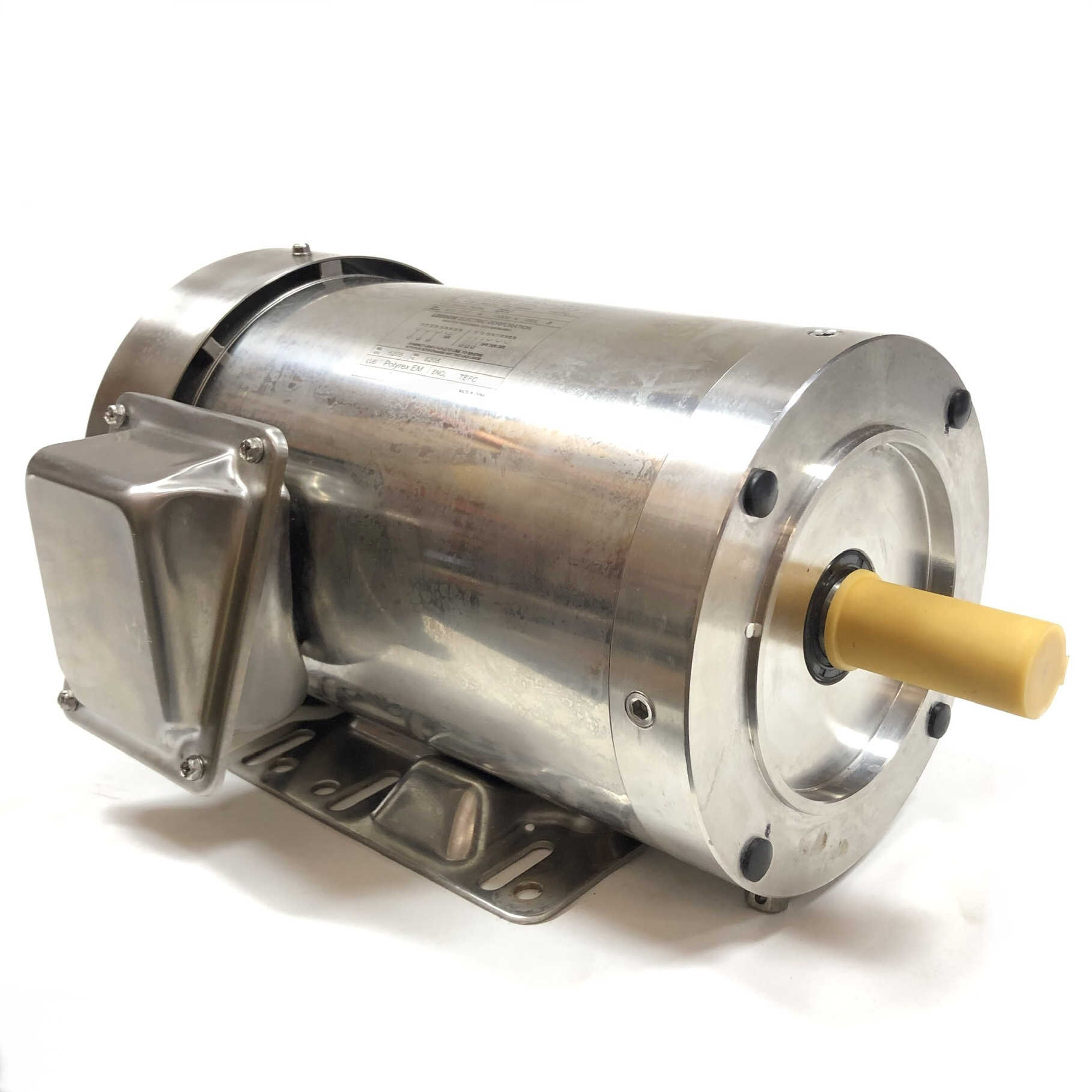

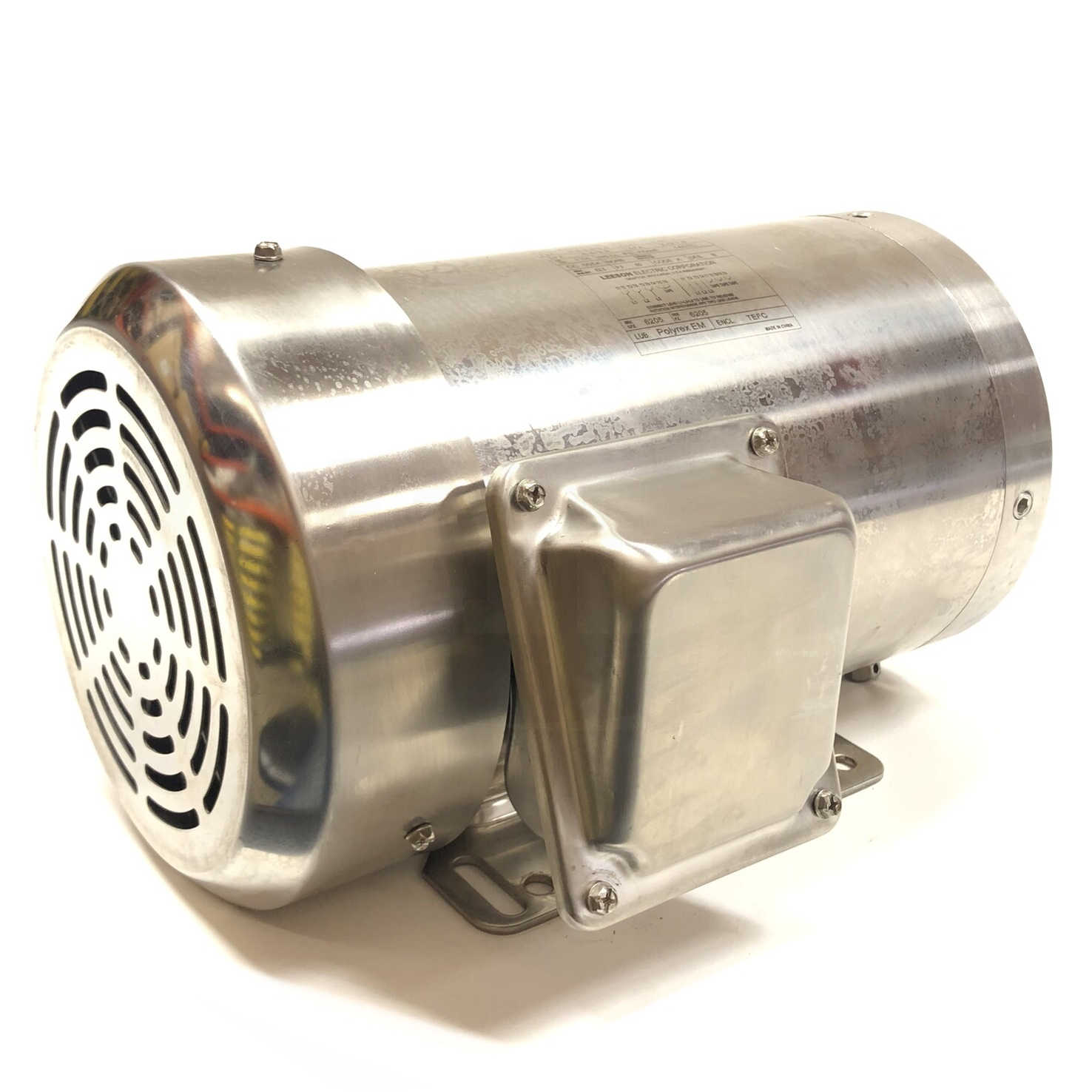

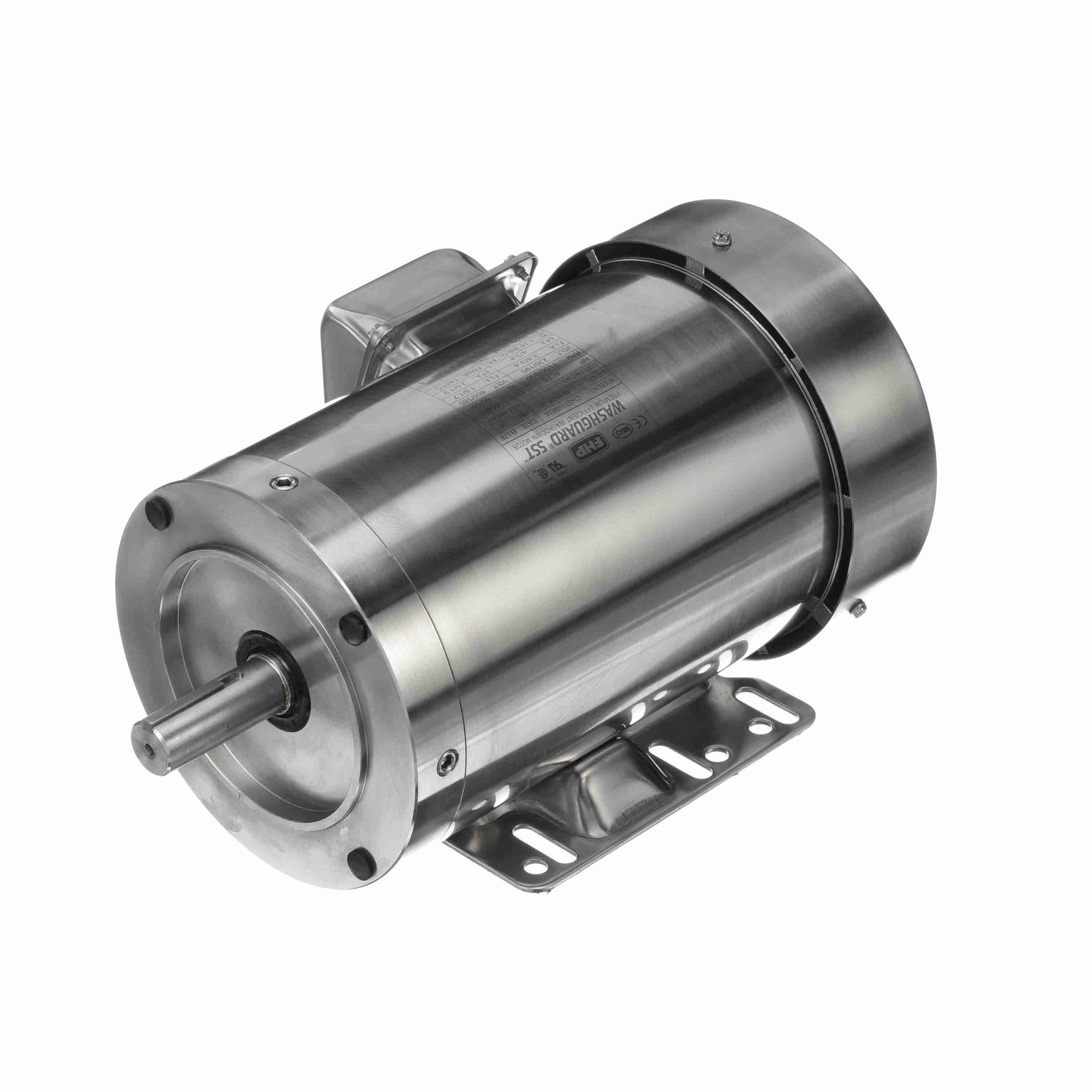

191528.00 1HP Leeson Electric SS Motor, Washdown

MFG: Leeson Electric (Regal Rexnord)
MFG Part Number: C6T11NK6

Selected accessories will also be added to cart
$3,008.00 / Each
Quantity:
New, Surplus Stock

Product Features

Catalog No 191528.00 Model C6T11NK6A
Product type AC MOTOR Stock Stock
Description ..1HP..1200RPM.145TC.TEFC.230/460V.3PH.60HZ.CONT.40C..RIGID-C..............
Information shown is for current motor's design
 Engineering Data
Volts 208-230Volts 460Volts 190/380
F.L. Amps 3.8-3.8F.L. Amps 1.9F.L. Amps 3.4/1.7
S. F Amps 4-4S. F Amps 2S. F Amps 3.8/1.9
RPM 1200Hertz 60
HP 1Duty CONTINUOUSTYPE TF
KW 0.75
Frame 145TCServ. Factor 1.15Phase 3
Max Amb 40Design BCode K
Insul Class FProtection NOTTherm.Prot.
Eff 100% 82.5Eff 75% PF 60
UL YesCSA YesBearing OPE 6205
CC Number CC005ACE YesBearing PE 6205
Load Type Inverter Type Speed Range NONE
RPM 1000Hertz 50
HP 3/4Duty CONTINUOUSTYPE TF
KW 0.56
Frame 145TCServ. Factor 1.15Phase 3
Max Amb 40Design BCode K
Insul Class FProtection NOTTherm.Prot.
Eff 100% 82.5Eff 75% PF 60
UL YesCSA YesBearing OPE 6205
CC Number CC005ACE YesBearing PE 6205
Load Type Inverter Type Speed Range NONE
Motor Wt. 46.25 LBEnclosure TEFCLubrication POLYREX EM
Nameplate Mounting RIGIDRotation REV
Assembly Shaft Dia. Ext. Diag. 005010.01
Cust Part NoOutline OL191528Ext. Diag2
Packaging BWinding QT6365
Carton Label   GROUP: 3
Iris Paint VERIFYTest Card 01
Form Factor  RMS Amps  Const Torque Speed Range
Torque  Peak
AB Code  Peak@DegC
Resistance
Connection
Rework Status  Rework TYPE
Hazardous Loc NONE Brake Motors
Explosion Proof  Temp Op CodeFORCE
Class GROUP: VDC
Class GROUP: ADC
    Brake Coil OHMs @25 C
Performance
Torque UOM Inertia (WK?) -1 LB-FT^2
Torque 4.5(Full Load) 17.4(Break Down) 12.5(Pull Up) 12.55(Locked Rotor)
CURRENT (amps) 1.8(Full Load) 0(Break Down) 0(Pull Up) 11.4(Locked Rotor)
Efficiency (%) 0(Full Load) 86.7(75% Load) 81.5(50% Load) 71.6(25% Load)
PowerFactor 0(Full Load) 52.6(75% Load) 38.7(50% Load) 23.7(25% Load)
Speed Torque Curve @ 60 Hz, 460 Volts
Curve PointAmpsAmps(%)TorqueTorque(%)RPMKWPFHP
FL 1.8 100.0 4.5 100.0 1158 - - 1.0
BD - - 17.4 388.0 843 - - 1.0
PU - - 12.5 277.0 180 - - 1.0
LR 11.4 633.0 12.55 278.0 0.0 - - 1.0
SOURCE: CALCULATED GROUP: 3
Speed Torque Curve @ 50 Hz, 380 Volts
Curve PointAmpsAmps(%)TorqueTorque(%)RPMKWPFHP
FL1.71 100.0 4.0 100.0 963 0.867 0.0 0.75
BD - 0.0 16.4 410.0 543 0.0 0.0 0.75
PU - 0.0 12.4 310.0 150 0.0 0.0 0.75
LR10.6 0.0 12.5 3.12 0.0 0.0 0.0 0.75
SOURCE: DATABASE GROUP: 3
Load Curve Data @60/50 Hz, 460 Volts, 1 Horsepower
LoadAmpsKW RPM Torque EFFPF Rise By ResisFrame Rise
0.0 1.3 0.07 1198 0.0 0.0 6.8 0.0 -
0.25 1.4 0.264 1189 1.12 71.6 23.7 0.0 -
0.5 1.5 0.463 1180 2.25 81.5 38.7 0.0 -
0.75 1.6 0.67 1169 3.5 86.7 52.6 0.0 -
1.0 1.8 0.888 1158 4.5 83.4 61.9 44.0 40.0
1.25 2.1 1.12 1144 5.65 82.0 66.9 0.0 -
1.5 2.4 1.36 1132 6.75 79.8 71.1 0.0 -
SOURCE: CALCULATED GROUP: 3
Type
Electric Motor
Input Phase
3-Phase
Horsepower
1HP
Frame
145TC
Enclosure
TEFC
