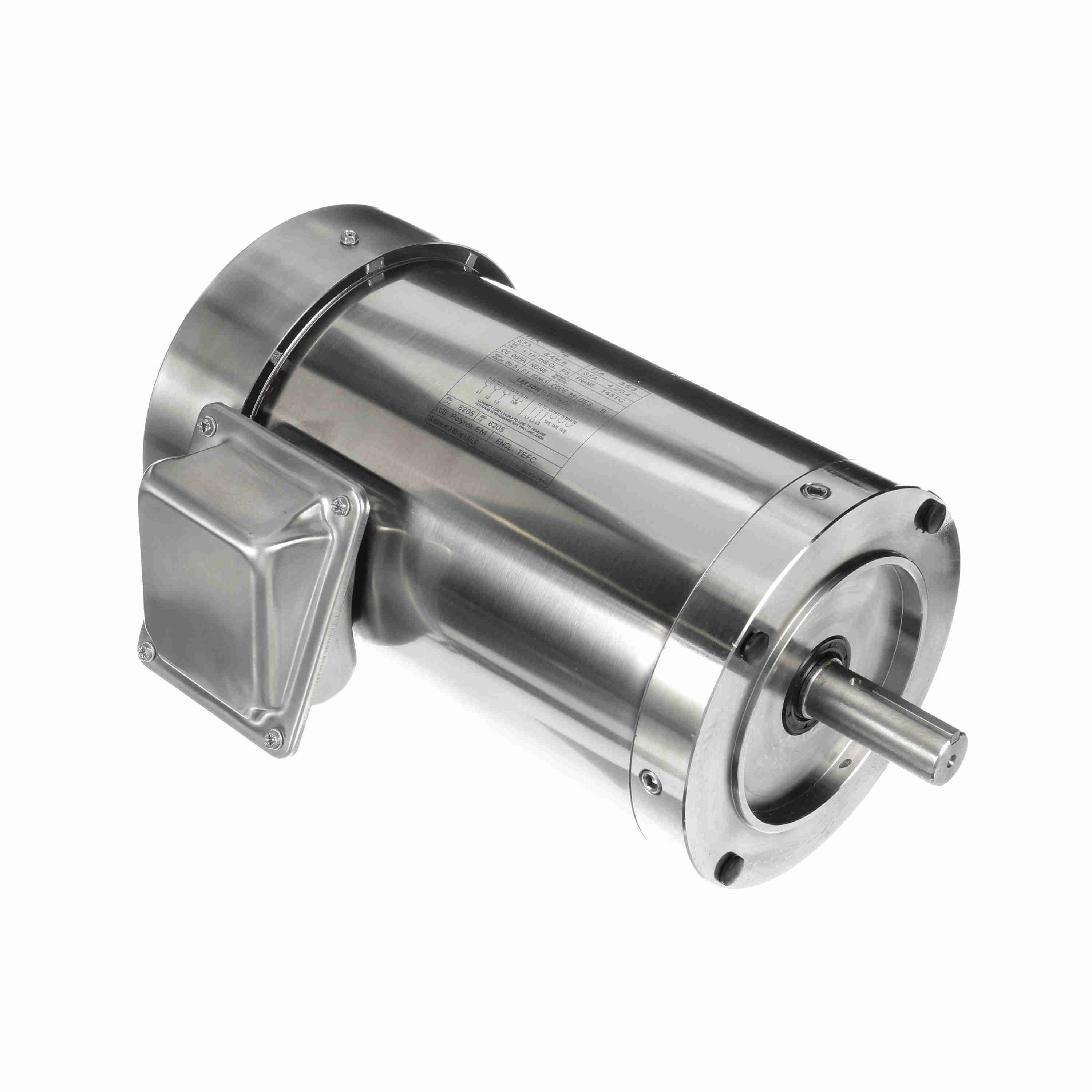

191542.00 3HP Leeson Electric Stainless Steel Moto
Click Image to Expand
Previous
Next
Product ID: 191542.00
191542.00 3HP Leeson Electric Stainless Steel Moto
MFG: Leeson Electric (Regal Rexnord)
MFG Part Number: C145T34WC8
Selected accessories will also be added to cart
$1,053.97 / Each
Quantity:
3600 RPM, 145TC Frame, TEFC, 3 Ph, 230/460V
Details
Features

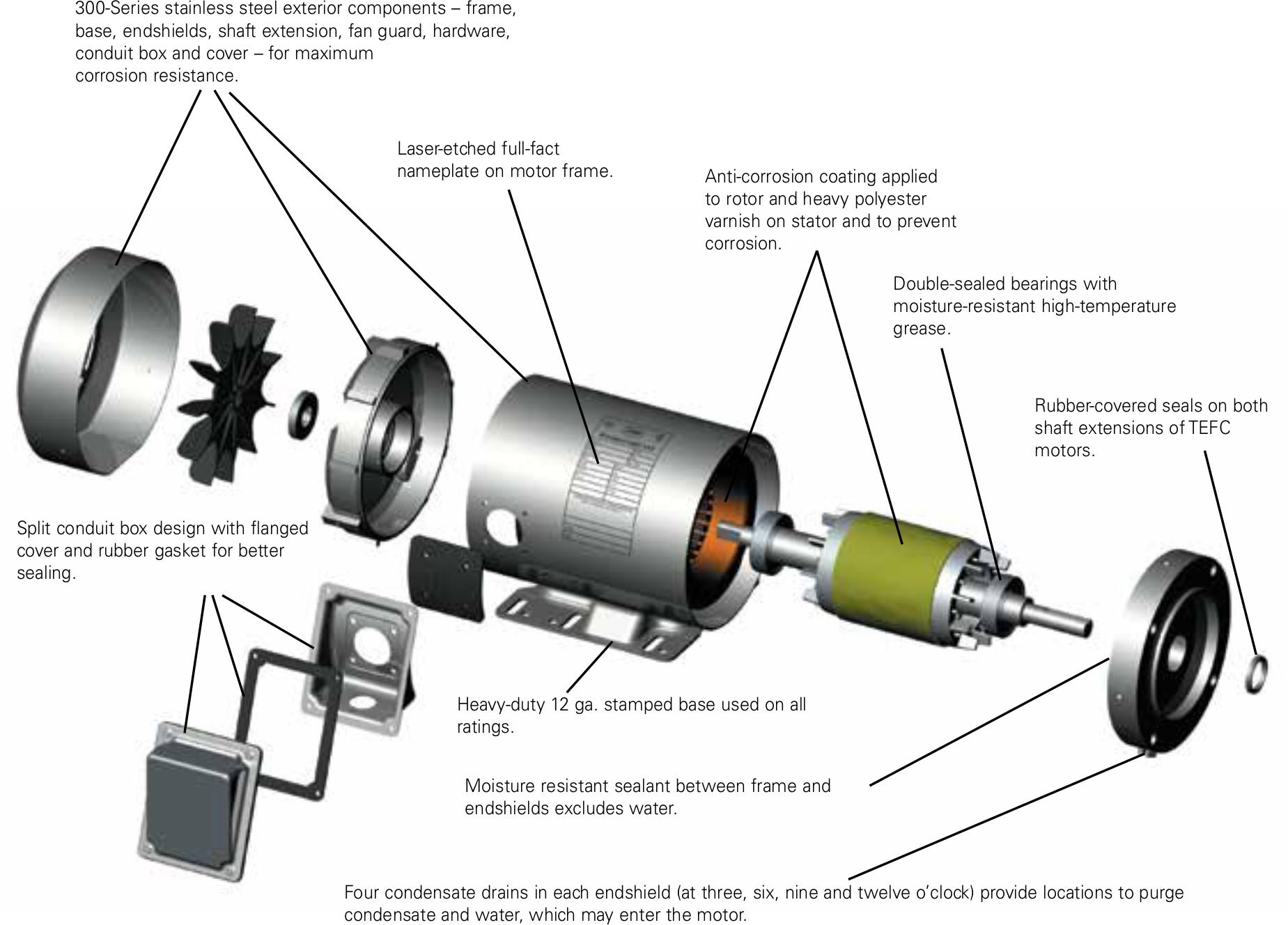

Features
Extended Thru-bolts
Auto Reset Protectors
TEAO designs
Laser etched full-fact nameplate on frame
All Stainless exterior
Anti-corrosion coating applied to interior components
General Specifications
General Specifications
Model :
C145T34WC8B
Catalog No :
191542.00
Part Description :
3HP..3600RPM.145TC.TEFC.230/460V.3PH.60HZ.CONT.40C.1.15SF.C-FACE......SST WASHDOWN........
Category :
Paint Free
Stock :
No
Nameplate Specifications
Nameplate Specifications
Output HP :
3 Hp
Output KW :
2.2 kW
Frequency :
60 Hz
Voltage :
208-230/460 V
Current :
8.0-7.2/3.6 A
Speed :
3470 rpm
Service Factor :
1.15
Phase :
3
Efficiency :
86.5 %
Duty :
Continuous
Insulation Class :
F
Design Code :
B
KVA Code :
M
Frame :
145TC
Enclosure :
Totally Enclosed Fan Cooled
Overload Protector :
No
Ambient Temperature :
40 °C
Drive End Bearing Size :
6205
Opp Drive End Bearing Size :
6205
UL :
Recognized
CSA :
Y
CE :
N
IP Code :
43
Technical Specifications
Technical Specifications
Electrical Type :
Squirrel Cage Inverter Rated
Starting Method :
Line Or Inverter
Poles :
2
Rotation :
Reversible
Mounting :
Round
Motor Orientation :
HORIZONTAL
Drive End Bearing :
BALL
Opp Drive End Bearing :
BALL
Frame Material :
Stainless Steel
Shaft Type :
T
Overall Length :
13.20 in
Frame Length :
8.39 in
Shaft Diameter :
0.875 in
Shaft Extension :
2.25 in
Assembly/Box Mounting :
F1/F2 CAPABLE
UPC :
691720052846
Weight :
45.00 LB
