/Products/Electric Motors/Single Phase Stainless Steel/Leeson/TEFC Pedestal Fan Motor/191548.00 1/2HP Leeson Electric SS Motor, Washdown
Click Image to Expand

Product ID: 191548.00

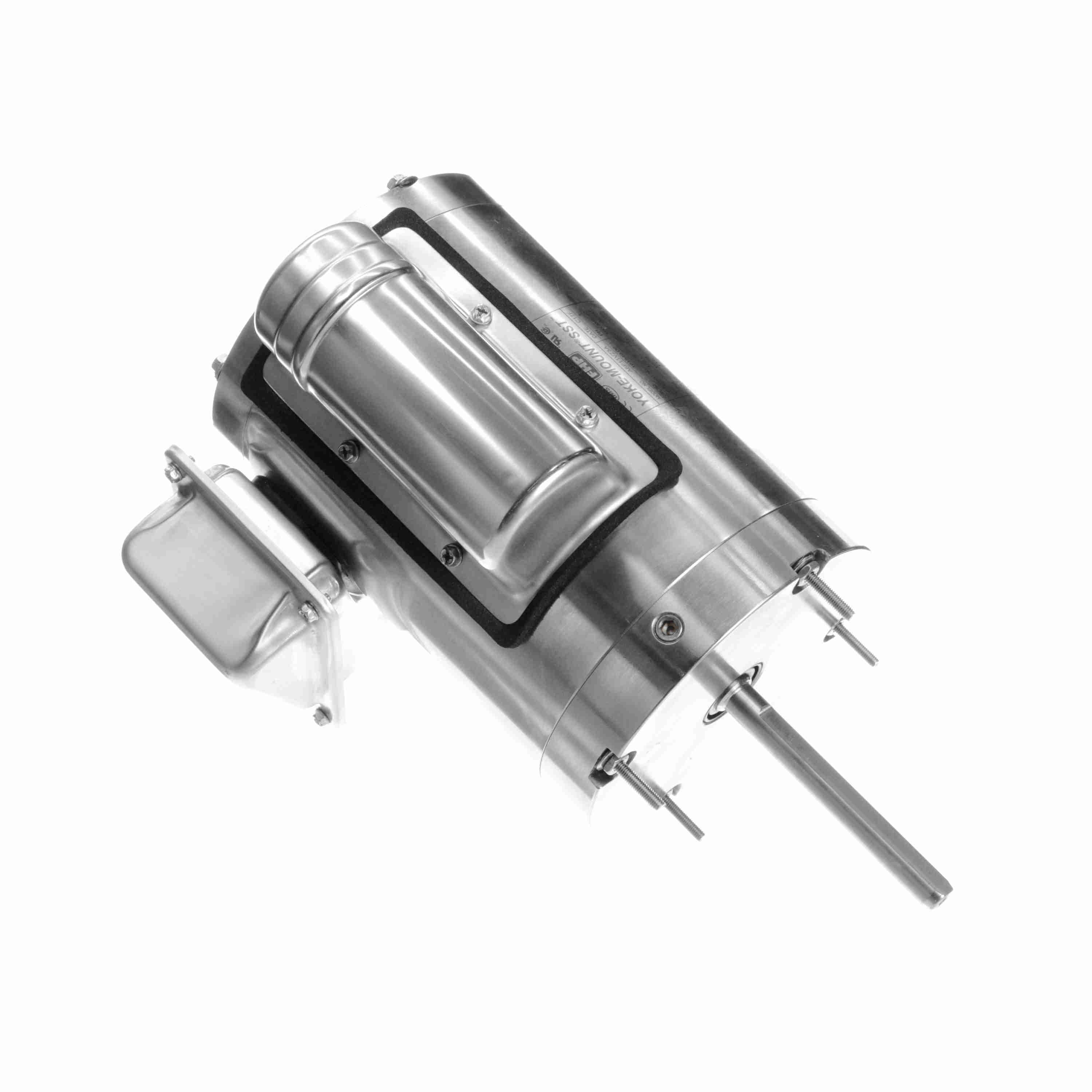

191548.00 1/2HP Leeson Electric SS Motor, Washdown

MFG: Leeson Electric (Regal Rexnord)
MFG Part Number: A6P11VZ3A

Selected accessories will also be added to cart
$567.59 / Each
Quantity:
1075 RPM, 48Y Frame, TEFC, Single Phase, 115/230V
Features
  • BISSC certified for the Baking Industry
  • Stainless Steel Output shafts
  • Repositional drain plugs for all angle mounting
  • Double Sealed bearings
  • Output shaft seal
  • Inverter Duty IRIS™ insulation system
  • Laser etched full-fact nameplate on frame
  • All Stainless exterior
  • Anti-corrosion coating applied to interior components
General Specifications
Model :A6P11VZ3A Catalog No :191548.00
Part Description :..1/2HP..1075RPM.48Y.TEAO.115/230V.1PH.60HZ.FAN DUTY.40C.1.0SF.YOKE......STAINLESS STEEL PEDESTAL FAN.AUTO....... Category :Pedestal Fan Motors
Stock :No
Nameplate Specifications
Output HP :0.50 Hp Output KW :0.37 kW
Frequency :60 Hz Voltage :115/230 V
Current :5.4/2.7 A Speed :1145 rpm
Service Factor :1 Phase :1
Efficiency :64 % Duty :Continuous
Insulation Class :F Design Code :NO DESIGN CODE
KVA Code :E Frame :48YZ
Enclosure :Totally Enclosed Air Over Overload Protector :Automatic
Ambient Temperature :40 °C Drive End Bearing Size :6203
Opp Drive End Bearing Size :6203 UL :Recognized
CSA :Y CE :N
IP Code :55
Technical Specifications
Electrical Type :Permanent Split Capacitor Starting Method :Across The Line
Poles :6 Rotation :Selective Clockwise
Mounting :Round - Extended Studs Motor Orientation :Horizontal
Drive End Bearing :Ball Opp Drive End Bearing :Ball
Frame Material :Stainless Steel Shaft Type :Single Special Extension
Overall Length :11.58 in Shaft Diameter :0.500 in
Shaft Extension :4.05 in Assembly/Box Mounting :F1 ONLY
UPC :691720052570 Weight :28.00 LB
Speed Characteristics
CurvepointCurrent (Amps)Current (%)Torque (ft-lbs)Torque (%)Speed (RPM)Rated Output (KW)Power Factor (%)Rated Output (Hp)
Break-Down6.40237.071.50193.09891.260.00.50
Locked-Rotor9.90367.012.8035.001.540.00.50
Pull-Up7.40274.08.9024.01901.140.00.50
Full Load2.70100.037.00100.01,1460.590.00.50
Load Characteristics
  • % of Rated Load
  • Current (Amps)
  • Rated Output (KW)
  • Efficiency (%)
  • Power Factor (%)
  • Speed (RPM)
  • Temp. Rise @ FL
  • Torque (ft-lb)
  • 0 %
  • 1.20
  • 0.201
  • 0.0
  • 72.8
  • 1,195
  • 0.0
  • 0.00
  • 25 %
  • 1.50
  • 0.289
  • 32.0
  • 83.8
  • 1,183
  • 0.0
  • 8.80
  • 50 %
  • 1.80
  • 0.383
  • 49.2
  • 92.5
  • 1,173
  • 0.0
  • 18.10
  • 75 %
  • 2.20
  • 0.479
  • 58.5
  • 94.7
  • 1,161
  • 0.0
  • 27.20
  • 100 %
  • 2.70
  • 0.586
  • 64.2
  • 94.4
  • 1,146
  • 0.0
  • 37.00
  • 115 %
  • 3.00
  • 0.651
  • 65.1
  • 94.3
  • 1,137
  • 0.0
  • 42.00
  • 125 %
  • 3.30
  • 0.702
  • 66.4
  • 92.5
  • 1,129
  • 0.0
  • 46.50
  • 150 %
  • 4.00
  • 0.848
  • 66.1
  • 92.2
  • 1,104
  • 0.0
  • 57.20
