/Products/Electric Motors/3 Phase Stainless Steel/Leeson 3-Phase Stainless Steel Electric Motors/TENV/TEFC C-Face with Base/191558.00 1HP Leeson Electric SS Motor, Washdown
Click Image to Expand

Product ID: 191558.00

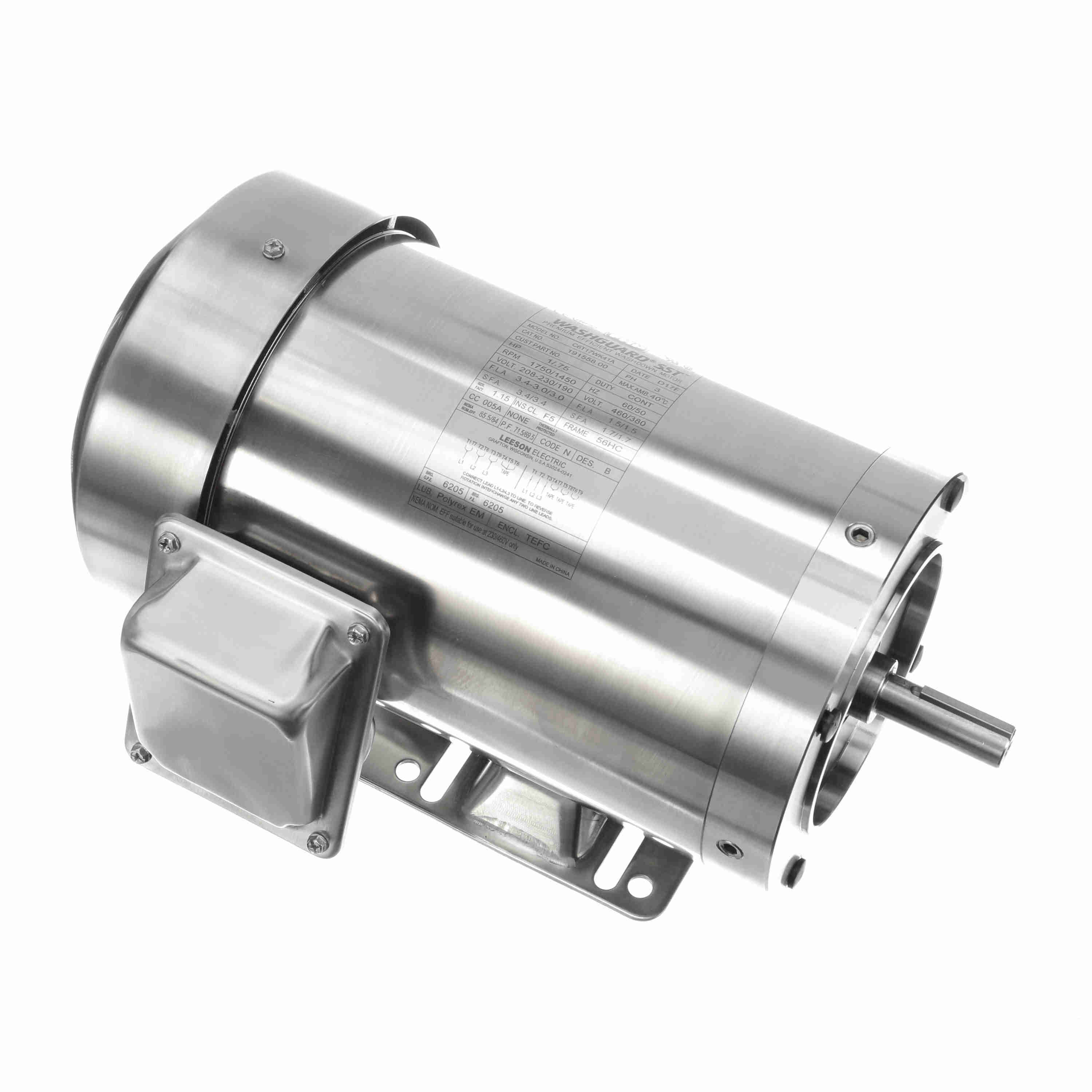

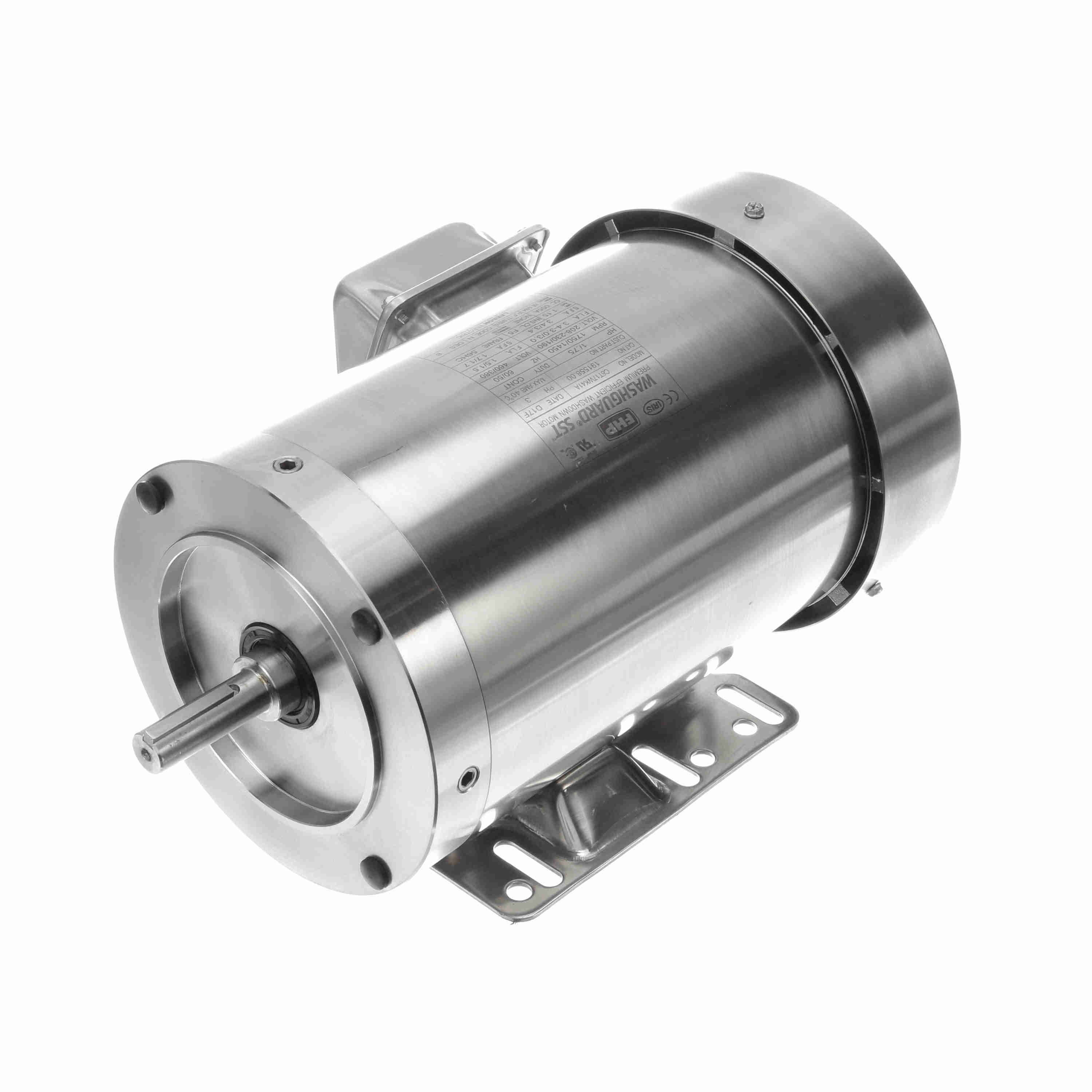

191558.00 1HP Leeson Electric SS Motor, Washdown

MFG: Leeson Electric (Regal Rexnord)
MFG Part Number: C6T17WK41

Selected accessories will also be added to cart
$1,354.00 / Each
Quantity:
1800 RPM, 56HC Frame, TEFC, 3 Phase, 230/460V

Product Features
Catalog No 191558.00 Model C6T17WK41A
Product type AC MOTOR Stock Stock
Description ..1HP..1740RPM.56H.TEFC.208-230/460V.3PH.60HZ.CONT.40C.1.15SF.RIGID C.C6T17FK81A.....WASHGUARD-ALL STAINLESS.NOT.......
Information shown is for current motor's design
 Engineering Data
Volts 208-230Volts 460Volts 190/380
F.L. Amps 3.2-3F.L. Amps 1.5F.L. Amps 3.0/1.5
S. F Amps 3.6-3.4S. F Amps 1.7S. F Amps 3.4/1.7
RPM 1800Hertz 60
HP 1Duty CONTINUOUSTYPE TF
KW .75
Frame 56HCServ. Factor 1.15Phase 3
Max Amb 40Design BCode N
Insul Class FProtection NOTTherm.Prot.
Eff 100% 85.5Eff 75% PF 71.5
UL YesCSA YesBearing OPE 6205
CC Number CC005ACE YesBearing PE 6205
Load Type Inverter Type Speed Range 2.0 X BASE SPEED
RPM 1500Hertz 50
HP 3/4Duty CONTINUOUSTYPE TF
KW .56
Frame 56HCServ. Factor 1.15Phase 3
Max Amb 40Design BCode N
Insul Class FProtection NOTTherm.Prot.
Eff 100% 84Eff 75% PF 69.5
UL YesCSA YesBearing OPE 6205
CC Number CC005ACE YesBearing PE 6205
Load Type Inverter Type Speed Range 2.0 X BASE SPEED
Motor Wt. 44 LBEnclosure TEFCLubrication POLYREX EM
Nameplate Mounting RIGIDRotation REV
Assembly Shaft Dia. 5/8 INExt. Diag. 005010.01
Cust Part NoOutline 16992800Ext. Diag2
Packaging INDIVIDUALWinding QT63420
Carton Label   GROUP: 3
Iris Paint NO PAINTTest Card
Form Factor  RMS Amps  Const Torque Speed Range
Torque  Peak
AB Code  Peak@DegC
Resistance
Connection
Rework Status  Rework TYPE
Hazardous Loc NONE Brake Motors
Explosion Proof  Temp Op CodeFORCE
Class GROUP: VDC
Class GROUP: ADC
    Brake Coil OHMs @25 C
Performance
Torque UOM LB-FT Inertia (WK?) 0
Torque 2.99(Full Load) 15.83(Break Down) 10.51(Pull Up) 13.17(Locked Rotor)
CURRENT (amps) 1.5(Full Load) 10.1(Break Down) 14.8(Pull Up) 15.1(Locked Rotor)
Efficiency (%) 0(Full Load) 86.1(75% Load) 83.4(50% Load) 74.5(25% Load)
PowerFactor 71.9(Full Load) 62.8(75% Load) 51.1(50% Load) 31.6(25% Load)
Speed Torque Curve @ 60 Hz, 460 Volts
Curve PointAmpsAmps(%)TorqueTorque(%)RPMKWPFHP
FL 1.5 100.0 2.99 100.0 1757 0.859 71.9 1.0
BD 10.1 673.0 15.83 529.0 1264 6.3 78.3 1.0
PU 14.8 987.0 10.51 352.0 193 6.8 57.4 1.0
LR 15.1 1007.0 13.17 440.0 0.0 6.7 55.8 1.0
SOURCE: CALCULATED GROUP: 3
Speed Torque Curve @ 50 Hz, 380 Volts
Curve PointAmpsAmps(%)TorqueTorque(%)RPMKWPFHP

No Speed Torque Curve Data!
Load Curve Data @60/50 Hz, 460 Volts, 1 Horsepower
LoadAmpsKW RPM Torque EFFPF Rise By ResisFrame Rise
0.0 1.0 0.061 0 0.0 0.0 7.7 0.0 -
0.25 1.0 0.252 1790 0.738 74.5 31.6 0.0 -
0.5 1.1 0.448 1779 1.478 83.4 51.1 0.0 -
0.75 1.3 0.65 1768 2.229 86.1 62.8 0.0 -
1.0 1.5 0.859 1757 2.99 86.9 71.9 32.7 -
1.15 1.7 1.015 1750 3.452 84.5 74.9 0.0 -
1.25 1.8 1.075 1745 3.765 86.8 75.0 0.0 -
1.5 2.0 1.3 1732 4.548 86.1 81.6 0.0 -
SOURCE: CALCULATED GROUP: 3
Type
Electric Motor
Input Phase
3-Phase
Enclosure
TEFC
Horsepower
1HP
Speed
1800RPM
Frame
56HC
