/Products/Electric Motors/3 Phase Stainless Steel/Leeson 3-Phase Stainless Steel Electric Motors/TENV/TEFC C-Face with Base/191563.00 2HP Leeson Electric SS Motor, Washdown
Click Image to Expand

Product ID: 191563.00

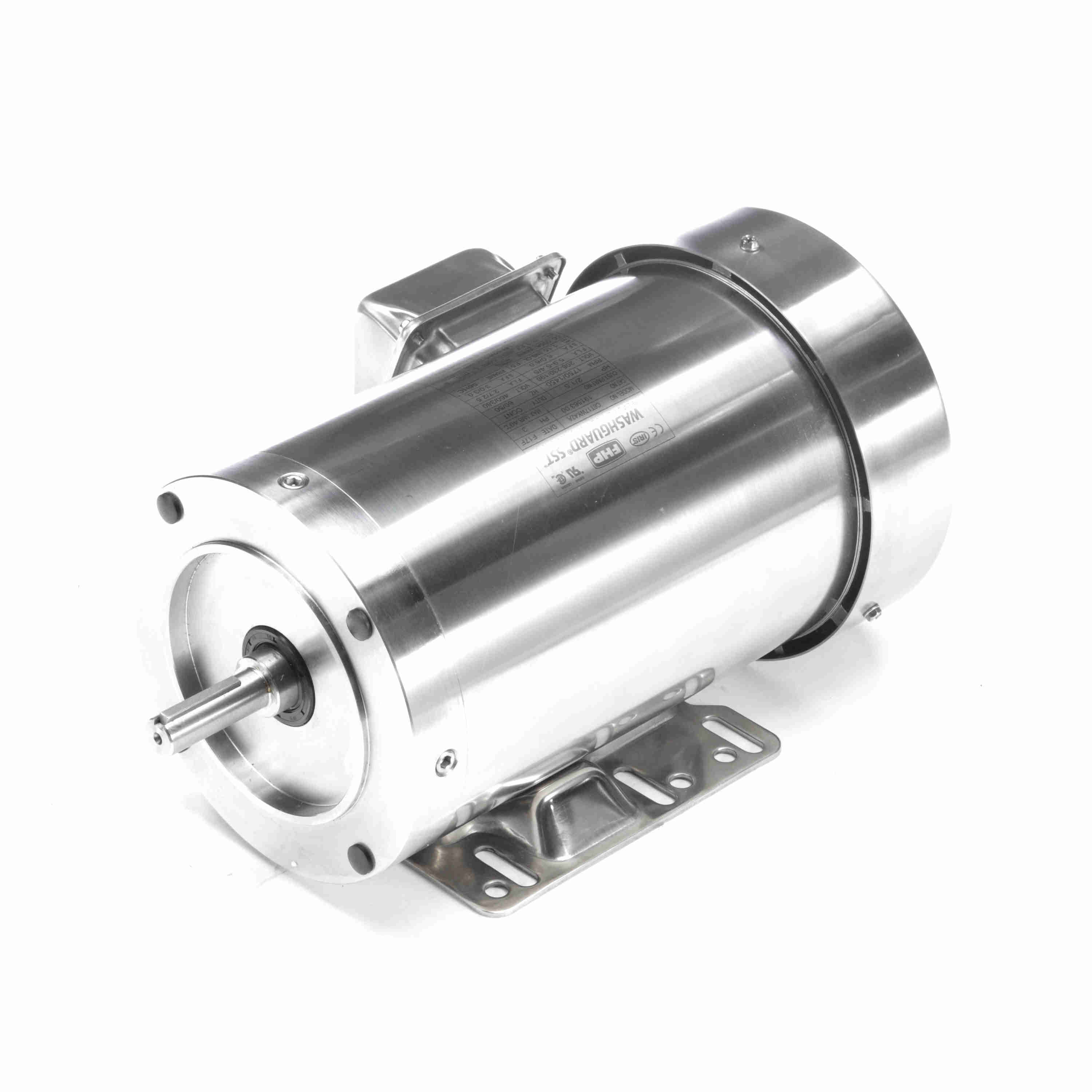

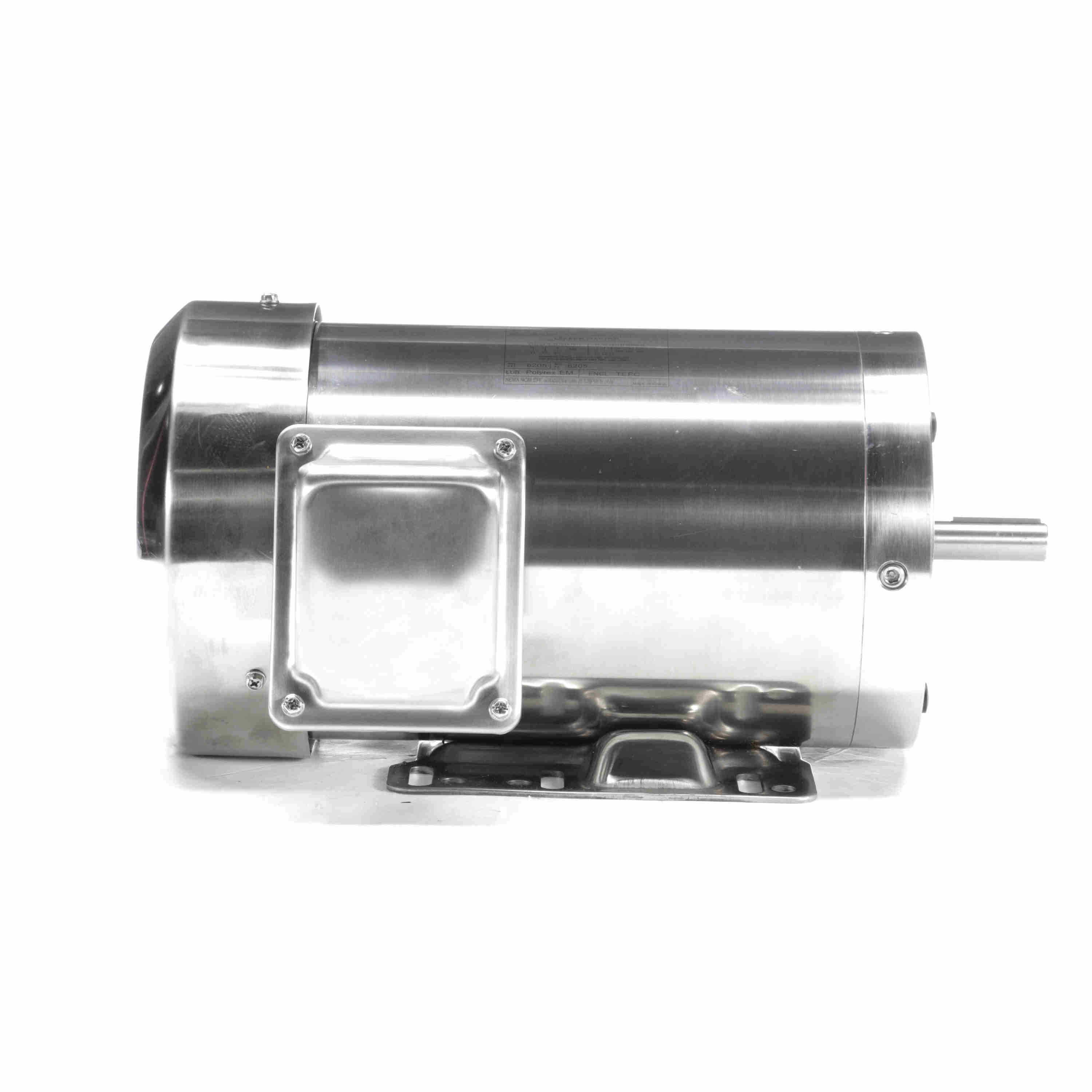

191563.00 2HP Leeson Electric SS Motor, Washdown

MFG: Leeson Electric (Regal Rexnord)
MFG Part Number: C6T17WK42

Selected accessories will also be added to cart
$1,659.00 / Each
Quantity:
1800 RPM, 56HC Frame, TEFC, 3 Phase, 230/460V

Product Features
Catalog No 191563.00 Model C6T17WK42A
Product type AC MOTOR Stock Stock
Description ..2HP..1740RPM.56H.TEFC.208-230/460V.3PH.60HZ.CONT.40C.1.15SF.RIGID C.C6T17FK83A.....WASHGUARD-ALL STAINLESS.NOT.......
 Engineering Data
Volts 208-230Volts 460Volts 190/380
F.L. Amps 5.8-5.4F.L. Amps 2.7F.L. Amps 5/2.5
S. F Amps 6.2-6S. F Amps 3S. F Amps 6/3
RPM 1800Hertz 60
HP 2Duty CONTINUOUSTYPE TF
KW 1.49
Frame 56HCServ. Factor 1.15Phase 3
Max Amb 40Design BCode L
Insul Class FProtection NOTTherm.Prot.
Eff 100% 86.5Eff 75% PF 80
UL YesCSA YesBearing OPE 6205
CC Number CC005ACE YesBearing PE 6205
Load Type Inverter Type Speed Range 2.0 X BASE SPEED
RPM 1500Hertz 50
HP 1 1/2Duty CONTINUOUSTYPE TF
KW 1.12
Frame 56HCServ. Factor 1.15Phase 3
Max Amb 40Design BCode L
Insul Class FProtection NOTTherm.Prot.
Eff 100% 86.5Eff 75% PF 78.5
UL YesCSA YesBearing OPE 6205
CC Number CC005ACE YesBearing PE 6205
Load Type Inverter Type Speed Range 2.0 X BASE SPEED
Motor Wt. 46 LBEnclosure TEFCLubrication POLYREX EM
Nameplate Mounting RIGIDRotation REV
Assembly Shaft Dia. 5/8 INExt. Diag. 005010.01
Cust Part NoOutline 16992800Ext. Diag2
Packaging INDIVIDUALWinding QT63422
Carton Label   GROUP: 3
Iris Paint NO PAINTTest Card
Form Factor  RMS Amps  Const Torque Speed Range
Torque  Peak
AB Code  Peak@DegC
Resistance
Connection
Rework Status  Rework TYPE
Hazardous Loc NONE Brake Motors
Explosion Proof  Temp Op CodeFORCE
Class GROUP: VDC
Class GROUP: ADC
    Brake Coil OHMs @25 C
Performance
Torque UOM LB-FT Inertia (WK?) 0
Torque 5.98(Full Load) 25.44(Break Down) 14.04(Pull Up) 17.4(Locked Rotor)
CURRENT (amps) 2.7(Full Load) 14.2(Break Down) 22.9(Pull Up) 23.4(Locked Rotor)
Efficiency (%) 0(Full Load) 88.2(75% Load) 85.9(50% Load) 77.9(25% Load)
PowerFactor 78.3(Full Load) 72.5(75% Load) 60.5(50% Load) 37.6(25% Load)
Speed Torque Curve @ 60 Hz, 460 Volts
Curve PointAmpsAmps(%)TorqueTorque(%)RPMKWPFHP
FL 2.7 100.0 5.98 100.0 1754 1.685 78.3 2.0
BD 14.2 526.0 25.44 425.0 1364 9.1 80.6 2.0
PU 22.9 848.0 14.04 235.0 321 9.8 53.9 2.0
LR 23.4 867.0 17.4 291.0 0.0 9.6 51.5 2.0
SOURCE: CALCULATED GROUP: 3
Speed Torque Curve @ 50 Hz, 380 Volts
Curve PointAmpsAmps(%)TorqueTorque(%)RPMKWPFHP

No Speed Torque Curve Data!
Load Curve Data @60/50 Hz, 460 Volts, 2 Horsepower
LoadAmpsKW RPM Torque EFFPF Rise By ResisFrame Rise
0.0 1.4 0.099 0 0.0 0.0 8.9 0.0 -
0.25 1.6 0.479 1789 1.469 77.9 37.6 0.0 -
0.5 1.8 0.868 1779 2.95 85.9 60.5 0.0 -
0.75 2.2 1.27 1767 4.463 88.2 72.5 0.0 -
1.0 2.7 1.685 1754 5.981 88.4 78.3 45.96 -
1.15 2.96 1.927 1747 6.913 89.0 81.7 0.0 -
1.25 3.2 2.115 1741 7.538 88.1 83.0 0.0 -
1.5 3.8 2.565 1725 9.125 87.2 84.7 0.0 -
SOURCE: CALCULATED GROUP: 3
Type
Electric Motor
Input Phase
3-Phase
Enclosure
TEFC
Horsepower
2HP
Speed
1800RPM
Frame
56HC
