191565.00 1HP Leeson Electric SS Motor, Washdown
Click Image to Expand
Previous
Next
Product ID: 191565.00

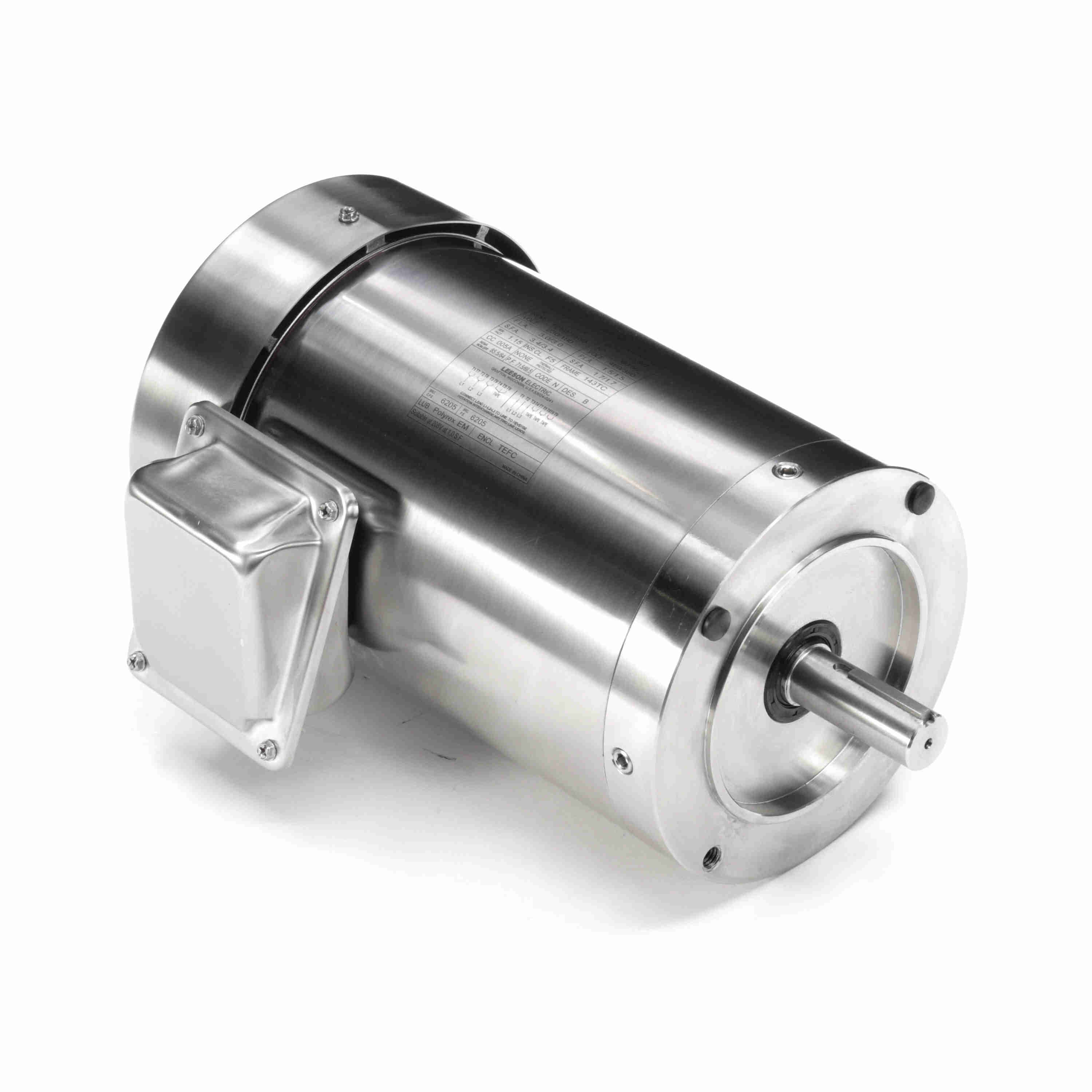

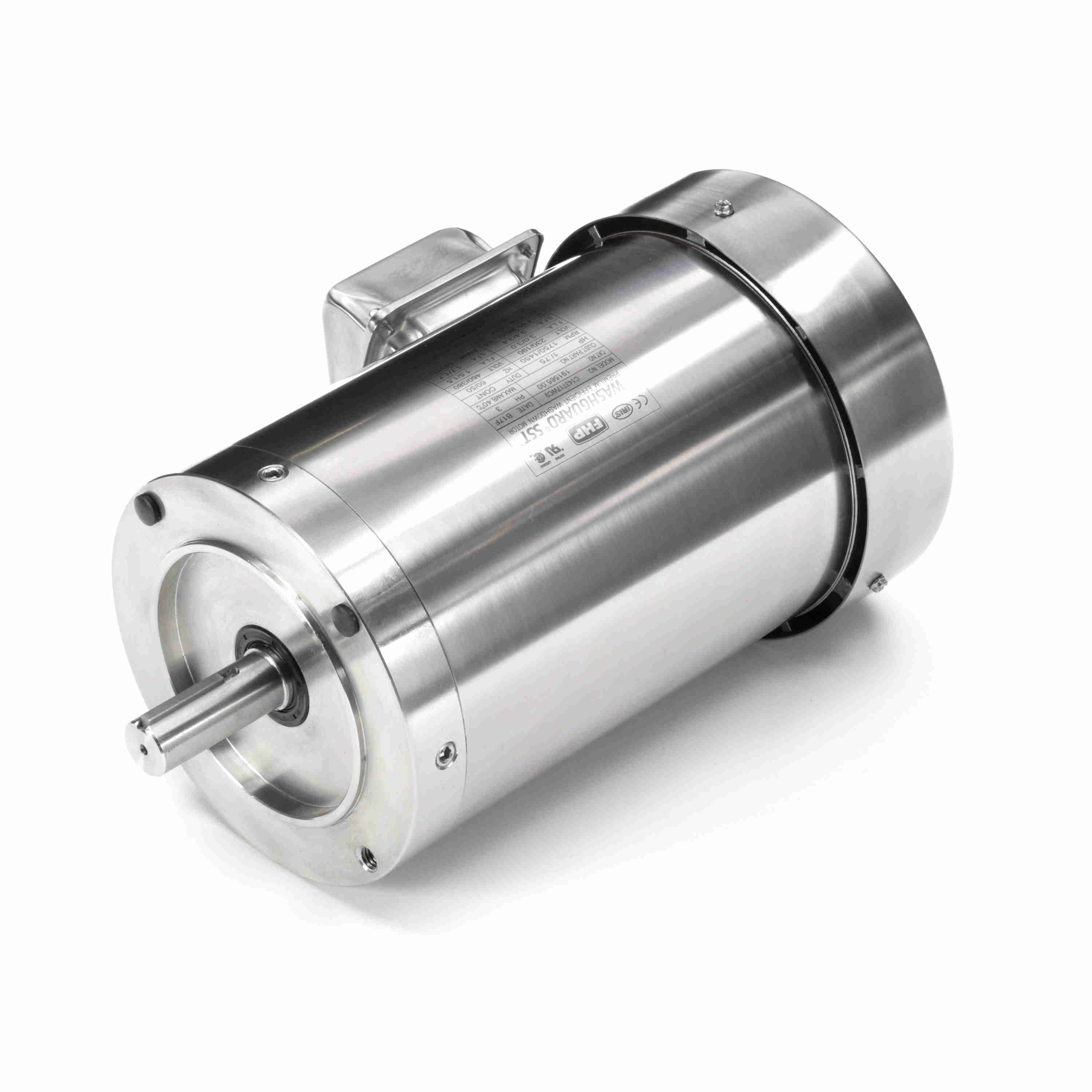

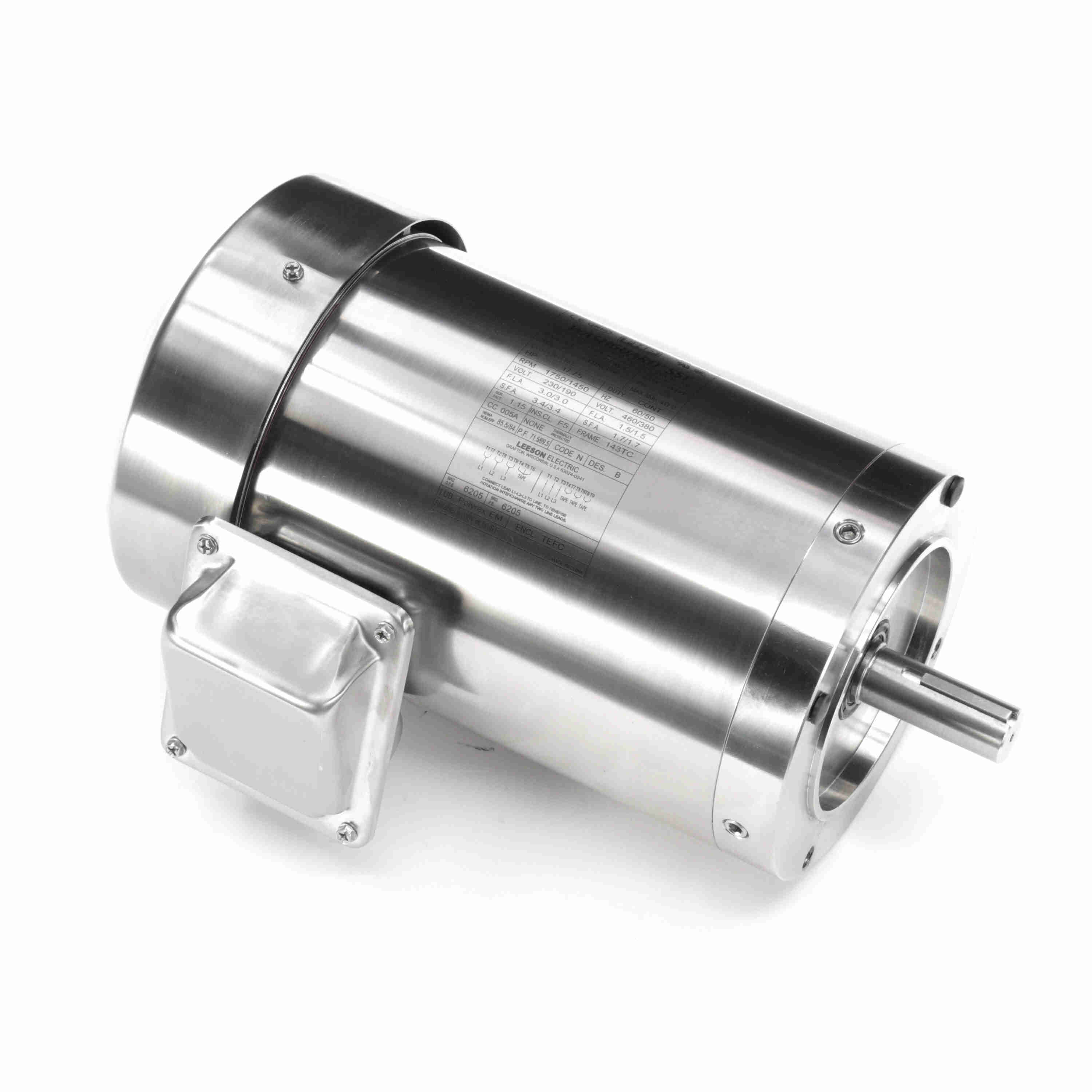

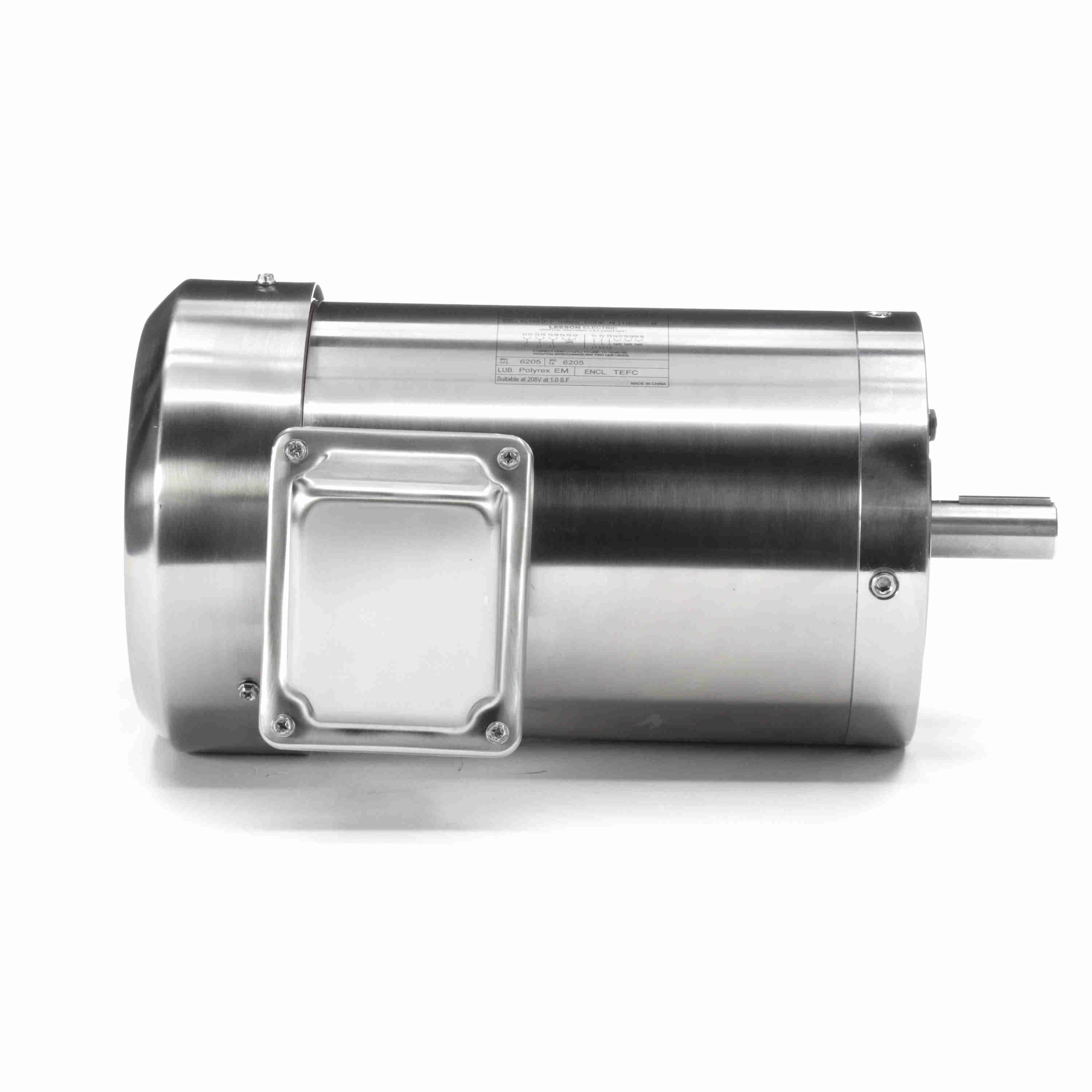

191565.00 1HP Leeson Electric SS Motor, Washdown
MFG: Leeson Electric (Regal Rexnord)
MFG Part Number: C143T17WC9
Selected accessories will also be added to cart
$730.97 / Each
Quantity:
1800 RPM, 143TC Frame, TEFC, 3 Phase, 230/460VAC
Details
Features

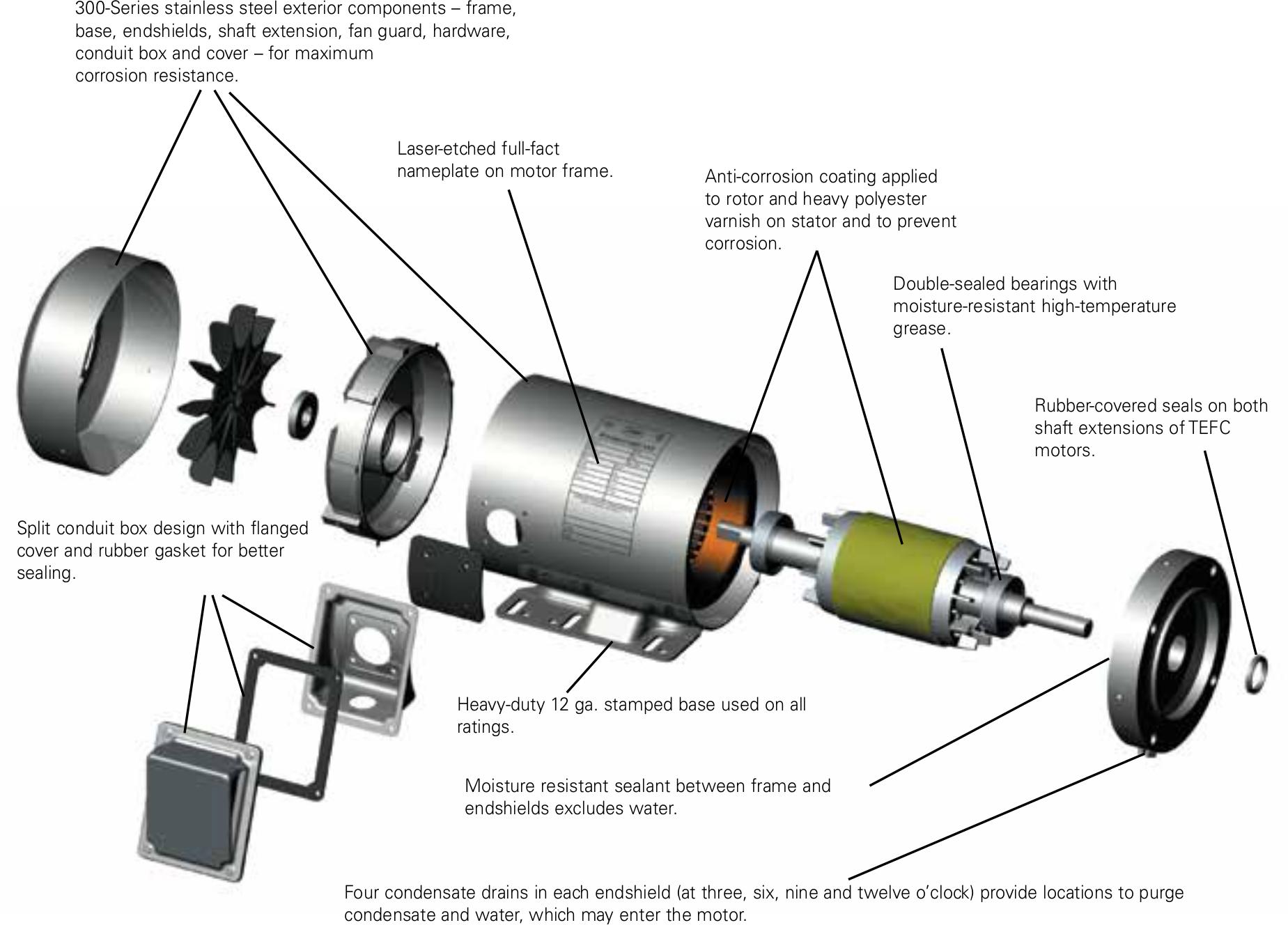

Features
Extended Thru-bolts
Auto Reset Protectors
TEAO designs
Laser etched full-fact nameplate on frame
All Stainless exterior
Anti-corrosion coating applied to interior components
General Specifications
General Specifications
Model :
C143T17WC9A
Catalog No :
191565.00
Part Description :
..1HP..1800.143TC.TEFC.230/460V.3PH.60HZ.CONT.40C..C-FACE......STAINLESS WASHDOWN........
Category :
Paint Free
Stock :
No
Nameplate Specifications
Nameplate Specifications
Output HP :
1 HP
Output KW :
0.75 kW
Frequency :
60 Hz
Voltage :
208-230/460 V
Current :
3.2-3.0/1.5 A
Speed :
1750 RPM
Service Factor :
1.15
Phase :
3
Efficiency :
85.5 %
Duty :
Continuous
Insulation Class :
F
Design Code :
B
KVA Code :
N
Frame :
143TC
Enclosure :
Totally Enclosed Fan Cooled
Overload Protector :
No
Ambient Temperature :
40 °C
Drive End Bearing Size :
6205
Opp Drive End Bearing Size :
6205
UL :
Recognized
CSA :
Y
CE :
Y
IP Code :
55
Technical Specifications
Technical Specifications
Electrical Type :
Squirrel Cage Inverter Rated
Starting Method :
Line Or Inverter
Poles :
4
Rotation :
Reversible
Mounting :
Round
Motor Orientation :
HORIZONTAL
Drive End Bearing :
BALL
Opp Drive End Bearing :
BALL
Frame Material :
Stainless Steel
Shaft Type :
T
Overall Length :
13.62 in
Frame Length :
7.99 in
Shaft Diameter :
0.875 in
Shaft Extension :
2.25 in
Assembly/Box Mounting :
F1/F2 CAPABLE
UPC :
691720052853
Weight :
44.00 LB
Speed & Load Characteristics
Speed Characteristics
Curvepoint
Current (Amps)
Current (%)
Torque (ft-lbs)
Torque (%)
Speed (RPM)
Rated Output (KW)
Power Factor (%)
Rated Output (Hp)
Break-Down
10.10
673.0
15.83
529.0
1,264
6.30
78.3
1.00
Locked-Rotor
15.10
1,007.0
13.17
440.0
0
6.70
55.8
1.00
Full Load
1.50
100.0
2.99
100.0
1,757
0.86
71.9
1.00
Pull-Up
14.80
987.0
10.51
352.0
193
6.80
57.4
1.00
Load Characteristics
% of Rated Load
Current (Amps)
Rated Output (KW)
Efficiency (%)
Power Factor (%)
Speed (RPM)
Temp. Rise @ FL
Torque (ft-lb)
0 %
1.00
0.061
0.0
7.7
0
0.0
0.00
25 %
1.00
0.252
74.5
31.6
1,790
0.0
0.74
50 %
1.10
0.448
83.4
51.1
1,779
0.0
1.48
75 %
1.30
0.650
86.1
62.8
1,768
0.0
2.23
100 %
1.50
0.859
86.9
71.9
1,757
32.7
2.99
115 %
1.70
1.015
84.5
74.9
1,750
0.0
3.45
125 %
1.80
1.075
86.8
75.0
1,745
0.0
3.77
150 %
2.00
1.300
86.1
81.6
1,732
0.0
4.55
