191568.00 1.5HP Leeson Electric SS Motor, Washdown
Click Image to Expand
Previous
Next
Product ID: 191568.00

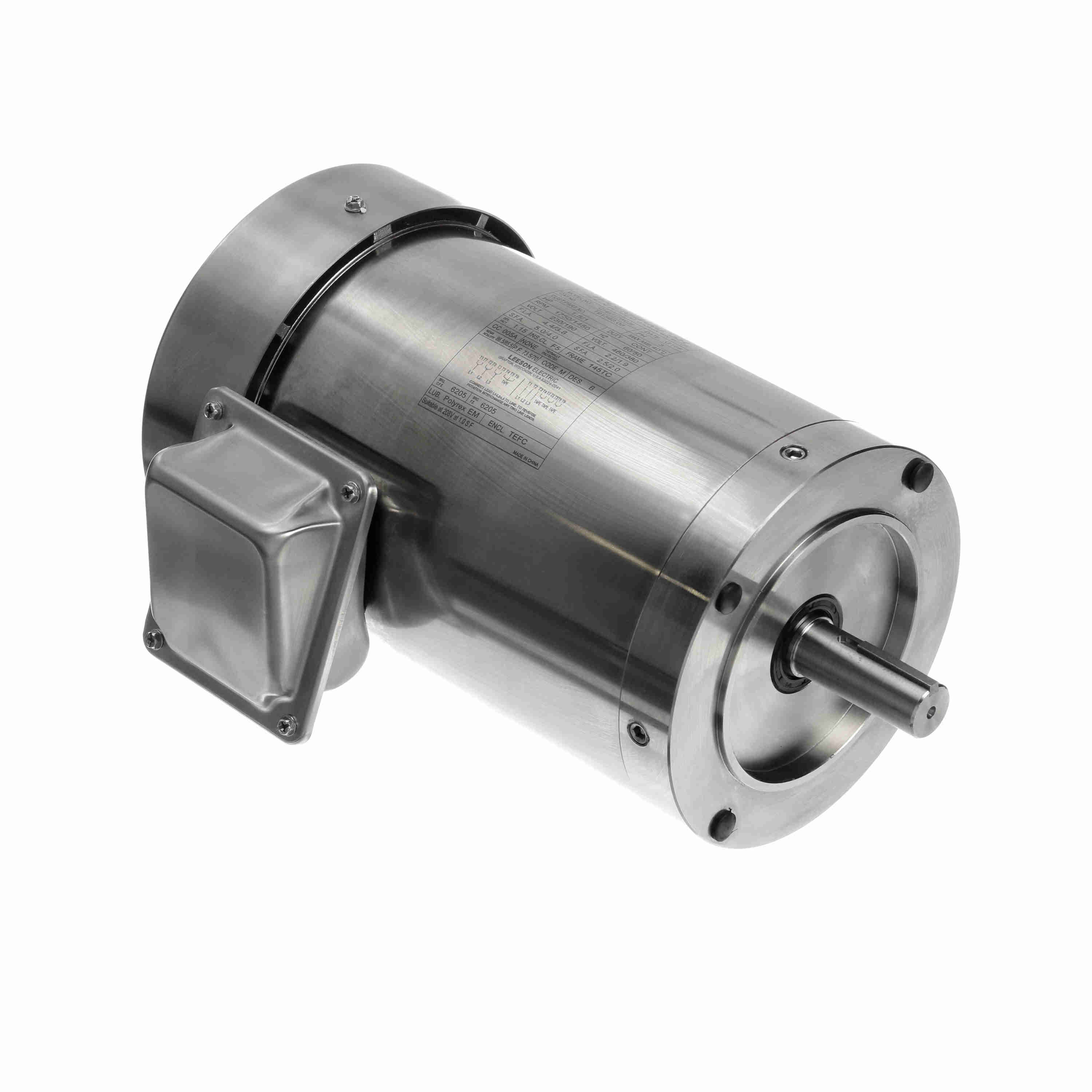

191568.00 1.5HP Leeson Electric SS Motor, Washdown
MFG: Leeson Electric (Regal Rexnord)
MFG Part Number: C145T17WC39
Selected accessories will also be added to cart
$785.97 / Each
Quantity:
1800 RPM, 145TC Frame, TEFC, 3 Phase, 230/460VAC
Details
Features

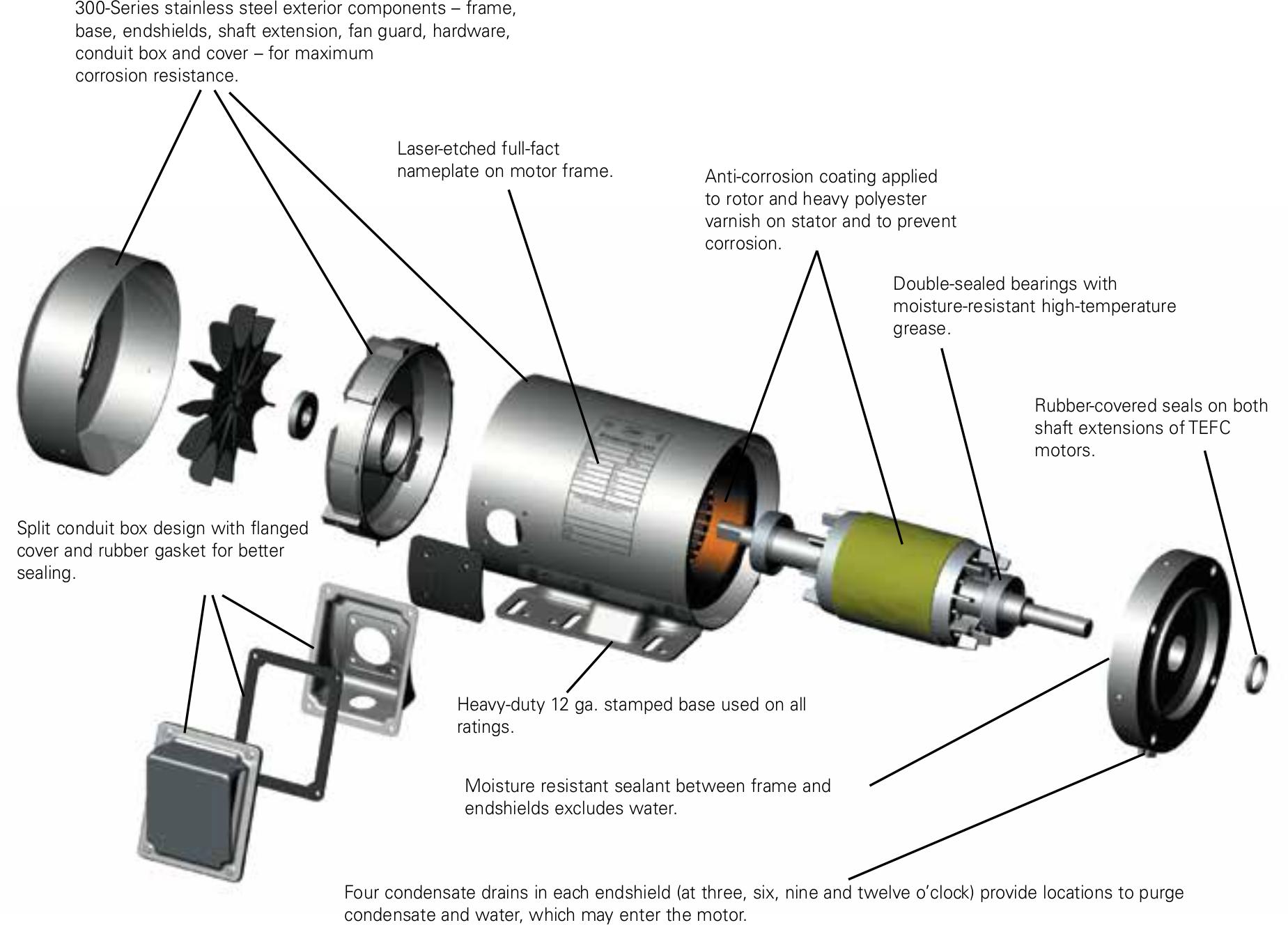

Features
Extended Thru-bolts
Auto Reset Protectors
TEAO designs
Laser etched full-fact nameplate on frame
All Stainless exterior
Anti-corrosion coating applied to interior components
General Specifications
General Specifications
Model :
C145T17WC39A
Catalog No :
191568.00
Part Description :
..1 1/2HP..1800.145TC.TEFC.230/460V.3PH.60HZ.CONT.40C..C-FACE..............
Category :
Paint Free
Stock :
No
Nameplate Specifications
Nameplate Specifications
Output HP :
1.50 HP
Output KW :
1.1 kW
Frequency :
60 Hz
Voltage :
208-230/460 V
Current :
4.8-4.4/2.2 A
Speed :
1750 RPM
Service Factor :
1.15
Phase :
3
Efficiency :
86.5 %
Duty :
Continuous
Insulation Class :
F
Design Code :
B
KVA Code :
M
Frame :
145TC
Enclosure :
Totally Enclosed Fan Cooled
Overload Protector :
No
Ambient Temperature :
40 °C
Drive End Bearing Size :
6205
Opp Drive End Bearing Size :
6205
UL :
Recognized
CSA :
Y
CE :
Y
IP Code :
55
Technical Specifications
Technical Specifications
Electrical Type :
Squirrel Cage Inverter Rated
Starting Method :
Line Or Inverter
Poles :
4
Rotation :
Reversible
Mounting :
Round
Motor Orientation :
HORIZONTAL
Drive End Bearing :
BALL
Opp Drive End Bearing :
BALL
Frame Material :
Stainless Steel
Shaft Type :
T
Overall Length :
13.62 in
Frame Length :
7.99 in
Shaft Diameter :
0.875 in
Shaft Extension :
2.25 in
Assembly/Box Mounting :
F1/F2 CAPABLE
UPC :
691720104088
Weight :
46.00 LB
Speed & Load Characteristics
Speed Characteristics
Curvepoint
Current (Amps)
Current (%)
Torque (ft-lbs)
Torque (%)
Speed (RPM)
Rated Output (KW)
Power Factor (%)
Rated Output (Hp)
Full Load
2.20
100.0
4.51
100.0
1,745
1.32
75.5
1.50
Locked-Rotor
19.90
905.0
18.10
401.0
0
9.50
59.5
1.50
Break-Down
12.50
568.0
21.05
467.0
1,286
8.30
83.3
1.50
Pull-Up
19.40
882.0
15.28
339.0
257
9.60
61.9
1.50
Load Characteristics
% of Rated Load
Current (Amps)
Rated Output (KW)
Efficiency (%)
Power Factor (%)
Speed (RPM)
Temp. Rise @ FL
Torque (ft-lb)
0 %
1.30
0.106
0.0
10.2
0
0.0
0.00
25 %
1.40
0.398
70.5
35.7
1,785
0.0
1.11
50 %
1.60
0.694
79.5
54.4
1,773
0.0
2.19
75 %
1.90
1.003
84.1
66.3
1,759
0.0
3.38
100 %
2.20
1.323
84.6
75.5
1,745
53.2
4.51
115 %
2.48
1.540
83.8
77.9
1,735
0.0
5.24
125 %
2.60
1.659
84.6
80.1
1,730
0.0
5.71
150 %
3.00
2.011
83.5
84.1
1,713
0.0
6.90
