/Products/Electric Motors/3 Phase Metric/Marathon 3-Phase Metric Electric Motors/194224.00 Marathon 2HP/1.5kW IEC Metric AC Brakemotor, 1800RPM
Click Image to Expand

Product ID: 194224.00

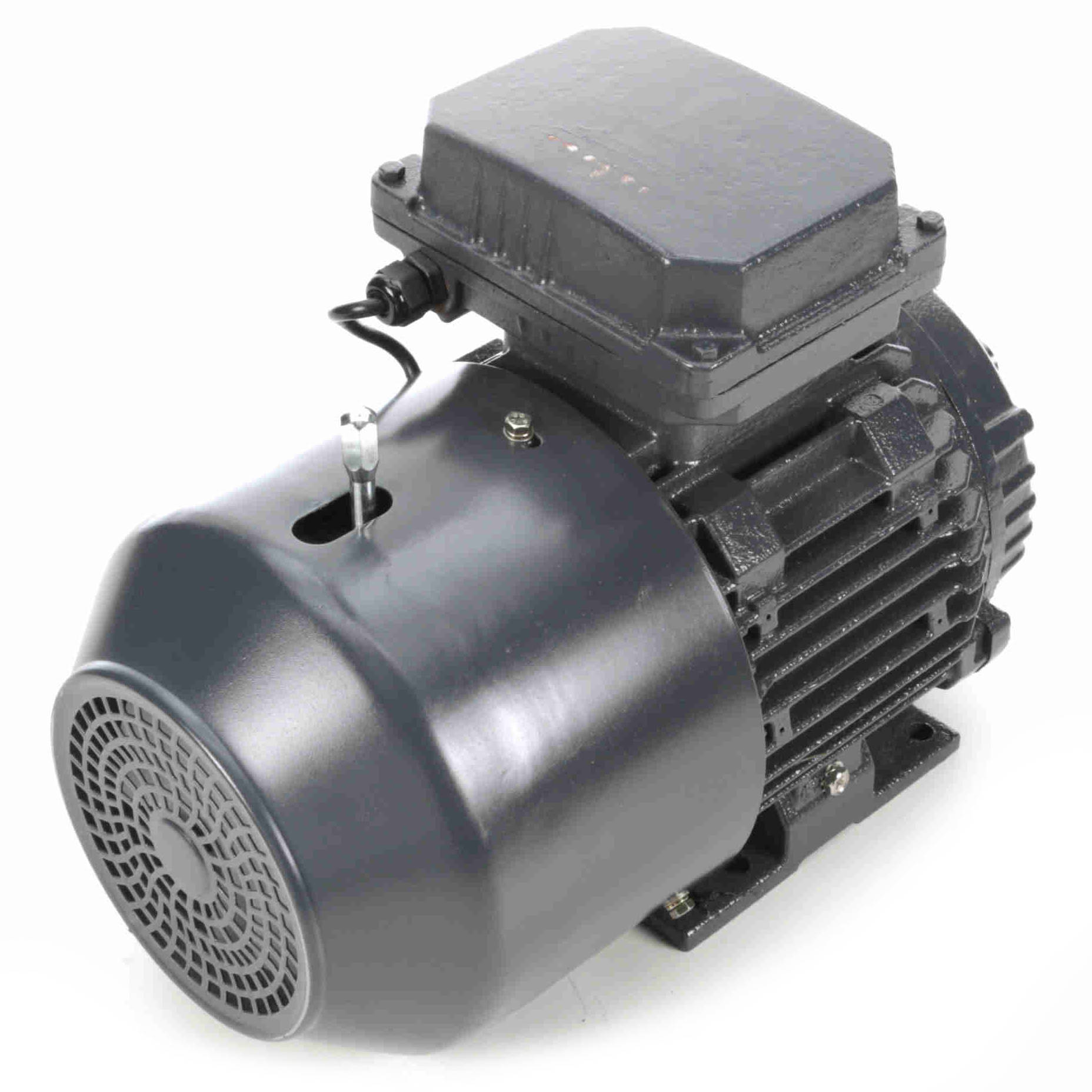

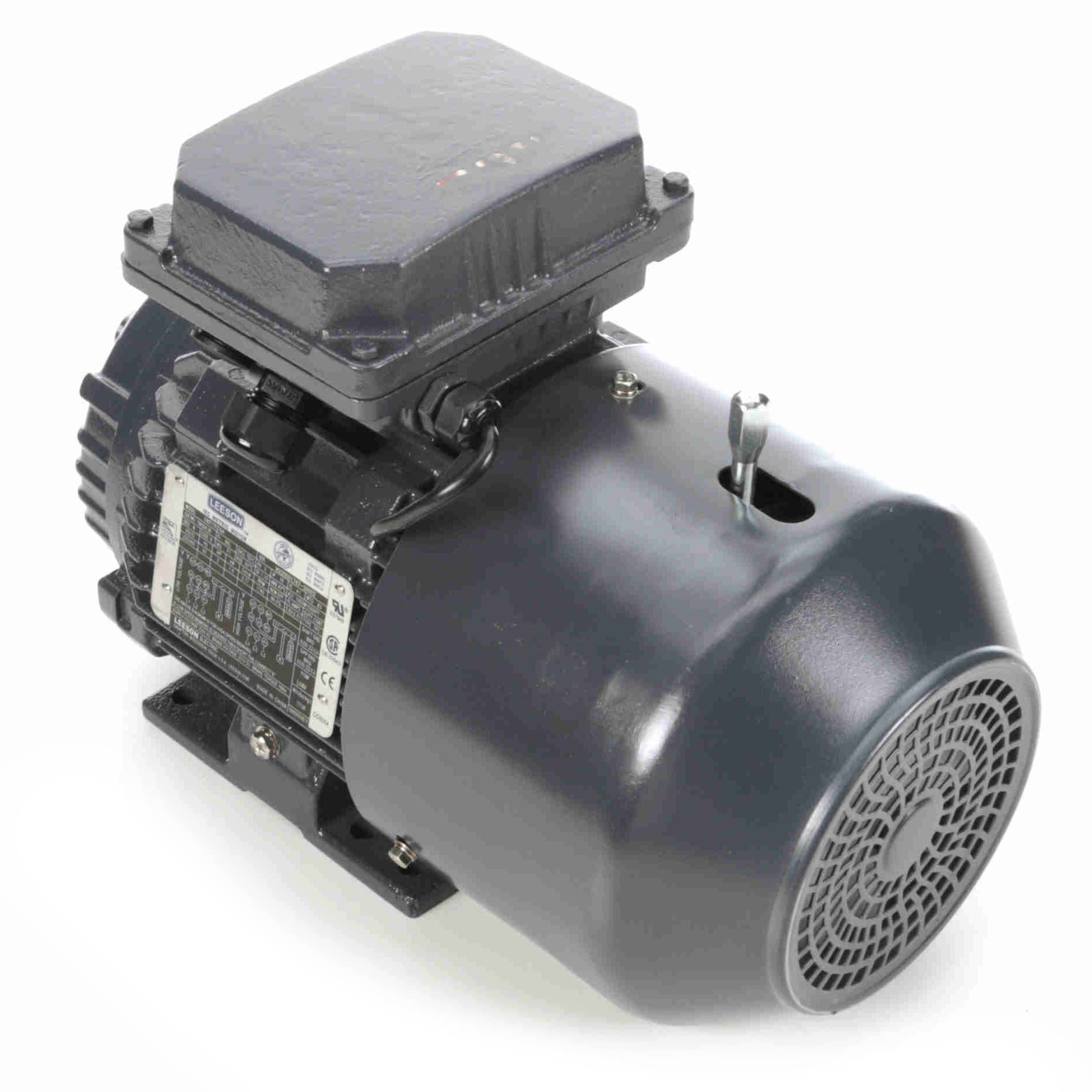

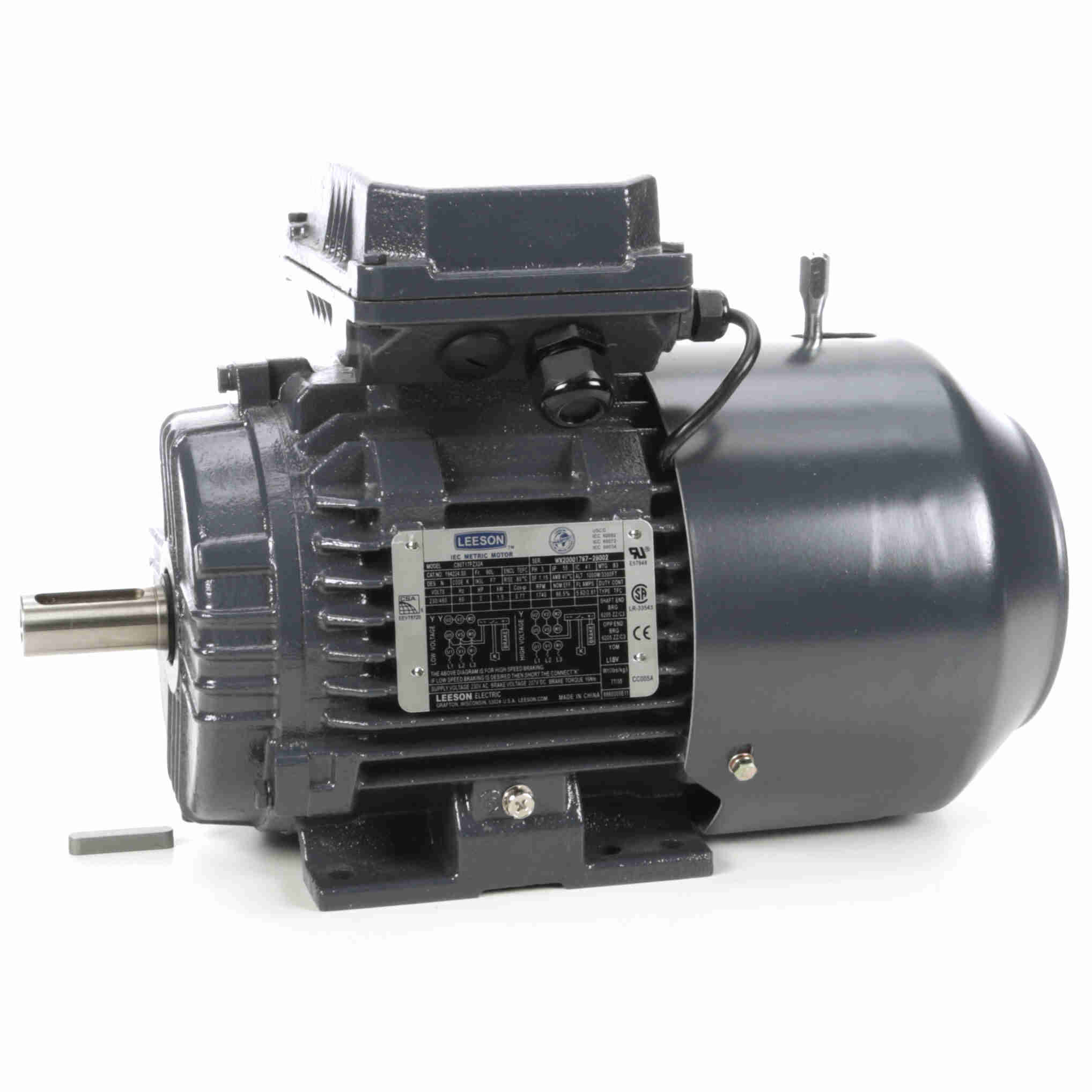

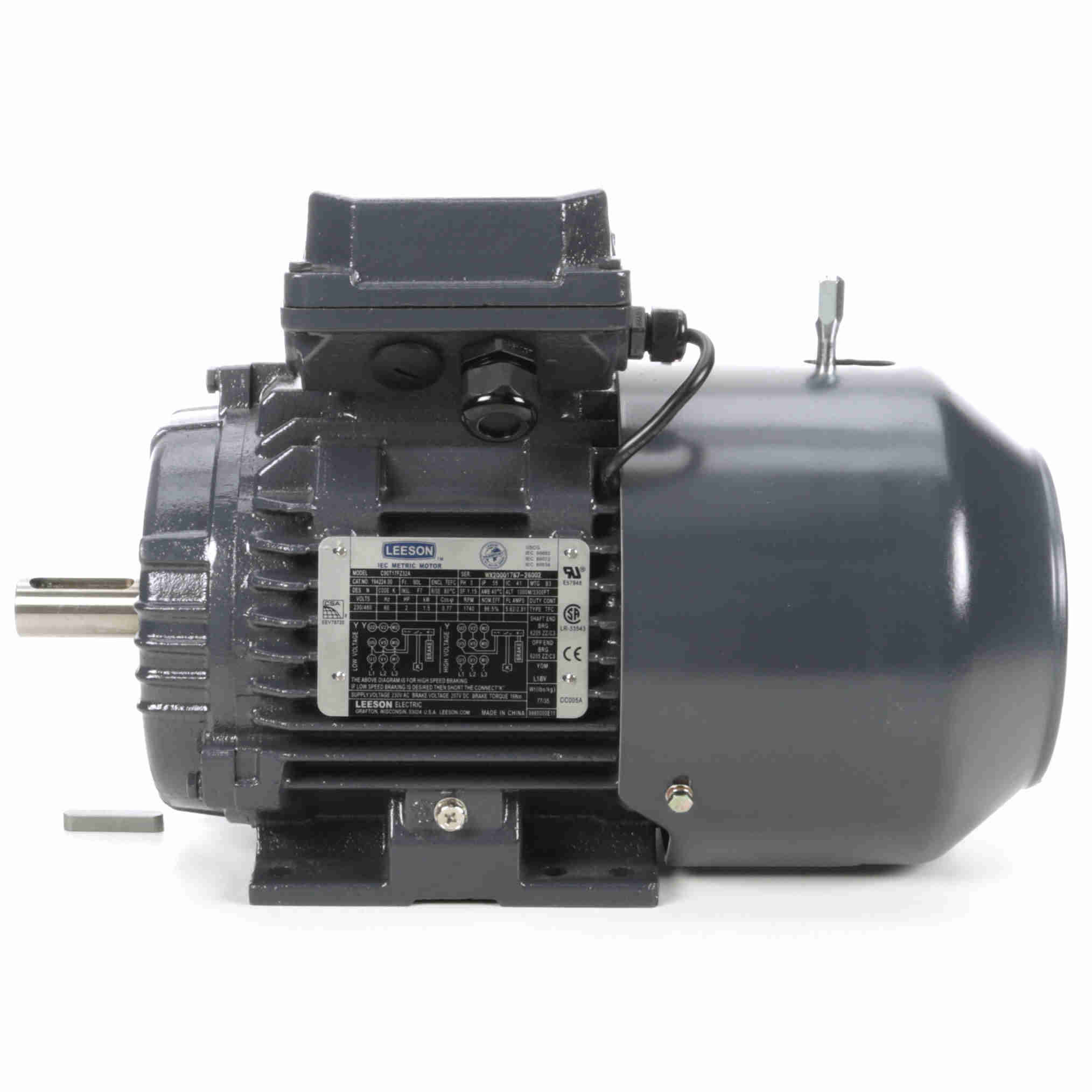

194224.00 Marathon 2HP/1.5kW IEC Metric AC Brakemotor, 1800RPM

MFG: Marathon Electric
MFG Part Number: 194224.00

Selected accessories will also be added to cart
$1,299.97 / Each
Quantity:
TEFC, IP55, 90L Frame, 230/460VAC 3-Phase 50/60Hz, C90T17FZ32A, Rigid Base, B3 Mounting, Cast Iron Frame, 1" Shaft

Features

  • Cast iron construction
  • 60/50 Hz interchangeability
  • 230 volt brake coil
  • IP55 enclosure
  • B3 mounting
  • B5 & B14 flange kits available
  • UL listed and CSA certified

General Specifications

UPC:691720992197Weight:81.00 LB
Packaged Length:14.96 INPackaged Width:12.8 IN
Packaged Height:9.8 IN

Nameplate Specifications

Output HP:2 HpOutput KW:1.5 kW
Frequency:60 HzVoltage:230/460 V
Current:5.6/2.8 ASpeed:1740 rpm
Service Factor:1.15Phase:3
Efficiency:86.5 %Power Factor:77
Duty:ContinuousInsulation Class:F
Design Code:No Design CodeKVA Code:K
Frame:90LEnclosure:Totally Enclosed Fan Cooled
Thermal Protection:NoAmbient Temperature:40 ?C
Drive End Bearing Size:6205Opp Drive End Bearing Size:6205
UL:RecognizedCSA:Y
CE:YIP Code:55

Technical Specifications

Electrical Type:Squirrel Cage Induction RunStarting Method:Across The Line
Poles:4Rotation:Reversible
Resistance Main:0 OhmsMounting:B3
Motor Orientation:HorizontalDrive End Bearing:Ball
Opp Drive End Bearing:BallFrame Material:Cast Iron
Shaft Type:IECOverall Length:15.47 in
Frame Length:6.02 inShaft Diameter:1.000 in
Shaft Extension:1.96 inAssembly/Box Mounting:F3

Speed & Load Characteristics

Speed Characteristics

CurvepointCurrent (Amps)Current (%)Torque (ft-lbs)(%)Speed (RPM)Rated Output (KW)Power Factor (%)Rated Output (Hp)
Full Load2.70100.06.00100.01,7450.000.02.00
Locked-Rotor20.10744.016.50275.000.000.02.00
No Load1.4052.00.000.01,7980.000.02.00
Break-Down0.000.019.70328.000.000.02.00
Type
Electric Motor
Speed
1800RPM
Horsepower
2HP
Input Phase
3-Phase
Enclosure
TEFC
Frame
90L
