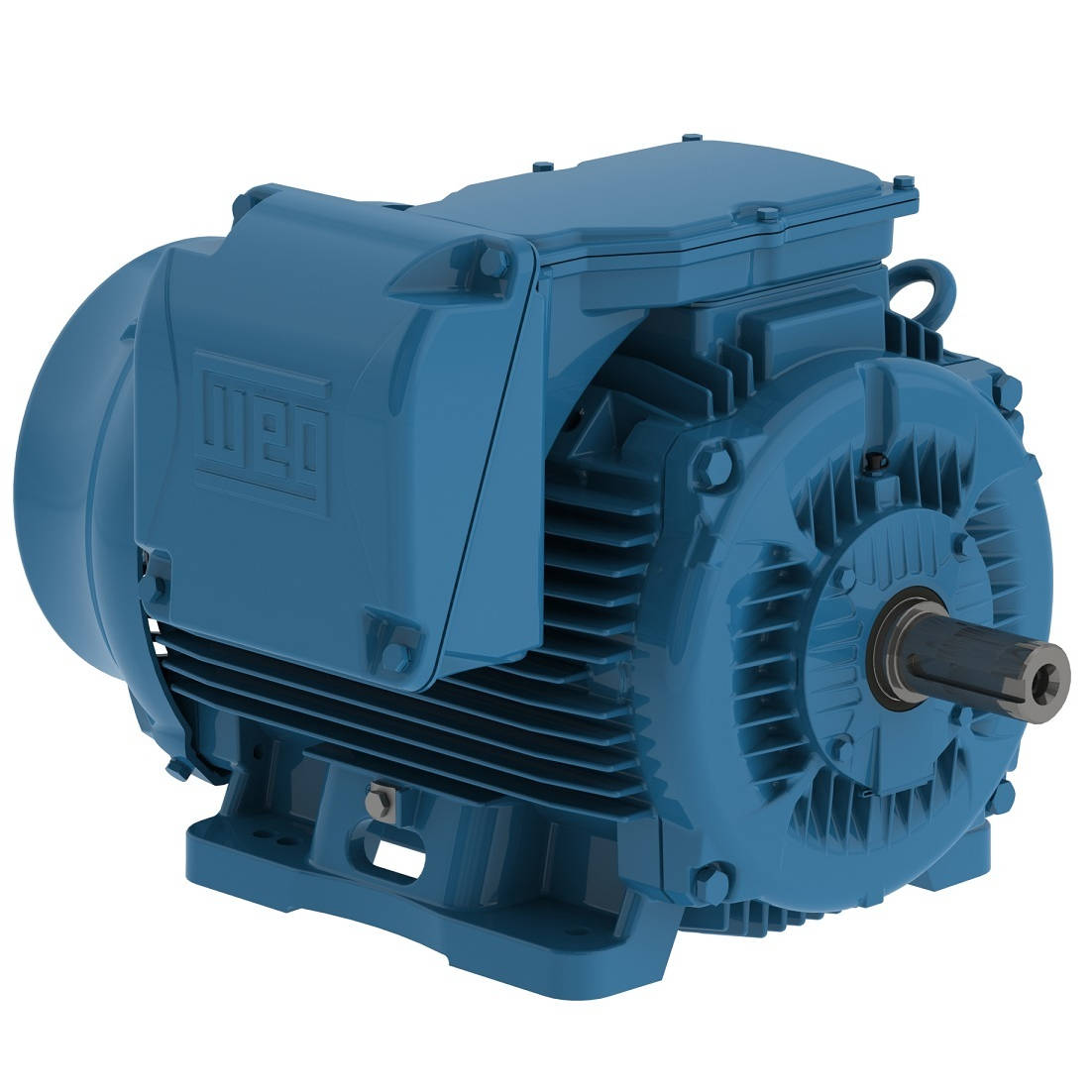

20009ET3GKD449T-W22 WEG 200HP Crusher Duty Electric Motor, 900RPM
Enlarge Photo

Product ID: 20009ET3GKD449T-W22

20009ET3GKD449T-W22 WEG 200HP Crusher Duty Electric Motor, 900RPM

MFG: WEG Electric Corporation
MFG Part Number: 20009ET3GKD449T-W22

Selected accessories will also be added to cart
$44,410.11 / Each
Quantity:
IC411 - TEFC, IP55, 447T/449T Frame, 460VAC 60Hz 3 Phase, 13526433, NEMA Premium Efficiency, Foot Mounted, Cast Iron Frame, 3-3/8" Keyed Shaft

Electric Motors

Frame447/9T
Output200 HP (150 kW)
Number of Poles8
Frequency60 Hz
Rated speed890 rpm
Slip1.11 %
Rated voltage460 V
Rated current254 A
L. R. Amperes1626 A
LRC6.4x(Code H)
No load current115 A
Rated torque1180 ft.lb
Locked rotor torque200 %
Breakdown torque220 %
Locked rotor time23s (cold) 13s (hot)
DesignA
Insulation ClassF
Service factor1.15
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC411 - TEFC
MountingF-1
Rotation?Both (CW and CCW)
Noise level?66.0 dB(A)
Approx. weight?3067 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
94.5  95.0  95.0

Power factor

50%75%100%
0.62  0.73  0.78

Features

Frame MaterialCast Iron
Impregnation MethodConstant Resin Flow
Regreasing SystemAt Drive end and Non-drive end
Main terminal box hole2xNPT 3"
Terminal BlockWithout
Shaft Locking DeviceWith
DrainRubber, automatic
Shaft MaterialSAE 4140 Carbon Steel
PaintingRAL 5009 203A (ISO 12944 - C2)
Grounding LugsDouble
Fan Cover materialCast Iron
Tropicalized PaintingWithout
Fan materialAluminum
Bearing capYes- Bearing Cap
Balancing Method1/2 Key
Drip CoverWithout
Overload protector (phenolic)Without overload protector
Connection Cables Quantity12
Type
Electric Motor
Input Phase
3-Phase
Enclosure
TEFC
Speed
900RPM
Application
Crusher
Horsepower
200HP
Input Voltage
460VAC
Frame
447T
Frame
449T
