/Products/Electric Motors/3 Phase/WEG 3-Phase Electric Motors/IEEE 841/Foot Mount/575VAC/20009ST3HIE449T-W22 WEG 200HP Severe Duty Electric Motor, 900RPM

Product ID: 20009ST3HIE449T-W22

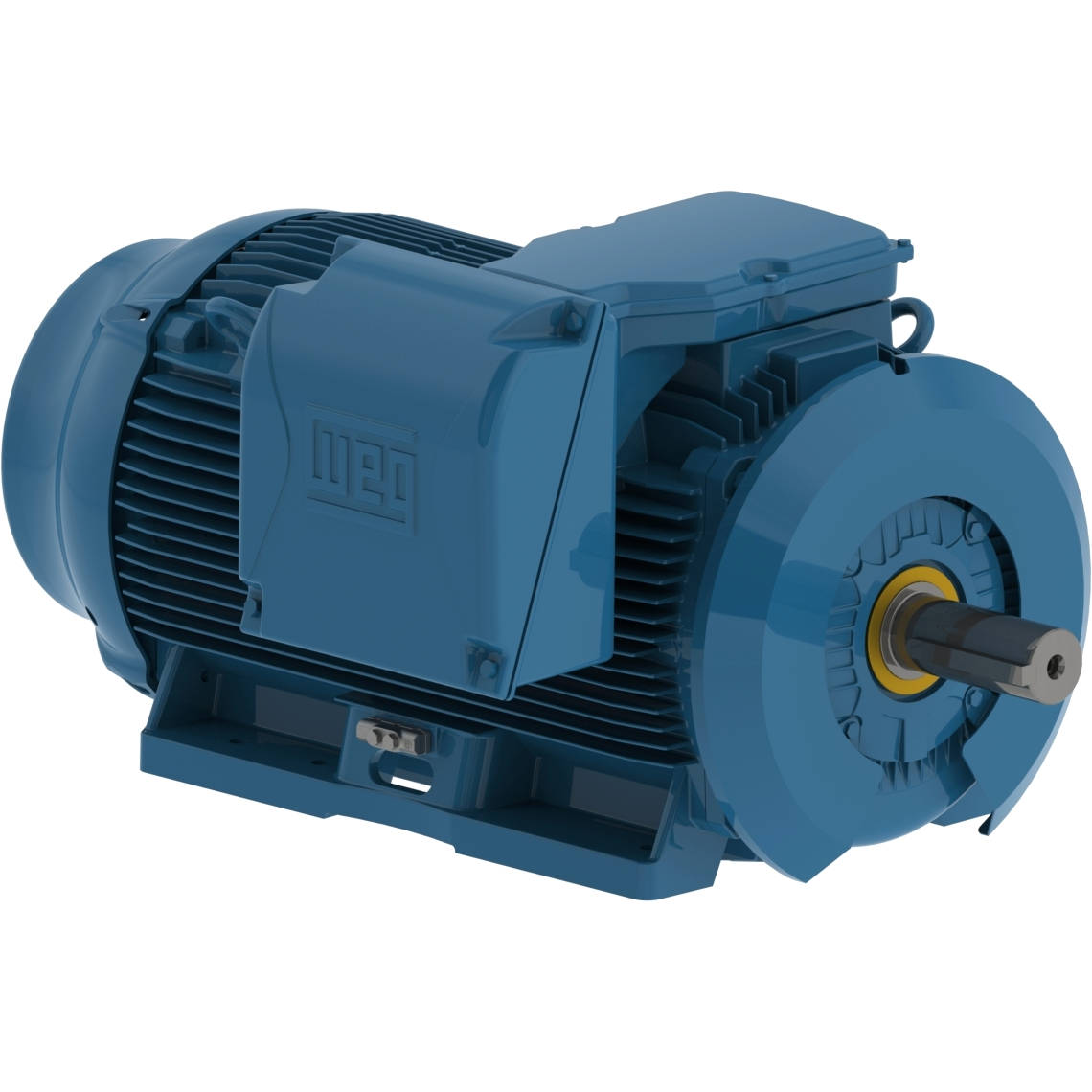

20009ST3HIE449T-W22 WEG 200HP Severe Duty Electric Motor, 900RPM

MFG: WEG Electric Corporation
MFG Part Number: 20009ST3HIE449T-W22

Selected accessories will also be added to cart

$51,080.66 / Each

Quantity:

IC411 - TEFC, IP55, L447T/L449T Frame, 575VAC 60Hz 3 Phase, 12970107, NEMA Premium Efficiency, Foot Mounted, Cast Iron Frame, IEEE 841, 3-3/8" Keyed Shaft

Electric Motors

Frame	L447/9T
Output	200 HP (150 kW)
Number of Poles	8
Frequency	60 Hz
Rated speed	891 rpm
Slip	1.00 %
Rated voltage	575 V
Rated current	194 A
L. R. Amperes	1181 A
LRC	6.1x(Code G)
No load current	72.0 A
Rated torque	1180 ft.lb
Locked rotor torque	190 %
Breakdown torque	210 %
Locked rotor time	45s (cold) 25s (hot)

Moment of inertia (J)	255 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.15
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20?C to +40?C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation?	Both (CW and CCW)
Noise level?	64.0 dB(A)
Approx. weight?	3492 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
94.6	95.0	95.0

Power factor

50%	75%	100%
0.70	0.79	0.82

Features

Frame Material	Cast Iron
Impregnation Method	Constant Resin Flow
Regreasing System	Extended in Stainless Steel, at Drive end and Non-drive end
Main terminal box hole	2xNPT 3"
Terminal Block	Without
Shaft Locking Device	Without
Drain	Type T, Threaded
Shaft Material	SAE 4140 Carbon Steel
Painting	RAL 5009 202E (ISO 12944 - C4)
Grounding Lugs	Double
Fan Cover material	Cast Iron
Tropicalized Painting	According to IEEE-841 (96h)
Joints Seal	Molykote
Foot flatness	(0.005 pol) 0.127 mm
Fan material	Bronze
Bearing cap	Yes- Bearing Cap
Bolt Material	Carbon Steel
Drip Cover	Without
Overload protector (phenolic)	Without overload protector
