/Products/Electric Motors/3 Phase/WEG 3-Phase Electric Motors/W22 General Purpose, TEFC/Foot Mount/20012ET3E449T-W22 WEG 200HP Severe Duty Electric Motor, 1200RPM

Product ID: 20012ET3E449T-W22

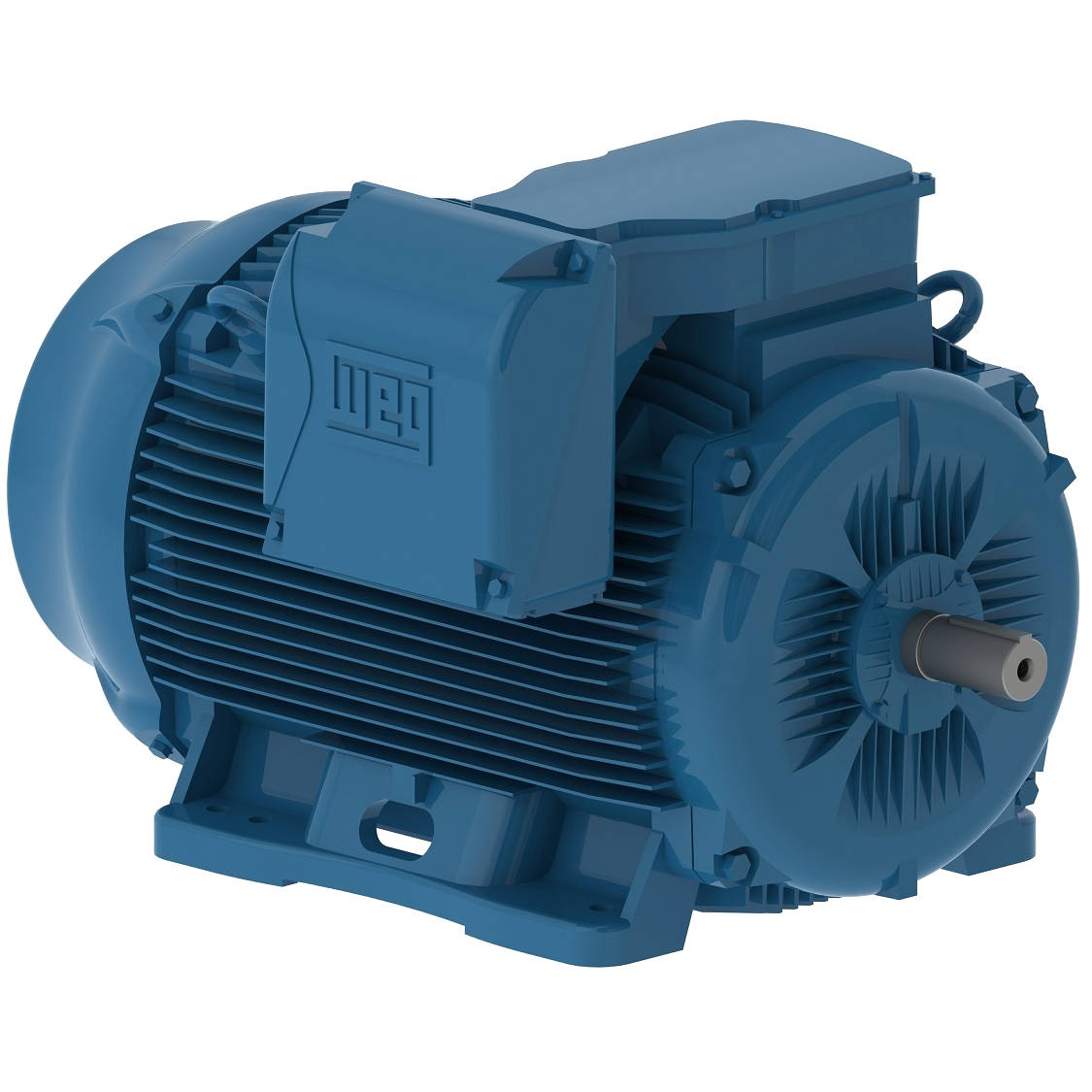

20012ET3E449T-W22 WEG 200HP Severe Duty Electric Motor, 1200RPM

MFG: WEG Electric Corporation
MFG Part Number: 20012ET3E449T-W22

Selected accessories will also be added to cart

$22,476.95 / Each

Quantity:

IC411 - TEFC, IP55, 447T/449T Frame, 230/460/380VAC 50/60Hz 3 Phase, 11380828, NEMA Premium Efficiency, Foot Mounted, Cast Iron Frame, 3-3/8" Keyed Shaft

Electric Motors

Frame	447/9T
Output	200 HP (150 kW)
Number of Poles	6
Frequency	60 Hz
Rated speed	1187 rpm
Slip	1.08 %
Rated voltage	230/460 V
Rated current	474/237 A
L. R. Amperes	3128/1564 A
LRC	6.6x(Code G)
No load current	180/90.0 A
Rated torque	885 ft.lb
Locked rotor torque	229 %
Breakdown torque	240 %
Locked rotor time	43s (cold) 24s (hot)

Moment of inertia (J)	145 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.15
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	70.0 dB(A)
Approx. weight³	2.2 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
95.0	95.4	95.8

Power factor

50%	75%	100%
0.68	0.79	0.83

Frame	447/9T
Output	150 HP (110 kW)
Number of Poles	6
Frequency	50 Hz
Rated speed	988 rpm
Slip	1.20 %
Rated voltage	380 V
Rated current	214 A
L. R. Amperes	1391 A
LRC	6.5x(Code G)
No load current	85.0 A
Rated torque	797 ft.lb
Locked rotor torque	229 %
Breakdown torque	260 %
Locked rotor time	91s (cold) 51s (hot)

Moment of inertia (J)	145 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.15
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	70.0 dB(A)
Approx. weight³	2.2 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
94.5	95.1	95.1

Power factor

50%	75%	100%
0.65	0.76	0.82

Frame	447/9T
Output	150 HP (110 kW)
Number of Poles	6
Frequency	50 Hz
Rated speed	990 rpm
Slip	1.00 %
Rated voltage	400 V
Rated current	209 A
L. R. Amperes	1505 A
LRC	7.2x(Code H)
No load current	90.0 A
Rated torque	796 ft.lb
Locked rotor torque	250 %
Breakdown torque	280 %
Locked rotor time	50s (cold) 28s (hot)

Moment of inertia (J)	145 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.15
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	70.0 dB(A)
Approx. weight³	2.2 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
94.5	95.1	95.1

Power factor

50%	75%	100%
0.62	0.74	0.80

Frame	447/9T
Output	150 HP (110 kW)
Number of Poles	6
Frequency	50 Hz
Rated speed	990 rpm
Slip	1.00 %
Rated voltage	415 V
Rated current	204 A
L. R. Amperes	1632 A
LRC	8.0x(Code J)
No load current	95.0 A
Rated torque	796 ft.lb
Locked rotor torque	270 %
Breakdown torque	310 %
Locked rotor time	46s (cold) 26s (hot)

Moment of inertia (J)	145 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.15
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	70.0 dB(A)
Approx. weight³	2.2 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
94.5	95.1	95.1

Power factor

50%	75%	100%
0.59	0.71	0.79

Frame	447/9T
Output	200 HP (150 kW)
Number of Poles	6
Frequency	50 Hz
Rated speed	980 rpm
Slip	2.00 %
Rated voltage	380 V
Rated current	285 A
L. R. Amperes	1482 A
LRC	5.2x(Code E)
No load current	85.0 A
Rated torque	1070 ft.lb
Locked rotor torque	180 %
Breakdown torque	190 %
Locked rotor time	23s (cold) 13s (hot)

Moment of inertia (J)	145 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	105 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	70.0 dB(A)
Approx. weight³	2.2 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
94.5	94.5	94.0

Power factor

50%	75%	100%
0.74	0.83	0.85

Frame	447/9T
Output	200 HP (150 kW)
Number of Poles	6
Frequency	50 Hz
Rated speed	983 rpm
Slip	1.70 %
Rated voltage	400 V
Rated current	273 A
L. R. Amperes	1638 A
LRC	6.0x(Code G)
No load current	92.0 A
Rated torque	1070 ft.lb
Locked rotor torque	200 %
Breakdown torque	210 %
Locked rotor time	25s (cold) 14s (hot)

Moment of inertia (J)	145 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	105 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	70.0 dB(A)
Approx. weight³	2.2 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
94.5	94.5	94.5

Power factor

50%	75%	100%
0.71	0.81	0.84

Frame	447/9T
Output	200 HP (150 kW)
Number of Poles	6
Frequency	50 Hz
Rated speed	985 rpm
Slip	1.50 %
Rated voltage	415 V
Rated current	265 A
L. R. Amperes	1749 A
LRC	6.6x(Code G)
No load current	95.0 A
Rated torque	1070 ft.lb
Locked rotor torque	220 %
Breakdown torque	229 %
Locked rotor time	27s (cold) 15s (hot)

Moment of inertia (J)	145 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	105 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	70.0 dB(A)
Approx. weight³	2.2 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
94.0	94.5	95.0

Power factor

50%	75%	100%
0.68	0.79	0.83

Features

Frame Material	Cast Iron
Impregnation Method	Constant Resin Flow
Regreasing System	At Drive end and Non-drive end
Main terminal box hole	2xNPT 3"
Terminal Block	Without
Shaft Locking Device	Without
Drain	Rubber, automatic
Shaft Material	SAE 4140 Carbon Steel
Painting	RAL 5009 203A (ISO 12944 - C2)
Grounding Lugs	Double
Fan Cover material	Cast Iron
Tropicalized Painting	Without
Fan material	Aluminum
Bearing cap	Yes- Bearing Cap
Balancing Method	1/2 Key
Drip Cover	Without
Overload protector (phenolic)	Without overload protector
Connection Cables Quantity	12
