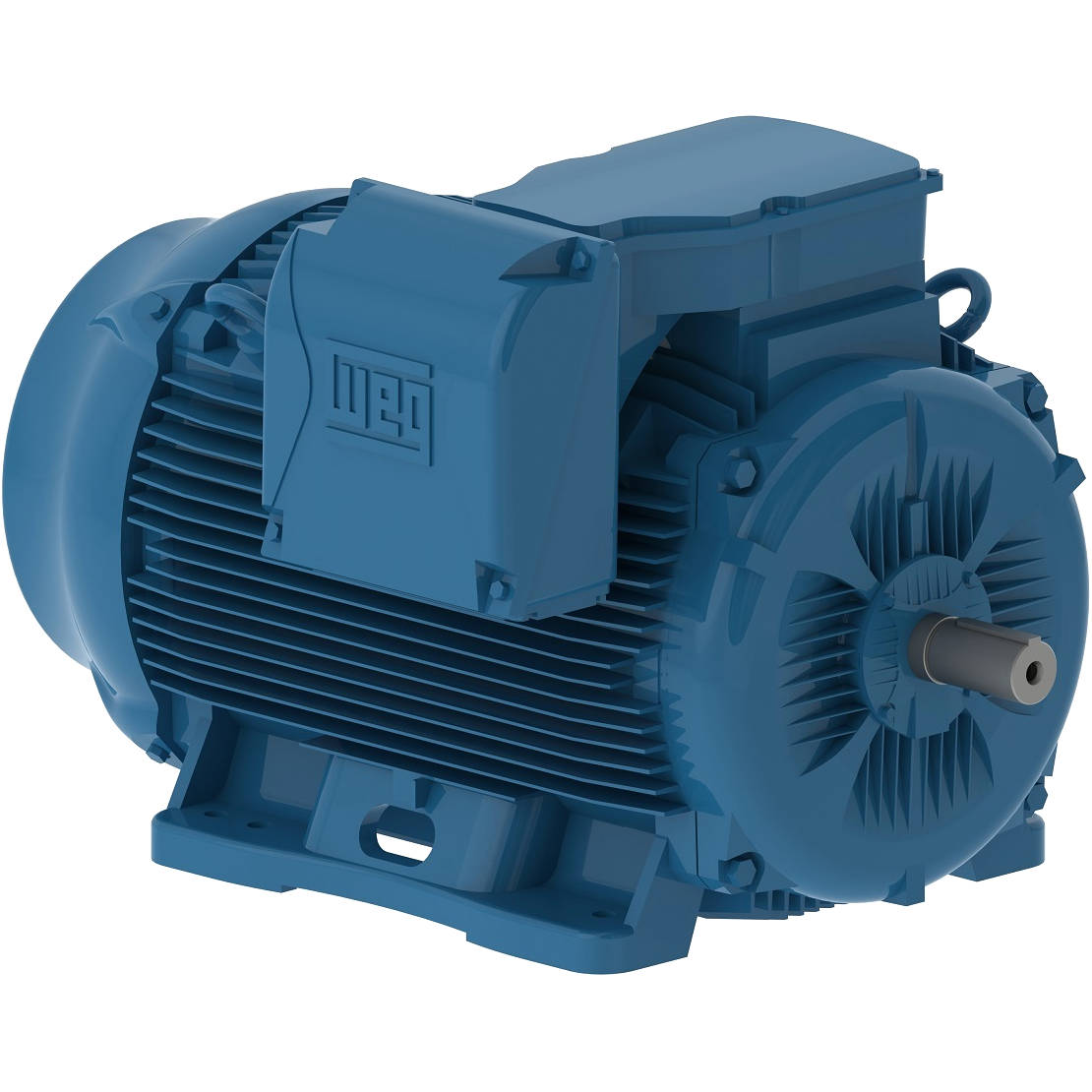

20012ET3G447T-W22 WEG 200HP Severe Duty Electric Motor, 1200RPM
Enlarge Photo

Product ID: 20012ET3G447T-W22

20012ET3G447T-W22 WEG 200HP Severe Duty Electric Motor, 1200RPM

MFG: WEG Electric Corporation
MFG Part Number: 20012ET3G447T-W22

Selected accessories will also be added to cart
$22,368.37 / Each
Quantity:
IC411 - TEFC, IP55, 445T/447T Frame, 460VAC 60Hz 3 Phase, 11549071, NEMA Premium Efficiency, Foot Mounted, Cast Iron Frame, 3-3/8" Keyed Shaft

Electric Motors

Frame445/7T
Output200 HP (150 kW)
Number of Poles6
Frequency60 Hz
Rated speed1185 rpm
Slip1.25 %
Rated voltage460 V
Rated current237 A
L. R. Amperes1493 A
LRC6.3x(Code G)
No load current100 A
Rated torque886 ft.lb
Locked rotor torque229 %
Breakdown torque240 %
Locked rotor time27s (cold) 15s (hot)
Moment of inertia (J)145 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.15
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC411 - TEFC
MountingF-1
Rotation?Both (CW and CCW)
Noise level?69.0 dB(A)
Approx. weight?2492 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
95.0  95.4  95.8

Power factor

50%75%100%
0.68  0.79  0.83
Frame445/7T
Output150 HP (110 kW)
Number of Poles6
Frequency50 Hz
Rated speed985 rpm
Slip1.50 %
Rated voltage380 V
Rated current214 A
L. R. Amperes1391 A
LRC6.5x(Code G)
No load current98.9 A
Rated torque800 ft.lb
Locked rotor torque229 %
Breakdown torque260 %
Locked rotor time21s (cold) 12s (hot)
Moment of inertia (J)145 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.15
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC411 - TEFC
MountingF-1
Rotation?Both (CW and CCW)
Noise level?69.0 dB(A)
Approx. weight?2492 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
94.5  95.1  95.1

Power factor

50%75%100%
0.65  0.76  0.82
Frame445/7T
Output150 HP (110 kW)
Number of Poles6
Frequency50 Hz
Rated speed985 rpm
Slip1.50 %
Rated voltage400 V
Rated current209 A
L. R. Amperes1505 A
LRC7.2x(Code H)
No load current106 A
Rated torque800 ft.lb
Locked rotor torque250 %
Breakdown torque280 %
Locked rotor time21s (cold) 12s (hot)
Moment of inertia (J)145 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.15
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC411 - TEFC
MountingF-1
Rotation?Both (CW and CCW)
Noise level?69.0 dB(A)
Approx. weight?2492 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
94.5  95.1  95.1

Power factor

50%75%100%
0.62  0.74  0.80
Frame445/7T
Output150 HP (110 kW)
Number of Poles6
Frequency50 Hz
Rated speed985 rpm
Slip1.50 %
Rated voltage415 V
Rated current204 A
L. R. Amperes1571 A
LRC7.7x(Code J)
No load current111 A
Rated torque800 ft.lb
Locked rotor torque270 %
Breakdown torque310 %
Locked rotor time21s (cold) 12s (hot)
Moment of inertia (J)145 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.15
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC411 - TEFC
MountingF-1
Rotation?Both (CW and CCW)
Noise level?69.0 dB(A)
Approx. weight?2492 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
94.5  95.1  95.1

Power factor

50%75%100%
0.59  0.71  0.79
Frame445/7T
Output200 HP (150 kW)
Number of Poles6
Frequency50 Hz
Rated speed980 rpm
Slip2.00 %
Rated voltage380 V
Rated current285 A
L. R. Amperes1425 A
LRC5.0x(Code E)
No load current98.9 A
Rated torque1070 ft.lb
Locked rotor torque180 %
Breakdown torque190 %
Locked rotor time21s (cold) 12s (hot)
Moment of inertia (J)145 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.00
Temperature rise105 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC411 - TEFC
MountingF-1
Rotation?Both (CW and CCW)
Noise level?69.0 dB(A)
Approx. weight?2492 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
94.5  94.5  94.0

Power factor

50%75%100%
0.74  0.83  0.85
Frame445/7T
Output200 HP (150 kW)
Number of Poles6
Frequency50 Hz
Rated speed980 rpm
Slip2.00 %
Rated voltage400 V
Rated current273 A
L. R. Amperes1529 A
LRC5.6x(Code F)
No load current106 A
Rated torque1070 ft.lb
Locked rotor torque200 %
Breakdown torque210 %
Locked rotor time21s (cold) 12s (hot)
Moment of inertia (J)145 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.00
Temperature rise105 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC411 - TEFC
MountingF-1
Rotation?Both (CW and CCW)
Noise level?69.0 dB(A)
Approx. weight?2492 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
94.5  94.5  94.5

Power factor

50%75%100%
0.71  0.81  0.84
Frame445/7T
Output200 HP (150 kW)
Number of Poles6
Frequency50 Hz
Rated speed980 rpm
Slip2.00 %
Rated voltage415 V
Rated current265 A
L. R. Amperes1590 A
LRC6.0x(Code G)
No load current111 A
Rated torque1070 ft.lb
Locked rotor torque220 %
Breakdown torque229 %
Locked rotor time21s (cold) 12s (hot)
Moment of inertia (J)145 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.00
Temperature rise105 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC411 - TEFC
MountingF-1
Rotation?Both (CW and CCW)
Noise level?69.0 dB(A)
Approx. weight?2492 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
94.0  94.5  95.0

Power factor

50%75%100%
0.68  0.79  0.83

Features

Frame MaterialCast Iron
Impregnation MethodConstant Resin Flow
Regreasing SystemAt Drive end and Non-drive end
Main terminal box hole2xNPT 3"
Terminal BlockWithout
Shaft Locking DeviceWithout
DrainRubber, automatic
Shaft MaterialSAE 4140 Carbon Steel
PaintingRAL 5009 203A (ISO 12944 - C2)
Grounding LugsDouble
Fan Cover materialCast Iron
Tropicalized PaintingWithout
Fan materialPlastic
Bearing capYes- Bearing Cap
Balancing Method1/2 Key
Drip CoverWithout
Overload protector (phenolic)Without overload protector
Connection Cables Quantity12
Type
Electric Motor
Input Phase
3-Phase
Speed
1200RPM
Application
Severe Duty
Enclosure
TEFC
Enclosure
TEFC
Horsepower
200HP
Input Voltage
460VAC
Frame
445T/447T
