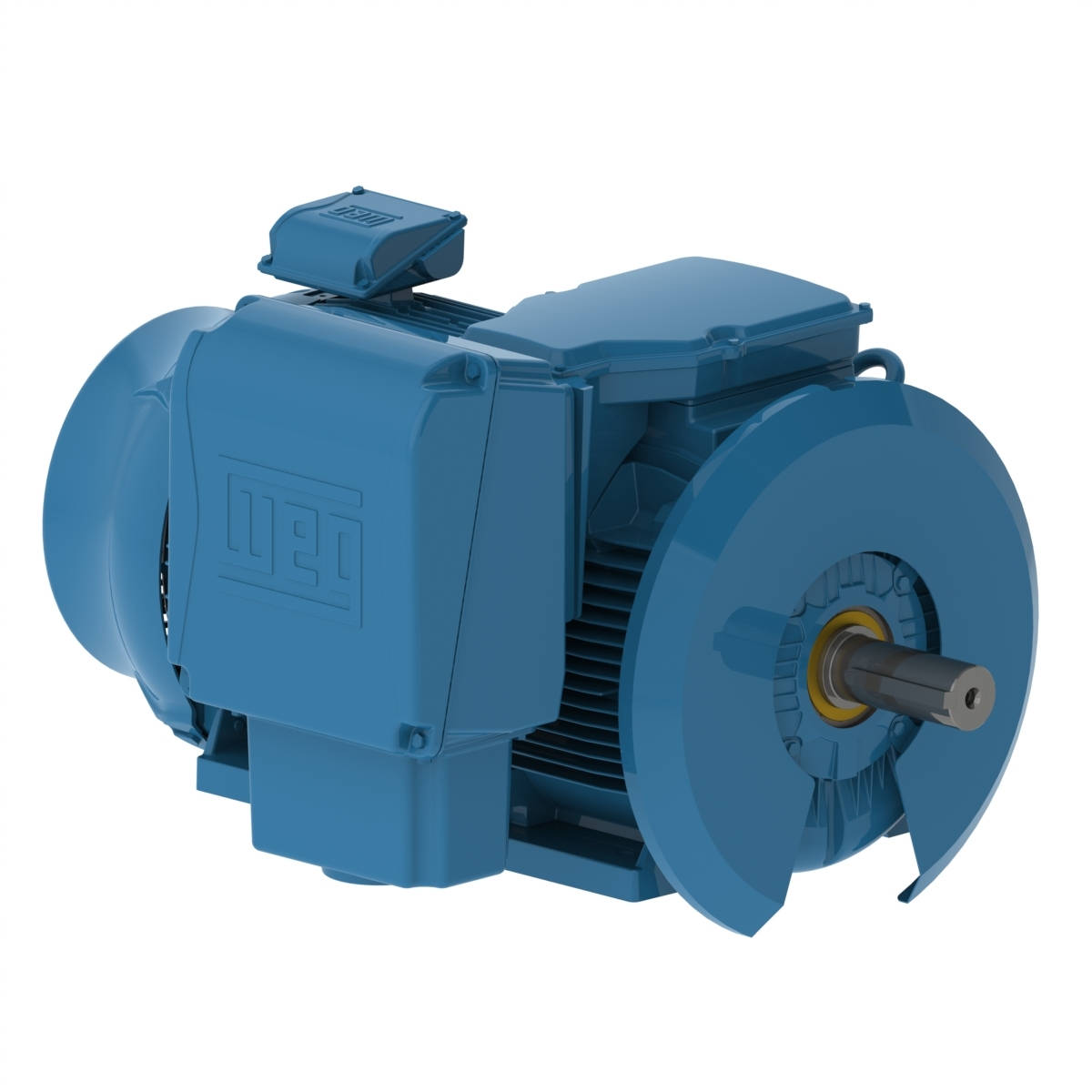

Motor/Control Division

Frame	L447/9T
Output	200 HP (150 kW)
Number of Poles	6
Frequency	60 Hz
Rated speed	1185 rpm
Slip	1.25 %
Rated voltage	2300 V
Rated current	51.6 A
L. R. Amperes	310 A
LRC	6.0x(Code G)
No load current	24.3 A
Rated torque	886 ft.lb
Locked rotor torque	150 %
Breakdown torque	210 %
Locked rotor time	25s (cold) 14s (hot)

Moment of inertia (J)	114 sq.ft.lb
Design	A
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	VFD
Ambient temperature	-20?C to +40?C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation?	Both (CW and CCW)
Noise level?	71.0 dB(A)
Approx. weight?	2975 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
92.8	93.6	93.6

Power factor

50%	75%	100%
0.63	0.73	0.78

Frame	L447/9T
Output	200 HP (150 kW)
Number of Poles	6
Frequency	60 Hz
Rated speed	1186 rpm
Slip	1.17 %
Rated voltage	4160 V
Rated current	29.3 A
L. R. Amperes	190 A
LRC	6.5x(Code H)
No load current	15.2 A
Rated torque	886 ft.lb
Locked rotor torque	160 %
Breakdown torque	229 %
Locked rotor time	25s (cold) 14s (hot)

Moment of inertia (J)	114 sq.ft.lb
Design	A
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	VFD
Ambient temperature	-20?C to +40?C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation?	Both (CW and CCW)
Noise level?	71.0 dB(A)
Approx. weight?	2975 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
92.8	93.6	93.6

Power factor

50%	75%	100%
0.59	0.70	0.76

Features

Frame Material	Cast Iron
Impregnation Method	Sealed winding (2x VPI + pulverization)
Regreasing System	Extended, at Drive end and Non-drive end
Space Heater Voltage	110 - 127 V
Main terminal box hole	NPT 3"
Accessories Terminal Box	With
Space Heater Terminal Box	With
Shaft Locking Device	Without
Drain	Type T, Threaded
Shaft Material	SAE 4140 Carbon Steel
Painting	RAL 5009 202E (ISO 12944 - C4)
Grounding Lugs	Double + Additional in Brass
Fan Cover material	Cast Iron
Tropicalized Painting	According to IEEE-841 (96h)
Joints Seal	Molykote
Foot flatness	(0.005 pol) 0.127 mm
Fan material	Aluminum
Bearing cap	Yes- Bearing Cap
Winding thermal protection	PT100 - 3 wires 2 per phase
Bearing thermal protection	PT100 - 3 wires 1 on DE bearing PT100 - 3 wires 1 on NDE bearing
Balancing Method	1/2 Key
Drip Cover	Without
Overload protector (phenolic)	Without overload protector
Connection Cables Quantity	6
