/Products/Electric Motors/3 Phase/WEG/IEEE 841/Foot Mount/20018ST3QIE447T-W22 WEG 200HP Severe Duty Electric Motor, 1800RPM

Product ID: 20018ST3QIE447T-W22

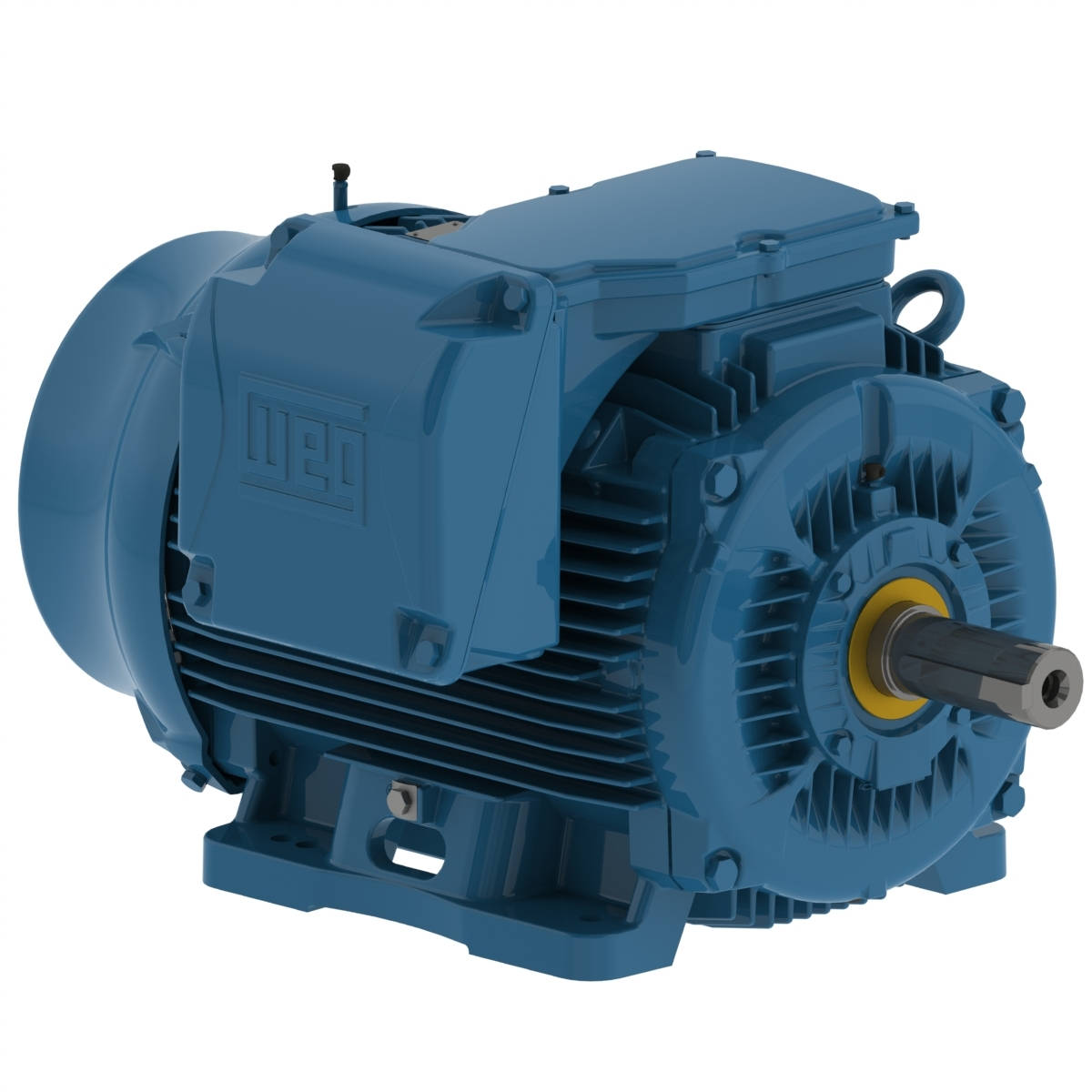

20018ST3QIE447T-W22 WEG 200HP Severe Duty Electric Motor, 1800RPM

MFG: WEG Electric Corporation
MFG Part Number: 20018ST3QIE447T-W22

Selected accessories will also be added to cart

$17,772.00 / Each

Quantity:

IC411 - TEFC, IP55, 445T/447T Frame, 460VAC 60Hz 3 Phase, 11431673, NEMA Premium Efficiency, IEEE 841, Foot Mounted, Cast Iron Frame, 3-3/8" Keyed Shaft

Details
Purchase Components

Electric Motors

Frame	445/7T
Output	200 HP (150 kW)
Number of Poles	4
Frequency	60 Hz
Rated speed	1785 rpm
Slip	0.83 %
Rated voltage	460 V
Rated current	230 A
L. R. Amperes	1564 A
LRC	6.8x(Code G)
No load current	70.0 A
Rated torque	588 ft.lb
Locked rotor torque	229 %
Breakdown torque	250 %
Locked rotor time	28s (cold) 16s (hot)

Moment of inertia (J)	76.2 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.15
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	73.0 dB(A)
Approx. weight³	2301 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
95.8	96.2	96.2

Power factor

50%	75%	100%
0.73	0.82	0.85

Frame	445/7T
Output	200 HP (150 kW)
Number of Poles	4
Frequency	50 Hz
Rated speed	1475 rpm
Slip	1.67 %
Rated voltage	380 V
Rated current	279 A
L. R. Amperes	1423 A
LRC	5.1x(Code E)
No load current	69.0 A
Rated torque	712 ft.lb
Locked rotor torque	170 %
Breakdown torque	200 %
Locked rotor time	18s (cold) 10s (hot)

Moment of inertia (J)	76.2 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	105 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	73.0 dB(A)
Approx. weight³	2301 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
94.5	95.0	95.0

Power factor

50%	75%	100%
0.78	0.85	0.86

Frame	445/7T
Output	200 HP (150 kW)
Number of Poles	4
Frequency	50 Hz
Rated speed	1480 rpm
Slip	1.33 %
Rated voltage	400 V
Rated current	264 A
L. R. Amperes	1478 A
LRC	5.6x(Code F)
No load current	75.0 A
Rated torque	710 ft.lb
Locked rotor torque	190 %
Breakdown torque	220 %
Locked rotor time	18s (cold) 10s (hot)

Moment of inertia (J)	76.2 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	105 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	73.0 dB(A)
Approx. weight³	2301 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
95.0	95.4	95.4

Power factor

50%	75%	100%
0.76	0.84	0.86

Frame	445/7T
Output	200 HP (150 kW)
Number of Poles	4
Frequency	50 Hz
Rated speed	1480 rpm
Slip	1.33 %
Rated voltage	415 V
Rated current	257 A
L. R. Amperes	1568 A
LRC	6.1x(Code G)
No load current	79.0 A
Rated torque	710 ft.lb
Locked rotor torque	210 %
Breakdown torque	240 %
Locked rotor time	18s (cold) 10s (hot)

Moment of inertia (J)	76.2 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	105 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	73.0 dB(A)
Approx. weight³	2301 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
95.0	95.4	95.4

Power factor

50%	75%	100%
0.73	0.82	0.85

Features

Frame Material	Cast Iron
Impregnation Method	Constant Resin Flow
Regreasing System	Extended in Stainless Steel, at Drive end and Non-drive end
Main terminal box hole	2xNPT 3"
Terminal Block	Without
Shaft Locking Device	Without
Drain	Type T, Threaded
Shaft Material	SAE 4140 Carbon Steel
Painting	RAL 5009 202E (ISO 12944 - C4)
Grounding Lugs	Double
Fan Cover material	Cast Iron
Tropicalized Painting	According to IEEE-841 (96h)
Joints Seal	Molykote
Foot flatness	(0.005 pol) 0.127 mm
Fan material	Conductive Plastic
Bearing cap	Yes- Bearing Cap
Bolt Material	Carbon Steel
Drip Cover	Without
Overload protector (phenolic)	Without overload protector
Connection Cables Quantity	3
