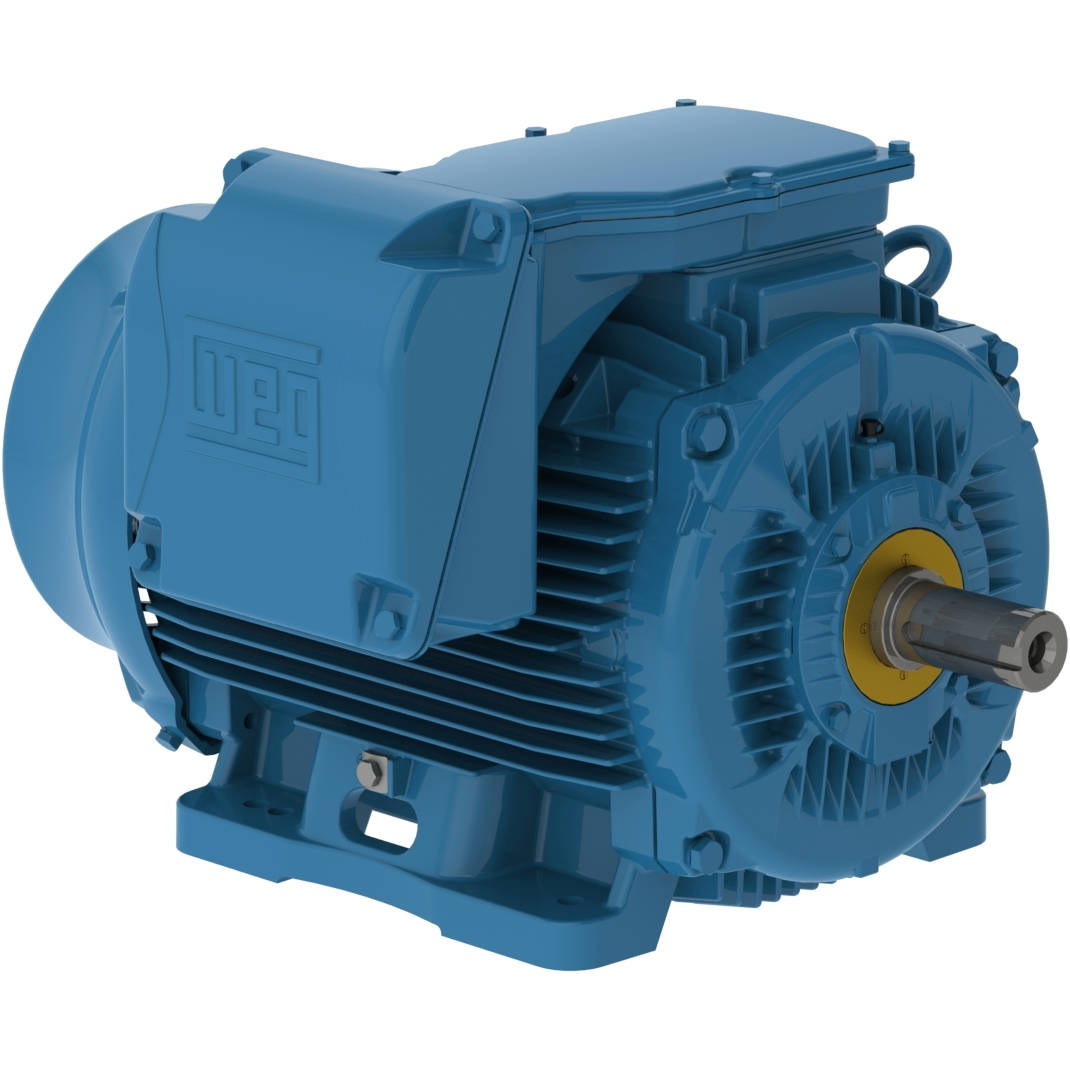

25009ET3GKD586/7-W22 WEG 250HP Crusher Duty Electric Motor, 900RPM
Enlarge Photo

Product ID: 25009ET3GKD586/7-W22

25009ET3GKD586/7-W22 WEG 250HP Crusher Duty Electric Motor, 900RPM

MFG: WEG Electric Corporation
MFG Part Number: 25009ET3GKD586/7-W22

Selected accessories will also be added to cart
$49,989.52 / Each
Quantity:
IC411 - TEFC, IP55, 586T/587T Frame, 460VAC 60Hz 3 Phase, 13500595, NEMA Premium Efficiency, Foot Mounted, Cast Iron Frame, 3-7/8" Keyed Shaft

Electric Motors

Frame586/7T
Output250 HP (185 kW)
Number of Poles8
Frequency60 Hz
Rated speed895 rpm
Slip0.56 %
Rated voltage460 V
Rated current315 A
L. R. Amperes2552 A
LRC8.1x(Code K)
No load current165 A
Rated torque1470 ft.lb
Locked rotor torque200 %
Breakdown torque229 %
Locked rotor time72s (cold) 40s (hot)
DesignA
Insulation ClassF
Service factor1.15
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC411 - TEFC
MountingF-1
Rotation?Both (CW and CCW)
Noise level?75.0 dB(A)
Approx. weight?4042 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
94.5  95.8  95.8

Power factor

50%75%100%
0.60  0.71  0.77

Features

Frame MaterialCast Iron
Impregnation MethodConstant Resin Flow
Regreasing SystemAt Drive end and Non-drive end
Space Heater Voltage200 - 240 V
Main terminal box hole2xNPT 3"
Terminal BlockWithout
Shaft Locking DeviceWith
DrainRubber, automatic
Shaft MaterialSAE 4140 Carbon Steel
PaintingRAL 5009 203A (ISO 12944 - C2)
Grounding LugsDouble
Fan Cover materialCast Iron
Tropicalized PaintingWithout
Fan materialAluminum
Bearing capYes- Bearing Cap
Balancing Method1/2 Key
Drip CoverWithout
Overload protector (phenolic)Without overload protector
Connection Cables Quantity12
Type
Electric Motor
Input Phase
3-Phase
Enclosure
TEFC
Speed
900RPM
Application
Crusher
Horsepower
250HP
Input Voltage
460VAC
Frame
586T
Frame
587T
