/Products/Electric Motors/3 Phase/WEG 3-Phase Electric Motors/W22 General Purpose, TEFC/Foot Mount/25018ET3E505T-W22 WEG 250HP Severe Duty Electric Motor, 1800RPM

Product ID: 25018ET3E505T-W22

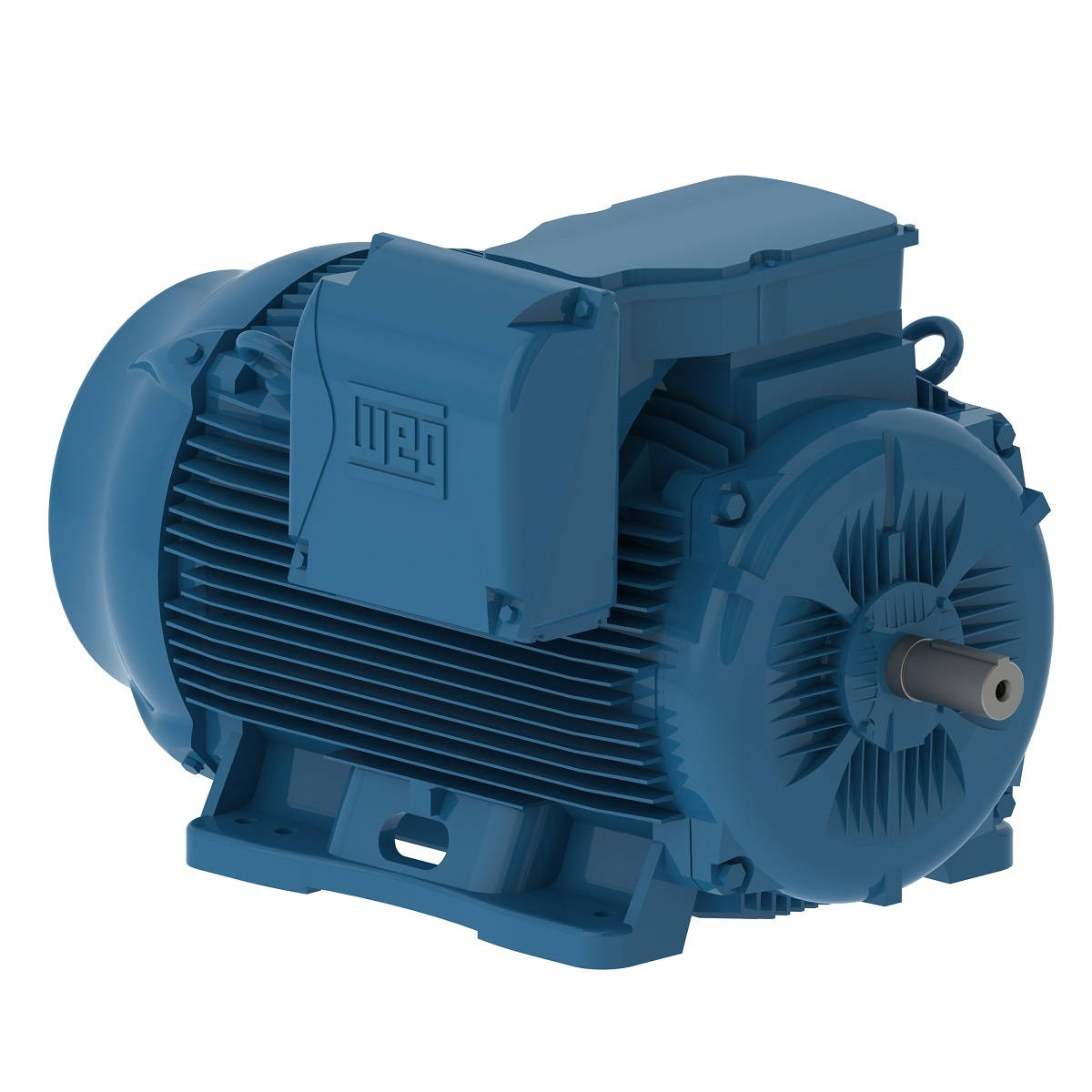

25018ET3E505T-W22 WEG 250HP Severe Duty Electric Motor, 1800RPM

MFG: WEG Electric Corporation
MFG Part Number: 25018ET3E505T-W22

Selected accessories will also be added to cart

$23,854.67 / Each

Quantity:

IC411 - TEFC, IP55, 504T/505T Frame, 230/460/380VAC 50/60Hz 3 Phase, 12566462, NEMA Premium Efficiency, Foot Mounted, Cast Iron Frame, 3-5/8" Keyed Shaft

Electric Motors

Frame	504/5T
Output	250 HP (185 kW)
Number of Poles	4
Frequency	60 Hz
Rated speed	1785 rpm
Slip	0.83 %
Rated voltage	230/460 V
Rated current	554/277 A
L. R. Amperes	3601/1801 A
LRC	6.5x(Code G)
No load current	170/85.0 A
Rated torque	735 ft.lb
Locked rotor torque	229 %
Breakdown torque	220 %
Locked rotor time	36s (cold) 20s (hot)

Moment of inertia (J)	89.6 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.15
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20?C to +40?C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation?	Both (CW and CCW)
Noise level?	75.0 dB(A)
Approx. weight?	2588 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
95.8	96.2	96.2

Power factor

50%	75%	100%
0.78	0.85	0.87

Frame	504/5T
Output	200 HP (150 kW)
Number of Poles	4
Frequency	50 Hz
Rated speed	1490 rpm
Slip	0.67 %
Rated voltage	380 V
Rated current	270 A
L. R. Amperes	1593 A
LRC	5.9x(Code F)
No load current	71.2 A
Rated torque	705 ft.lb
Locked rotor torque	200 %
Breakdown torque	220 %
Locked rotor time	66s (cold) 37s (hot)

Moment of inertia (J)	89.6 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.15
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20?C to +40?C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation?	Both (CW and CCW)
Noise level?	71.0 dB(A)
Approx. weight?	2588 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
95.2	95.8	95.8

Power factor

50%	75%	100%
0.81	0.87	0.88

Frame	504/5T
Output	200 HP (150 kW)
Number of Poles	4
Frequency	50 Hz
Rated speed	1490 rpm
Slip	0.67 %
Rated voltage	400 V
Rated current	257 A
L. R. Amperes	1696 A
LRC	6.6x(Code G)
No load current	76.2 A
Rated torque	705 ft.lb
Locked rotor torque	220 %
Breakdown torque	250 %
Locked rotor time	61s (cold) 34s (hot)

Moment of inertia (J)	89.6 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.15
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20?C to +40?C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation?	Both (CW and CCW)
Noise level?	71.0 dB(A)
Approx. weight?	2588 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
95.1	95.8	95.8

Power factor

50%	75%	100%
0.79	0.86	0.88

Frame	504/5T
Output	200 HP (150 kW)
Number of Poles	4
Frequency	50 Hz
Rated speed	1490 rpm
Slip	0.67 %
Rated voltage	415 V
Rated current	250 A
L. R. Amperes	1775 A
LRC	7.1x(Code H)
No load current	80.0 A
Rated torque	705 ft.lb
Locked rotor torque	240 %
Breakdown torque	270 %
Locked rotor time	57s (cold) 32s (hot)

Moment of inertia (J)	89.6 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.15
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20?C to +40?C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation?	Both (CW and CCW)
Noise level?	71.0 dB(A)
Approx. weight?	2588 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
95.0	95.8	95.8

Power factor

50%	75%	100%
0.77	0.85	0.87

Frame	504/5T
Output	250 HP (185 kW)
Number of Poles	4
Frequency	50 Hz
Rated speed	1480 rpm
Slip	1.33 %
Rated voltage	380 V
Rated current	339 A
L. R. Amperes	1729 A
LRC	5.1x(Code E)
No load current	84.0 A
Rated torque	887 ft.lb
Locked rotor torque	180 %
Breakdown torque	180 %
Locked rotor time	21s (cold) 12s (hot)

Moment of inertia (J)	89.6 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	105 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20?C to +40?C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation?	Both (CW and CCW)
Noise level?	71.0 dB(A)
Approx. weight?	2588 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
95.8	95.8	95.4

Power factor

50%	75%	100%
0.82	0.86	0.87

Frame	504/5T
Output	250 HP (185 kW)
Number of Poles	4
Frequency	50 Hz
Rated speed	1485 rpm
Slip	1.00 %
Rated voltage	400 V
Rated current	322 A
L. R. Amperes	1803 A
LRC	5.6x(Code E)
No load current	90.0 A
Rated torque	884 ft.lb
Locked rotor torque	200 %
Breakdown torque	200 %
Locked rotor time	21s (cold) 12s (hot)

Moment of inertia (J)	89.6 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	105 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20?C to +40?C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation?	Both (CW and CCW)
Noise level?	71.0 dB(A)
Approx. weight?	2588 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
95.8	95.8	95.4

Power factor

50%	75%	100%
0.80	0.86	0.87

Frame	504/5T
Output	250 HP (185 kW)
Number of Poles	4
Frequency	50 Hz
Rated speed	1485 rpm
Slip	1.00 %
Rated voltage	415 V
Rated current	309 A
L. R. Amperes	1885 A
LRC	6.1x(Code F)
No load current	95.0 A
Rated torque	884 ft.lb
Locked rotor torque	220 %
Breakdown torque	220 %
Locked rotor time	21s (cold) 12s (hot)

Moment of inertia (J)	89.6 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	105 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20?C to +40?C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation?	Both (CW and CCW)
Noise level?	71.0 dB(A)
Approx. weight?	2588 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
95.8	95.8	95.8

Power factor

50%	75%	100%
0.78	0.85	0.87

Features

Frame Material	Cast Iron
Impregnation Method	Constant Resin Flow
Regreasing System	At Drive end and Non-drive end
Main terminal box hole	2xNPT 3"
Terminal Block	Without
Shaft Locking Device	Without
Drain	Rubber, automatic
Shaft Material	SAE 4140 Carbon Steel
Painting	RAL 5009 203A (ISO 12944 - C2)
Grounding Lugs	Double
Fan Cover material	Cast Iron
Tropicalized Painting	Without
Fan material	Plastic
Bearing cap	Yes- Bearing Cap
Drip Cover	Without
Overload protector (phenolic)	Without overload protector
Connection Cables Quantity	12
