/Products/Electric Motors/3 Phase Metric/WEG/Foot Mount, W22/.2509EP3WAL80-W22 WEG 0.33HP/0.25kW IEC TRU-Metric Electric Motor, 900RPM

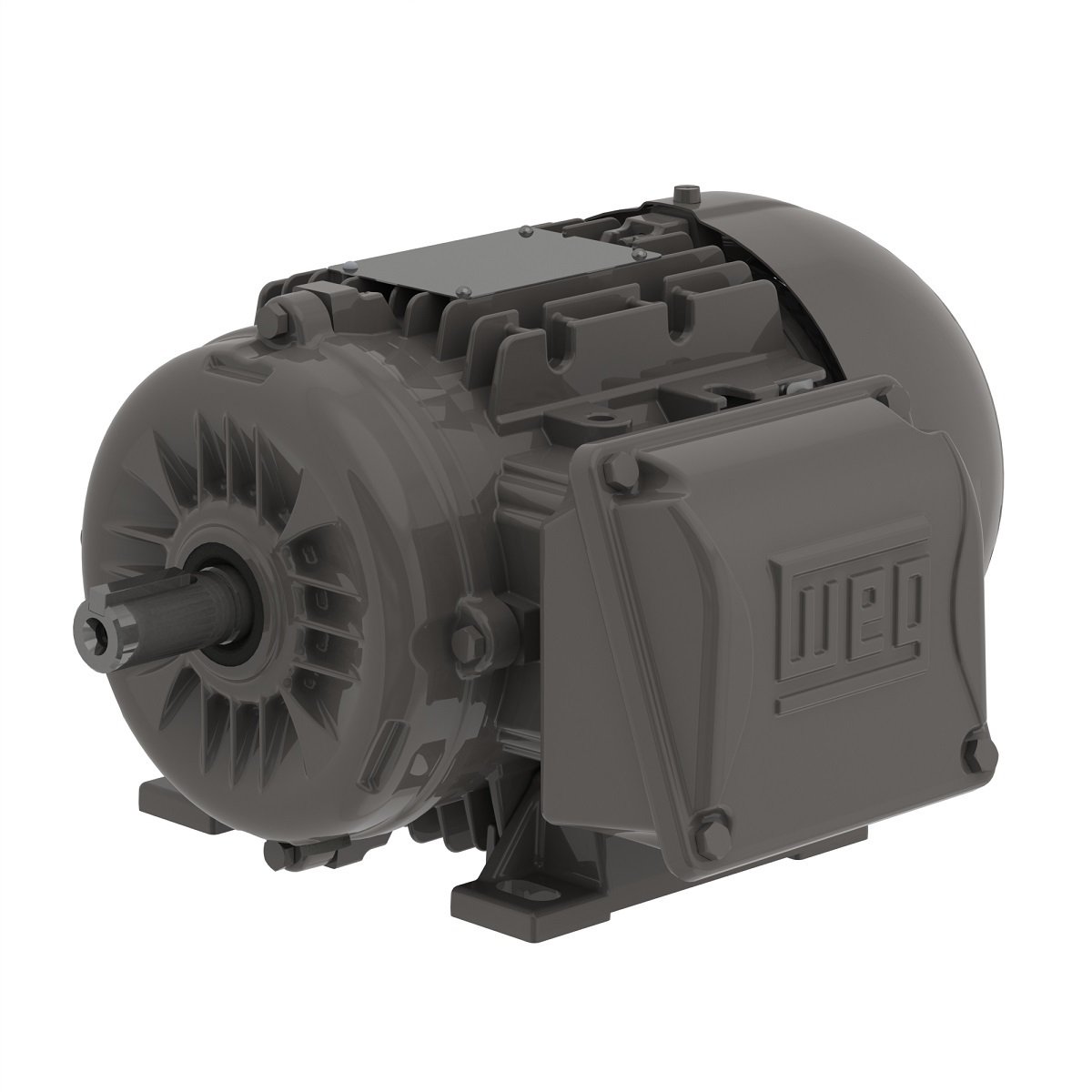

.2509EP3WAL80-W22 WEG 0.33HP/0.25kW IEC TRU-Metric Electric Motor, 900RPM
Enlarge Photo

Product ID: .2509EP3WAL80-W22

.2509EP3WAL80-W22 WEG 0.33HP/0.25kW IEC TRU-Metric Electric Motor, 900RPM

MFG: WEG Electric Corporation
MFG Part Number: .2509EP3WAL80-W22

Selected accessories will also be added to cart
$437.25 / Each
Quantity:
IC411-TEFC, IP55, 80 Frame, 220-240/460/380-415VAC 3-Phase 50/60Hz, 14324210, Foot Mounted, 19mm Keyed Shaft, Multimounting, High Efficiency, Aluminum Frame

Electric Motors

Frame 80
Output 0.33 HP (0.25 kW)
Number of Poles 8
Frequency 60 Hz
Rated speed 845 rpm
Slip 6.11 %
Rated voltage 460 V
Rated current 0.866 A
L. R. Amperes 2.94 A
LRC 3.4
No load current 0.760 A
Rated torque 2.02 ft.lb
Locked rotor torque 170 %
Breakdown torque 200 %
Locked rotor time 18s (cold) 10s (hot)
Moment of inertia (J) 0.0698 sq.ft.lb
Design N
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle S1
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting B3L(E)
Rotation¹ Both (CW and CCW)
Noise level² 46.0 dB(A)
Approx. weight³ 20.9 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
47.2  54.3  57.5

Power factor

50% 75% 100%
0.43  0.54  0.63
Frame 80
Output 0.33 HP (0.25 kW)
Number of Poles 8
Frequency 50 Hz
Rated speed 690 rpm
Slip 8.00 %
Rated voltage 220/380 V
Rated current 1.63/0.945 A
L. R. Amperes 6.69/3.87 A
LRC 4.1
No load current 1.21/0.700 A
Rated torque 2.48 ft.lb
Locked rotor torque 170 %
Breakdown torque 170 %
Locked rotor time 18s (cold) 10s (hot)
Moment of inertia (J) 0.0698 sq.ft.lb
Design N
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle S1
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting B3L(E)
Rotation¹ Both (CW and CCW)
Noise level² 42.0 dB(A)
Approx. weight³ 20.9 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
52.0  61.0  63.8

Power factor

50% 75% 100%
0.43  0.55  0.63
Frame 80
Output 0.33 HP (0.25 kW)
Number of Poles 8
Frequency 50 Hz
Rated speed 700 rpm
Slip 6.67 %
Rated voltage 400 V
Rated current 0.924 A
L. R. Amperes 3.79 A
LRC 4.1
No load current 0.730 A
Rated torque 2.44 ft.lb
Locked rotor torque 180 %
Breakdown torque 180 %
Locked rotor time 18s (cold) 10s (hot)
Moment of inertia (J) 0.0698 sq.ft.lb
Design N
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle S1
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting B3L(E)
Rotation¹ Both (CW and CCW)
Noise level² 42.0 dB(A)
Approx. weight³ 20.9 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
54.3  61.8  64.0

Power factor

50% 75% 100%
0.42  0.54  0.61
Frame 80
Output 0.33 HP (0.25 kW)
Number of Poles 8
Frequency 50 Hz
Rated speed 710 rpm
Slip 5.33 %
Rated voltage 240/415 V
Rated current 1.59/0.918 A
L. R. Amperes 6.51/3.76 A
LRC 4.1
No load current 1.30/0.750 A
Rated torque 2.41 ft.lb
Locked rotor torque 190 %
Breakdown torque 190 %
Locked rotor time 18s (cold) 10s (hot)
Moment of inertia (J) 0.0698 sq.ft.lb
Design N
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle S1
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting B3L(E)
Rotation¹ Both (CW and CCW)
Noise level² 42.0 dB(A)
Approx. weight³ 20.9 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
56.5  62.5  64.2

Power factor

50% 75% 100%
0.40  0.52  0.59

Features

Frame Material Aluminum
Impregnation Method Dip and Bake Polyester
Main terminal box hole NPT 3/4"
Terminal Block BMC - 6 pins
Drain Rubber, automatic
Shaft Material SAE 1040/45 Carbon Steel
Painting RAL 7022 207A (ISO 12944 - C2)
Grounding Lugs Single
Fan Cover material Steel
Tropicalized Painting Without
Fan material Plastic
Bearing cap No-Without Bearing Cap
Balancing Method 1/2 Key
Drip Cover Without
Overload protector (phenolic) Without overload protector
