/Products/Electric Motors/3 Phase/WEG/Rolled Steel, TEFC/C-Face, Foot Mount/.2536ES3E56C-S WEG 1/4HP General Purpose Electric Motor, 3600RPM

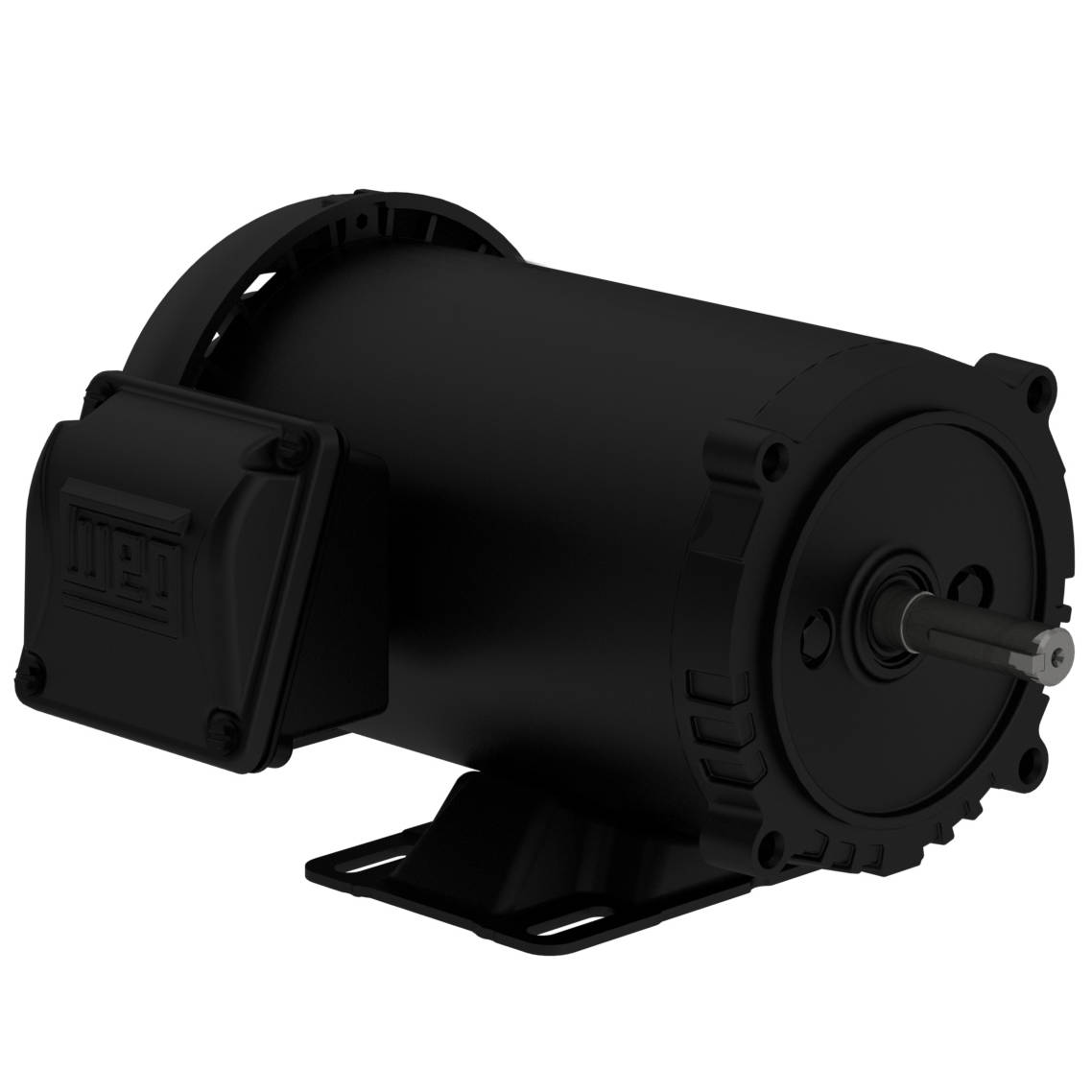

.2536ES3E56C-S WEG 1/4HP General Purpose Electric Motor, 3600RPM
Enlarge Photo

Product ID: .2536ES3E56C-S

.2536ES3E56C-S WEG 1/4HP General Purpose Electric Motor, 3600RPM

MFG: WEG Electric Corporation
MFG Part Number: .2536ES3E56C-S

Selected accessories will also be added to cart
$193.50 / Each
Quantity:
IC411 - TEFC, IP55, 56C Frame, 208-230/460/190-220/380-415VAC 60Hz 3 Phase, 12894706, C-Face, Foot Mount, Rolled Steel, NEMA Premium Efficiency, 5/8" Keyed Shaft

Electric Motors

Frame 56C
Output 0.25 HP (0.18 kW)
Number of Poles 2
Frequency 60 Hz
Rated speed 3475 rpm
Slip 3.47 %
Rated voltage 208-230/460 V
Rated current 1.01-0.914/0.457 A
L. R. Amperes 6.46-5.85/2.92 A
LRC 6.4x(Code L)
No load current 0.431-0.500/0.250 A
Rated torque 0.378 ft.lb
Locked rotor torque 250 %
Breakdown torque 300 %
Locked rotor time 108s (cold) 60s (hot)
Moment of inertia (J) 0.0389 sq.ft.lb
Insulation Class F
Temperature rise 80 K
Service factor 1.15 (1.00 @ 208V)
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 68.0 dB(A)
Approx. weight³ 17.9 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
46.0  52.5  57.5

Power factor

50% 75% 100%
0.75  0.82  0.86
Frame 56C
Output 0.25 HP (0.18 kW)
Number of Poles 2
Frequency 50 Hz
Rated speed 2860 rpm
Slip 4.67 %
Rated voltage 190/380 V
Rated current 0.938/0.469 A
L. R. Amperes 5.07/2.53 A
LRC 5.4x(Code H)
No load current 0.420/0.210 A
Rated torque 0.459 ft.lb
Locked rotor torque 190 %
Breakdown torque 250 %
Locked rotor time 133s (cold) 74s (hot)
Moment of inertia (J) 0.0389 sq.ft.lb
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Service factor 1.15 (1.00 @ 208V)
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 65.0 dB(A)
Approx. weight³ 17.9 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
55.3  62.0  64.8

Power factor

50% 75% 100%
0.79  0.86  0.90
Frame 56C
Output 0.25 HP (0.18 kW)
Number of Poles 2
Frequency 50 Hz
Rated speed 2875 rpm
Slip 4.17 %
Rated voltage 220/415 V
Rated current 0.855/0.453 A
L. R. Amperes 5.04/2.67 A
LRC 5.9x(Code J)
No load current 0.421/0.223 A
Rated torque 0.457 ft.lb
Locked rotor torque 220 %
Breakdown torque 280 %
Locked rotor time 120s (cold) 67s (hot)
Moment of inertia (J) 0.0389 sq.ft.lb
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Service factor 1.15 (1.00 @ 208V)
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 65.0 dB(A)
Approx. weight³ 17.9 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
54.8  61.9  65.2

Power factor

50% 75% 100%
0.76  0.84  0.88

Features

Frame Material Rolled Steel
Impregnation Method Dip and Bake Polyester
Main terminal box hole 0.881"
Terminal Block Without
Drain Rubber, automatic
Shaft Material SAE 1040/45 Carbon Steel
Painting Munsell N 1 - Matte 207N (ISO 12944 - C2)
Grounding Lugs Single
Fan Cover material Plastic
Tropicalized Painting Without
Fan material Plastic
Bearing cap Yes- Bearing Cap
Bolt Material Carbon Steel
Balancing Method 1/2 Key
Drip Cover Without
Resilient Base Without
Overload protector (phenolic) Without overload protector
Connection Cables Quantity 9
