/Products/Power Tools/Milwaukee/M18/Bare Tools/2540-20 Milwaukee M12™ 23 Gauge Pin Nailer
Click Image to Expand

Product ID: 2540-20

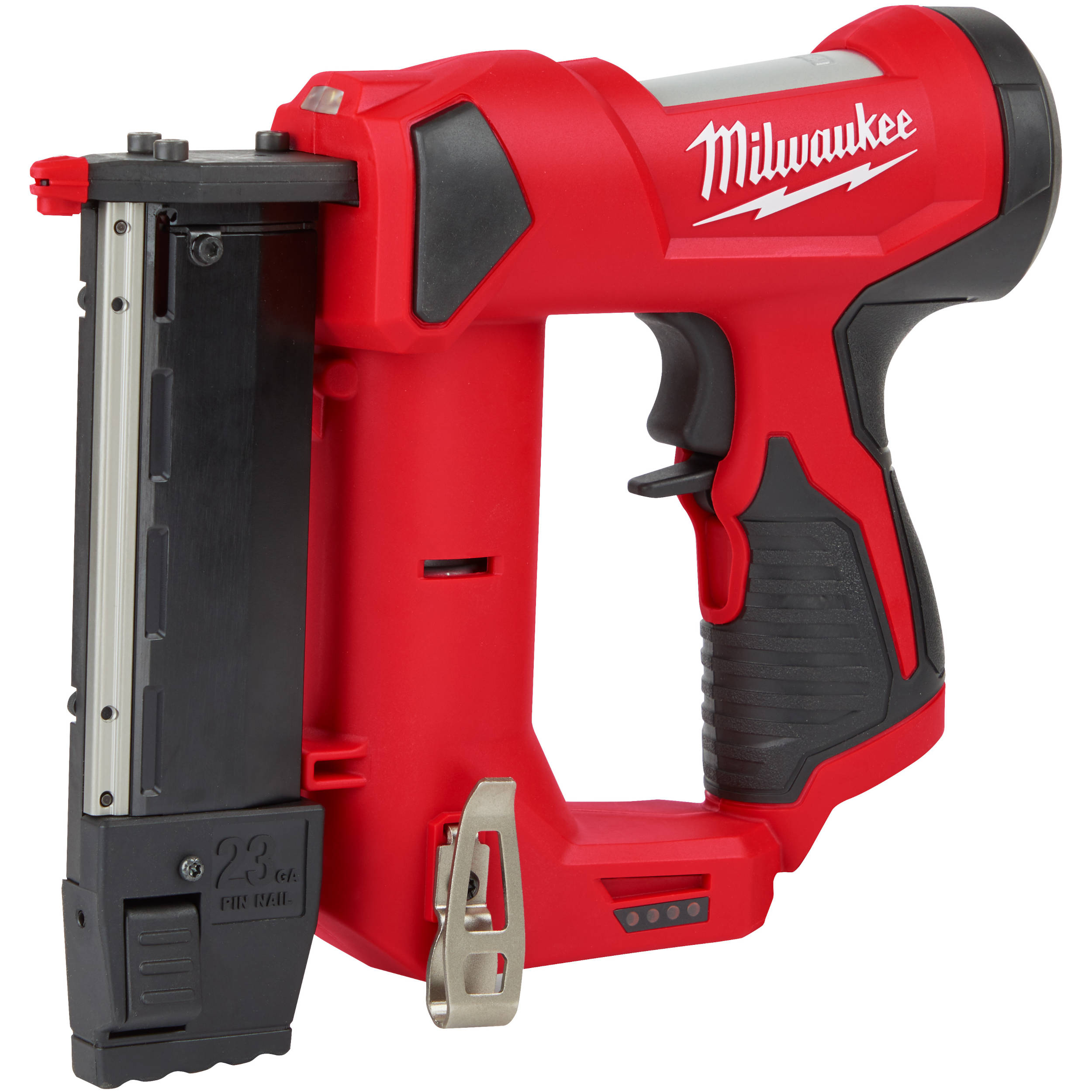

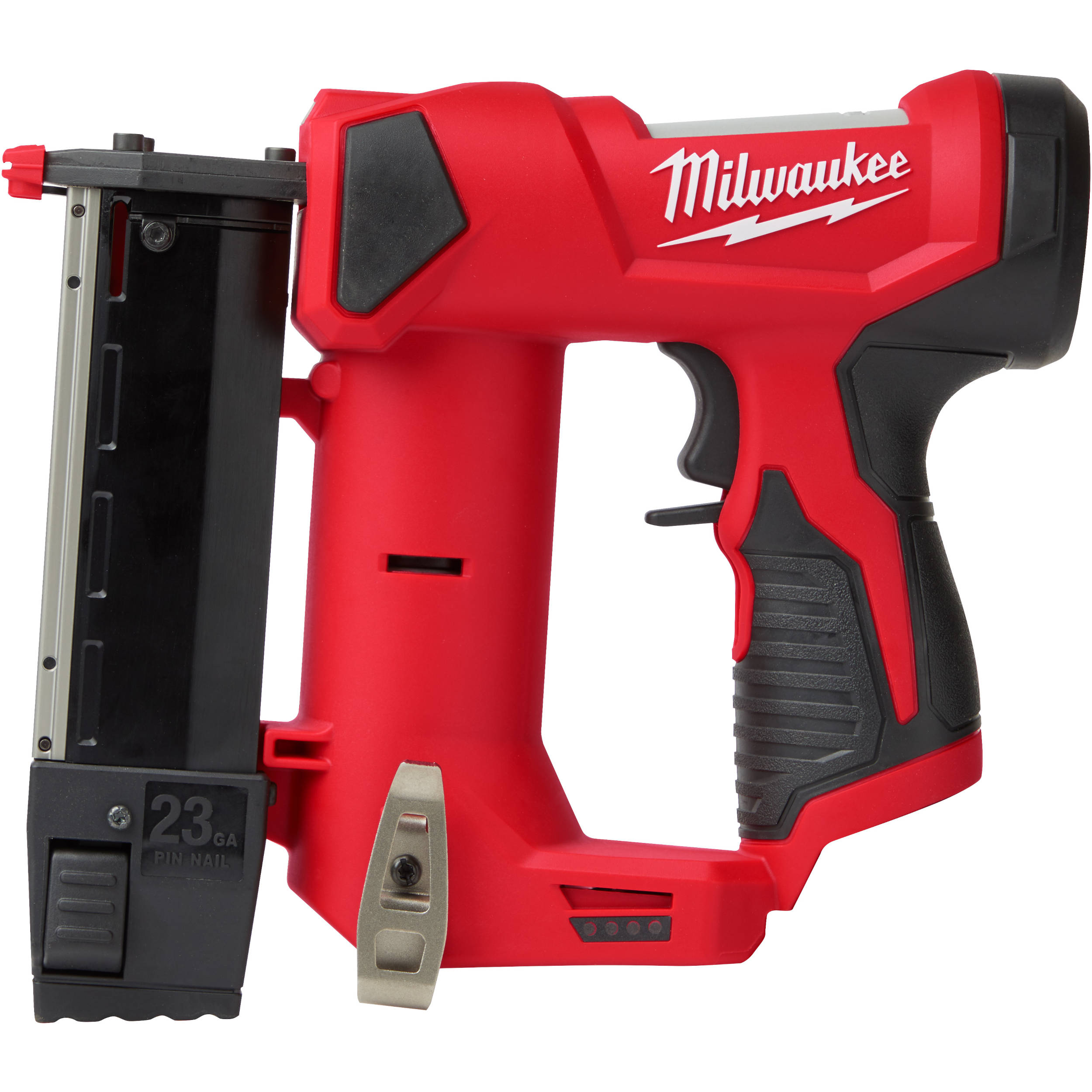

2540-20 Milwaukee M12™ 23 Gauge Pin Nailer

MFG: Milwaukee Tool
MFG Part Number: 2540-20

Available Stock: 2
Selected accessories will also be added to cart
$229.00 / Each


Milwaukee's M12™ 23 Gauge Pin Nailer is the most compact cordless pin nailer, combining precision and power to deliver the performance that professional carpenters and remodelers demand, without the hassle of a compressor hose or gas cartridge. The MILWAUKEE® 23 Gauge Pin Nailer provides you with unmatched productivity and accessibility in tight spaces and confined corners with a lightweight, ergonomic design. The nitrogen air spring mechanism allows the nailer to consistently sink pin nails at proper depth into hard or softwoods while leaving small, clean nail holes. The double-action trigger and non-marring precision point tip allow you to perform sequential driving and accurate pin placement into delicate trim pieces. The dry-fire lockout feature prevents misfires and workpiece damage. The M12™ Pin Nailer drives 23-gauge headless pin nails ranging in length from 1/2” to 1-3/8” and features all-day run time with up to 750 pin nails per charge when paired with our M12™ REDLITHIUM™ CP1.5 battery pack. This battery-powered pin nailer also features a magazine reload indicator, tool-free drive depth adjustment, reversible belt clip, LED light, battery fuel gauge, secondary work contact tip, and carries our industry-leading 3-year limited power tool warranty.


(1) M12™ 23 Gauge Pin Nailer (2540-20)

Product Features

  • Double-Action Trigger for Sequential Driving
  • No Compressor Hose or Gas Cartridge
  • Compatible with 1/2" to 1-3/8" 23 Gauge Headless Pin Nails
  • Up to 750 Pin Nails Per Charge
  • Tool Free Drive Depth Adjustment
  • (2) Interchangeable, Non-Marring, Precision Point Tips Included
  • Magazine Reload Indicator and Dry Fire Lockout Mechanism
  • LED Light for Increased Visibility
  • Reversible Belt Clip
  • Fits all M12™ Batteries

Product Specifications

Height 7.7 in
Length 8.7 in
Weight 3.3 lbs
Width 2.6 in
Power Source Cordless
Magazine Capacity 120 Pin Nails
Pin Length 1/2" to 1-3/8"
Battery System M12
