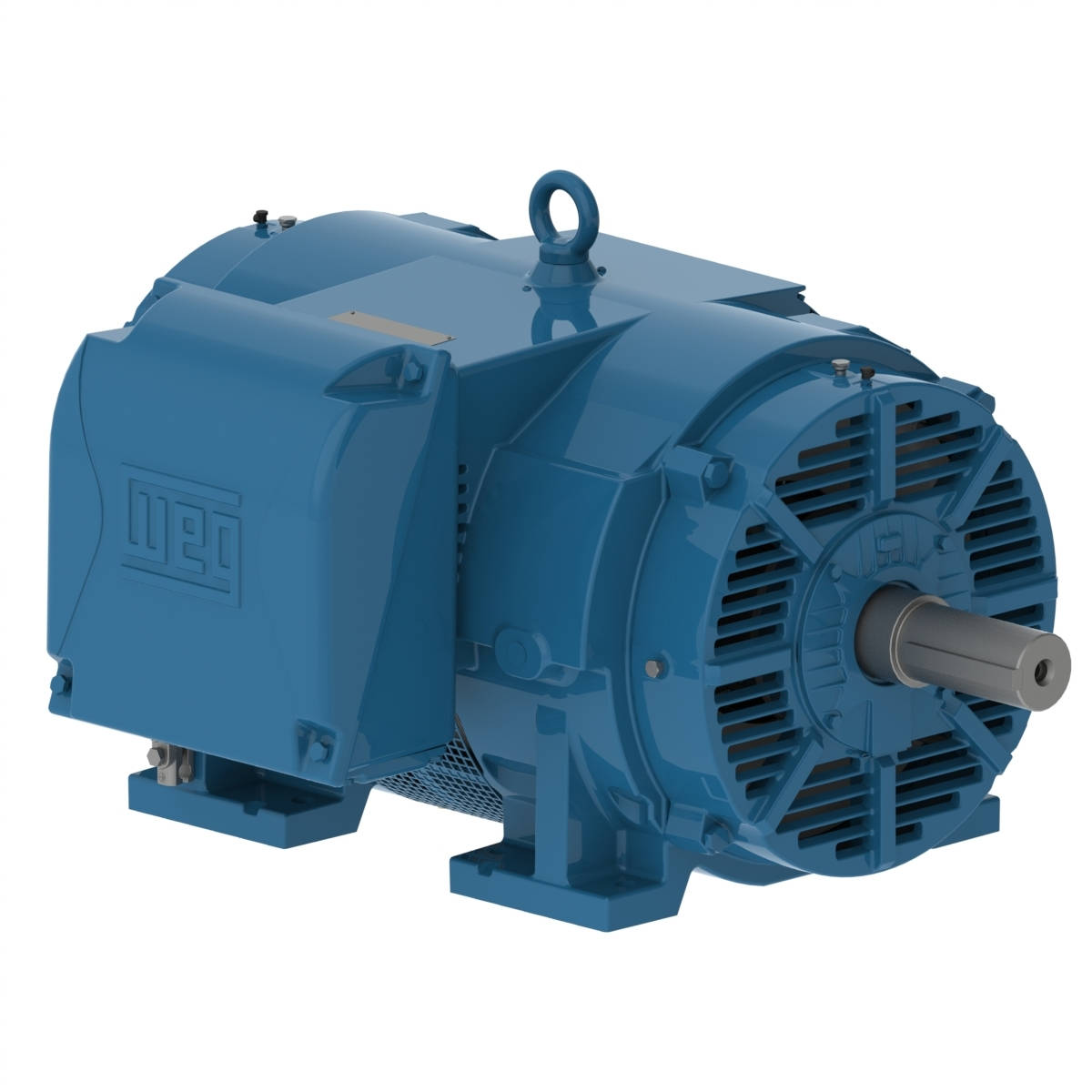

30012OT3G447/9T-W40 WEG 300HP General Purpose Electric Motor, 1200RPM
Enlarge Photo

Product ID: 30012OT3G447/9T-W40

30012OT3G447/9T-W40 WEG 300HP General Purpose Electric Motor, 1200RPM

MFG: WEG Electric Corporation
MFG Part Number: 30012OT3G447/9T-W40

Selected accessories will also be added to cart
$26,569.17 / Each
Quantity:
IC01 - ODP, IP23, 447T/449T Frame, 460VAC 60Hz 3 Phase, 13621119, NEMA Premium Efficiency, Foot Mounted, Cast Iron Frame, 3-3/8" Keyed Shaft

Electric Motors

Frame447/9T
Output300 HP (220 kW)
Number of Poles6
Frequency60 Hz
Rated speed1190 rpm
Slip0.83 %
Rated voltage460 V
Rated current365 A
L. R. Amperes2446 A
LRC6.7x(Code H)
No load current174 A
Rated torque1320 ft.lb
Locked rotor torque240 %
Breakdown torque280 %
Locked rotor time32s (cold) 18s (hot)
Moment of inertia (J)131 sq.ft.lb
DesignA
Insulation ClassF
Service factor1.00
Temperature rise105 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP23
EnclosureIC01 - ODP
MountingF-1
Rotation?Both (CW and CCW)
Noise level?79.0 dB(A)
Approx. weight?2354 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
95.4  95.8  95.8

Power factor

50%75%100%
0.62  0.73  0.79
Frame447/9T
Output220 HP (160 kW)
Number of Poles6
Frequency50 Hz
Rated speed990 rpm
Slip1.00 %
Rated voltage380 V
Rated current326 A
L. R. Amperes2380 A
LRC7.3x(Code J)
No load current171 A
Rated torque1170 ft.lb
Locked rotor torque260 %
Breakdown torque310 %
Locked rotor time21s (cold) 12s (hot)
Moment of inertia (J)131 sq.ft.lb
DesignA
Insulation ClassF
Service factor1.00
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP23
EnclosureIC01 - ODP
MountingF-1
Rotation?Both (CW and CCW)
Noise level?76.0 dB(A)
Approx. weight?2354 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
94.9  95.1  95.6

Power factor

50%75%100%
0.58  0.71  0.78
Frame447/9T
Output220 HP (160 kW)
Number of Poles6
Frequency50 Hz
Rated speed990 rpm
Slip1.00 %
Rated voltage400 V
Rated current326 A
L. R. Amperes2510 A
LRC7.7x(Code J)
No load current193 A
Rated torque1170 ft.lb
Locked rotor torque290 %
Breakdown torque360 %
Locked rotor time21s (cold) 12s (hot)
Moment of inertia (J)131 sq.ft.lb
DesignA
Insulation ClassF
Service factor1.00
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP23
EnclosureIC01 - ODP
MountingF-1
Rotation?Both (CW and CCW)
Noise level?76.0 dB(A)
Approx. weight?2354 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
94.9  95.3  95.6

Power factor

50%75%100%
0.52  0.66  0.74
Frame447/9T
Output220 HP (160 kW)
Number of Poles6
Frequency50 Hz
Rated speed990 rpm
Slip1.00 %
Rated voltage415 V
Rated current328 A
L. R. Amperes2657 A
LRC8.1x(Code K)
No load current211 A
Rated torque1170 ft.lb
Locked rotor torque320 %
Breakdown torque390 %
Locked rotor time21s (cold) 12s (hot)
Moment of inertia (J)131 sq.ft.lb
DesignA
Insulation ClassF
Service factor1.00
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP23
EnclosureIC01 - ODP
MountingF-1
Rotation?Both (CW and CCW)
Noise level?76.0 dB(A)
Approx. weight?2354 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
94.7  95.3  95.6

Power factor

50%75%100%
0.48  0.62  0.71
Frame447/9T
Output250 HP (185 kW)
Number of Poles6
Frequency50 Hz
Rated speed990 rpm
Slip1.00 %
Rated voltage380 V
Rated current372 A
L. R. Amperes2381 A
LRC6.4x(Code G)
No load current171 A
Rated torque1330 ft.lb
Locked rotor torque220 %
Breakdown torque260 %
Locked rotor time21s (cold) 12s (hot)
Moment of inertia (J)131 sq.ft.lb
DesignA
Insulation ClassF
Service factor1.00
Temperature rise105 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP23
EnclosureIC01 - ODP
MountingF-1
Rotation?Both (CW and CCW)
Noise level?76.0 dB(A)
Approx. weight?2354 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
95.0  95.0  94.5

Power factor

50%75%100%
0.63  0.75  0.80
Frame447/9T
Output250 HP (185 kW)
Number of Poles6
Frequency50 Hz
Rated speed985 rpm
Slip1.50 %
Rated voltage400 V
Rated current365 A
L. R. Amperes2482 A
LRC6.8x(Code H)
No load current193 A
Rated torque1330 ft.lb
Locked rotor torque250 %
Breakdown torque300 %
Locked rotor time21s (cold) 12s (hot)
Moment of inertia (J)131 sq.ft.lb
DesignA
Insulation ClassF
Service factor1.00
Temperature rise105 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP23
EnclosureIC01 - ODP
MountingF-1
Rotation?Both (CW and CCW)
Noise level?76.0 dB(A)
Approx. weight?2354 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
95.0  95.4  95.0

Power factor

50%75%100%
0.58  0.70  0.77
Frame447/9T
Output250 HP (185 kW)
Number of Poles6
Frequency50 Hz
Rated speed990 rpm
Slip1.00 %
Rated voltage415 V
Rated current365 A
L. R. Amperes2628 A
LRC7.2x(Code J)
No load current211 A
Rated torque1330 ft.lb
Locked rotor torque280 %
Breakdown torque330 %
Locked rotor time21s (cold) 12s (hot)
Moment of inertia (J)131 sq.ft.lb
DesignA
Insulation ClassF
Service factor1.00
Temperature rise105 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP23
EnclosureIC01 - ODP
MountingF-1
Rotation?Both (CW and CCW)
Noise level?76.0 dB(A)
Approx. weight?2354 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
95.0  95.4  95.4

Power factor

50%75%100%
0.53  0.67  0.74

Features

Frame MaterialCast Iron
Impregnation MethodConstant Resin Flow
Regreasing SystemAt Drive end and Non-drive end
Main terminal box hole2xNPT 3"
Terminal BlockWithout
Shaft Locking DeviceWithout
Shaft MaterialSAE 4140 Carbon Steel
PaintingRAL 5009 203A (ISO 12944 - C3)
Grounding LugsDouble
Fan Cover materialWithout Fan Cover
Tropicalized PaintingWithout
Bearing capYes- Bearing Cap
Bolt MaterialCarbon Steel
Winding thermal protectionThermistor - 2 wires 1 per phase 155?C
Balancing Method1/2 Key
Drip CoverWithout
Overload protector (phenolic)Without overload protector
Connection Cables Quantity12
Fan materialWithout fan
Screw capCARBON STEEL SAE 1010/20
NDE bearing SealWithout Bearing Seal
DE bearing SealWithout Bearing Seal

Bearing details

 Drive EndNon Drive End
Bearing type6319 C3 6314 C3
DE bearing SealWithout Bearing Seal Without Bearing Seal
Lubrication interval20000 h 20000 h
Lubricant amount45 g 27 g
Grease TypeMobil Polyrex EM

Foundation loads

Max. tractionMax. compression
10490 lb 12843 lb
Type
Electric Motor
Input Phase
3-Phase
Speed
1200RPM
Enclosure
ODP
Horsepower
300HP
Frame
447T/449T
