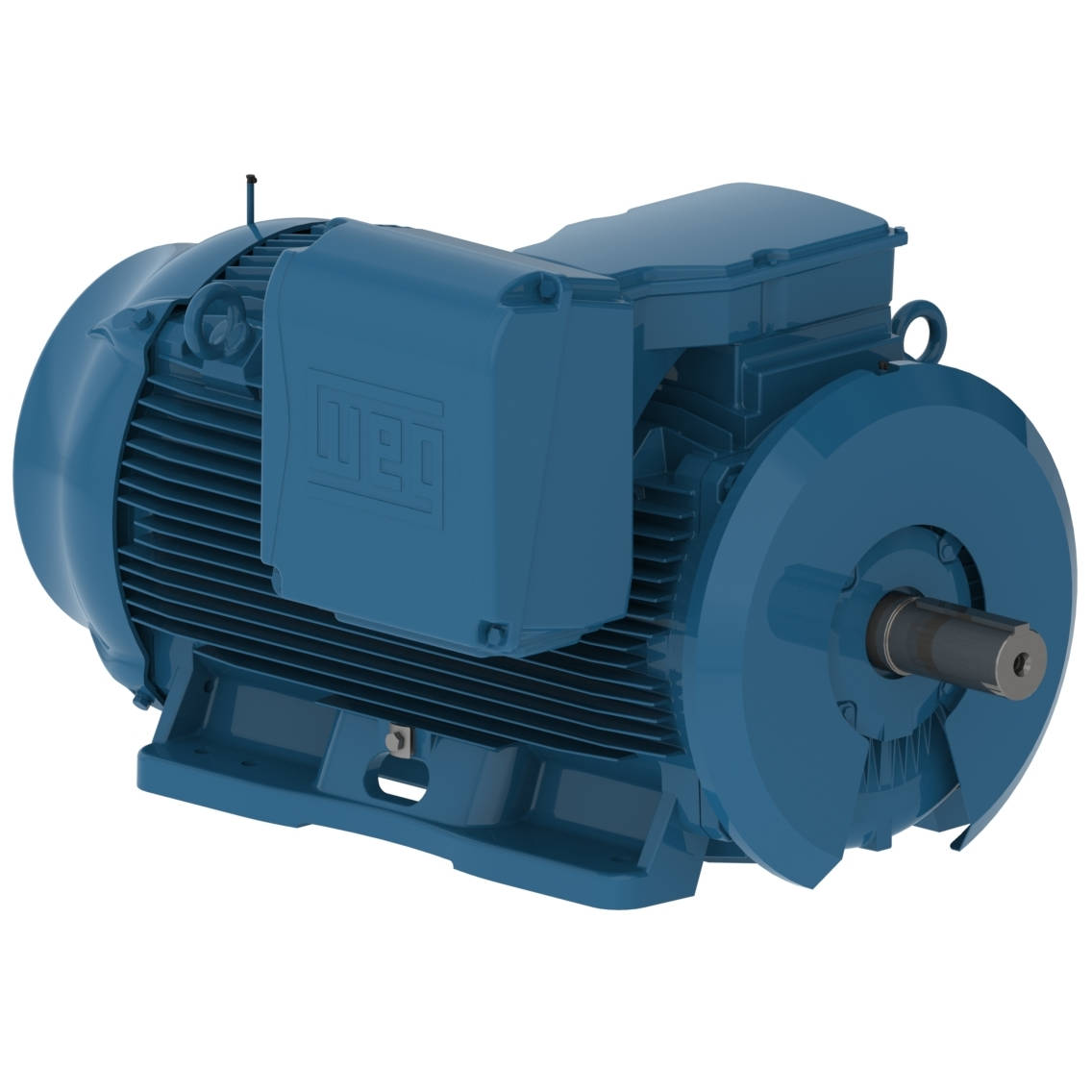

35009ET3G586/7-W22 WEG 350HP Severe Duty Electric Motor, 900RPM
Enlarge Photo

Product ID: 35009ET3G586/7-W22

35009ET3G586/7-W22 WEG 350HP Severe Duty Electric Motor, 900RPM

MFG: WEG Electric Corporation
MFG Part Number: 35009ET3G586/7-W22

Selected accessories will also be added to cart
$57,736.97 / Each
Quantity:
IC411 - TEFC, IP55, 586T/587T Frame, 460VAC 60Hz 3 Phase, 14031103, NEMA Premium Efficiency, Foot Mounted, Cast Iron Frame, 3-7/8" Keyed Shaft

Electric Motors

Frame586/7T
Output350 HP (260 kW)
Number of Poles8
Frequency60 Hz
Rated speed893 rpm
Slip0.78 %
Rated voltage460 V
Rated current426 A
L. R. Amperes2726 A
LRC6.4x(Code G)
No load current170 A
Rated torque2060 ft.lb
Locked rotor torque160 %
Breakdown torque229 %
Locked rotor time63s (cold) 35s (hot)
Moment of inertia (J)484 sq.ft.lb
Insulation ClassF
Service factor1.00
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC411 - TEFC
MountingF-1
Rotation?Both (CW and CCW)
Noise level?75.0 dB(A)
Approx. weight?4471 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
95.4  95.8  95.8

Power factor

50%75%100%
0.64  0.75  0.80
Frame586/7T
Output300 HP (220 kW)
Number of Poles8
Frequency50 Hz
Rated speed743 rpm
Slip0.93 %
Rated voltage380 V
Rated current433 A
L. R. Amperes2598 A
LRC6.0x(Code G)
No load current165 A
Rated torque2120 ft.lb
Locked rotor torque150 %
Breakdown torque220 %
Locked rotor time77s (cold) 43s (hot)
Moment of inertia (J)484 sq.ft.lb
Insulation ClassF
Service factor1.00
Temperature rise105 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC411 - TEFC
MountingF-1
Rotation?Both (CW and CCW)
Noise level?70.0 dB(A)
Approx. weight?4471 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
95.4  95.4  95.4

Power factor

50%75%100%
0.65  0.76  0.81
Frame586/7T
Output300 HP (220 kW)
Number of Poles8
Frequency50 Hz
Rated speed744 rpm
Slip0.80 %
Rated voltage400 V
Rated current421 A
L. R. Amperes2779 A
LRC6.6x(Code H)
No load current175 A
Rated torque2120 ft.lb
Locked rotor torque180 %
Breakdown torque250 %
Locked rotor time70s (cold) 39s (hot)
Moment of inertia (J)484 sq.ft.lb
Insulation ClassF
Service factor1.00
Temperature rise105 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC411 - TEFC
MountingF-1
Rotation?Both (CW and CCW)
Noise level?70.0 dB(A)
Approx. weight?4471 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
95.0  95.4  95.4

Power factor

50%75%100%
0.61  0.73  0.79
Frame586/7T
Output300 HP (220 kW)
Number of Poles8
Frequency50 Hz
Rated speed744 rpm
Slip0.80 %
Rated voltage415 V
Rated current417 A
L. R. Amperes2961 A
LRC7.1x(Code H)
No load current185 A
Rated torque2120 ft.lb
Locked rotor torque200 %
Breakdown torque270 %
Locked rotor time64s (cold) 36s (hot)
Moment of inertia (J)484 sq.ft.lb
Insulation ClassF
Service factor1.00
Temperature rise105 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC411 - TEFC
MountingF-1
Rotation?Both (CW and CCW)
Noise level?70.0 dB(A)
Approx. weight?4471 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
95.0  95.4  95.4

Power factor

50%75%100%
0.57  0.70  0.77

Features

Frame MaterialCast Iron
Impregnation MethodConstant Resin Flow
Regreasing SystemExtended, at Drive end and Non-drive end
Space Heater Voltage200 - 240 V
Main terminal box hole2xNPT 3"
Terminal BlockWithout
Shaft Locking DeviceWithout
DrainRubber, automatic
Shaft MaterialSAE 4140 Carbon Steel
PaintingRAL 5009 203A (ISO 12944 - C2)
Grounding LugsDouble
Fan Cover materialCast Iron
Tropicalized PaintingWithout
Fan materialPlastic
Bearing capYes- Bearing Cap
Balancing Method1/2 Key
Drip CoverWithout
Overload protector (phenolic)Without overload protector
Connection Cables Quantity12
Type
Electric Motor
Input Phase
3-Phase
Application
Severe Duty
Enclosure
TEFC
Enclosure
TEFC
Speed
900RPM
Horsepower
350HP
Input Voltage
460VAC
Frame
586T/587T
