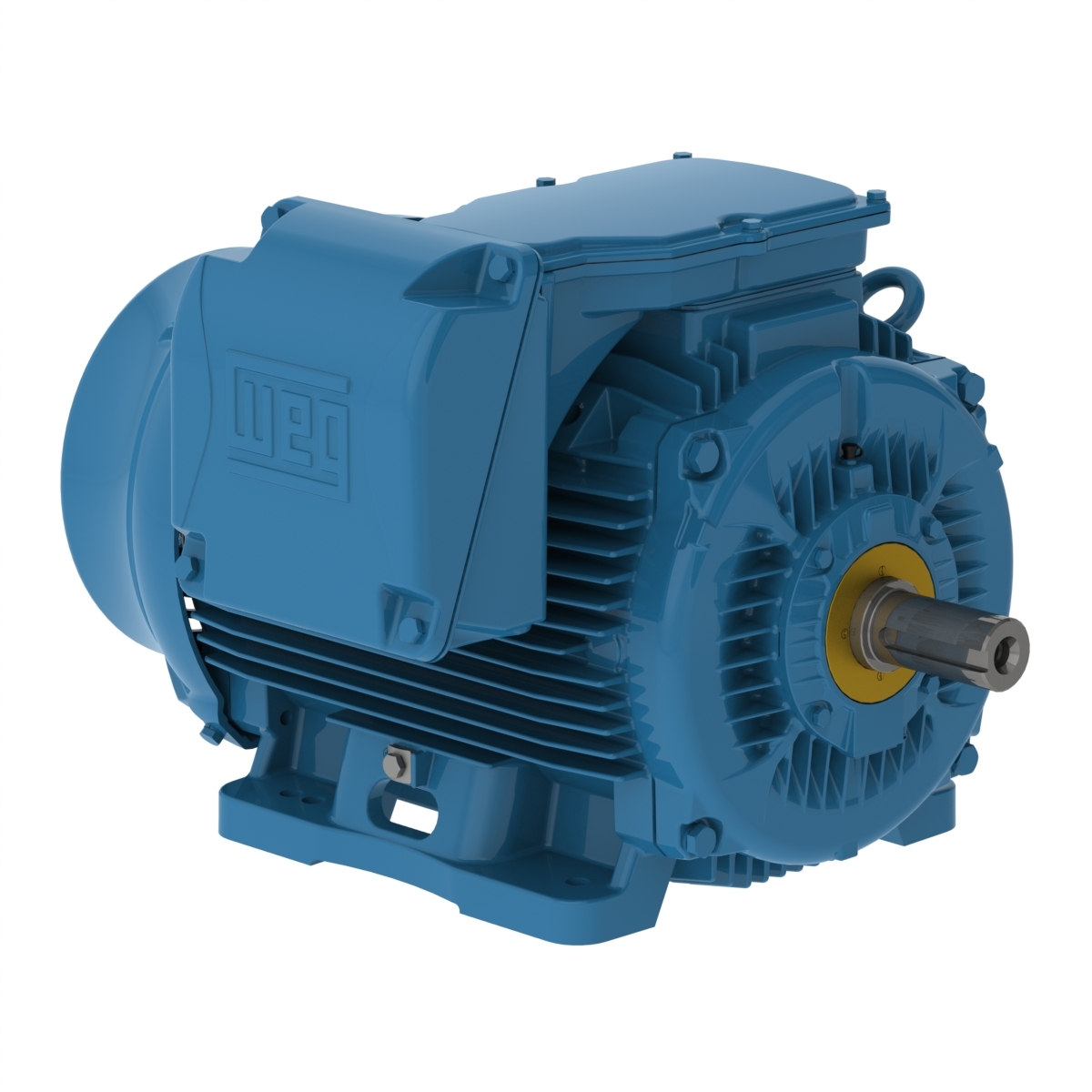

35018ET3GKD580Z-W22 WEG 350HP Crusher Duty Electric Motor, 1800RPM
Enlarge Photo

Product ID: 35018ET3GKD580Z-W22

35018ET3GKD580Z-W22 WEG 350HP Crusher Duty Electric Motor, 1800RPM

MFG: WEG Electric Corporation
MFG Part Number: 35018ET3GKD580Z-W22

Selected accessories will also be added to cart
$30,922.50 / Each
Quantity:
IC411 - TEFC, IP55, 3586TZ/587TZ Frame, 460V 3-Phase 60Hz, Foot Mount, NEMA Premium Efficiency, 13500656

Electric Motors

Frame 586/7TZ
Output 350 HP (260 kW)
Number of Poles 4
Frequency 60 Hz
Rated speed 1791 rpm
Slip 0.50 %
Rated voltage 460 V
Rated current 414 A
L. R. Amperes 2939 A
LRC 7.1x(Code H)
No load current 160 A
Rated torque 1010 ft.lb
Locked rotor torque 260 %
Breakdown torque 260 %
Locked rotor time 45s (cold) 25s (hot)
Design A
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 78.0 dB(A)
Approx. weight³ 3507 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
95.4  95.8  96.2

Power factor

50% 75% 100%
0.67  0.77  0.82

Features

Frame Material Cast Iron
Impregnation Method Constant Resin Flow
Regreasing System At Drive end and Non-drive end
Space Heater Voltage 200 - 240 V
Main terminal box hole 2xNPT 3"
Terminal Block Without
Shaft Locking Device With
Drain Rubber, automatic
Shaft Material SAE 4140 Carbon Steel
Painting RAL 5009 203A (ISO 12944 - C2)
Grounding Lugs Double
Fan Cover material Cast Iron
Tropicalized Painting Without
Fan material Aluminum
Bearing cap Yes- Bearing Cap
Winding thermal protection Thermostat - 2 wires 1 per phase 155°C
Balancing Method 1/2 Key
Drip Cover Without

 Loading...

Bearing details

  Drive End Non Drive End
Bearing type NU-324 C3  6319 C3
Sealing Taconite Labyrinth  Taconite Labyrinth
Lubrication interval 3000 h  8000 h
Lubricant amount 72 g  45 g
Grease Type Mobil Polyrex EM

Foundation loads

Max. traction Max. compression
3739 lb  7245 lb
