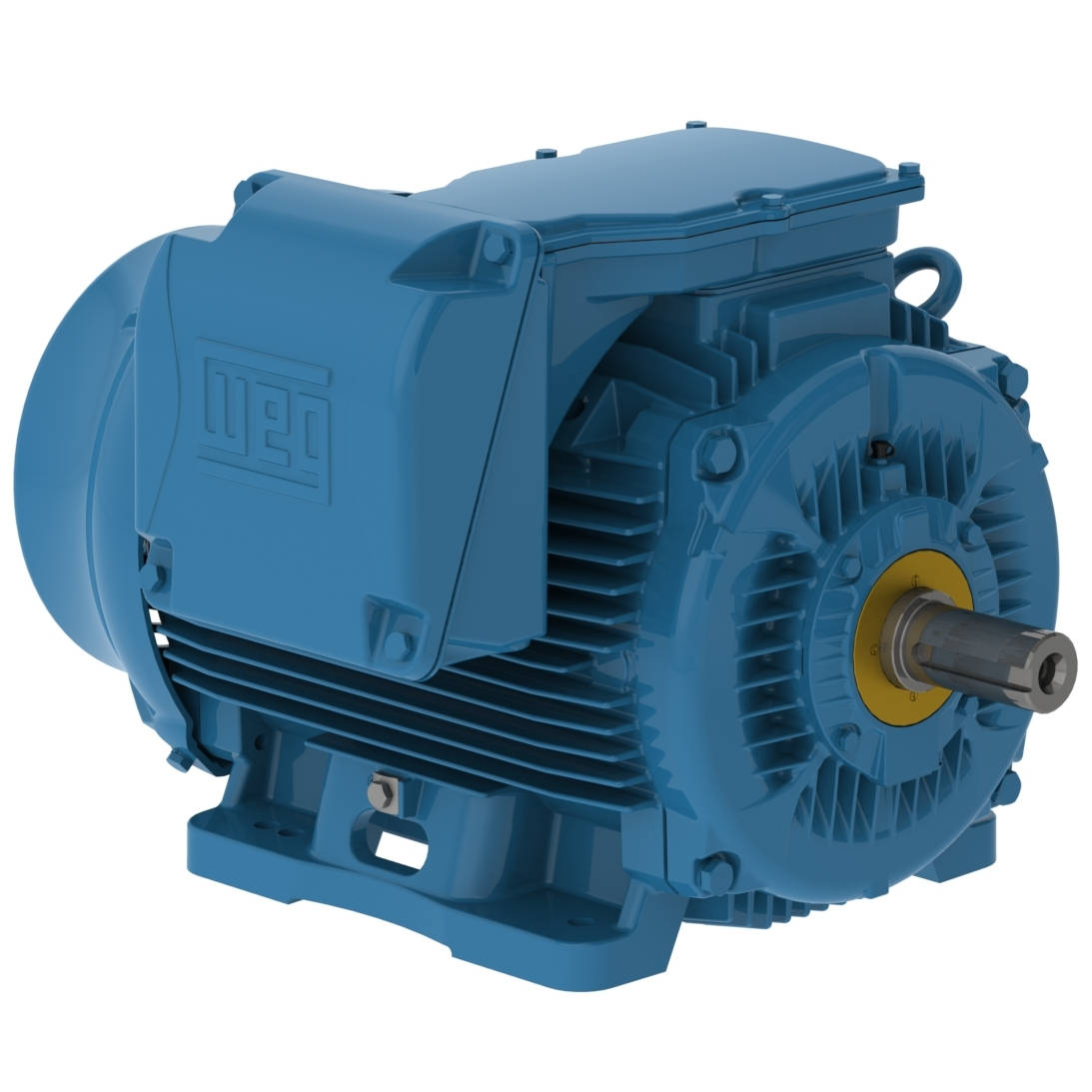

Frame	586/7TZ
Output	400 HP (300 kW)
Number of Poles	6
Frequency	60 Hz
Rated speed	1193 rpm
Slip	0.58 %
Rated voltage	575 V
Rated current	391 A
L. R. Amperes	2542 A
LRC	6.5x(Code H)
No load current	185 A
Rated torque	1760 ft.lb
Locked rotor torque	220 %
Breakdown torque	250 %
Locked rotor time	52s (cold) 29s (hot)

Moment of inertia (J)	368 sq.ft.lb
Insulation Class	F
Service factor	1.15
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20?C to +40?C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation?	Both (CW and CCW)
Noise level?	77.0 dB(A)
Approx. weight?	4115 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
95.4	95.8	96.2

Power factor

50%	75%	100%
0.65	0.75	0.80

Features

Frame Material	Cast Iron
Impregnation Method	Constant Resin Flow
Regreasing System	At Drive end and Non-drive end
Space Heater Voltage	200 - 240 V
Main terminal box hole	2xNPT 3"
Terminal Block	Without
Shaft Locking Device	With
Drain	Rubber, automatic
Shaft Material	SAE 4140 Carbon Steel
Painting	RAL 5009 203A (ISO 12944 - C3)
Grounding Lugs	Double
Fan Cover material	Cast Iron
Tropicalized Painting	Without
Bearing cap	Yes- Bearing Cap
Winding thermal protection	Thermostat - 2 wires 1 per phase 155?C
Balancing Method	1/2 Key
Drip Cover	Without
Overload protector (phenolic)	Without overload protector
Connection Cables Quantity	6
Fan material	Plastic
Screw cap	CARBON STEEL SAE 1010/20
NDE bearing Seal	Taconite Labyrinth
DE bearing Seal	Taconite Labyrinth
Cable Press Material	Sem
