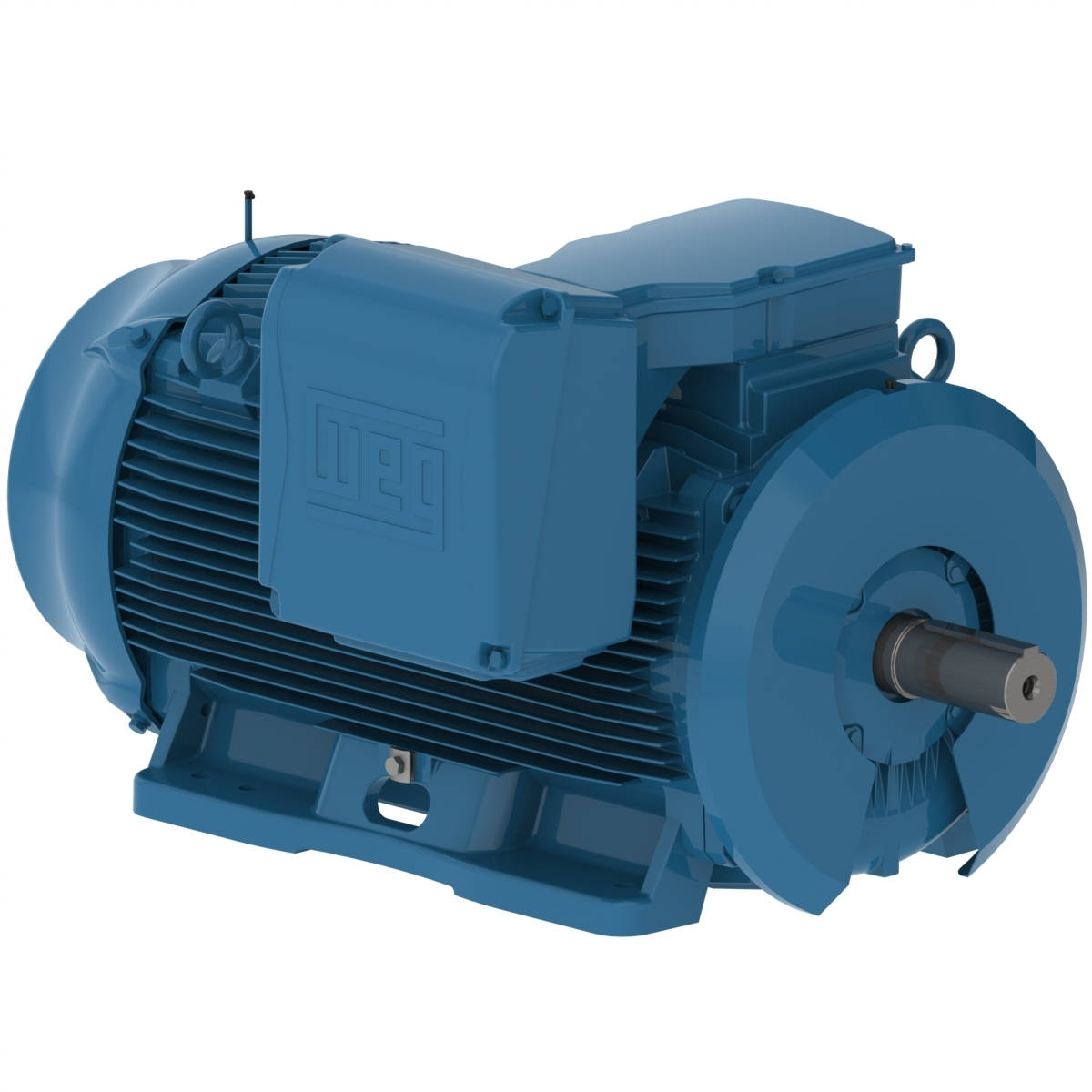

50012ET3GKD580Z-W22 WEG 500HP Crusher Duty Electric Motor, 1200RPM
Enlarge Photo

Product ID: 50012ET3GKD580Z-W22

50012ET3GKD580Z-W22 WEG 500HP Crusher Duty Electric Motor, 1200RPM

MFG: WEG Electric Corporation
MFG Part Number: 50012ET3GKD580Z-W22

Selected accessories will also be added to cart
$49,471.50 / Each
Quantity:
IC411 - TEFC, IP55, 586TZ/587TZ Frame, 460VAC 60Hz 3 Phase, 13500513, NEMA Premium Efficiency, Foot Mounted, Cast Iron Frame, 4-3/8" Keyed Shaft

Electric Motors

Frame 586/7TZ
Output 500 HP (370 kW)
Number of Poles 6
Frequency 60 Hz
Rated speed 1192 rpm
Slip 0.67 %
Rated voltage 460 V
Rated current 603 A
L. R. Amperes 3618 A
LRC 6.0x(Code G)
No load current 240 A
Rated torque 2200 ft.lb
Locked rotor torque 200 %
Breakdown torque 210 %
Locked rotor time 45s (cold) 25s (hot)
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 77.0 dB(A)
Approx. weight³ 4403 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
95.8  96.2  96.2

Power factor

50% 75% 100%
0.66  0.76  0.80

Features

Frame Material Cast Iron
Impregnation Method Constant Resin Flow
Regreasing System At Drive end and Non-drive end
Space Heater Voltage 200 - 240 V
Main terminal box hole 2xNPT 3"
Terminal Block Without
Shaft Locking Device With
Drain Rubber, automatic
Shaft Material SAE 4140 Carbon Steel
Painting RAL 5009 203A (ISO 12944 - C2)
Grounding Lugs Double
Fan Cover material Cast Iron
Tropicalized Painting Without
Fan material Aluminum
Bearing cap Yes- Bearing Cap
Winding thermal protection Thermostat - 2 wires 1 per phase 155°C
Balancing Method 1/2 Key
Drip Cover Without
Overload protector (phenolic) Without overload protector

Bearing details

  Drive End Non Drive End
Bearing type NU-324 C3  6319 C3
Sealing Labirinto Taconite  Taconite Labyrinth
Lubrication interval 6000 h  13000 h
Lubricant amount 72 g  45 g
Grease Type Mobil Polyrex EM

Foundation loads

Max. traction Max. compression
7449 lb  11853 lb
