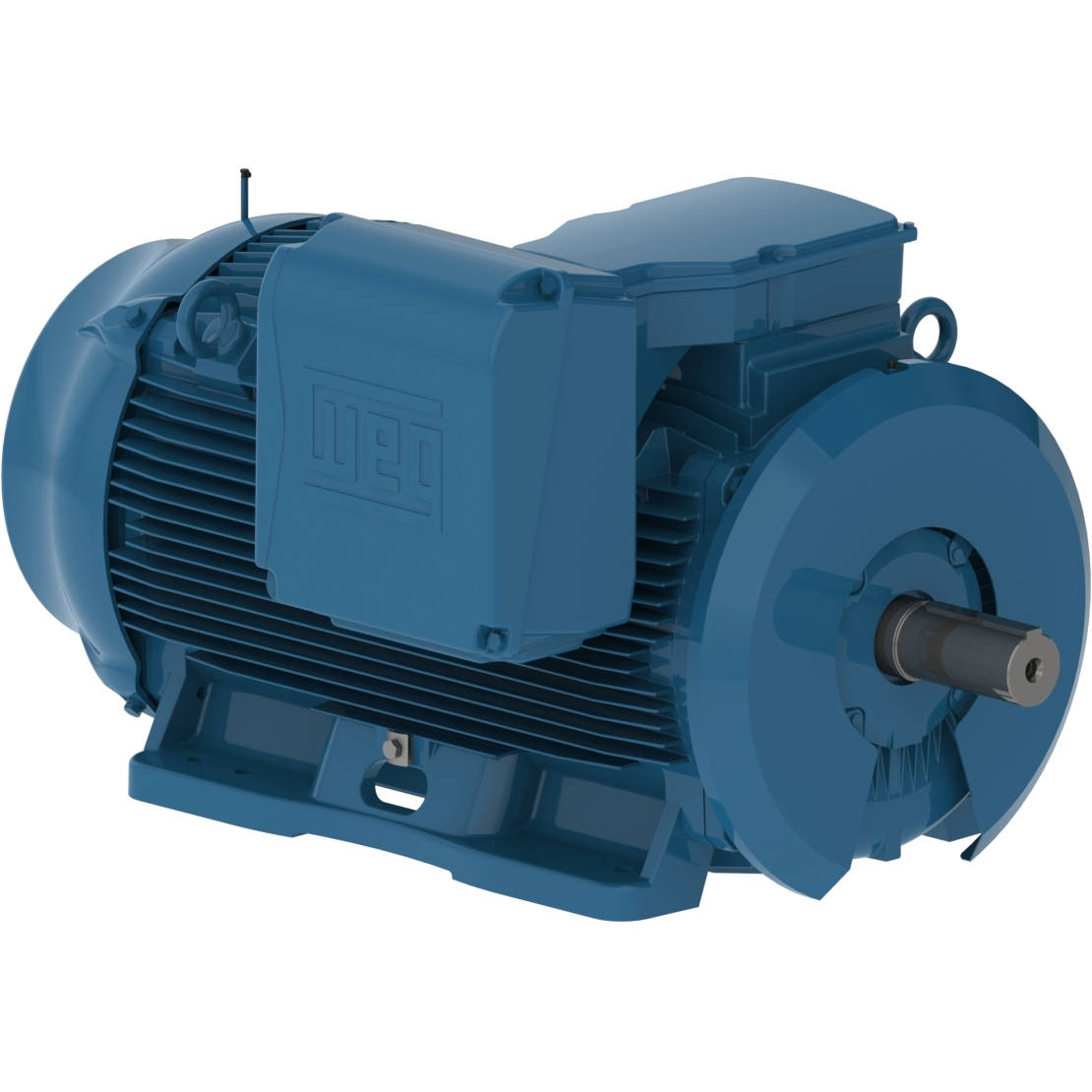

50012ET3G586/7-W22 WEG 500HP Severe Duty Electric Motor, 1200RPM
Enlarge Photo

Product ID: 50012ET3G586/7-W22

50012ET3G586/7-W22 WEG 500HP Severe Duty Electric Motor, 1200RPM

MFG: WEG Electric Corporation
MFG Part Number: 50012ET3G586/7-W22

Selected accessories will also be added to cart
$56,036.18 / Each
Quantity:
IC411 - TEFC, IP55, 586T/587T Frame, 460VAC 60Hz 3 Phase, 12182294, NEMA Premium Efficiency, Foot Mounted, Cast Iron Frame, 3-7/8" Keyed Shaft

Electric Motors

Frame586/7T
Output500 HP (370 kW)
Number of Poles6
Frequency60 Hz
Rated speed1192 rpm
Slip0.67 %
Rated voltage460 V
Rated current603 A
L. R. Amperes3618 A
LRC6.0x(Code G)
No load current240 A
Rated torque2200 ft.lb
Locked rotor torque200 %
Breakdown torque210 %
Locked rotor time45s (cold) 25s (hot)
Moment of inertia (J)368 sq.ft.lb
Insulation ClassF
Service factor1.15
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC411 - TEFC
MountingF-1
Rotation?Both (CW and CCW)
Noise level?77.0 dB(A)
Approx. weight?4688 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
95.8  96.2  96.2

Power factor

50%75%100%
0.66  0.76  0.80
Frame586/7T
Output450 HP (330 kW)
Number of Poles6
Frequency50 Hz
Rated speed991 rpm
Slip0.90 %
Rated voltage380 V
Rated current646 A
L. R. Amperes3424 A
LRC5.3x(Code F)
No load current235 A
Rated torque2380 ft.lb
Locked rotor torque180 %
Breakdown torque190 %
Locked rotor time36s (cold) 20s (hot)
Moment of inertia (J)368 sq.ft.lb
Insulation ClassF
Service factor1.00
Temperature rise105 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC411 - TEFC
MountingF-1
Rotation?Both (CW and CCW)
Noise level?73.0 dB(A)
Approx. weight?4688 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
96.2  96.2  95.8

Power factor

50%75%100%
0.69  0.78  0.81
Frame586/7T
Output450 HP (330 kW)
Number of Poles6
Frequency50 Hz
Rated speed992 rpm
Slip0.80 %
Rated voltage400 V
Rated current629 A
L. R. Amperes3711 A
LRC5.9x(Code G)
No load current255 A
Rated torque2380 ft.lb
Locked rotor torque200 %
Breakdown torque210 %
Locked rotor time36s (cold) 20s (hot)
Moment of inertia (J)368 sq.ft.lb
Insulation ClassF
Service factor1.00
Temperature rise105 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC411 - TEFC
MountingF-1
Rotation?Both (CW and CCW)
Noise level?73.0 dB(A)
Approx. weight?4688 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
95.8  96.2  95.8

Power factor

50%75%100%
0.65  0.75  0.79
Frame586/7T
Output450 HP (330 kW)
Number of Poles6
Frequency50 Hz
Rated speed993 rpm
Slip0.70 %
Rated voltage415 V
Rated current614 A
L. R. Amperes3930 A
LRC6.4x(Code G)
No load current275 A
Rated torque2380 ft.lb
Locked rotor torque220 %
Breakdown torque229 %
Locked rotor time36s (cold) 20s (hot)
Moment of inertia (J)368 sq.ft.lb
Insulation ClassF
Service factor1.00
Temperature rise105 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC411 - TEFC
MountingF-1
Rotation?Both (CW and CCW)
Noise level?73.0 dB(A)
Approx. weight?4688 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
95.4  95.8  95.8

Power factor

50%75%100%
0.61  0.73  0.78

Features

Frame MaterialCast Iron
Impregnation MethodConstant Resin Flow
Regreasing SystemAt Drive end and Non-drive end
Space Heater Voltage200 - 240 V
Main terminal box hole2xNPT 3"
Terminal BlockWithout
Shaft Locking DeviceWithout
DrainRubber, automatic
Shaft MaterialSAE 4140 Carbon Steel
PaintingRAL 5009 203A (ISO 12944 - C2)
Grounding LugsDouble
Fan Cover materialCast Iron
Tropicalized PaintingWithout
Fan materialAluminum
Bearing capYes- Bearing Cap
Balancing Method1/2 Key
Drip CoverWithout
Overload protector (phenolic)Without overload protector
Connection Cables Quantity12
Type
Electric Motor
Input Phase
3-Phase
Speed
1200RPM
Application
Severe Duty
Enclosure
TEFC
Enclosure
TEFC
Horsepower
500HP
Input Voltage
460VAC
Frame
586T/587T
