/Products/Electric Motors/Single Phase/WEG Single Phase Electric Motors/General Purpose, TEFC, W22/JP Close Coupled Pump/.5036ES1E143JP-W22 WEG 1/2HP JP Close Coupled Pump Electric Motor, 3600RPM

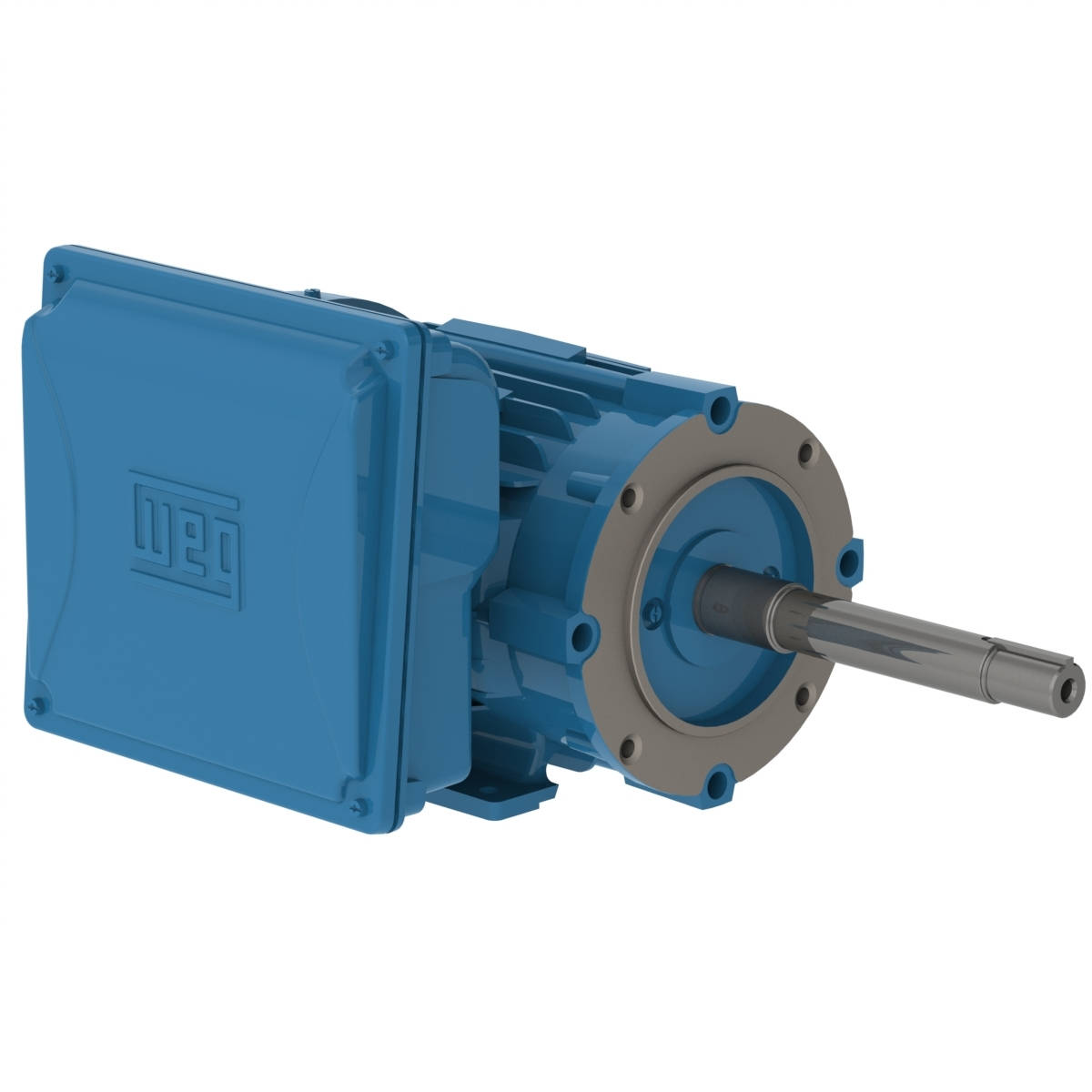

.5036ES1E143JP-W22 WEG 1/2HP JP Close Coupled Pump Electric Motor, 3600RPM
Enlarge Photo

Product ID: .5036ES1E143JP-W22

.5036ES1E143JP-W22 WEG 1/2HP JP Close Coupled Pump Electric Motor, 3600RPM

MFG: WEG Electric Corporation
MFG Part Number: .5036ES1E143JP-W22

Selected accessories will also be added to cart
$594.52 / Each
Quantity:
IC411 - TEFC, IP55, 143JP/145JP Frame, 208-230/460VAC 60Hz Single Phase, 14427968, Foot Mounted, Cast Iron Frame

Electric Motors

Frame143/5JP
Output0.5 HP (0.37 kW)
Number of Poles2
Frequency60 Hz
Rated speed3575 rpm
Slip0.69 %
Rated voltage208-230/460 V
Rated current1.90-2.93/1.47 A
L. R. Amperes44.3-68.3/34.3 A
LRC23.3x(Code T)
No load current1.21-1.40/0.700 A
Rated torque0.734 ft.lb
Locked rotor torque465 %
Breakdown torque545 %
Locked rotor time12s (cold) 7s (hot)
Moment of inertia (J)0.0522 sq.ft.lb
Insulation ClassF
Service factor1.15
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20°C to +40°C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC411 - TEFC
MountingF-1
Rotation¹Both (CW and CCW)
Noise level²69.0 dB(A)
Approx. weight³50.7 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
36.548.957.7

Power factor

50%75%100%
0.960.950.95

Features

Frame MaterialCast Iron
Impregnation MethodDip and Bake Polyester
Main terminal box holeNPT 3/4"
Terminal BlockWithout
Shaft Locking DeviceWithout
DrainRubber, automatic
Shaft MaterialSAE 1040/45 Carbon Steel
PaintingRAL 5009 207A (ISO 12944 - C2)
Grounding LugsSingle
Fan Cover materialSteel
Tropicalized PaintingWithout
Fan materialPlastic
Bearing capYes- Bearing Cap
Drip CoverWithout
Overload protector (phenolic)Without overload protector
Type
Electric Motor
Input Phase
Single Phase
Speed
3600RPM
Enclosure
TEFC
Horsepower
1/2HP
Input Voltage
208VAC
Input Voltage
208VAC
Input Voltage
230VAC
Input Voltage
230VAC
Input Voltage
460VAC
Input Voltage
460VAC
Frame
143JP
Frame
145JP
