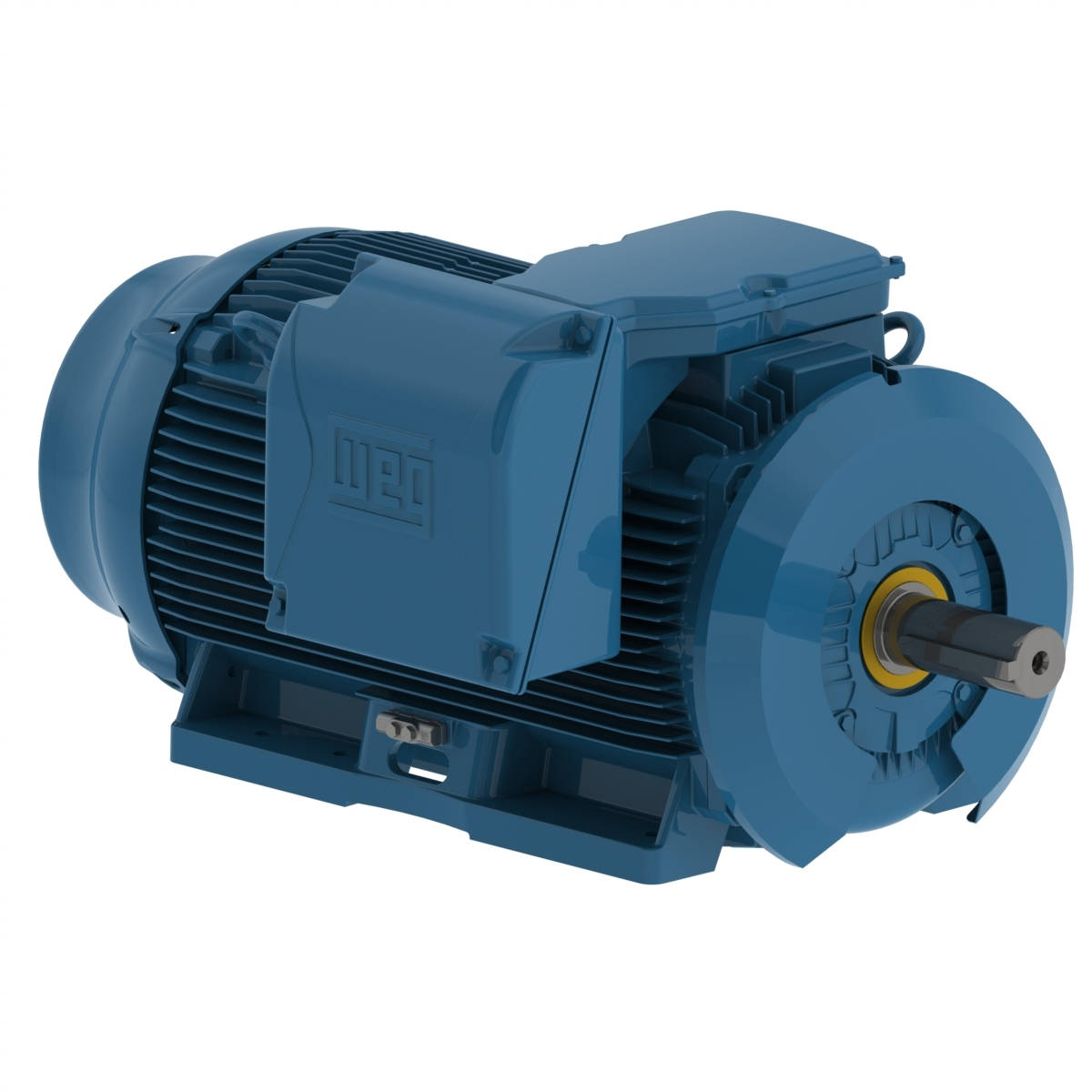

60012ET3H588/9-W22 WEG 600HP Severe Duty Electric Motor, 1200RPM
Enlarge Photo

Product ID: 60012ET3H588/9-W22

60012ET3H588/9-W22 WEG 600HP Severe Duty Electric Motor, 1200RPM

MFG: WEG Electric Corporation
MFG Part Number: 60012ET3H588/9-W22

Selected accessories will also be added to cart
$63,522.86 / Each
Quantity:
IC411 - TEFC, IP55, 588T/589T Frame, 575VAC 60Hz 3 Phase, 14384576, NEMA Premium Efficiency, Foot Mounted, Cast Iron Frame, 3-7/8" Keyed Shaft

Electric Motors

Frame588/9T
Output600 HP (440 kW)
Number of Poles6
Frequency60 Hz
Rated speed1193 rpm
Slip0.58 %
Rated voltage575 V
Rated current582 A
L. R. Amperes3664 A
LRC6.3x(Code G)
No load current252 A
Rated torque2640 ft.lb
Locked rotor torque220 %
Breakdown torque229 %
Locked rotor time55s (cold) 31s (hot)
Moment of inertia (J)449 sq.ft.lb
Insulation ClassF
Service factor1.00
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC411 - TEFC
MountingF-1
Rotation?Both (CW and CCW)
Noise level?77.0 dB(A)
Approx. weight?5174 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
95.4  96.1  96.2

Power factor

50%75%100%
0.63  0.74  0.79

Features

Frame MaterialCast Iron
Impregnation MethodConstant Resin Flow
Regreasing SystemAt Drive end and Non-drive end
Space Heater Voltage200 - 240 V
Main terminal box hole2xNPT 4"
Terminal BlockWithout
Shaft Locking DeviceWithout
DrainRubber, automatic
Shaft MaterialSAE 4140 Carbon Steel
PaintingRAL 5009 203A (ISO 12944 - C2)
Grounding LugsDouble
Fan Cover materialCast Iron
Tropicalized PaintingWithout
Fan materialAluminum
Bearing capYes- Bearing Cap
Balancing Method1/2 Key
Drip CoverWithout
Overload protector (phenolic)Without overload protector
Connection Cables Quantity6
Type
Electric Motor
Input Phase
3-Phase
Speed
1200RPM
Application
Severe Duty
Enclosure
TEFC
Enclosure
TEFC
Input Voltage
575VAC
Horsepower
600HP
Frame
588T/589T
