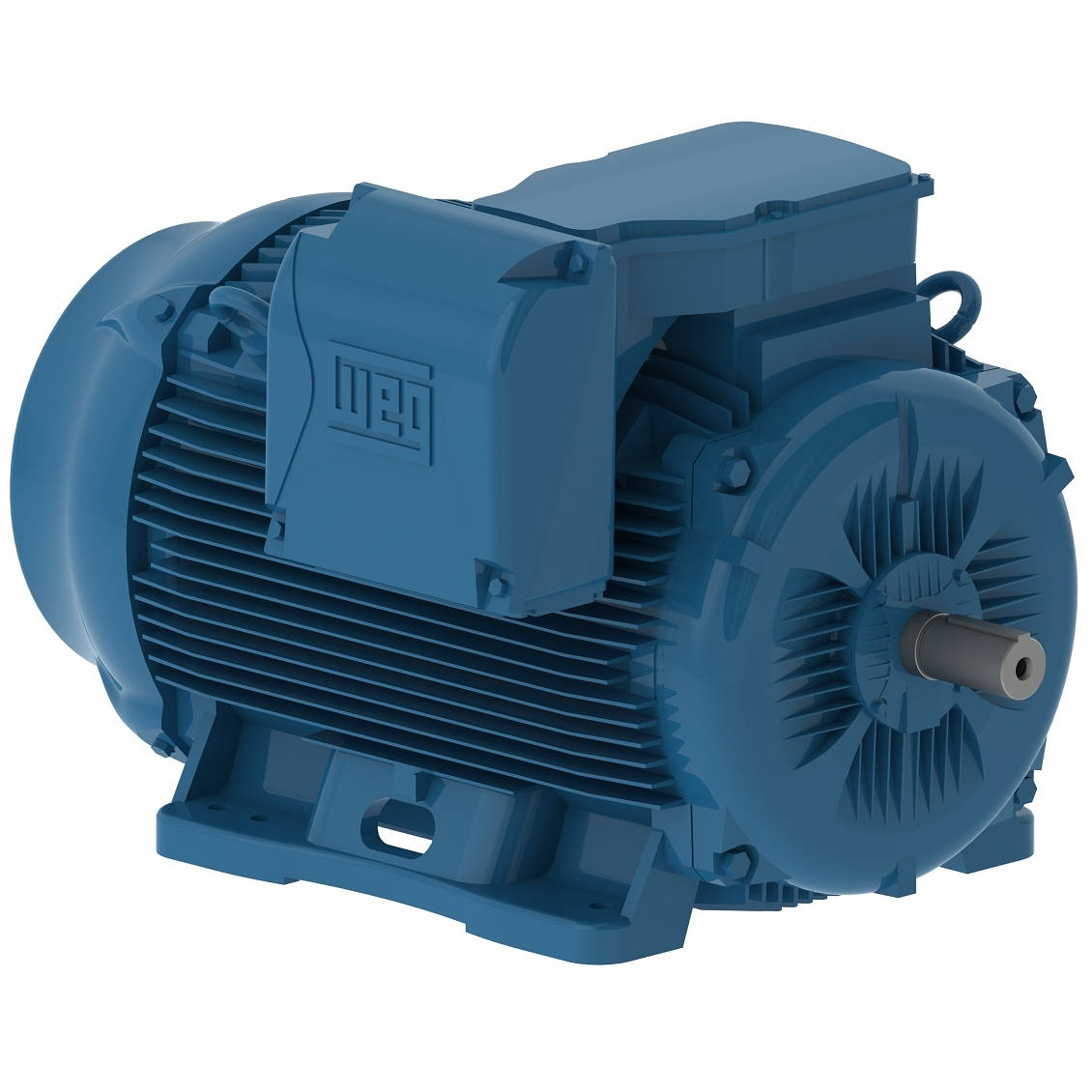

60012ET3G588/9-W22 WEG 600HP Severe Duty Electric Motor, 1200RPM
Enlarge Photo

Product ID: 60012ET3G588/9-W22

60012ET3G588/9-W22 WEG 600HP Severe Duty Electric Motor, 1200RPM

MFG: WEG Electric Corporation
MFG Part Number: 60012ET3G588/9-W22

Selected accessories will also be added to cart
$63,522.86 / Each
Quantity:
IC411 - TEFC, IP55, 588T/589T Frame, 460VAC 60Hz 3 Phase, 12011329, NEMA Premium Efficiency, Foot Mounted, Cast Iron Frame, 3-7/8" Keyed Shaft

Electric Motors

Frame588/9T
Output600 HP (440 kW)
Number of Poles6
Frequency60 Hz
Rated speed1190 rpm
Slip0.83 %
Rated voltage460 V
Rated current727 A
L. R. Amperes4580 A
LRC6.3x(Code G)
No load current330 A
Rated torque2650 ft.lb
Locked rotor torque220 %
Breakdown torque229 %
Locked rotor time55s (cold) 31s (hot)
Moment of inertia (J)449 sq.ft.lb
Insulation ClassF
Service factor1.00
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC411 - TEFC
MountingF-1
Rotation?Both (CW and CCW)
Noise level?77.0 dB(A)
Approx. weight?5867 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
95.4  96.1  96.2

Power factor

50%75%100%
0.63  0.74  0.79
Frame588/9T
Output500 HP (370 kW)
Number of Poles6
Frequency50 Hz
Rated speed990 rpm
Slip1.00 %
Rated voltage380 V
Rated current743 A
L. R. Amperes4532 A
LRC6.1x(Code G)
No load current325 A
Rated torque2650 ft.lb
Locked rotor torque200 %
Breakdown torque220 %
Locked rotor time45s (cold) 25s (hot)
Moment of inertia (J)449 sq.ft.lb
Insulation ClassF
Service factor1.00
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC411 - TEFC
MountingF-1
Rotation?Both (CW and CCW)
Noise level?73.0 dB(A)
Approx. weight?5867 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
95.4  95.8  95.8

Power factor

50%75%100%
0.64  0.75  0.79
Frame588/9T
Output500 HP (370 kW)
Number of Poles6
Frequency50 Hz
Rated speed990 rpm
Slip1.00 %
Rated voltage400 V
Rated current724 A
L. R. Amperes4851 A
LRC6.7x(Code H)
No load current354 A
Rated torque2650 ft.lb
Locked rotor torque229 %
Breakdown torque250 %
Locked rotor time45s (cold) 25s (hot)
Moment of inertia (J)449 sq.ft.lb
Insulation ClassF
Service factor1.00
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC411 - TEFC
MountingF-1
Rotation?Both (CW and CCW)
Noise level?73.0 dB(A)
Approx. weight?5867 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
95.2  95.8  95.8

Power factor

50%75%100%
0.60  0.71  0.77
Frame588/9T
Output500 HP (370 kW)
Number of Poles6
Frequency50 Hz
Rated speed990 rpm
Slip1.00 %
Rated voltage415 V
Rated current716 A
L. R. Amperes5155 A
LRC7.2x(Code J)
No load current379 A
Rated torque2650 ft.lb
Locked rotor torque250 %
Breakdown torque270 %
Locked rotor time45s (cold) 25s (hot)
Moment of inertia (J)449 sq.ft.lb
Insulation ClassF
Service factor1.00
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC411 - TEFC
MountingF-1
Rotation?Both (CW and CCW)
Noise level?73.0 dB(A)
Approx. weight?5867 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
95.0  95.8  95.8

Power factor

50%75%100%
0.56  0.69  0.75

Features

Frame MaterialCast Iron
Impregnation MethodConstant Resin Flow
Regreasing SystemAt Drive end and Non-drive end
Space Heater Voltage200 - 240 V
Main terminal box hole2xNPT 4"
Terminal BlockWithout
Shaft Locking DeviceWithout
DrainRubber, automatic
Shaft MaterialSAE 4140 Carbon Steel
PaintingRAL 5009 203A (ISO 12944 - C2)
Grounding LugsDouble
Fan Cover materialCast Iron
Tropicalized PaintingWithout
Fan materialAluminum
Bearing capYes- Bearing Cap
Balancing Method1/2 Key
Drip CoverWithout
Overload protector (phenolic)Without overload protector
Connection Cables Quantity12
Type
Electric Motor
Input Phase
3-Phase
Speed
1200RPM
Application
Severe Duty
Enclosure
TEFC
Enclosure
TEFC
Horsepower
600HP
Input Voltage
460VAC
Frame
588T/589T
