.7518ET3EAL90S/L-W22 WEG 1HP/0.75kW IEC TRU-Metric Electric Motor, 1800RPM

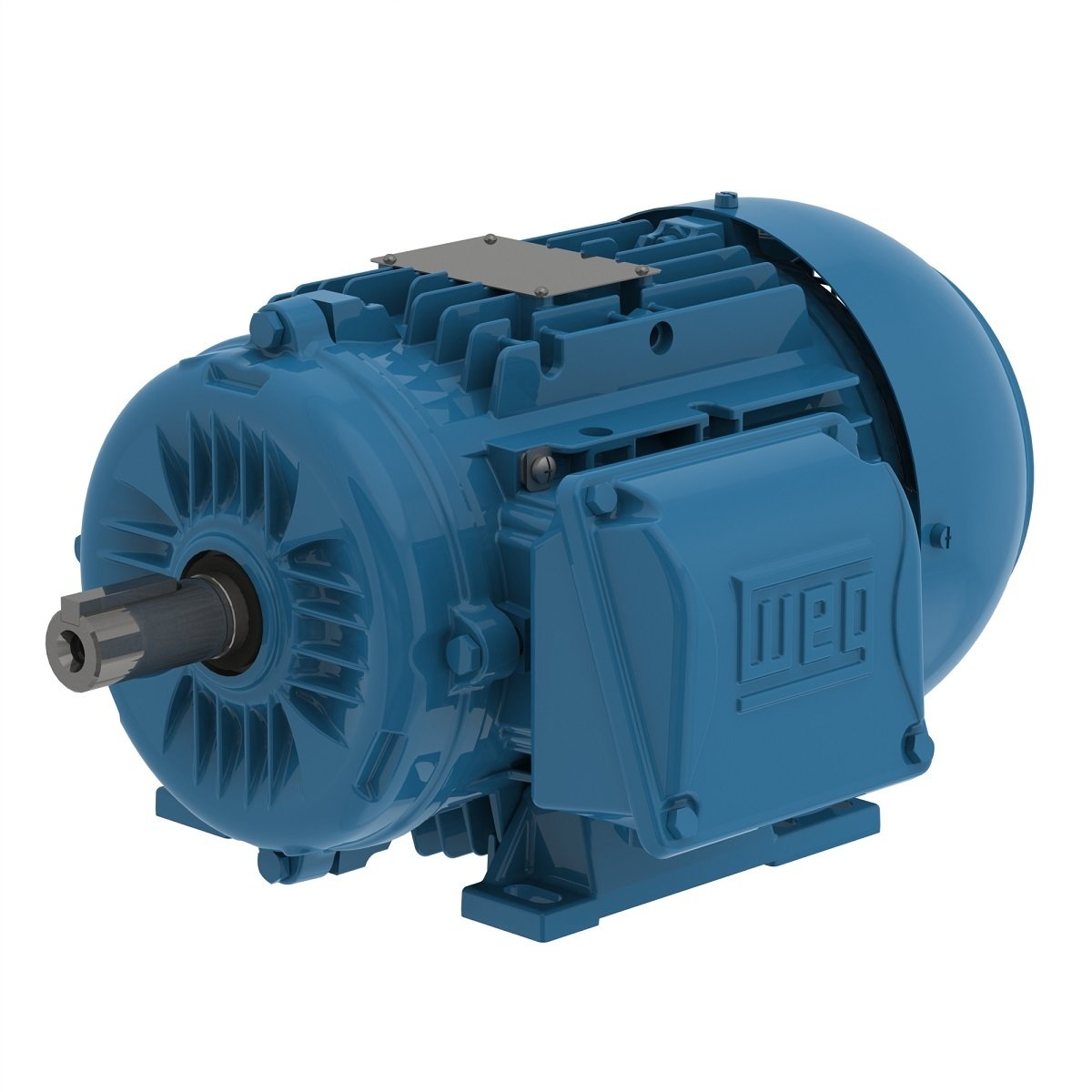

Enlarge Photo

Product ID: .7518ET3EAL90S/L-W22

.7518ET3EAL90S/L-W22 WEG 1HP/0.75kW IEC TRU-Metric Electric Motor, 1800RPM

MFG: WEG Electric Corporation
MFG Part Number: .7518ET3EAL90S/L-W22

Selected accessories will also be added to cart
$315.00 / Each
Quantity:
IC411-TEFC, IP55, 90S/L Frame, 230/460/380-415VAC 3-Phase 50/60Hz, 13983068, Foot Mount, Multimounting, Aluminum Frame, 24mm Keyed Shaft

Electric Motors

Frame 90S/L
Output 1 HP (0.75 kW)
Number of Poles 4
Frequency 50 Hz
Rated speed 1445 rpm
Slip 3.67 %
Rated voltage 380 V
Rated current 1.75 A
L. R. Amperes 11.2 A
LRC 6.4
No load current 0.950 A
Rated torque 3.59 ft.lb
Locked rotor torque 210 %
Breakdown torque 260 %
Locked rotor time 37s (cold) 21s (hot)
Moment of inertia (J) 0.1163 sq.ft.lb
Design N
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle S1
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting B3L(E)
Rotation¹ Both (CW and CCW)
Noise level² 49.0 dB(A)
Approx. weight³ 36.9 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
82.0  82.5  82.5

Power factor

50% 75% 100%
0.58  0.71  0.79
Frame 90S/L
Output 1 HP (0.75 kW)
Number of Poles 4
Frequency 50 Hz
Rated speed 1450 rpm
Slip 3.33 %
Rated voltage 400 V
Rated current 1.73 A
L. R. Amperes 11.8 A
LRC 6.8
No load current 1.05 A
Rated torque 3.57 ft.lb
Locked rotor torque 240 %
Breakdown torque 300 %
Locked rotor time 37s (cold) 21s (hot)
Moment of inertia (J) 0.1163 sq.ft.lb
Design N
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle S1
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting B3L(E)
Rotation¹ Both (CW and CCW)
Noise level² 49.0 dB(A)
Approx. weight³ 36.9 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
81.0  82.0  82.5

Power factor

50% 75% 100%
0.53  0.67  0.76
Frame 90S/L
Output 1 HP (0.75 kW)
Number of Poles 4
Frequency 50 Hz
Rated speed 1455 rpm
Slip 3.00 %
Rated voltage 415 V
Rated current 1.73 A
L. R. Amperes 12.5 A
LRC 7.2
No load current 1.15 A
Rated torque 3.56 ft.lb
Locked rotor torque 260 %
Breakdown torque 320 %
Locked rotor time 37s (cold) 21s (hot)
Moment of inertia (J) 0.1163 sq.ft.lb
Design N
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle S1
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting B3L(E)
Rotation¹ Both (CW and CCW)
Noise level² 49.0 dB(A)
Approx. weight³ 36.9 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
80.0  82.0  82.5

Power factor

50% 75% 100%
0.50  0.63  0.73
Frame 90S/L
Output 1 HP (0.75 kW)
Number of Poles 4
Frequency 60 Hz
Rated speed 1760 rpm
Slip 2.22 %
Rated voltage 230/460 V
Rated current 3.02/1.51 A
L. R. Amperes 24.2/12.1 A
LRC 8.0
No load current 1.90/0.950 A
Rated torque 2.94 ft.lb
Locked rotor torque 280 %
Breakdown torque 360 %
Locked rotor time 39s (cold) 22s (hot)
Moment of inertia (J) 0.1163 sq.ft.lb
Design N
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle S1
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting B3L(E)
Rotation¹ Both (CW and CCW)
Noise level² 49.0 dB(A)
Approx. weight³ 36.9 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
80.0  84.0  84.0

Power factor

50% 75% 100%
0.51  0.65  0.74

Features

Frame Material Aluminum
Impregnation Method Dip and Bake Polyester
Main terminal box hole 2xM25x1,5
Terminal Block BMC - 6 pins
Shaft Locking Device Without
Drain Rubber, automatic
Shaft Material SAE 1040/45 Carbon Steel
Painting RAL 5009 207A (ISO 12944 - C2)
Grounding Lugs Single
Fan Cover material Steel
Tropicalized Painting Without
Fan material Plastic
Bearing cap No-Without Bearing Cap
Balancing Method 1/2 Key
Drip Cover Without
