/Products/Electric Motors/3 Phase Metric/WEG/Foot Mount, FF-Face, W22/.7518ET3WAL90S/LFF-W22 WEG 1HP/0.75kW IEC Metric Electric Motor, 1800RPM
.7518ET3WAL90S/LFF-W22 WEG 1HP/0.75kW IEC Metric Electric Motor, 1800RPM

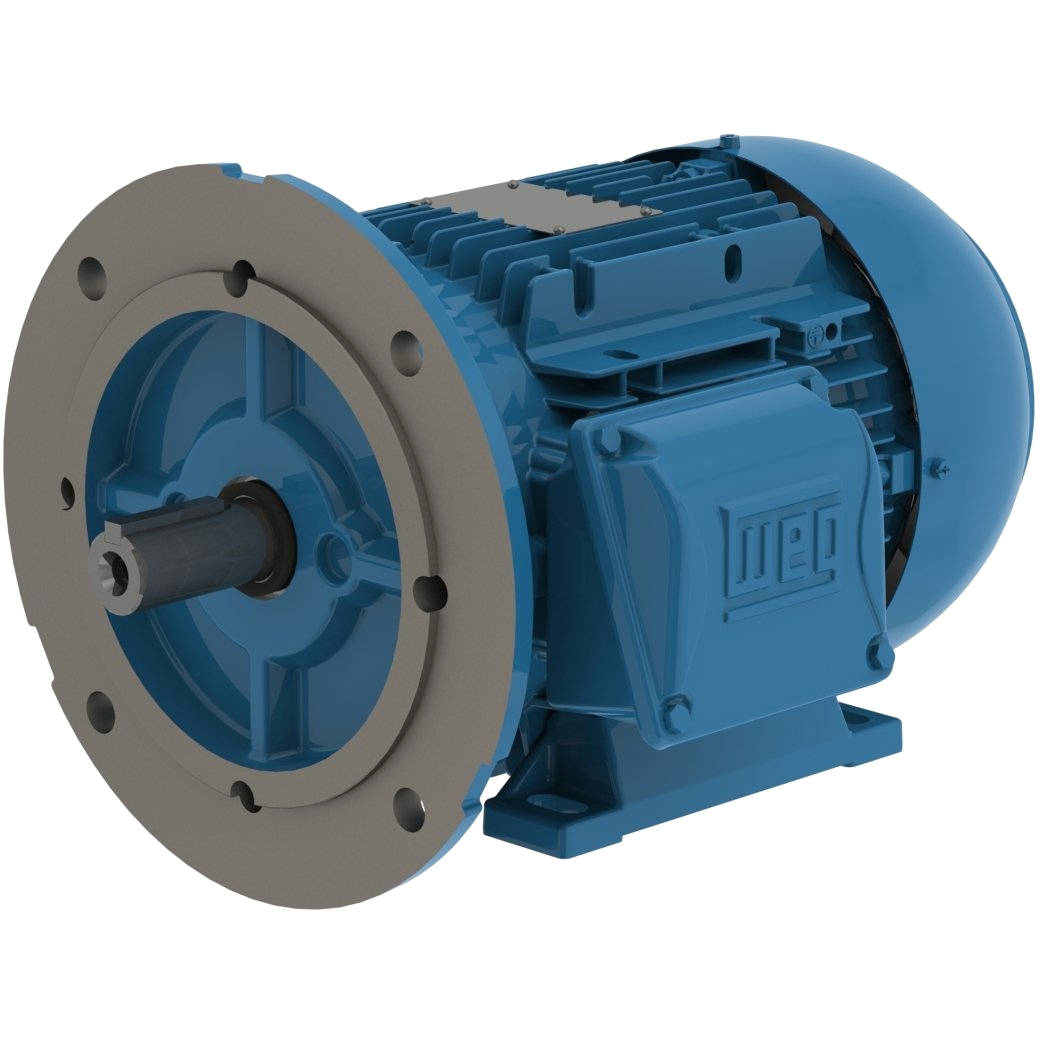

Enlarge Photo

Product ID: .7518ET3WAL90S/LFF-W

.7518ET3WAL90S/LFF-W22 WEG 1HP/0.75kW IEC Metric Electric Motor, 1800RPM

MFG: WEG Electric Corporation
MFG Part Number: .7518ET3WAL90S/LFF-W22

Selected accessories will also be added to cart
$359.25 / Each
Quantity:
IC411-TEFC, IP55, 90S/L Frame, 220-240/460/380-415VAC 3-Phase 50/60Hz, 14051987, 24mm Keyed Shaft, Multimounting, Foot Mounted, Cast Iron Frame, B5 F-Flange Style
Frame 90S/L
Output 1 HP (0.75 kW)
Number of Poles 4
Frequency 50 Hz
Rated speed 1450 rpm
Slip 3.33 %
Rated voltage 230/400 V
Rated current 3.01/1.73 A
L. R. Amperes 20.5/11.8 A
LRC 6.8
No load current 1.83/1.05 A
Rated torque 3.57 ft.lb
Locked rotor torque 240 %
Breakdown torque 300 %
Locked rotor time 37s (cold) 21s (hot)
Moment of inertia (J) 0.1163 sq.ft.lb
Design N
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle S1
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting B35L(E)
Rotation¹ Both (CW and CCW)
Noise level² 49.0 dB(A)
Approx. weight³ 39.5 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
81.0  82.0  82.5

Power factor

50% 75% 100%
0.53  0.67  0.76
