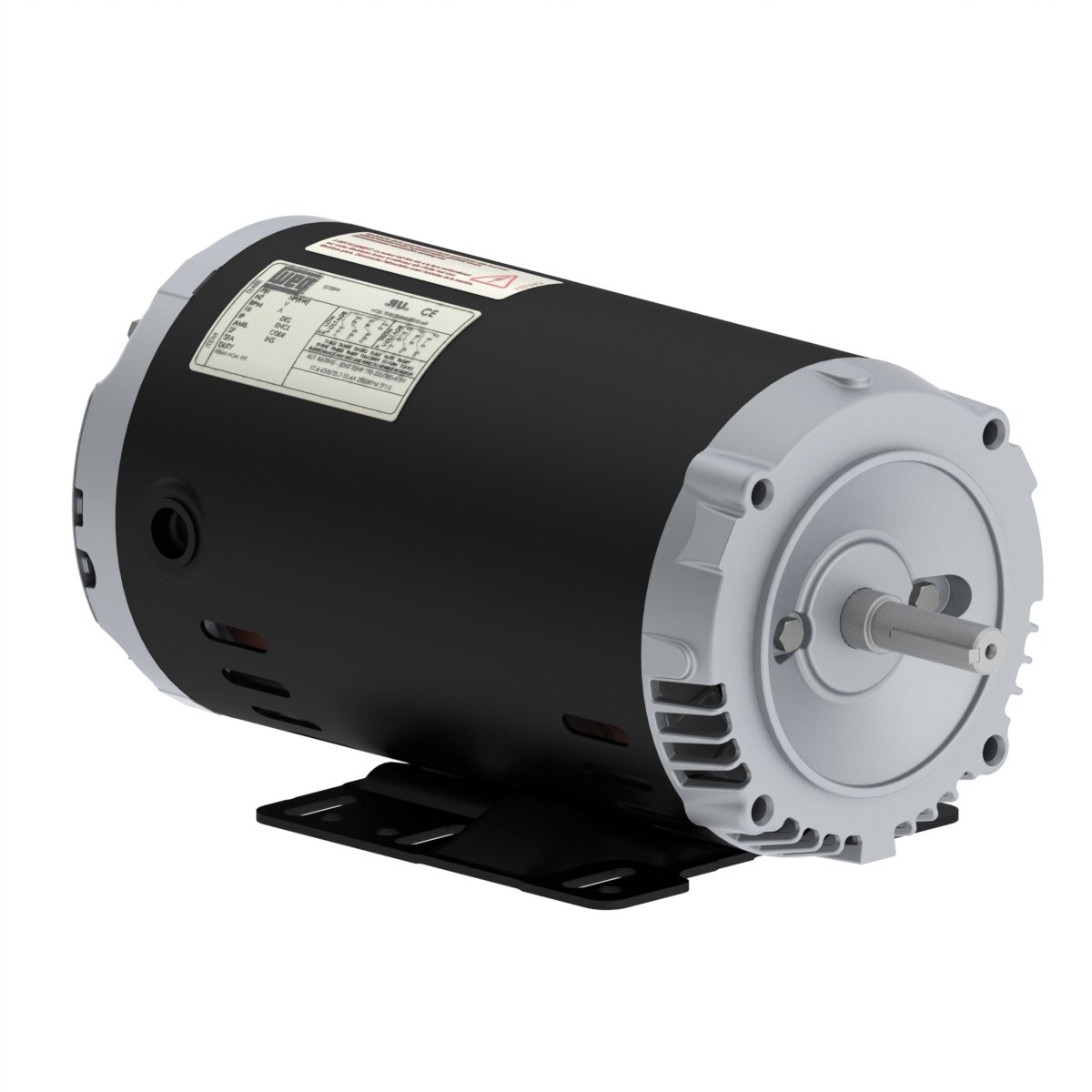

Motor/Control Division

Frame	56C
Output	0.75 HP (0.550 kW)
Number of Poles	4
Frequency	60 Hz
Rated speed	1760 rpm
Slip	2.22 %
Rated voltage	575 V
Rated current	0.920 A
L. R. Amperes	6.72 A
LRC	7.3x(Code K)
No load current	0.640 A
Rated torque	2.21 ft.lb
Locked rotor torque	250 %
Breakdown torque	300 %

Locked rotor time	37s (cold) 21s (hot)
Moment of inertia (J)	0.0712 sq.ft.lb
Insulation Class	F
Service factor	1.25
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Enclosure	IC01 - ODP
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	52.0 dB(A)
Approx. weight³	27.0 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
74.0	78.5	81.1

Power factor

50%	75%	100%
0.52	0.65	0.74

Features

Frame Material	Rolled Steel
Impregnation Method	Dip and Bake Polyester
Shaft Material	SAE 1040/45 Carbon Steel
Painting	Only primer
Grounding Lugs	Single
Fan Cover material	Without Fan Cover
Tropicalized Painting	Without
Fan material	Without fan
Bearing cap	Yes- Bearing Cap
Bolt Material	Carbon Steel
Balancing Method	1/2 Key
Drip Cover	Without
Resilient Base	Without
