/Products/Electric Motors/Single Phase Electric Motors/Marathon Single Phase Electric Motors/851034.00 Marathon 16HP Grain Dryer / Centrifugal Fan Electric Motor, 1800RPM
Click Image to Expand

Product ID: 851034.00

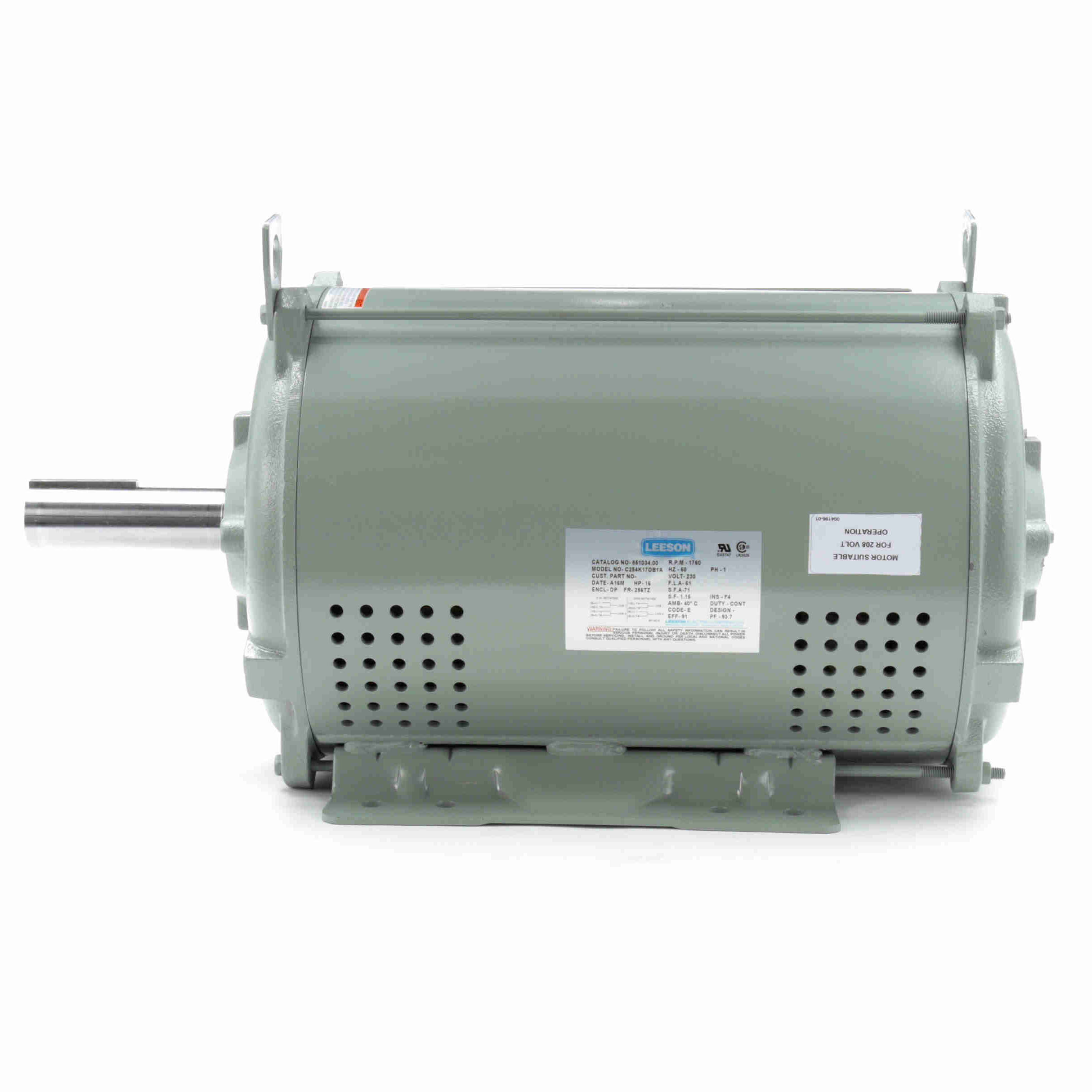

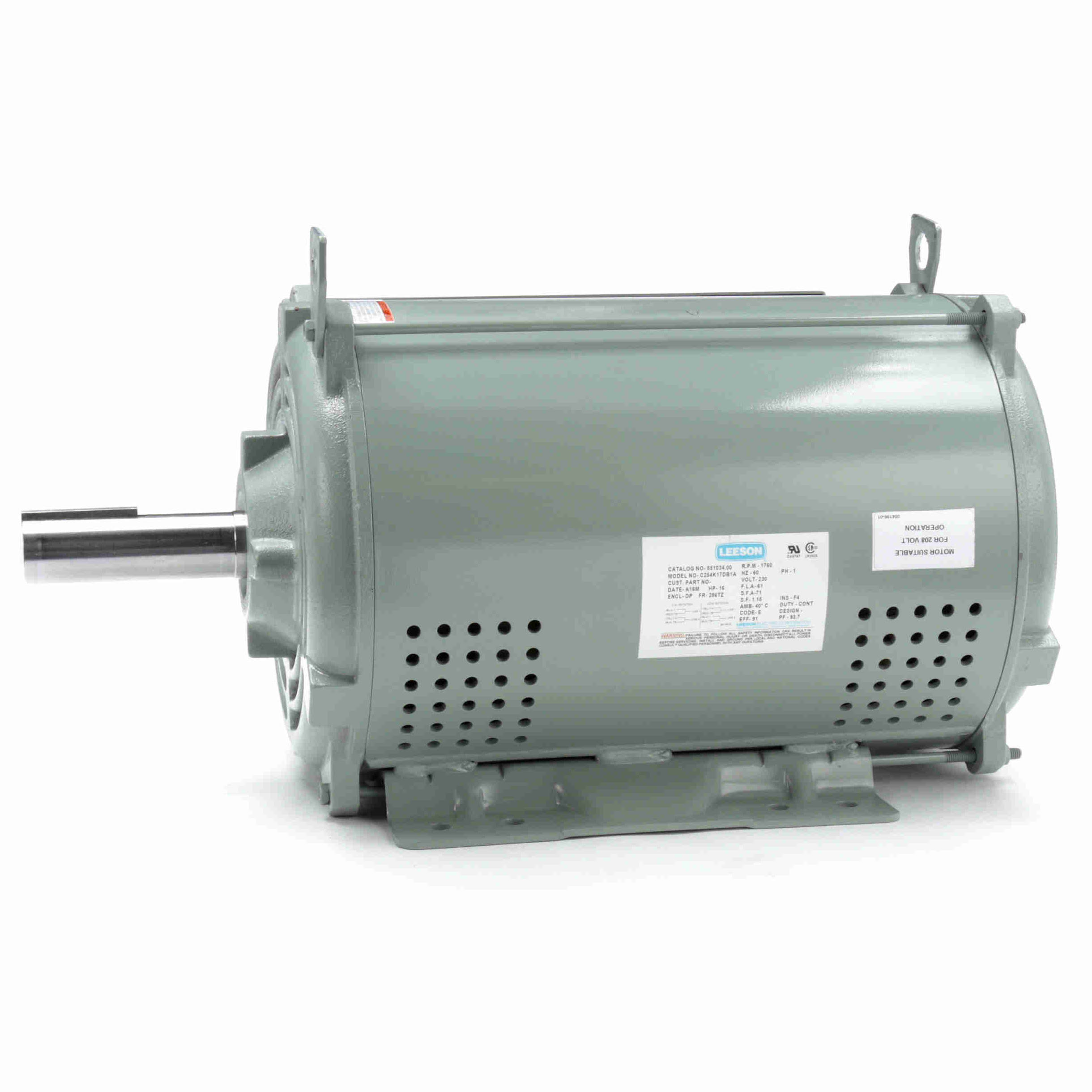

851034.00 Marathon 16HP Grain Dryer / Centrifugal Fan Electric Motor, 1800RPM

MFG: Marathon Electric
MFG Part Number: C254K17DB1

Selected accessories will also be added to cart
$2,617.52 / Each
Quantity:
ODP, 256TZ Frame, 230VAC Single Phase 60Hz, C254K17DB1, Rigid Base, Rolled Steel, 1-5/8" Keyed Shaft

Features

Features
  • Oversized sealed bearings
  • Rodent screen protection
  • Rolled steel frame with cast iron endbells
  • Epoxy Painted
  • 268% starting torque

General Specifications

General Specifications
Model :C256K17DB1ACatalog No :851034.00
Part Description :..16HP..1800RPM.256TZ.ODP.208-230V.1PH.60HZ.CONT.40C.1.15SF.RIGID......GRAIN DRYER........Category :Grain Stirring
Stock :No

Nameplate Specifications

Nameplate Specifications
Output HP :16 HPOutput KW :11.9 kW
Frequency :60 HzVoltage :208-230 V
Current :70.0-61.0 ASpeed :1760 RPM
Service Factor :1.15 Phase :1
Efficiency :91 %Duty :Continuous
Insulation Class :F Design Code :NO DESIGN CODE
KVA Code :E Frame :256TZ
Enclosure :Drip Proof Overload Protector :No
Ambient Temperature :40 ?CDrive End Bearing Size :6309
Opp Drive End Bearing Size :6206 UL :Recognized
CSA :Y CE :N
IP Code :12

Technical Specifications

Technical Specifications
Electrical Type :Capacitor Start Capacitor Run Starting Method :Across The Line
Poles :4 Rotation :Selective Counterclockwise
Mounting :Rigid base Motor Orientation :Horizontal
Drive End Bearing :Ball Opp Drive End Bearing :Ball
Frame Material :Rolled Steel Shaft Type :Single Special Extension
Overall Length :25.52 inFrame Length :15.50 in
Shaft Diameter :1.625 inShaft Extension :5 in
Assembly/Box Mounting :F1 ONLY UPC :691720053553
Weight :308.00 LB

Speed & Load Characteristics

Speed Characteristics
CurvepointCurrent (Amps)Current (%)Torque (ft-lbs)Torque (%)Speed (RPM)Rated Output (KW)Power Factor (%)Rated Output (Hp)
No Load9.2015.00.000.01,8000.6530.716.00
Locked-Rotor335.00549.0150.00313.0067.3087.516.00
Full Load61.00100.047.85100.01,76013.1593.716.00
Break-Down203.00333.0102.00213.01,60037.8080.716.00
Pull-Up275.00451.068.00142.01,35039.2462.116.00
Load Characteristics
  • % of Rated Load
  • Current (Amps)
  • Rated Output (KW)
  • Efficiency (%)
  • Power Factor (%)
  • Speed (RPM)
  • Temp. Rise @ FL
  • Torque (ft-lb)
  • 0 %
  • 9.20
  • 0.650
  • 0.0
  • 30.7
  • 1,800
  • 0.0
  • 0.00
  • 25 %
  • 17.80
  • 3.620
  • 84.1
  • 88.4
  • 1,790
  • 0.0
  • 11.98
  • 50 %
  • 30.70
  • 6.620
  • 90.7
  • 93.8
  • 1,780
  • 0.0
  • 23.74
  • 75 %
  • 45.70
  • 9.940
  • 90.6
  • 94.6
  • 1,770
  • 0.0
  • 35.81
  • 100 %
  • 61.00
  • 13.150
  • 91.0
  • 93.7
  • 1,760
  • 45.0
  • 47.85
  • 115 %
  • 71.00
  • 15.230
  • 90.7
  • 93.3
  • 1,759
  • 75.0
  • 55.30
  • 125 %
  • 79.00
  • 17.000
  • 88.0
  • 93.6
  • 1,745
  • 90.0
  • 60.36
Type
Electric Motor
Input Phase
Single Phase
Speed
1800RPM
Enclosure
ODP
Horsepower
16HP
Frame
256TZ
Application
Grain Dryer
