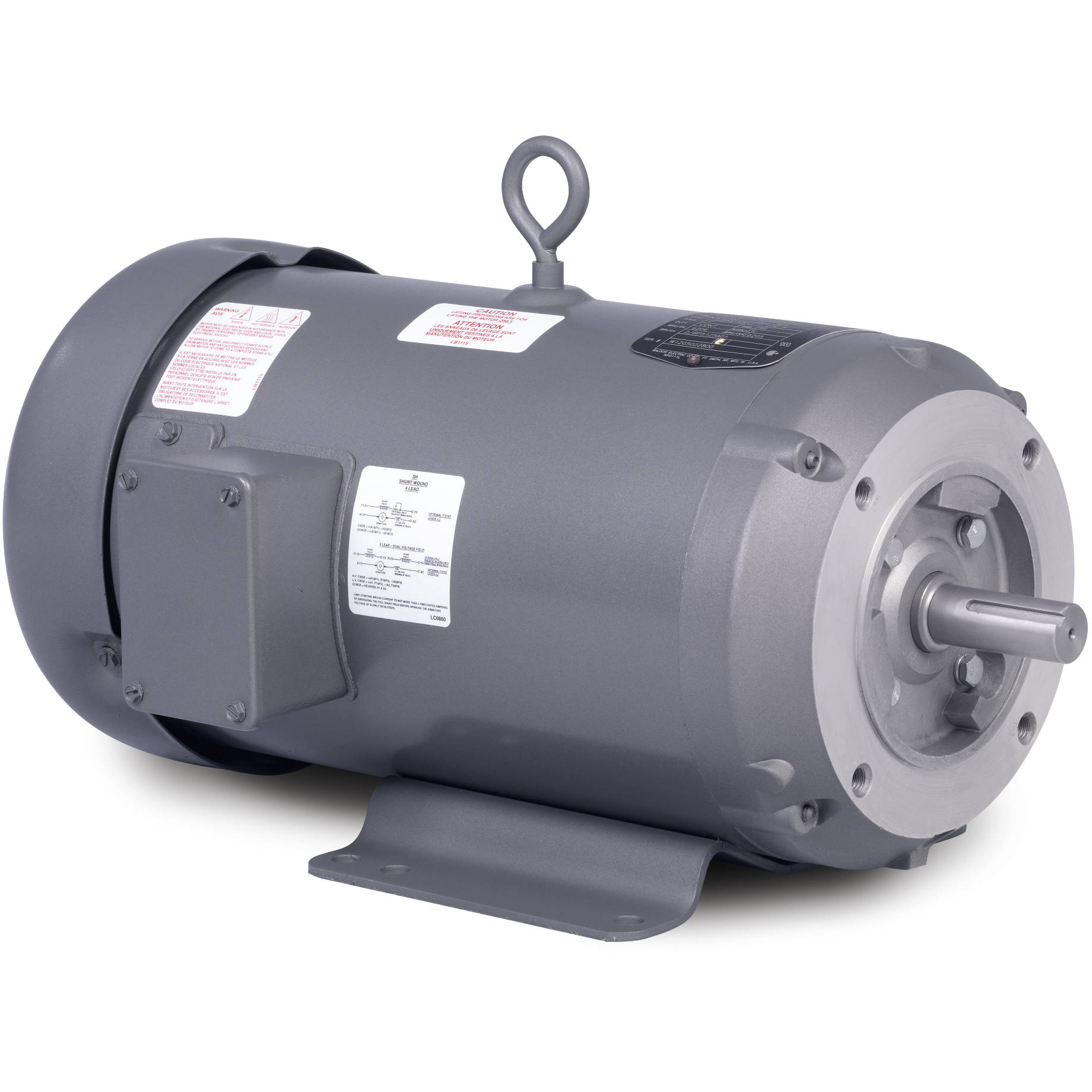

CD7502 Baldor 2HP Shunt Wound DC Electric Motor, 1750RPM
Enlarge Photo

Product ID: CD7502

CD7502 Baldor 2HP Shunt Wound DC Electric Motor, 1750RPM

MFG: Baldor Electric Company
MFG Part Number: CD7502

Selected accessories will also be added to cart
$5,499.97 / Each
Quantity:
TEFC, 213C Frame, 180VDC Armature, 100/200VDC Field, 3646D, C-Face, Foot Mount

Specifications

Specs

Armature Voltage180 V
Base Speed1,750 rpm
Field Voltage200 V
100 V
Frame213C
Frame MaterialSteel
Output Power2 hp
XP Class and GroupNONE
BrandBaldor-Reliance
Agency ApprovalsCSA
UR
Ambient Temperature40 °C
Armature Current9.5 A
Armature Inertia38.770lb-ft2
Base IndicatorRigid
Bearing Grease TypePOLYREX EM (-20F +300F)
Drip CoverNo Drip Cover
Duty RatingCONT
Feedback DeviceNo feedback
Field Winding TypeSHUNT
Heater IndicatorNo heater
Insulation ClassF
Lifting LugsStandard Lifting Lugs
Motor Lead ExitKO Box
Motor Lead Quantity/Wire Size4 @ 18 AWG
2 @ 12 AWG
Motor Lead TerminationFlying Leads
Motor StandardsNEMA
Overall Length19.79 in
Product FamilyGeneral Purpose
Pulley End Bearing TypeSealed Bearing
Service Factor1.00
Shaft Diameter1.125 in
Shaft Extension LocationPulley End
Shaft Ground IndicatorNo Shaft Grounding
Shaft RotationReversible
Shaft Slinger IndicatorNo Slinger
XP DivisionNot Applicable

Applications

  • Conveyors
  • Printing and textile equipment
  • Machine tools

Features

  • Designed for use with NEMA type K SCR control
  • 20:1 constant torque speed range
  • NEMA C-face and removable base
  • NEMA 182 frame and larger – normally closed thermostat on field winding
  • Class F insulation
  • 1.0 Service Factor

Nameplate

Nameplate

CAT.NO.CD7502
SPEC.36-5580Z105
HP2ENCLTEFC
RPM1750
FRAME213CTYPE3646D
ARM V180ARM A9.5
FLD V200/100FLD A.4/.8
INSULFAMB.40
DUTYCONTSUPPLYK
BRG/DE6207BRG/ODE6205
BRUSHES2/BP5125A01
BLANK
SER.
BLANK
APRV-CSAAPRV-UL
NP0111L

Performance

Performance

Performance at 180 Arm V, 2 HP

Typical performance; not guaranteed values.

General Characteristics

Armature Resistance0.631 ohms
Series Winding Resistance
Armature Inductance
Maximum Rated RPM With Field Weakening
Commutating Winding Resistance0.451 ohms
Shunt Winding Resistance428 ohms
Armature Inertia38.7702 LI²
Maximum Allowable Inrush Amps

Load Characteristics

Load Point1234567
Armature Amps0.62.74.66.58.7510.813
RPM1683166916471637161516021588
Torque01.534.567.59

Performance Curves

Type
Electric Motor
Horsepower
2HP
Input Phase
DC
Enclosure
TEFC
Frame
213C
Speed
1750RPM
Input Voltage
180VDC
