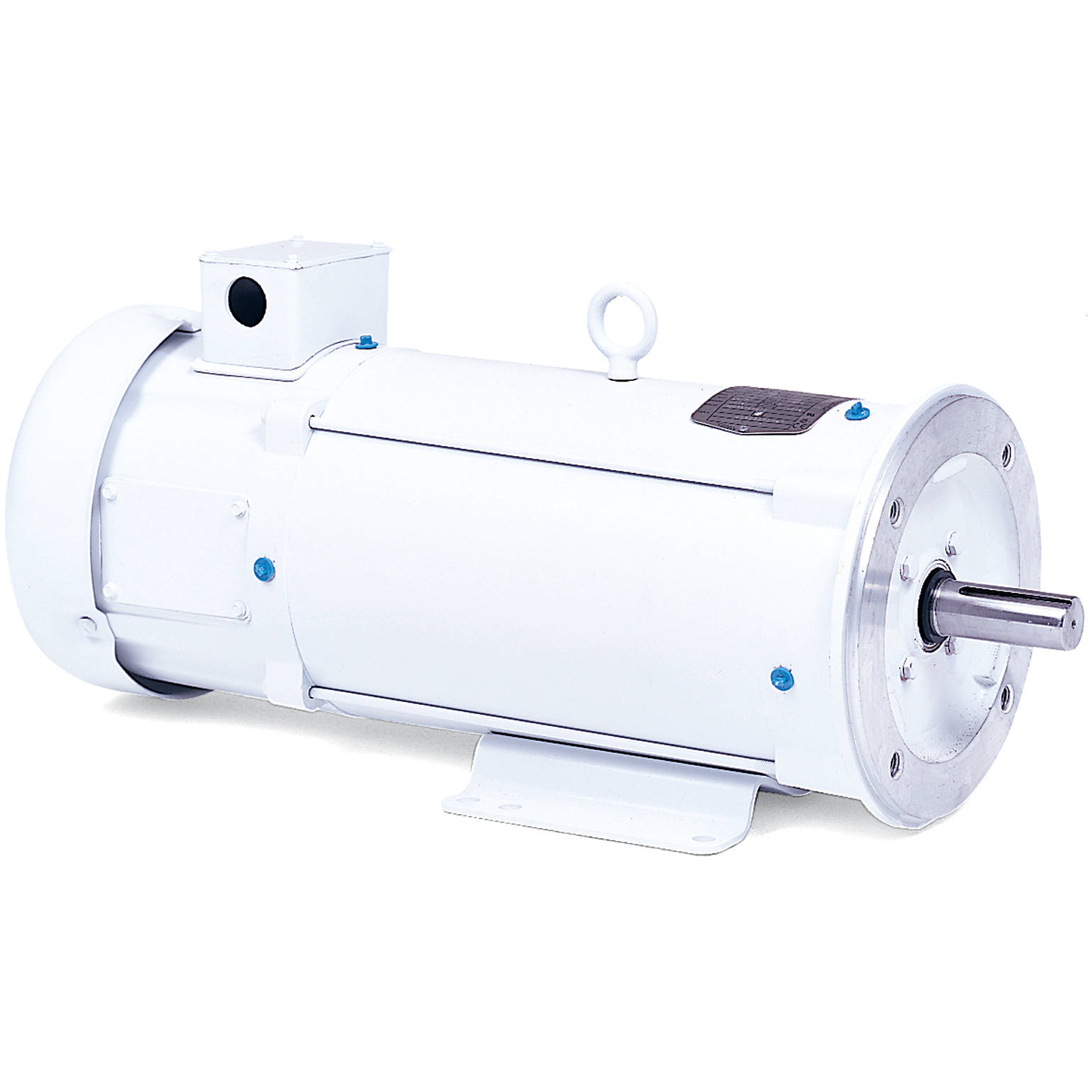

CDPWD3605 Baldor 5HP Washdown Permanent Magnet DC Electric Motor, 1750RPM
Enlarge Photo

Product ID: CDPWD3605

CDPWD3605 Baldor 5HP Washdown Permanent Magnet DC Electric Motor, 1750RPM

MFG: Baldor Electric Company
MFG Part Number: CDPWD3605

Selected accessories will also be added to cart
$8,999.97 / Each
Quantity:
TEFC, 1810ATC Frame, 180VDC, SCR Drive, 3681P, C-Face, Foot Mount

Specifications

Specs

Armature Voltage180 V
Base Speed1,750 rpm
Frame1810ATC
Frame MaterialSteel
Output Power5 hp
XP Class and GroupNONE
BrandBaldor-Reliance
Agency ApprovalsCE
CSA
UR
WEEE
Ambient Temperature40 °C
Armature Current24.5 A
Armature Inertia177.060lb-ft2
Base IndicatorRigid
Bearing Grease TypePOLYREX EM (-20F +300F)
Drip CoverNo Drip Cover
Duty RatingCONT
Feedback DeviceNo feedback
Heater IndicatorNo heater
Insulation ClassF
Lifting LugsStandard Lifting Lugs
Motor Lead ExitKO Box
Motor Lead Quantity/Wire Size2 @ 12 AWG, A
Motor Lead TerminationFlying Leads
Motor StandardsNEMA
Overall Length27.83 in
Product FamilyWash Down
Pulley End Bearing TypeSealed Bearing
Service Factor1.00
Shaft Diameter1.125 in
Shaft Extension LocationPulley End
Shaft Ground IndicatorNo Shaft Grounding
Shaft RotationReversible
Shaft Slinger IndicatorShaft Slinger
XP DivisionNot Applicable

Applications

  • Food processing conveyors
  • Feeders

Features

  • Moisture sealant on bolt heads between frame and endplates
  • Neoprene gasketed conduit box
  • Double sealed bearings
  • Forsheda® running contact V-Ring slinger
  • Stainless steel shaft
  • Class F Insulation
  • Tachometer adaptable
  • Suitable for high pressure washdown

Nameplate

Nameplate

CAT.NO.CDPWD3605
SPEC.36P128Z509
HP5ENCLTEFC
RPM1750
FRAME1810ATCTYPE3681P
ARM V180ARM A24.5
FLD VFLD A
INSULFAMB.40
DUTYCONTSUPPLYK
BRG/DE6206BRG/ODE6206
BRUSHES2/BP5027A01
BLANK
SER.
BLANK
APRV-CSAAPRV-ULAPRV-CE
NP1509

Performance

Performance

Performance at 180 Arm V, 5 HP

Typical performance; not guaranteed values.

General Characteristics

Armature Resistance0.16 ohms
Series Winding Resistance
Armature Inductance3.677 mH
Maximum Rated RPM With Field Weakening
Commutating Winding Resistance
Shunt Winding Resistance
Armature Inertia177.0597 LI²
Maximum Allowable Inrush Amps

Load Characteristics

Load Point1234567
Armature Amps1.17.112.818.424.129.935.99
RPM1931191518861870185018321815
Torque03.87.5711.3915.181922.81

Performance Curves

Type
Electric Motor
Horsepower
5HP
Input Voltage
180VDC
Input Phase
DC
Enclosure
TEFC
Frame
1810ATC
Speed
1750RPM
