D1152 Baldor 1/2HP DC Power Electric Motor, 1750RPM

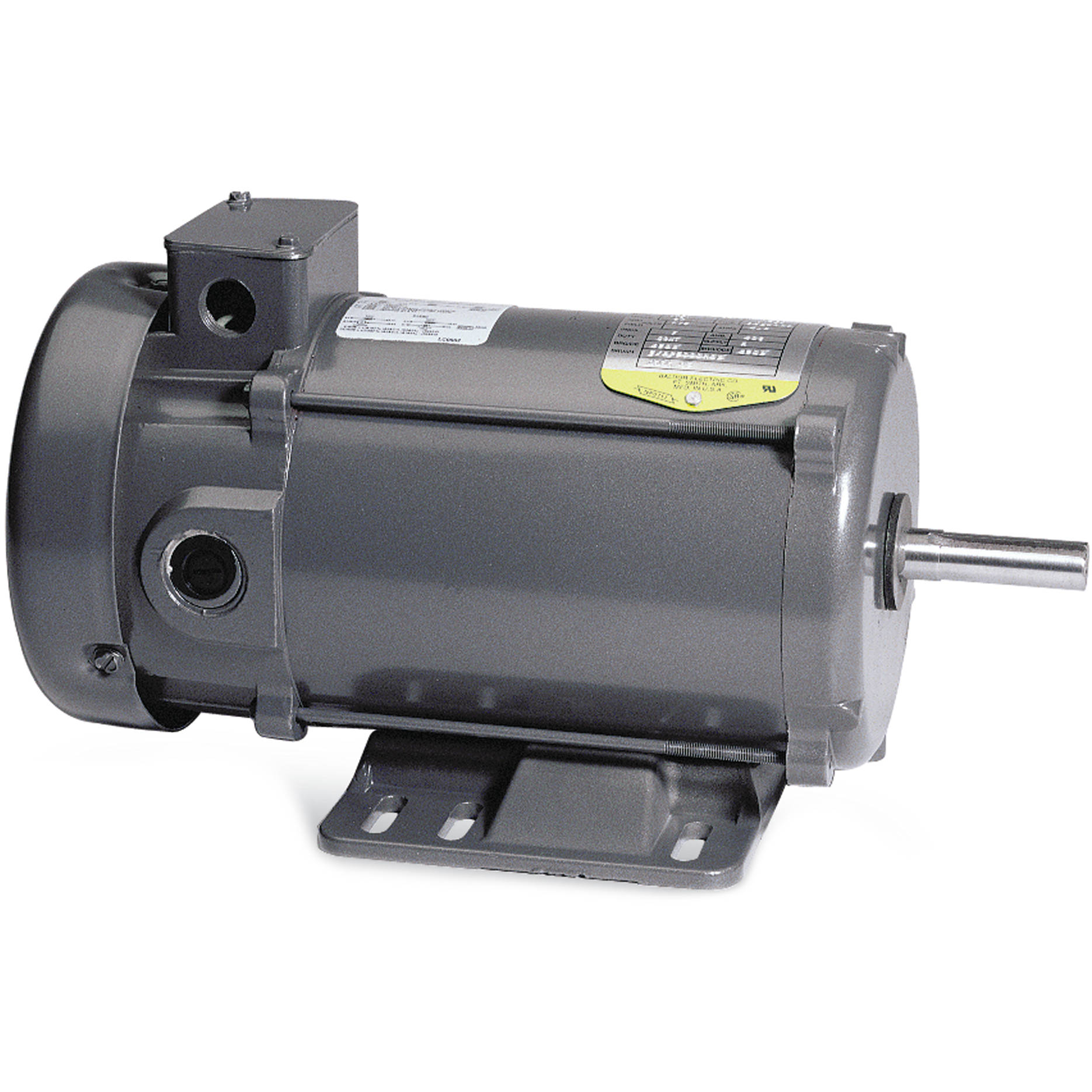

Enlarge Photo

Product ID: D1152

D1152 Baldor 1/2HP DC Power Electric Motor, 1750RPM

MFG: Baldor Electric Company
MFG Part Number: D1152

Selected accessories will also be added to cart
$1,999.97 / Each
Quantity:
TEFC, 56 Frame, 115VDC Armature, 3420D, Foot Mount

Specifications

Specs

Armature Voltage 115 V
Base Speed 1,750 rpm
Frame 56
Frame Material Steel
Output Power 0.5 hp
XP Class and Group NONE
Brand Baldor-Reliance
Agency Approvals CSA
UR
Ambient Temperature 40 °C
Armature Current 4.8 A
Armature Inertia 4.680lb-ft2
Base Indicator Rigid
Bearing Grease Type POLYREX EM (-20F +300F)
Drip Cover No Drip Cover
Duty Rating CONT
Feedback Device No feedback
Field Winding Type COMPOUND
Heater Indicator No heater
Insulation Class F
Lifting Lugs No Lifting Lugs
Motor Lead Exit KO Box
Motor Lead Quantity/Wire Size 2 @ 18 AWG
2 @ 14 AWG
Motor Lead Termination Flying Leads
Motor Standards NEMA
Overall Length 13.54 in
Product Family WP below decks Marine Duty
Pulley End Bearing Type Sealed Bearing
RoHS Status RoHS Compliant
Service Factor 1.00
Shaft Diameter 0.625 in
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator Shaft Slinger
XP Division Not Applicable

Applications

  • Cranes and Hoists
  • Conveyors
  • Augers
  • Marine Duty Applications

Features

  • 20% compound wound
  • Weather proof, VPI insulation meets IEEE 45 specifications
  • Suitable for mounting in any position
  • Continuous duty
  • Easy access brushes
  • Can be powered from generators or batteries

Nameplate

Nameplate

CAT.NO. D1152
SPEC. 34-6121-3116
HP .5 ENCL TEFC
RPM 1750
FRAME 56 TYPE 3420D
ARM V 115 ARM A 4.8
FLD V FLD A
INSUL F AMB. 40
DUTY CONT SUPPLY A
BRG/DE 6203 BRG/ODE 6203
BRUSHES 2/BP5000H03
IEEE 45 BLANK
SER.
BLANK --
APRV-CSA APRV-UL
NP2801L

Performance

Performance

Performance at 115 Arm V, 0.5 HP

Typical performance; not guaranteed values.

General Characteristics

Armature Resistance 2.6 ohms
Series Winding Resistance 0.493 ohms
Armature Inductance
Maximum Rated RPM With Field Weakening
Commutating Winding Resistance
Shunt Winding Resistance 247 ohms
Armature Inertia
Maximum Allowable Inrush Amps

Load Characteristics

Load Point 1 2 3 4 5 6 7
Armature Amps 0.34 2.04 3.05 3.84 4.74 5.64 0
RPM 1982 1854 1781 1733 1671 1602 0
Torque 0 0.75 1.125 1.5 1.875 2.25 0

Performance Curves
