/Products/Electric Motors/Single Phase/Leeson Single Phase Electric Motors/ecoSaver/Drip Proof, C-Face with Base/E113281.00 Leeson 2HP General Purpose ecoSaver Electric Motor, 1800RPM
Click Image to Expand

Product ID: E113281.00

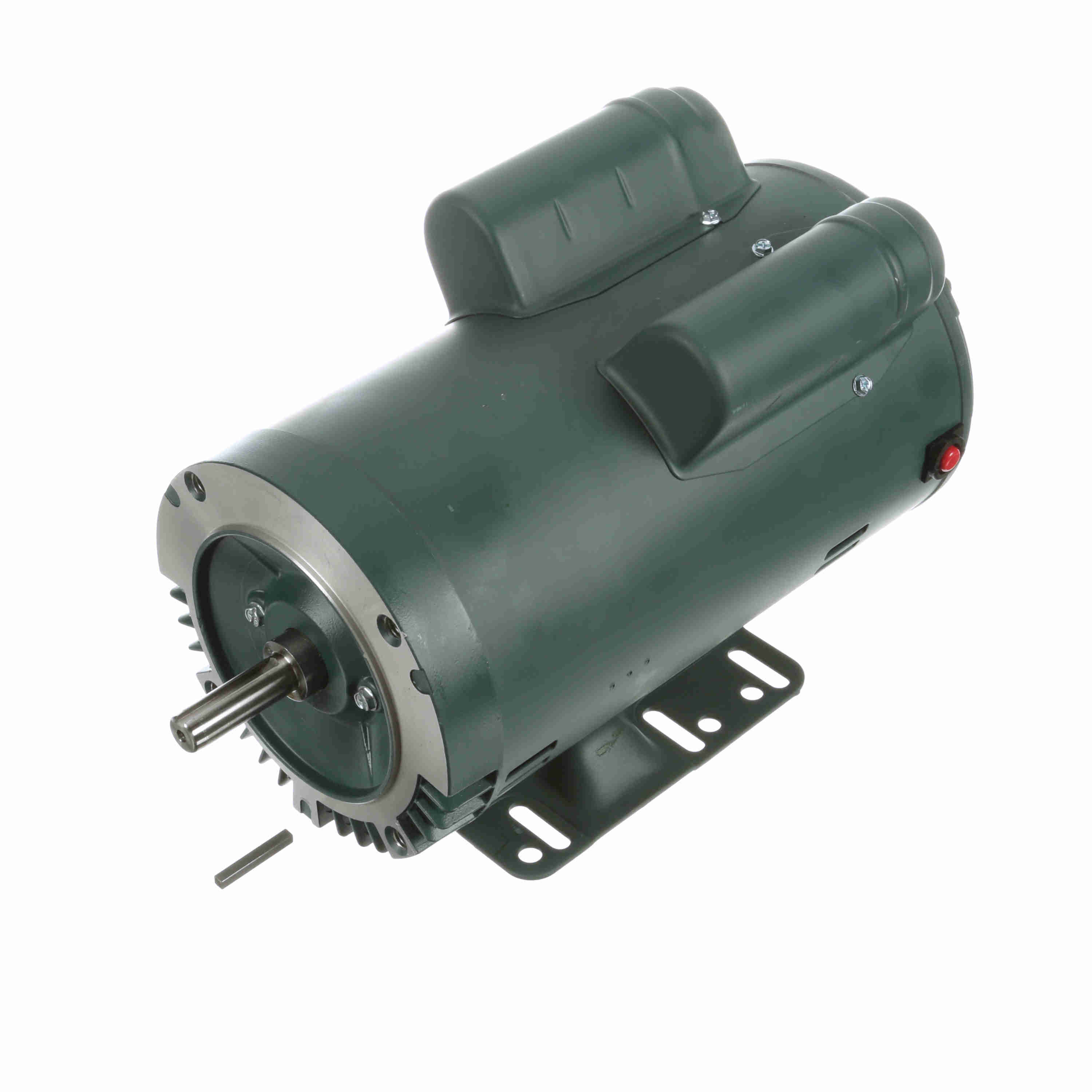

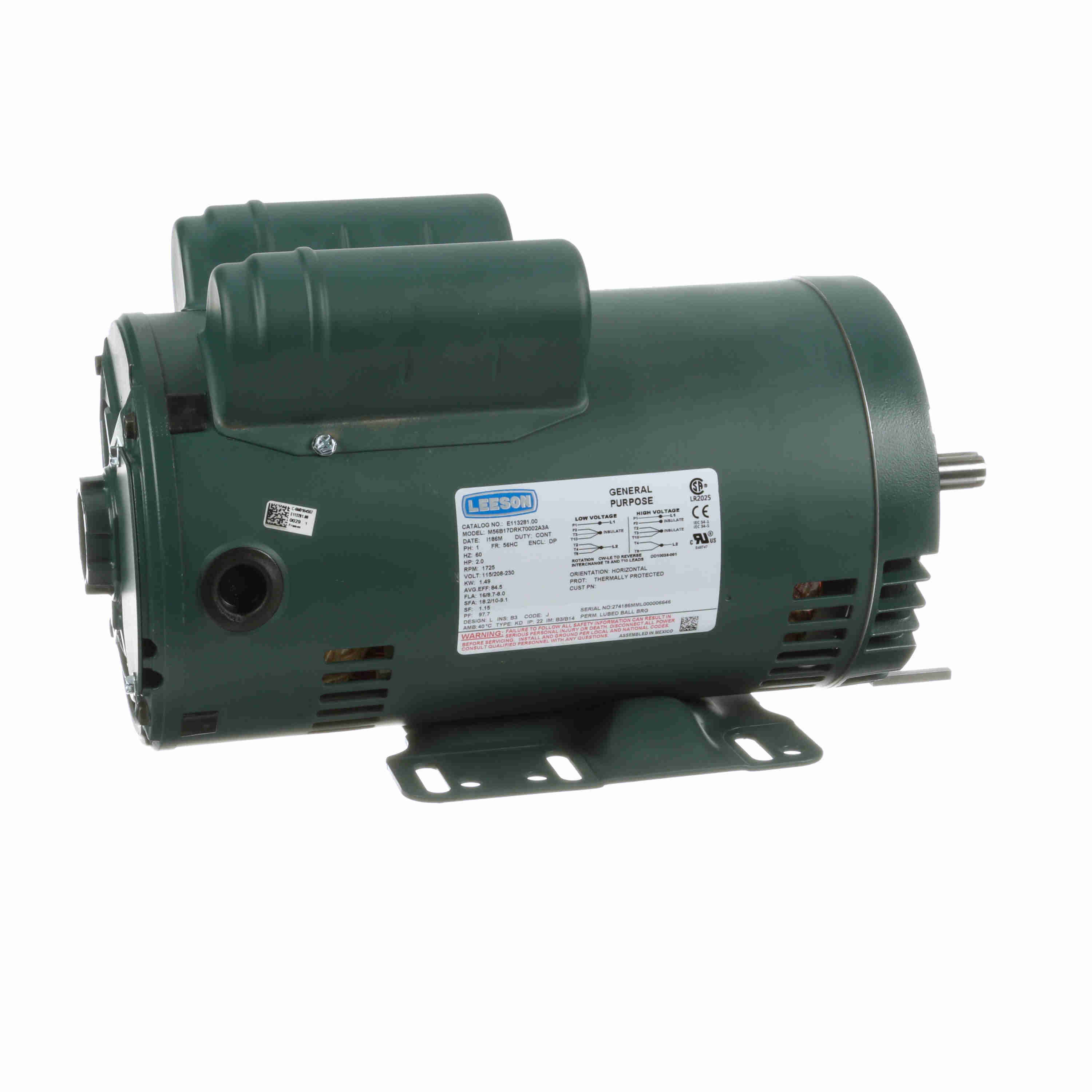

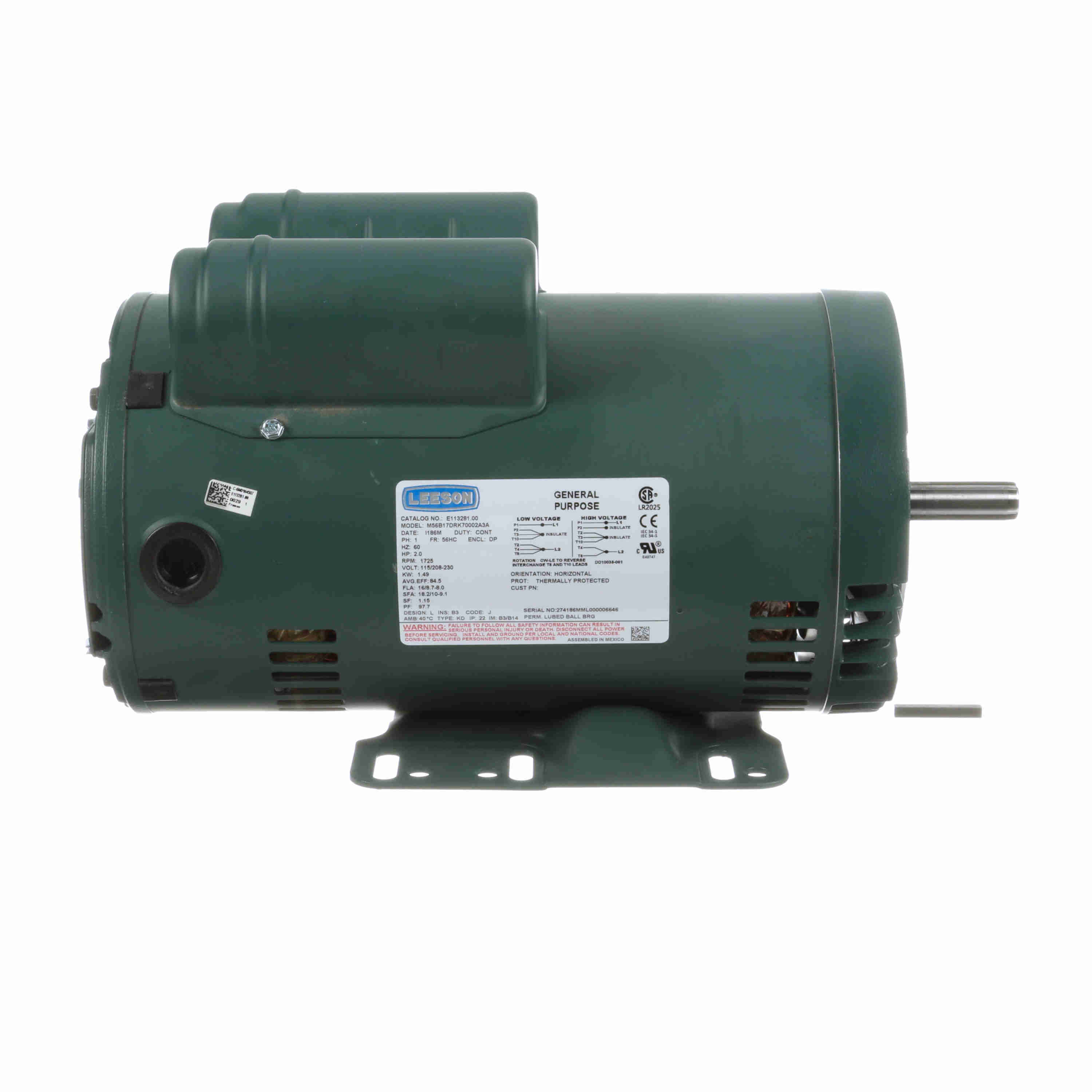

E113281.00 Leeson 2HP General Purpose ecoSaver Electric Motor, 1800RPM

MFG: Leeson Electric (Regal Rexnord)
MFG Part Number: E113281.00

Selected accessories will also be added to cart
$879.97 / Each
Quantity:
ODP, 56HC Frame, 115/208-230VAC Single Phase 60Hz, Rigid Base, C-Face, Rolled Steel, 5/8" Keyed Shaft

Features

  • Durable rolled steel construction
  • NEMA design B performance
  • Meets or exceeds NEMA service factors
  • Double shielded ball bearings
  • Continuous duty
  • Thermally protected ratings
  • UL recognized component listing and CSA certified

General Specifications

UPC:691720991176Weight:57.00 LB
Packaged Length:19 INPackaged Width:10.88 IN
Packaged Height:9.75 IN

Nameplate Specifications

Output HP:2 HpOutput KW:1.5 kW
Frequency:60 HzVoltage:115/208-230 V
Current:16.0/8.7-8.0 ASpeed:1725 rpm
Service Factor:1.15Phase:1
Efficiency:84.5 %Power Factor:97.7
Duty:ContinuousInsulation Class:B
Design Code:LKVA Code:J
Frame:56HCEnclosure:Drip Proof
Thermal Protection:ManualAmbient Temperature:40 ?C
Drive End Bearing Size:6205Opp Drive End Bearing Size:6203
UL:RecognizedCSA:Y
CE:YIP Code:22

Technical Specifications

Electrical Type:Capacitor Start Capacitor RunStarting Method:Across The Line
Poles:4Rotation:Selective Counterclockwise
Resistance Main:2.54 OhmsMounting:Rigid Base
Motor Orientation:HorizontalDrive End Bearing:Ball
Opp Drive End Bearing:BallFrame Material:Rolled Steel
Shaft Type:NEMA 56Overall Length:14.30 in
Frame Length:10.15 inShaft Diameter:0.625 in
Shaft Extension:1.88 inAssembly/Box Mounting:F1 ONLY

Speed & Load Characteristics

Type
Electric Motor
Input Phase
Single Phase
Speed
1800RPM
Enclosure
ODP
Horsepower
2HP
Frame
56HC
