/Products/Pumps/Ashland Pump/Effluent Pumps/460VAC/EP100M4-20 Ashland 1HP Effluent Pump, 460VAC 3 Phase

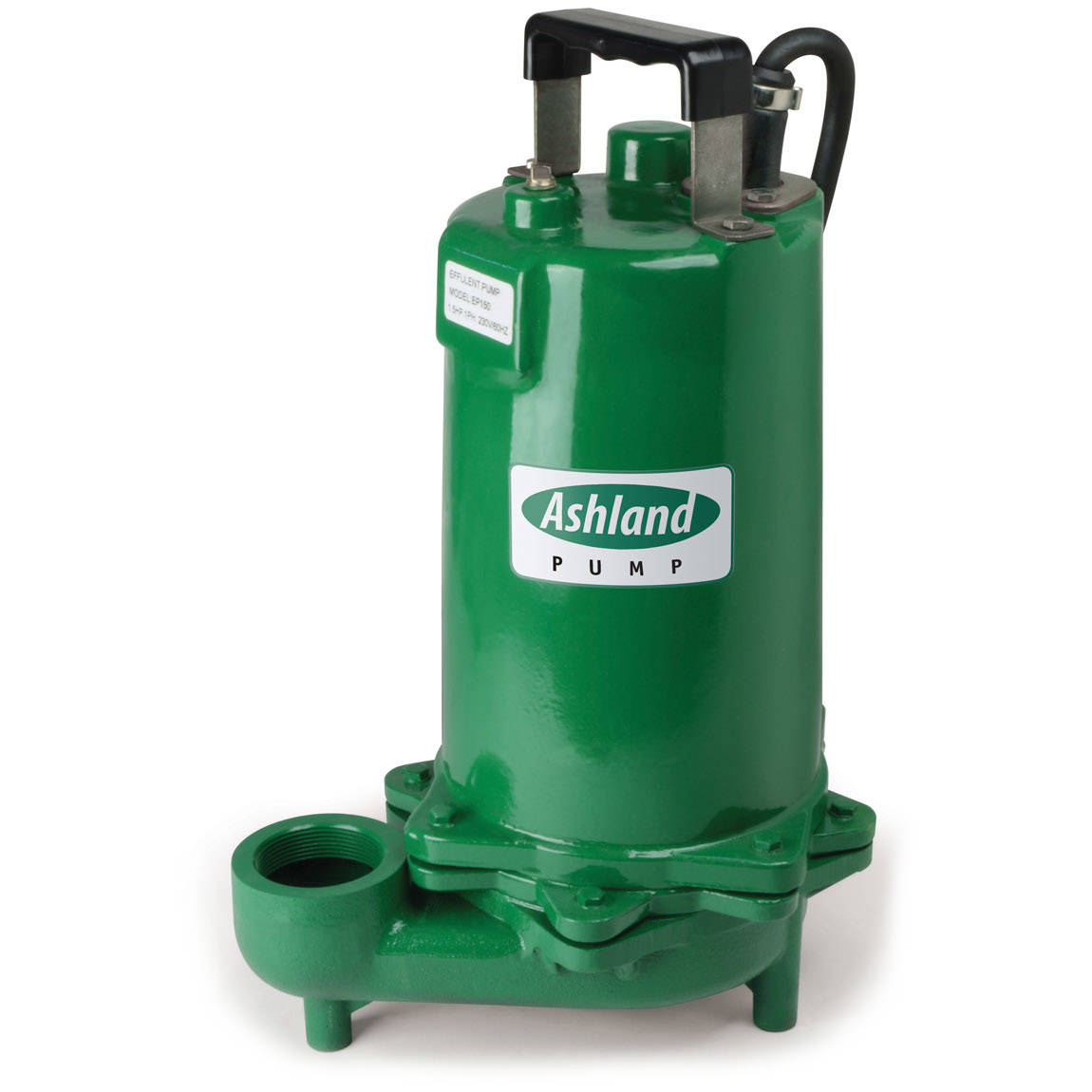

Click Image to Expand

Product ID: EP100M4-20

EP100M4-20 Ashland 1HP Effluent Pump, 460VAC 3 Phase

MFG: Ashland Pump
MFG Part Number: EP100M4-20

Selected accessories will also be added to cart
$1,307.25 / Each
Quantity:
Manual Switch, 2" NPT Discharge, Cast Iron Construction, 3450RPM

Features

  • Heavy duty cast iron construction
  • Oil-filled continuous duty rated PSC motor
  • Recessed vortex cast iron impeller
  • Upper and lower ball bearing design
  • 3/4? solids handling
  • 2? NPT discharge

Specifications

BrandAshland Pump
ModelEP100M4-20
Switch TypeManual
HP1HP
Voltage460VAC 60Hz 3 Phase
RPM3450 RPM
Full Load Amps3.0 Amps
NEMA Start CodeH
Cord TypeSOW
Cord Power Size16AWG/4C
Cord O.D.0.410-0.460"
Breaker Size5 Amps
Discharge Size2" NPT
Impeller Type2-Vane Cast Iron Closed
Cable Length20'
Maximum Liquid Temperature104?F
Intermittent
Acceptable pH Range6 - 8
Maximum Stator Temperature130?C
Sensor Cord Type16/3C
Motor HousingCast Iron
CasingCast Iron
ImpellerCast Iron
Motor ShaftStainless Steel 430
HardwareSST
O-RingsNBR
Mechanical SealSingle Mechanical
Carbon Ceramic
Upper Bearing6203
Lower Bearing6203

Dimensions

EP100 Pump Dimensions

Performance Curve

EP100 Performance Curve Graph

Links

Input Voltage
460VAC
Input Phase
3-Phase
Speed
3450RPM
Horsepower
1HP
Type
Effluent Pump
Color
Green
