/Products/Electric Motors/3 Phase/Marathon 3-Phase Electric Motors/Globetrotter General Purpose/ODP, Rigid Base/GT0010A Marathon 3HP Globetrotter Electric Motor, 1800RPM
Click Image to Expand

Product ID: GT0010A

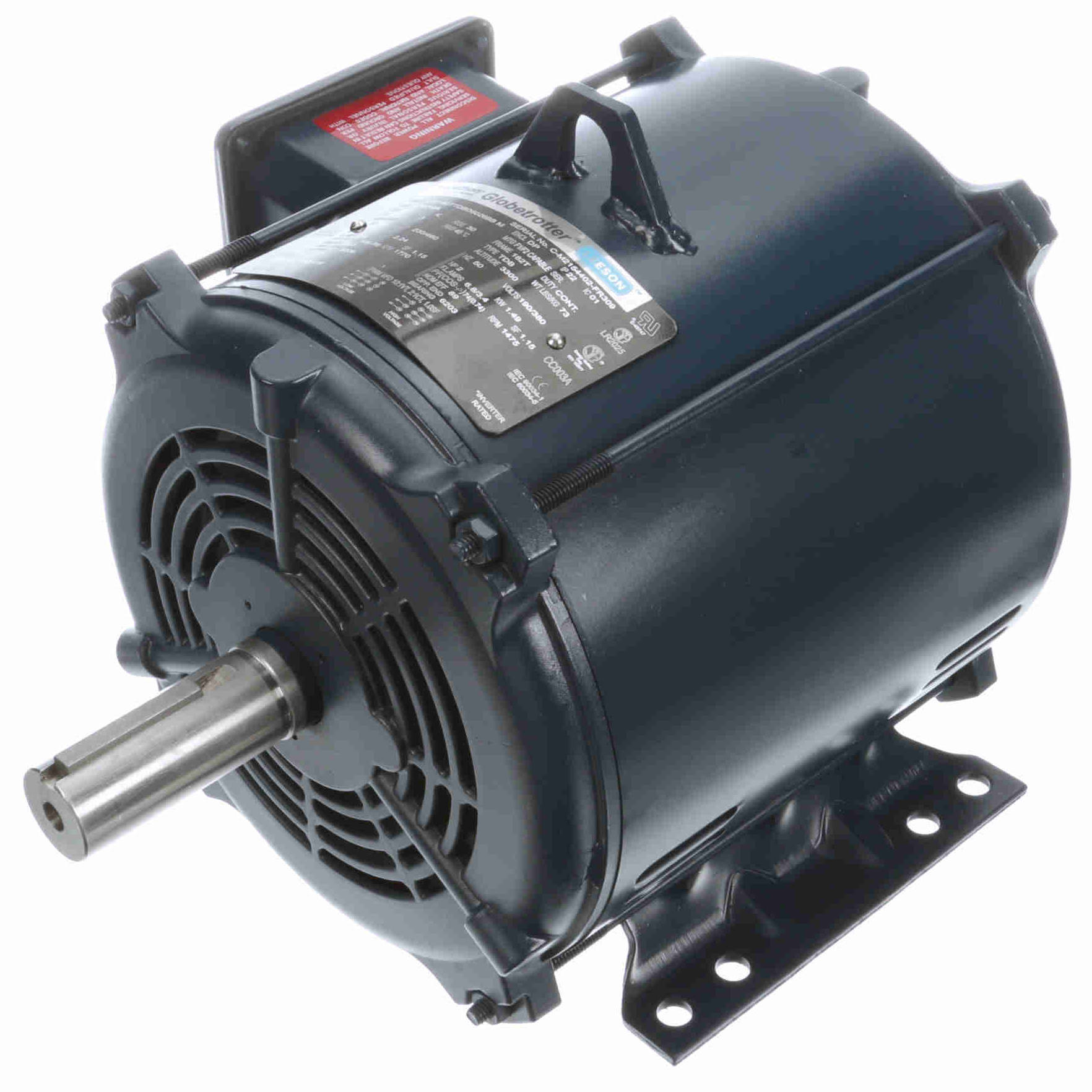

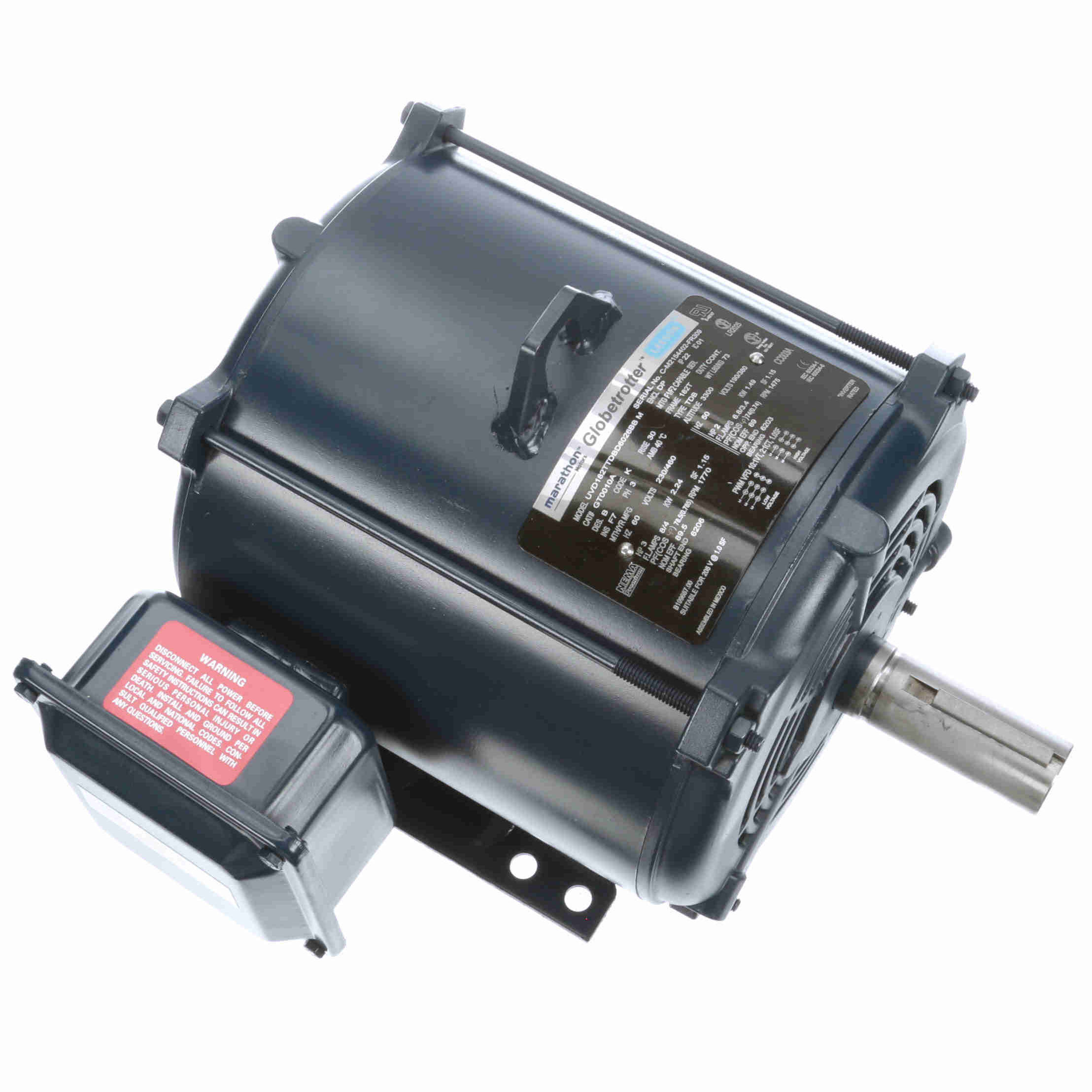

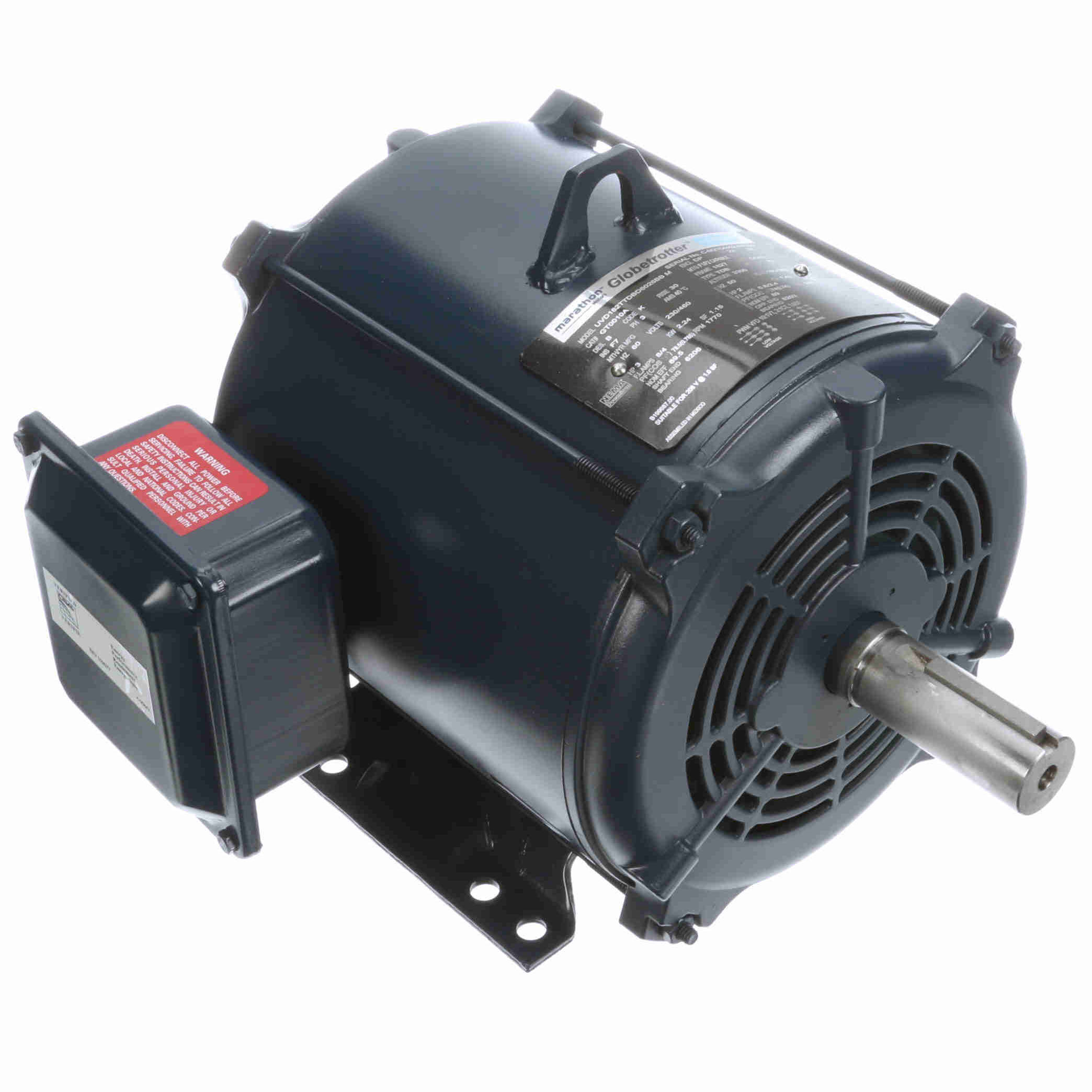

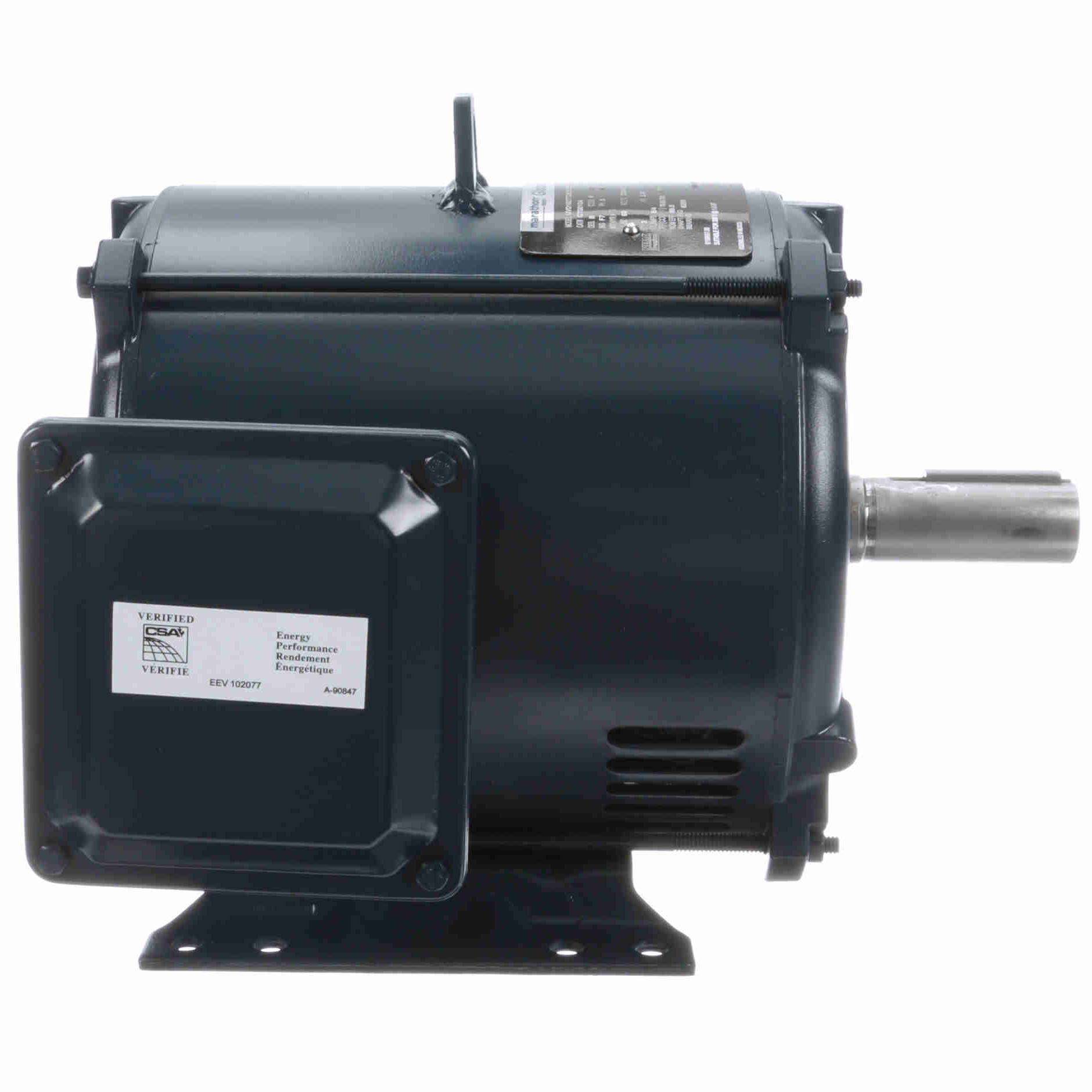

GT0010A Marathon 3HP Globetrotter Electric Motor, 1800RPM

MFG: Marathon Electric
MFG Part Number: GT0010A

Selected accessories will also be added to cart
$409.97 / Each
Quantity:
ODP, IP22, 182T Frame, 230/460VAC 60Hz 3-Phase, 182TTDBD6026, Rigid Base, Rolled Steel, 1-1/8" Keyed Shaft

Features

  • Meets or exceeds NEMA Premium? efficiencies
  • Inverter duty 10:1 variable torque and 2:1 constant torque
  • 1.15 Service Factor on sinewave, 1.0 Service Factor on IGBT power
  • Class F insulation
  • Standard assembly F1, reversible to F2 assembly
  • Dual frame mounting holes

General Specifications

UPC:722856068804Weight:73.00 LB
Packaged Length:15.07 INPackaged Width:14.37 IN
Packaged Height:12.83 IN

Nameplate Specifications

Output HP:3 HpOutput KW:2.2 kW
Frequency:60 HzVoltage:230/460 V
Current:8.0/4.0 ASpeed:1770 rpm
Service Factor:1.15Phase:3
Efficiency:89.5 %Power Factor:78.5
Duty:ContinuousInsulation Class:F
Design Code:BKVA Code:K
Frame:182TEnclosure:Drip Proof
Thermal Protection:NoAmbient Temperature:40 ?C
Drive End Bearing Size:6206Opp Drive End Bearing Size:6203
UL:RecognizedCSA:Y
CE:YIP Code:22

Technical Specifications

Electrical Type:Squirrel Cage Inverter RatedStarting Method:Line Or Inverter
Poles:4Rotation:Reversible
Resistance Main:4.12 OhmsMounting:Rigid Base
Motor Orientation:HorizontalDrive End Bearing:Ball
Opp Drive End Bearing:BallFrame Material:Rolled Steel
Shaft Type:TShaft Diameter:1.125 in
Assembly/Box Mounting:F1/F2 CAPABLE

Speed Characteristics

CurvepointCurrent (Amps)Current (%)Torque (ft-lbs)(%)Speed (RPM)Rated Output (KW)Power Factor (%)Rated Output (Hp)
1/328.00700.015.00170.06000.000.03.00
2/323.00575.019.00215.01,2000.000.03.00
Full Load4.00100.08.90100.01,7700.0078.53.00
Break-Down18.50460.026.70300.01,5500.0072.03.00
Pull-Up26.00650.015.30175.09000.000.03.00
No Load2.2056.00.000.01,8000.007.23.00
Locked-Rotor32.00800.018.20205.000.0049.03.00

Load Characteristics

% of Rated Load0 %25 %50 %75 %100 %115 %125 %
Current (Amps)2.202.402.803.304.004.504.80
Rated Output (KW)0.120.681.201.902.502.903.10
Efficiency (%)0.081.588.089.589.589.589.5
Power Factor (%)7.237.058.071.078.581.582.5
Speed (RPM)1,8001,7901,7851,7761,7701,7621,760
Temp. Rise @ FL0.00.00.00.030.040.050.0
Torque (ft-lbs)0.002.204.406.709.0010.3011.30
Type
Electric Motor
Speed
1800RPM
Horsepower
3HP
Input Phase
3-Phase
Enclosure
ODP
Frame
182T
