/Products/Electric Motors/DC/Leeson/Parallel Shaft Gearmotor/M1125069.00 Leeson 0.13HP Parallel Shaft DC Gearmotor, 24 RPM

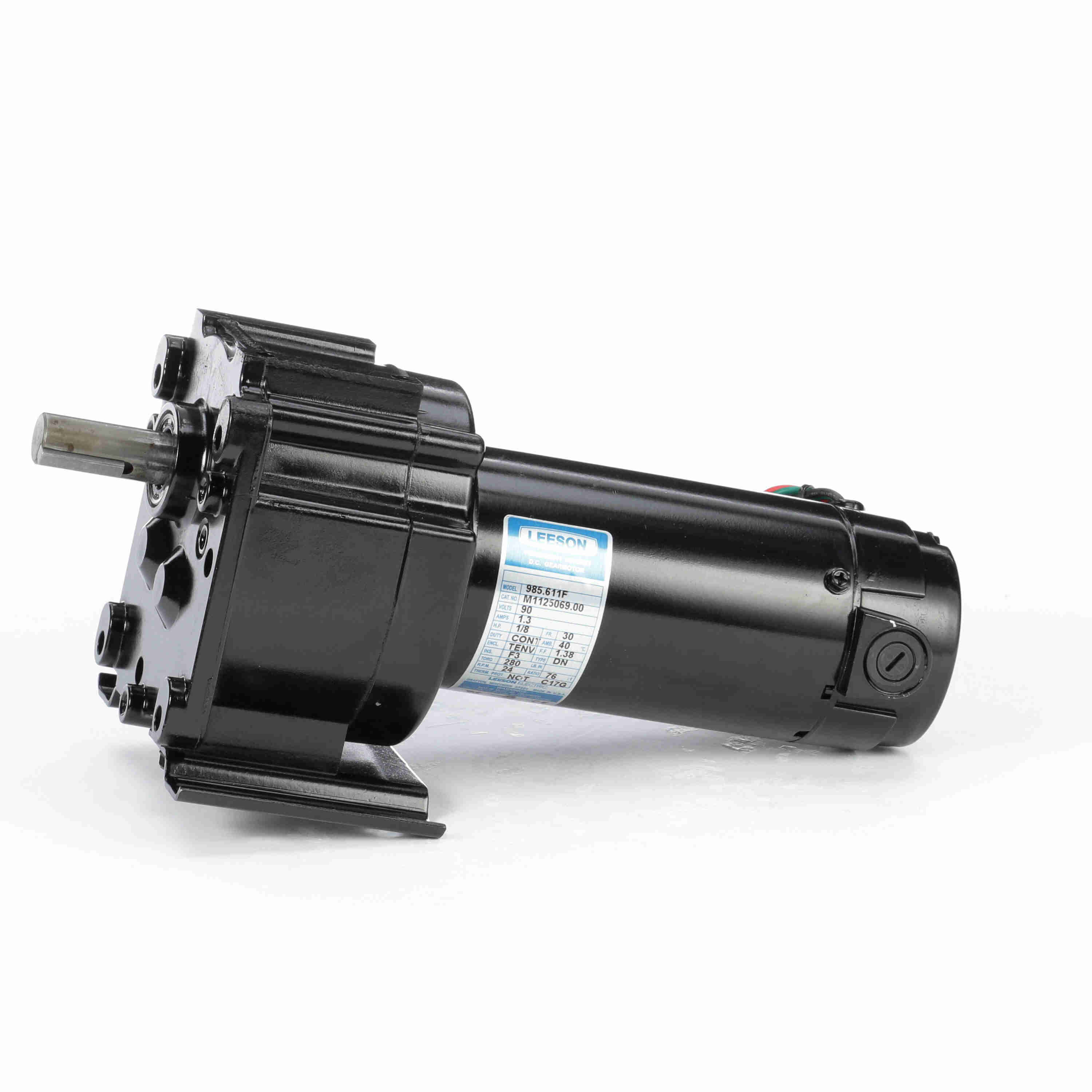

Click Image to Expand

Product ID: M1125069.00

M1125069.00 Leeson 0.13HP Parallel Shaft DC Gearmotor, 24 RPM

MFG: Leeson Electric (Regal Rexnord)
MFG Part Number: M1125069.00

Selected accessories will also be added to cart
$729.97 / Each
Quantity:
TENV, 30 Frame, 90VDC

Features

Features
  • Precision machined in-line steel gears
  • First stage steel helical gear followed by spur-type gears
  • Lubrication is permanent semi-fluid grease, reducing possibility of leakage
  • Output shafts have needle bearings for high load capacities
  • Shafts are hardened steel
  • Optional conduit box available

General Specifications

General Specifications
Model :985.611F Catalog No :M1125069.00
Part Description :...76:1.24RPM.280LBIN.1/8HP.30...DC GEARMOTORS SUB-FHP.90V.DC.TENV Category :P300 Series
Stock :No

Nameplate Specifications

Nameplate Specifications
Output HP :0.13 Hp Output KW :0.10 kW
Voltage :90 V Current :1.3 A
Speed :24 rpm Service Factor :1
Efficiency :67.2 % Duty :Continuous
Insulation Class :F Frame :30
Enclosure :Totally Enclosed Non Ventilated Overload Protector :No
Ambient Temperature :40 °C Drive End Bearing Size :6000
Opp Drive End Bearing Size :6000 UL :Recognized
CSA :Y CE :Y

Technical Specifications

Technical Specifications
Rotation :Reversible Mounting :Special
Shaft Type :Parallel Overall Length :11.45 in
Frame Length :4.91 in Shaft Diameter :0.625 in
Shaft Extension :1.5 in UPC :691720091128
Weight :14.00 LB
